FANUC FANUC ARC MATE 120iB MIG WELDING CELL WITH LINCOLN 455M AND INDEX TABLE 5' X 8' RJ3iB CONTROL

FANUC FANUC ARC MATE 120iB MIG WELDING CELL WITH LINCOLN 455M AND INDEX TABLE 5' X 8' RJ3iB CONTROL

Contact us for price

Available quantity: 1

Imlay City, MI

Description

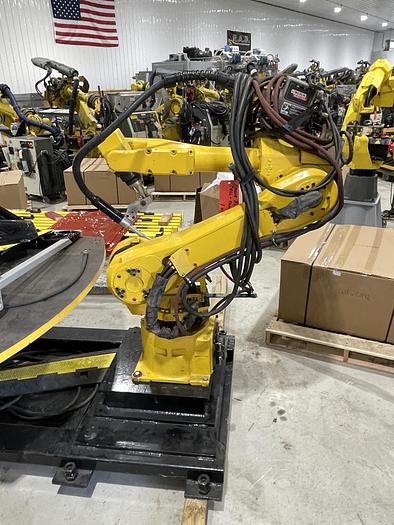

1-USED FANUC ARC MATE 120iB MIG WELDING CELL WITH 5' X 8' INDEX TABLE

ROBOT SERIAL NUMBER F76447

DATE OF MFG. 01/2006

STK#104838

==========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

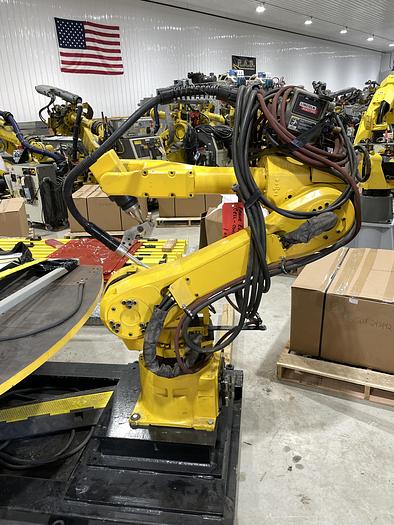

Suitable for high-speed welding and cutting processes, the Fanuc ARC Mate 120iB is a six-axis robotic arm that is servo-driven. The Fanuc 120iB RJ3iB welding robot provides accurate and consistent path performance based on its simple and reliable construction.


NOTES:

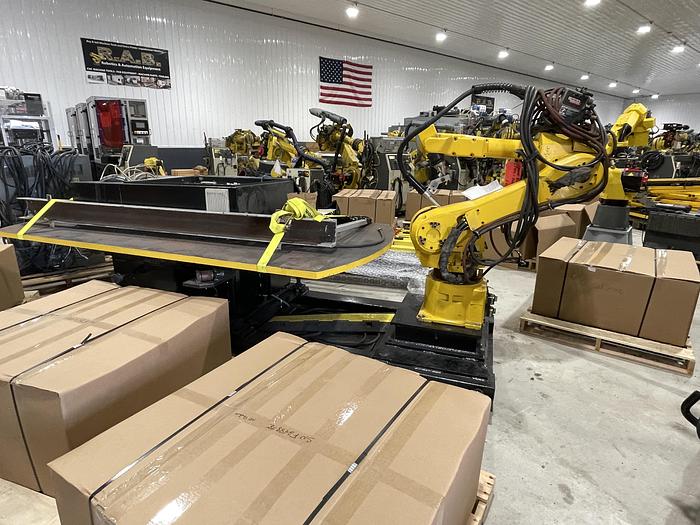

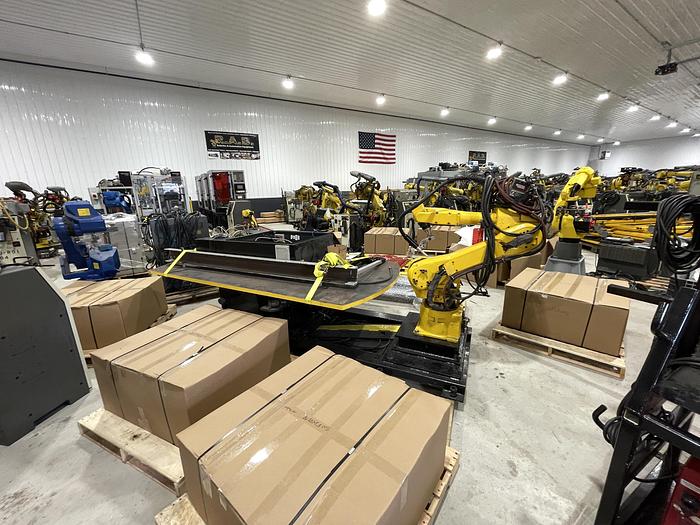

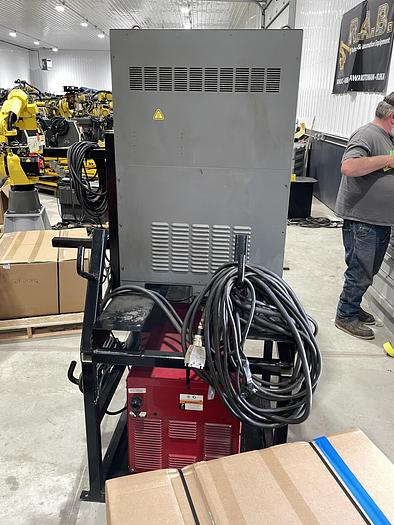

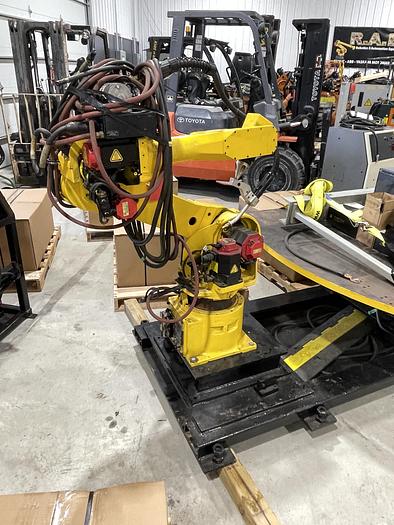

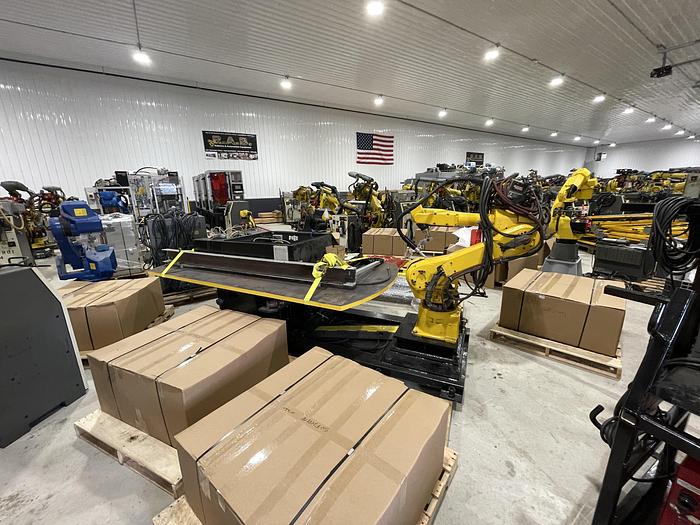

CELL IS IN TWO MAIN COMPONENT PIECES. THERE IS FABRICATED BASE THAT BOTH THE ROBOT ARM

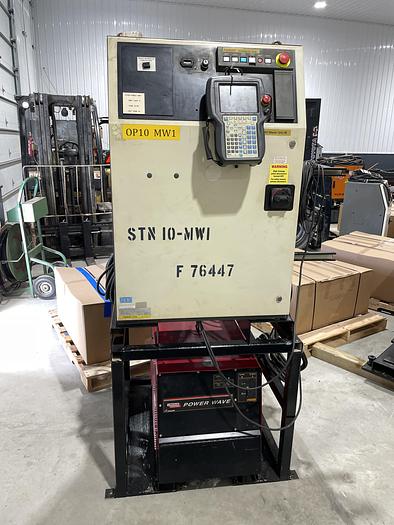

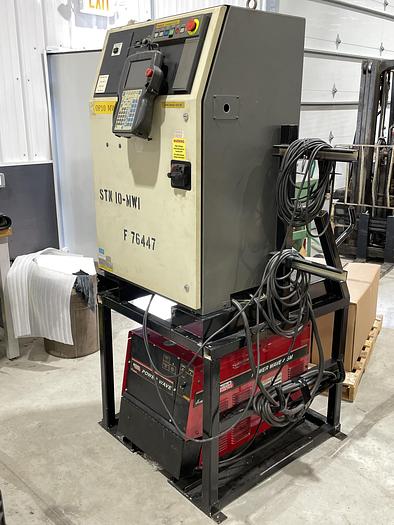

AND INDEX TABLE IS MOUNTED TO. THERE IS A SEPARATE FABRICATED FRAME THAT HOLDS THE ROBOT

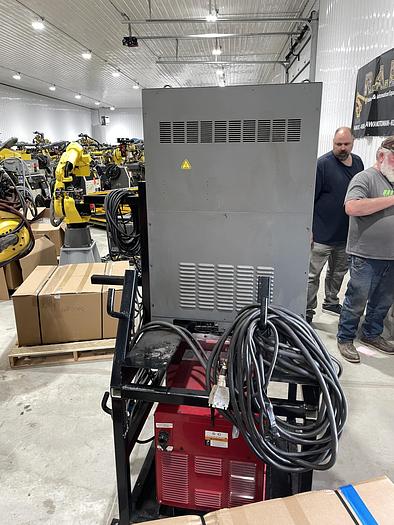

CONTROLLER WITH THE LINCOLN 455M WELDING POWER SUPPLY BENEATH THE ROBOT CONTROLLER.

THE FENCING AND SUPPORT POSTS ARE ON A SEPARATE SKID TO BE LOADED OUT WITH CELL.


Robot Specifications:

Axes: 6

Payload: 20kg

H-Reach: 1667mm

Repeatability: ±0.08mm

Robot Mass: 220kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)


Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°


Applications:

MIG Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

MAG Welding Robots

Welding Automation Robots

Arc Welding Robots


EQUIPPED WITH:

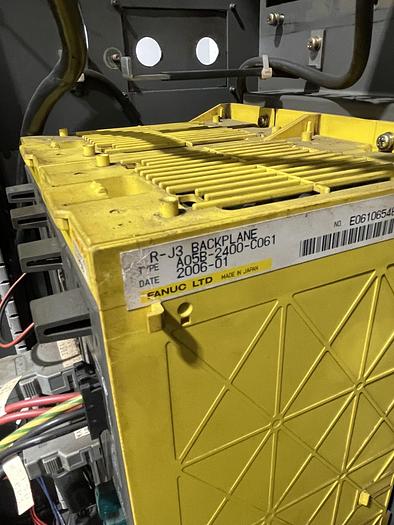

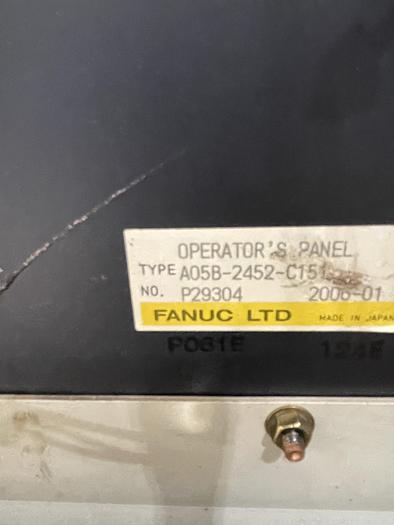

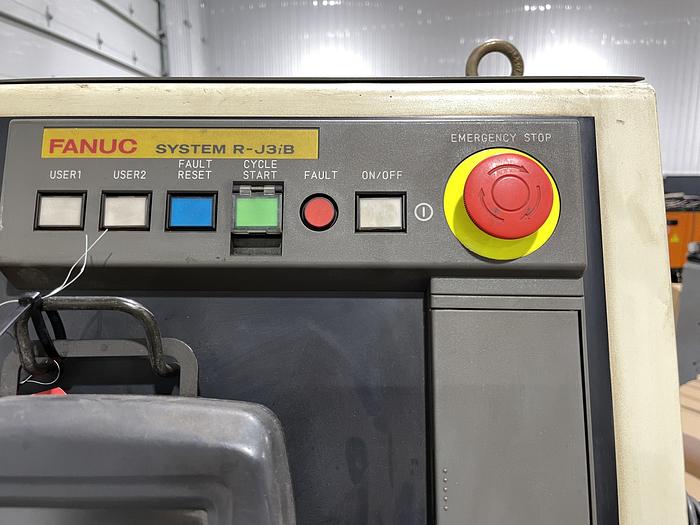

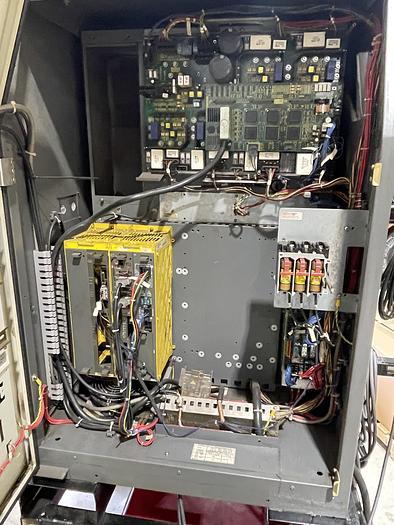

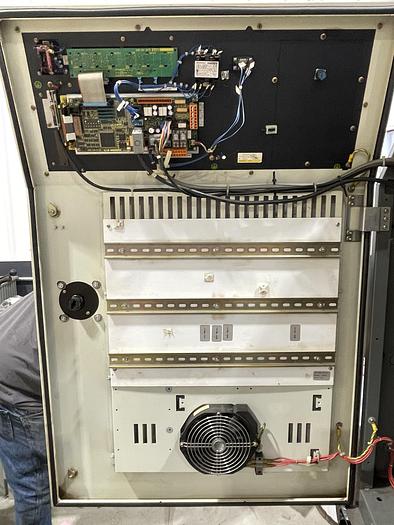

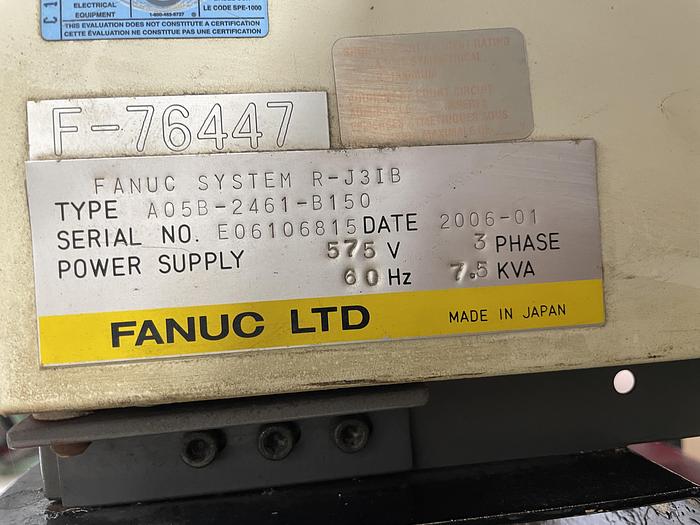

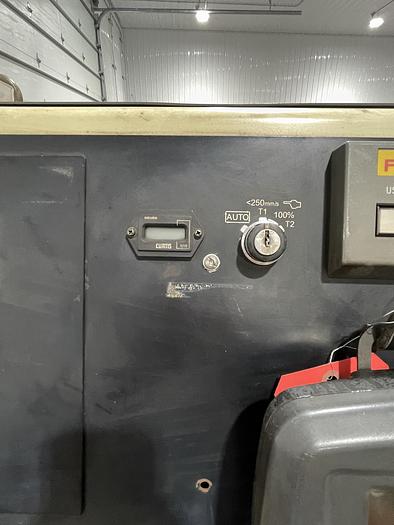

FANUC RJ3IB ROBOT CONTROLLER

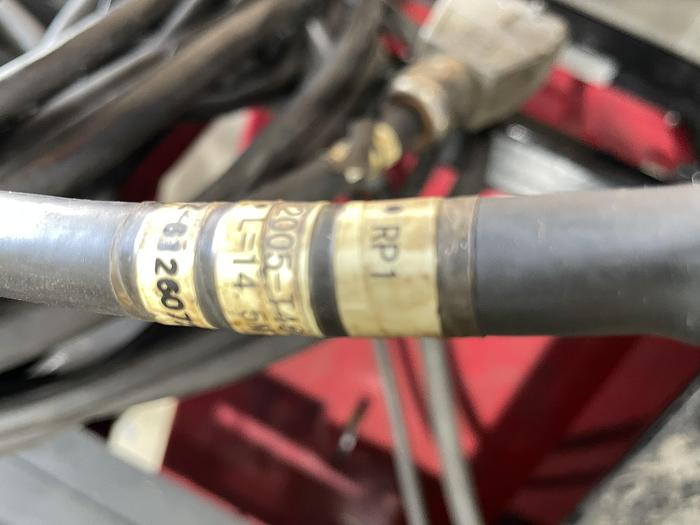

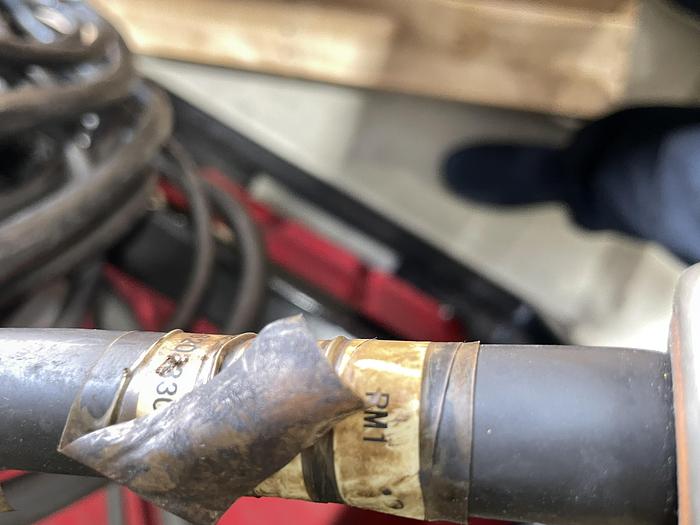

FANUC ROBOT CONNECTION CABLES

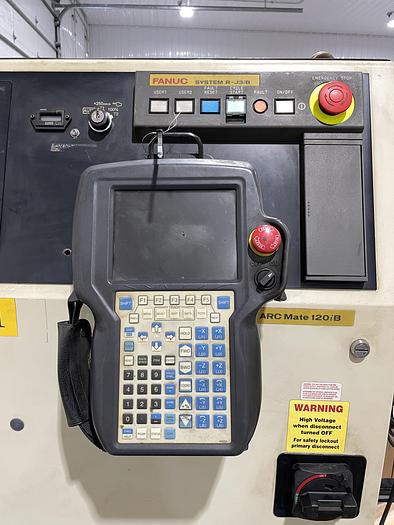

FANUC TEACH PENDANT

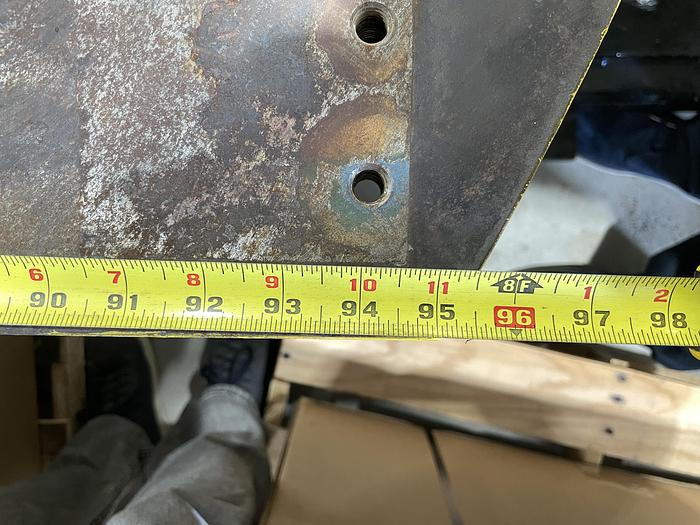

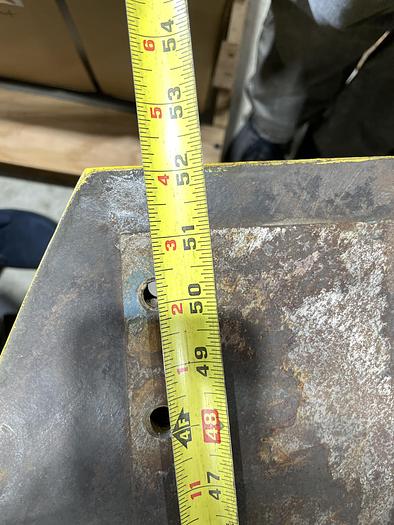

INDEX TABLE WITH WORKING SURFACE OF 5' X 8'

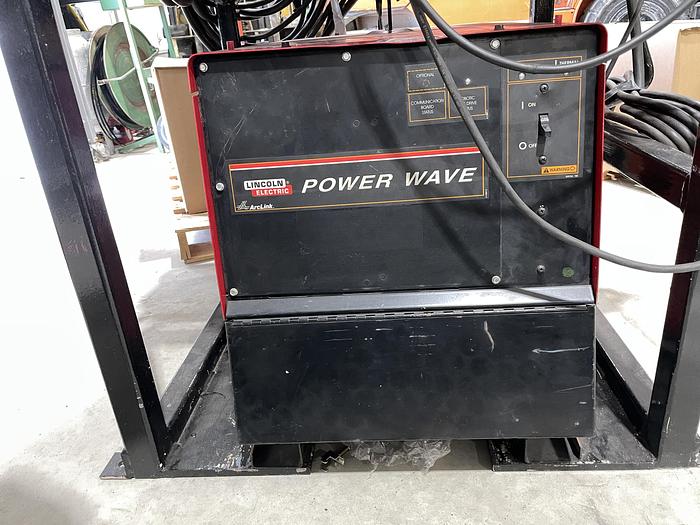

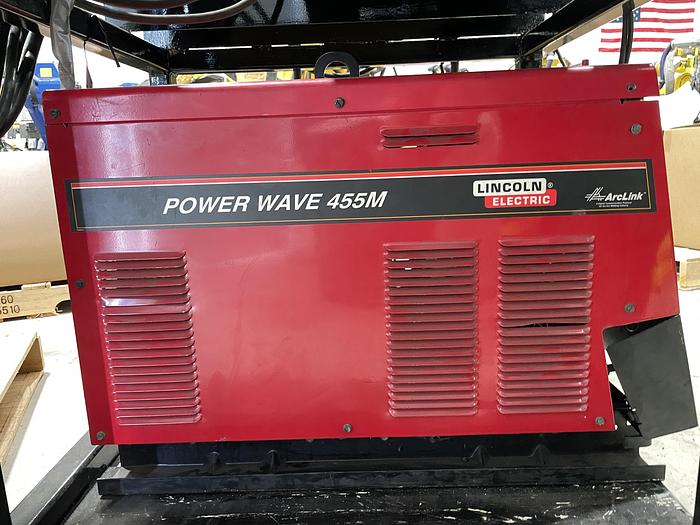

LINCOLN 455M MIG WELDING POWER SUPPLY

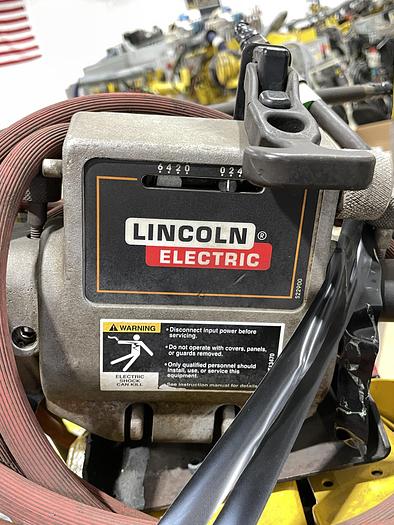

LINCOLN WIRE FEEDER MOUNTED ON REAR OF ROBOT ARM

WELD GUN

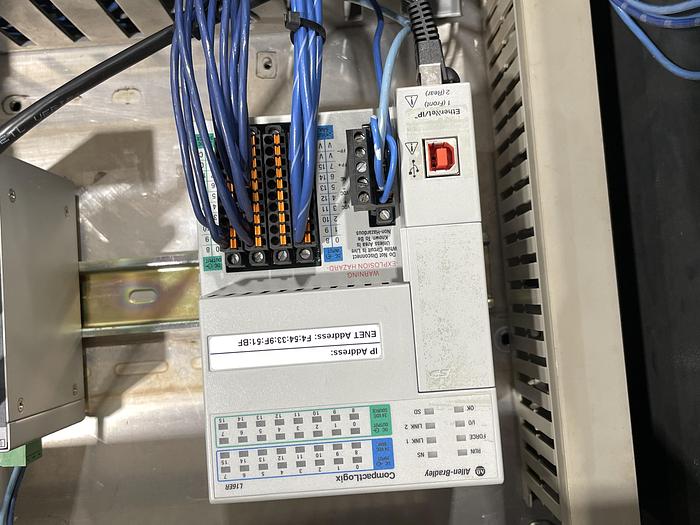

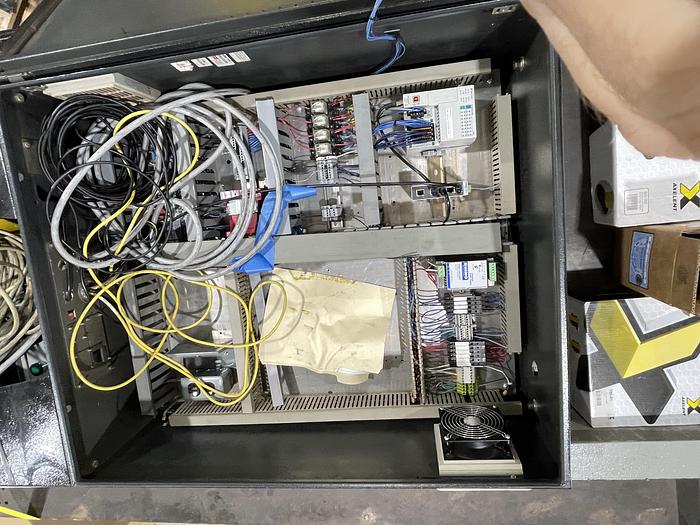

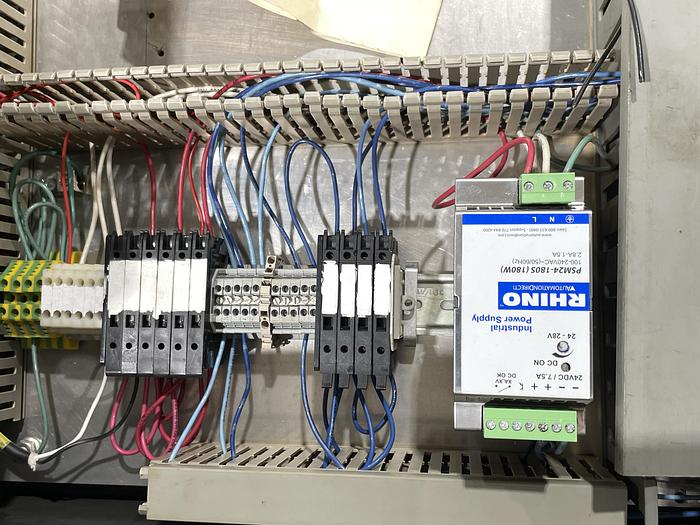

PLC CABINET WITH HMI FOR TIEING THE CELL TOGETHER

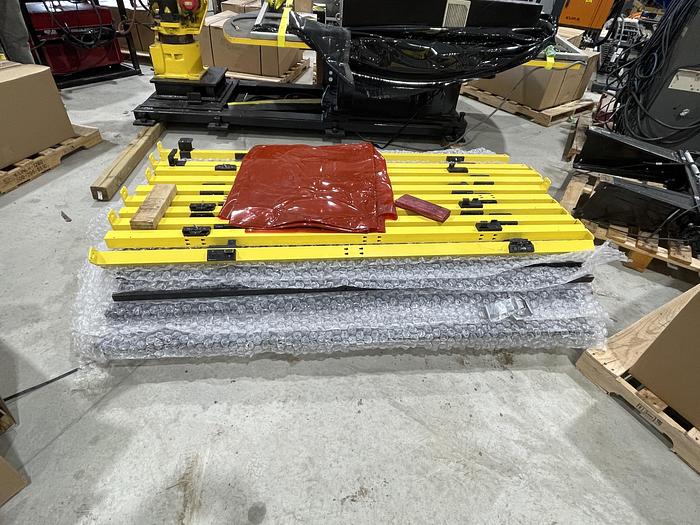

SAFETY FENCING

AND LIGHT CURTAIN


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC ARC MATE 120iB
ConditionUsed
Serial NumberF76447
Stock Number104838
Axes6
Payload20kg
H-Reach1667mm
Repeatability±0.08mm
Robot Mass220kg
StructureArticulated
MountingFloor, Inverted, Angle
ManufacturerFANUC
ModelFANUC ARC MATE 120iB MIG WELDING ROBOT CELL WITH WIRE FEEDER, GUN, LINCOLN 455M, INDEX TABLE
