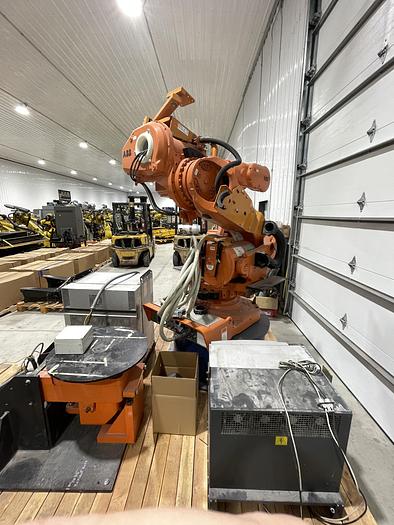

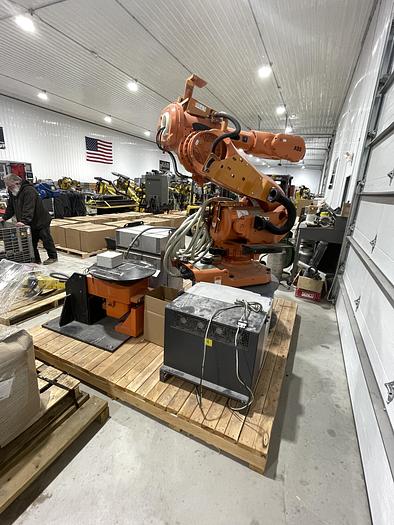

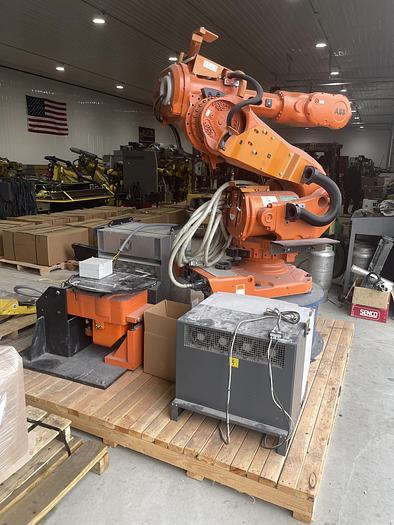

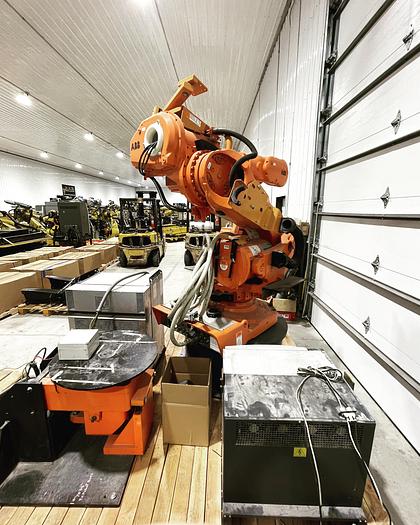

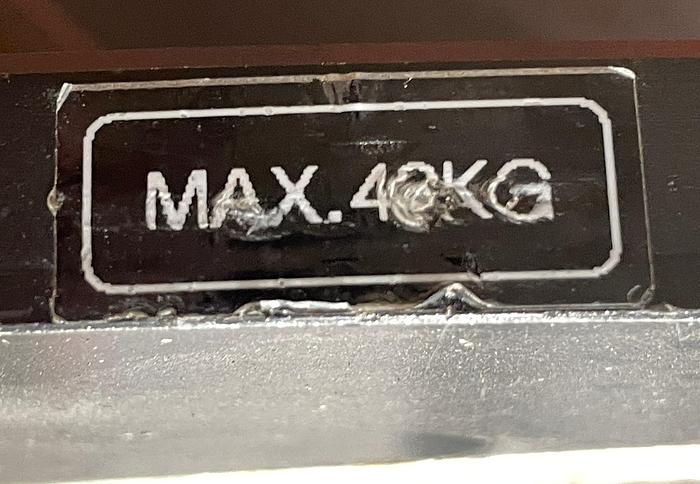

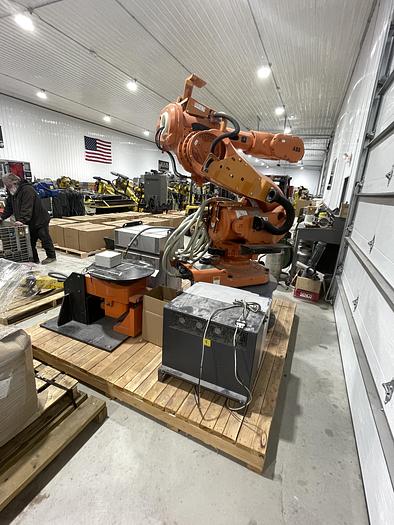

ABB IRB 6600-225/2.55 ROBOT CELL WITH 7TH & 8TH AXIS 40KG INDEXING TABLE #104842

1-USED ABB IRB 6600-225/2.55 ROBOT CELL WITH 7TH & 8TH AXIS 40KG ROTARY TABLE

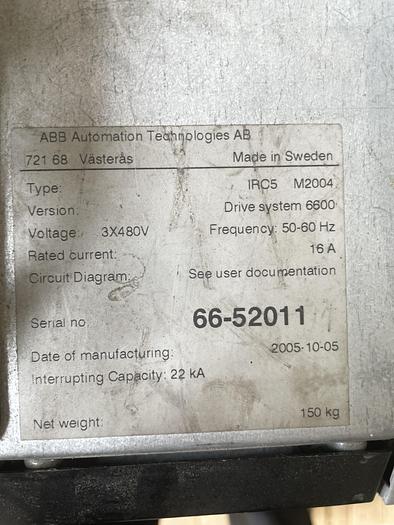

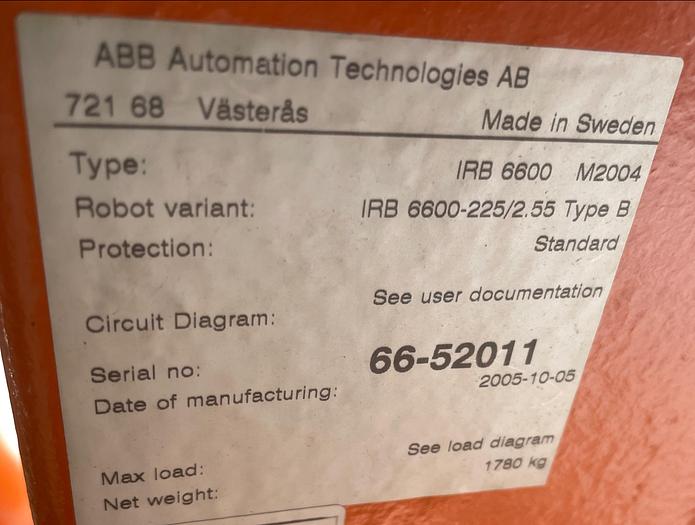

SERIAL NUMBER 66-52011

DATE OF MANUFACTURE 10/2005

STK#104842

==============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

THIS ROBOT HAS VERY LITTLE USE

The ABB IRB 6600 robotics system is very flexible with bend-over-backwards capability. Available in five versions with a handling capacity of up to 225 kg, reach of up to 3200 mm, and a wrist torque of up to 1320 Nm. The IRB 6600 IRC5 comes with a built-in Service Information System, allowing for it to easier plan service and maintenance.

Robot Specifications:

Axes: 6

Payload: 225kg

H-Reach: 2550mm

Repeatability: ±0.1mm

Robot Mass: 1,780 kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 100 °/s (1.75 rad/s)

J2 90 °/s (1.57 rad/s)

J3 90 °/s (1.57 rad/s)

J4 150 °/s (2.62 rad/s)

J5 120 °/s (2.09 rad/s)

J6 190 °/s (3.32 rad/s)

Robot Motion Range:

J1 ±180°

J2 +80° - 65°

J3 +60° - 180°

J4 ±300°

J5 ±120°

J6 ±300°

Applications:

Grinding Robots

Laser Cutting Robots

Machine Tending Robots

Material Handling Robots

Plasma Cutting Robots

Sanding Robots

Spot Welding Robots

EQUIPPED WITH:

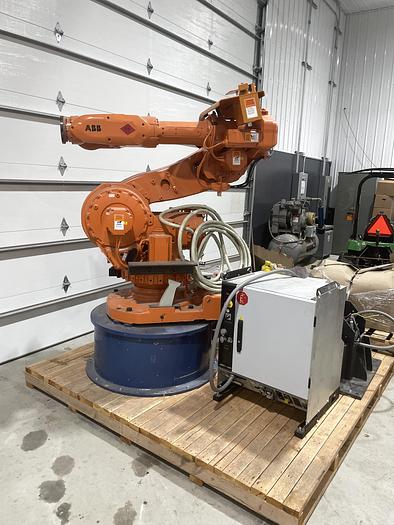

ABB IRB 6600-225/2.55 ROBOT

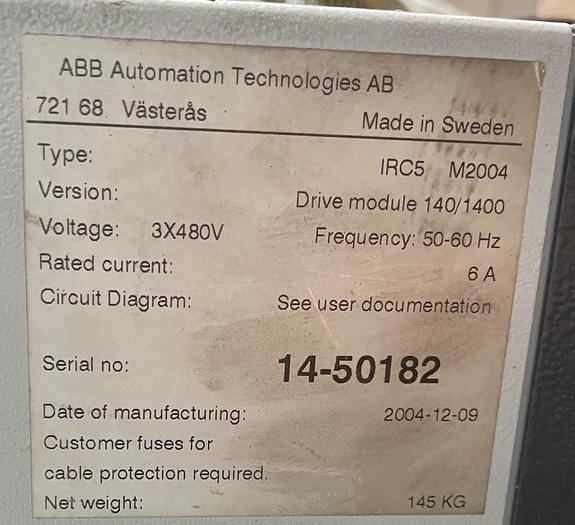

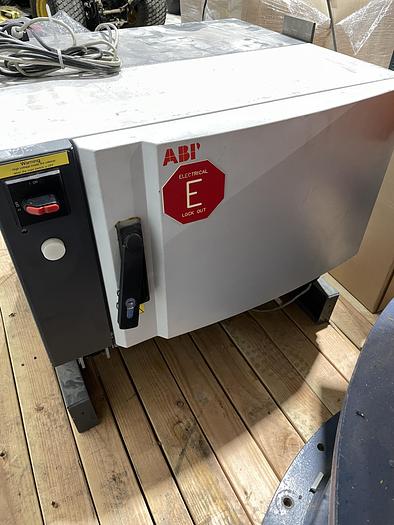

ABB IRC 5 CONTROLLER

ABB ROBOT CONNECTION CABLES

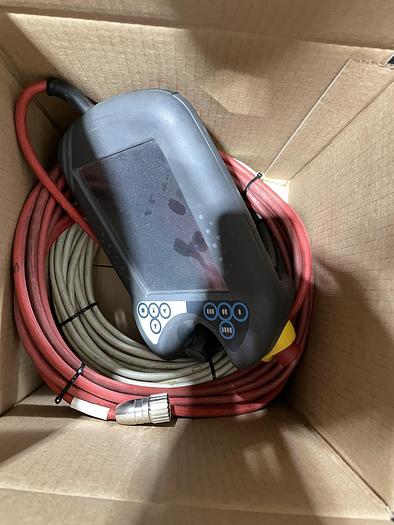

ABB TEACH PENDANT

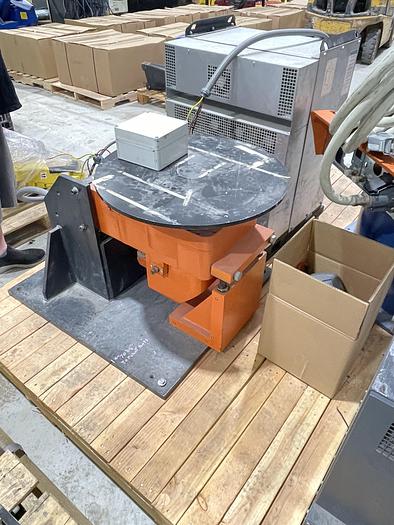

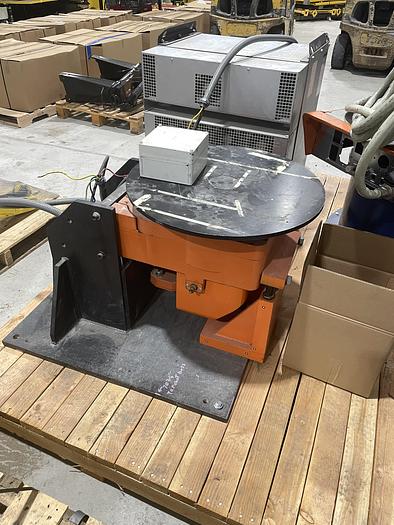

ABB 2 AXIS INDEX TABLE TILT & ROTATE

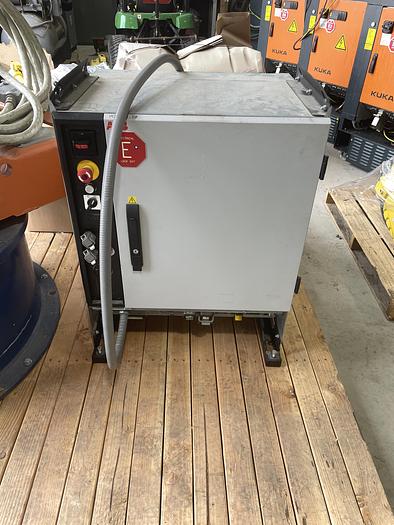

ABB IRC 5 CONTROL CABINET TO RUN ABB 2 AXIS TABLE

FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
