DENSO VS-6577M 6 AXIS CNC ROBOT 7 KG X 854MM REACH RC8 CONTROLLER MINT

Contact us for price

Almont, MI

orCall 586-752-0090

Description

1-USED DENSO MODEL VS-6577M 6 AXIS CNC ROBOT 7KG X 854MM REACH

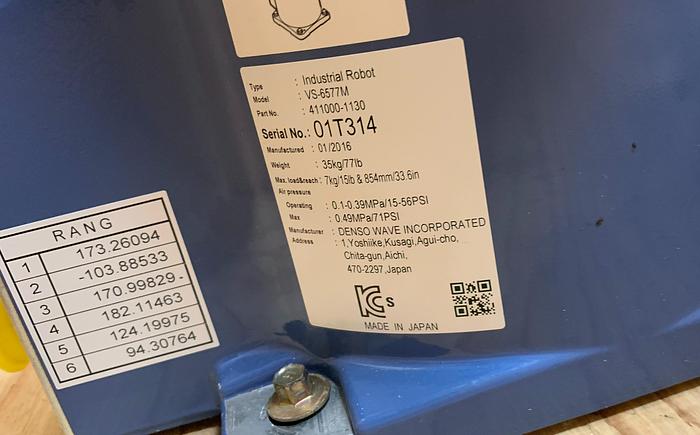

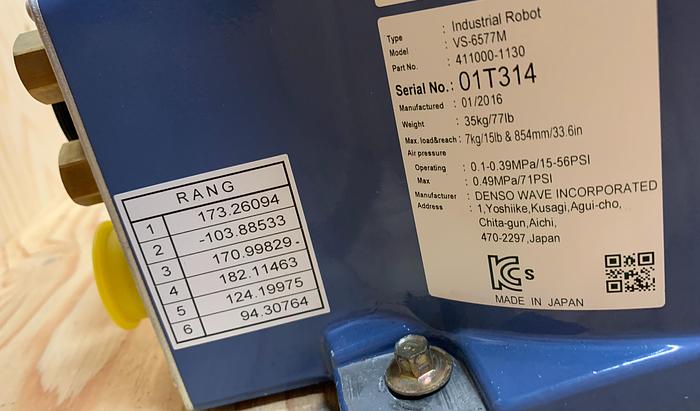

SERIAL NUMBER 01T314
DATE OF MFG. 01/2016
STK#104039
==============================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

DENSO 6-AXIS ROBOTS VS-6556 / 6577
VS SERIES 854 mm
The VS series VS-6577 provides high speed and high power in a compact, slim body. A wide range of options are also available that allow operation in a range
of environments.
❚ Position repeatability : from ±0.02 mm to ±0.03 mm
❚ Cycle times : 0.49 s and 0.59 s
❚ Maximum composite speed : from 7,600 mm/s up to 8,200 mm/s
❚ Maximum payload : 7 kg
❚ Arm reach 854 mm
❚ Mounting options : floor and ceiling
❚ ANSI and CE compliance
Controller: RC8 Supported on the standard type
❚ cUL authorized product (UL standards / Canada CSA
standards) also available
300 mm Cycle time
One cycle is the time taken to move an object at a height of 25 mm between two points 300 mm apart.
POSITION DETECTION ABSOLUTE ENCODER
TOTAL ARM LENGTH 770 MM
ARM OFFSET J1 ROTATION 75MM
J3 FOREARM 90MM
ROBOT MOTION RANGE IN DEGREES:
J1 +/- 170
J2 +135 -100
J3 +169 -119
J4 +/-190
J5 +/-120
J6 +/-360
MAXIMUM COMPOSITE SPEED 7600MM/SEC
POSITION REPEATABILITY CENTER OF TOOLING +/- 0.03MM

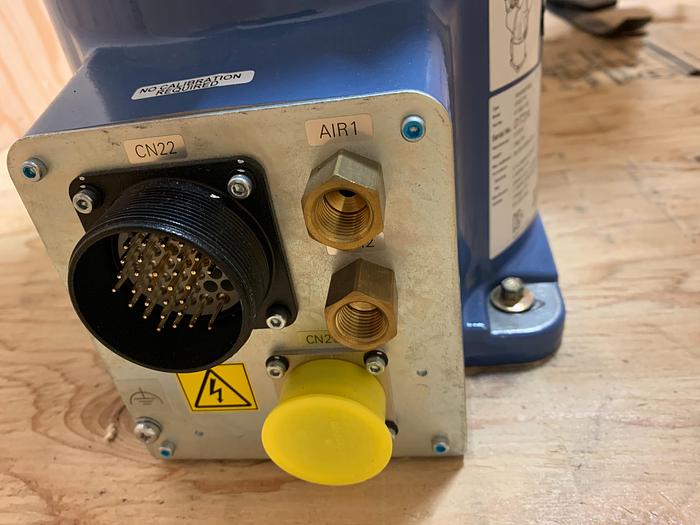

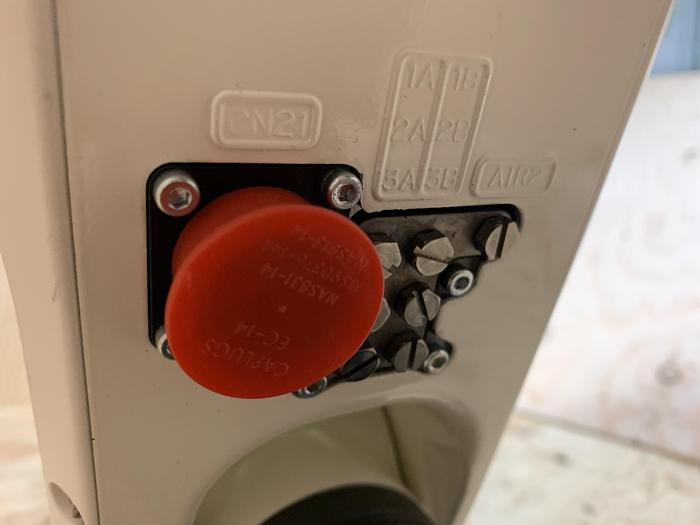

USER AIR PIPE 7SYSTEMS, 3 × solenoid valves (2 position, double solenoid)
USER SIGNAL LINE 10 (for proximity sensor signals, etc.)
PROTECTION GRADE Dust & splash proof type : Wrist IP65 / unit IP54 (option) Cleanroom type : class 10 / 100
WEIGHT 36 KG

EQUIPPED WITH:

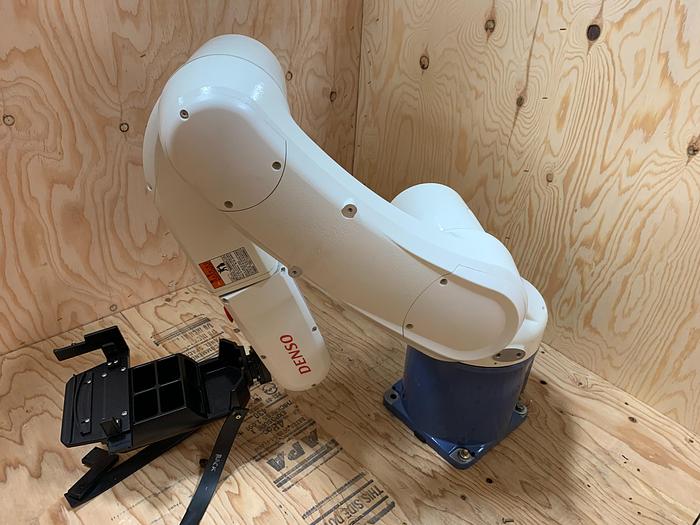

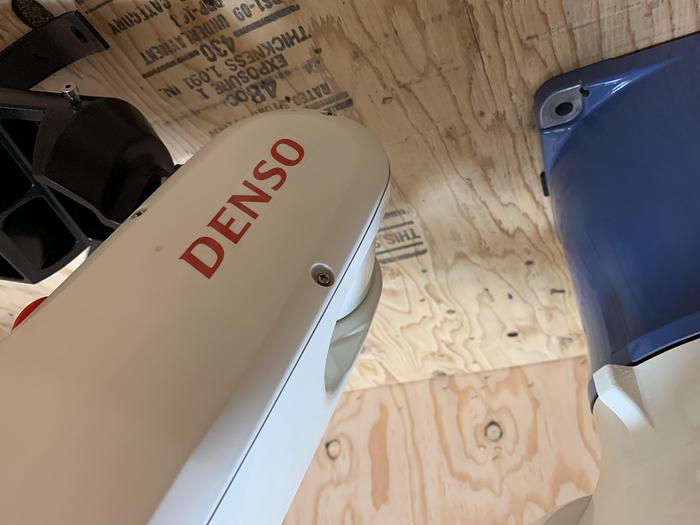

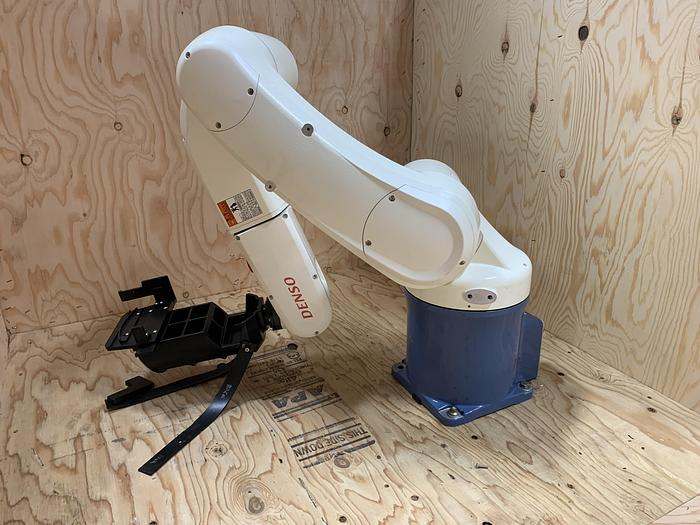

ARM VS-6577M

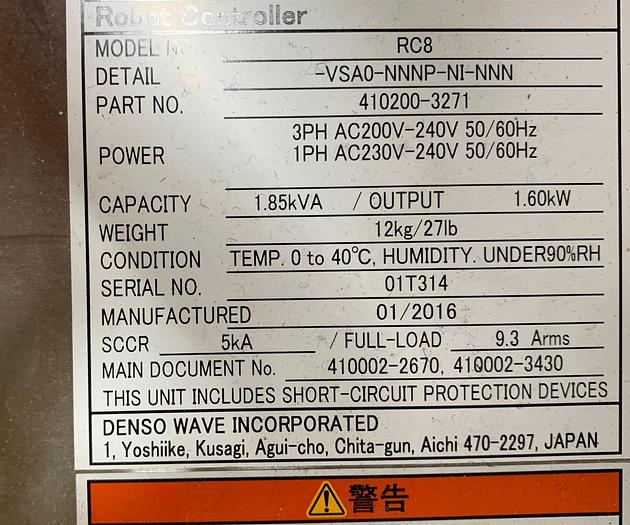

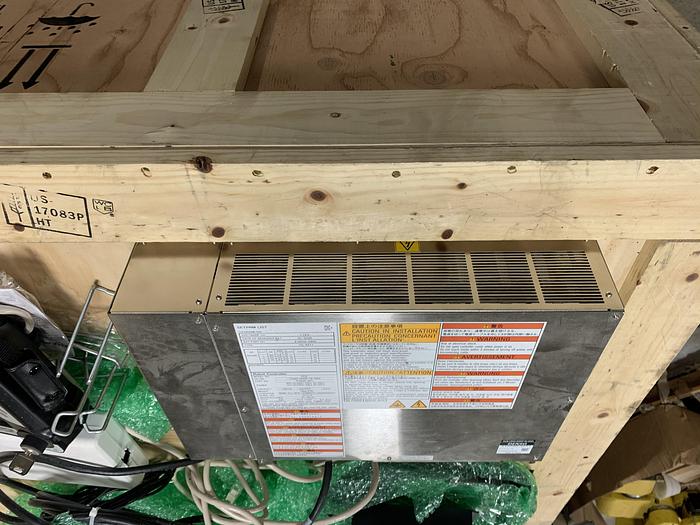

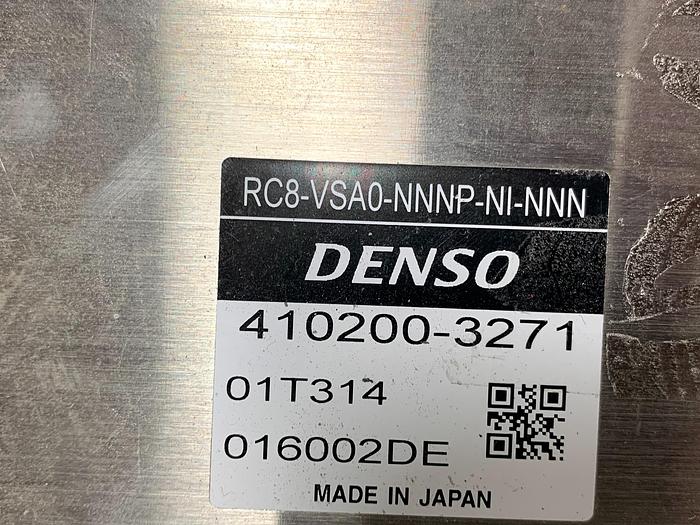

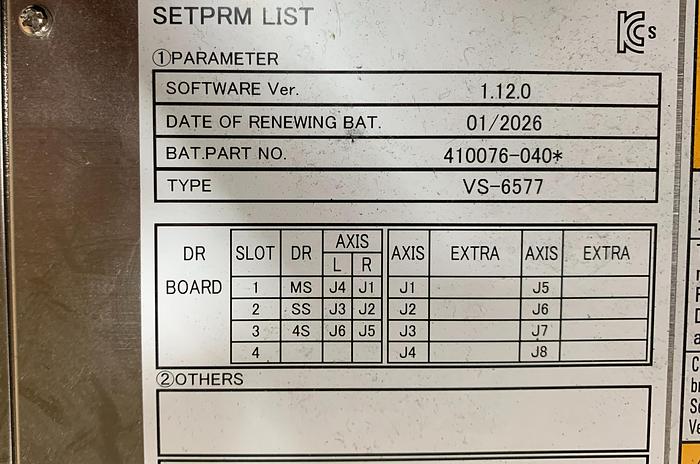

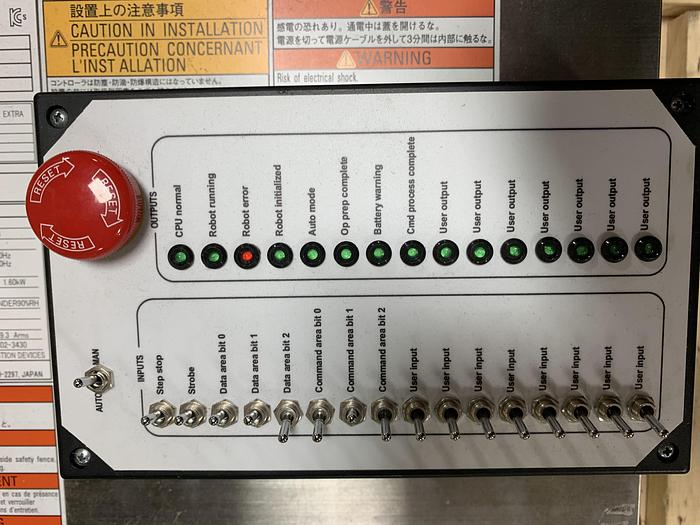

CONTROLLER RC8

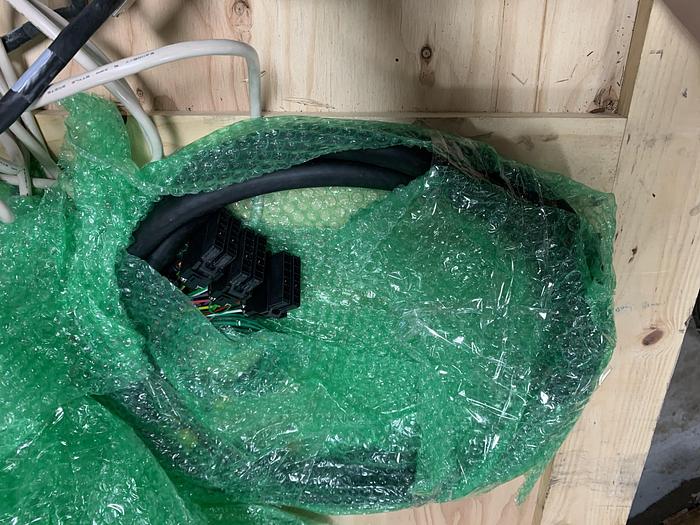

CABLES

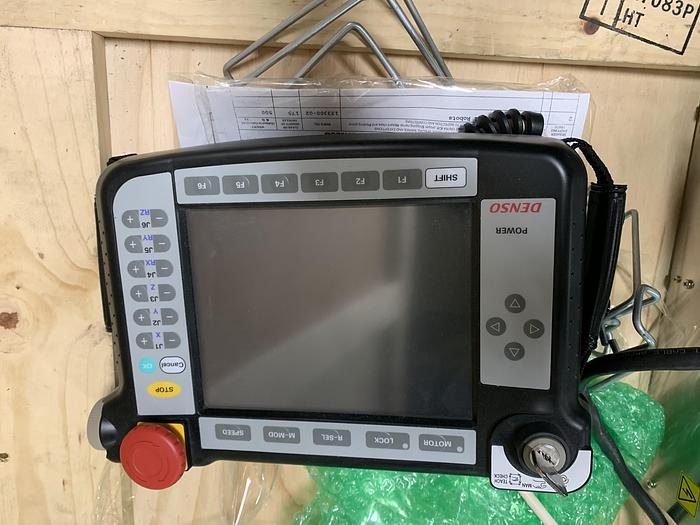

TEACH PENDANT
VERY CLEAN READY TO GO BACK TO WORK

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

RAB INDUSTRIES, INC.

Specifications

ManufacturerDENSO
ModelVS-6577M
Year2016
ConditionUsed
Serial Number01T314
Stock Number104039
