BRAND NEW KAWASAKI RS020N WITH E01 CONTROLLER, TEACH PENDANT, CABLES, 14 MONTH WARRANTY

BRAND NEW KAWASAKI RS020N WITH E01 CONTROLLER, TEACH PENDANT, CABLES, 14 MONTH WARRANTY

Contact us for price

Location:Imlay City, MI

Description

1- BRAND NEW KAWASAKI MODEL RS020N

WITH E01 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104964

 ======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.


ROBOT SPECIFICATIONS:


PAYLOAD: 20KG

MAX. REACH: 1,725MM

ROBOT CATEGORY: GENERAL PURPOSE ROBOTS (3-80KG PAYLOAD)

MOUNTING: FLOOR, CEILING

ROBOT SERIES: R SERIES

POSITIONAL REPEATABILITY: 0.04MM

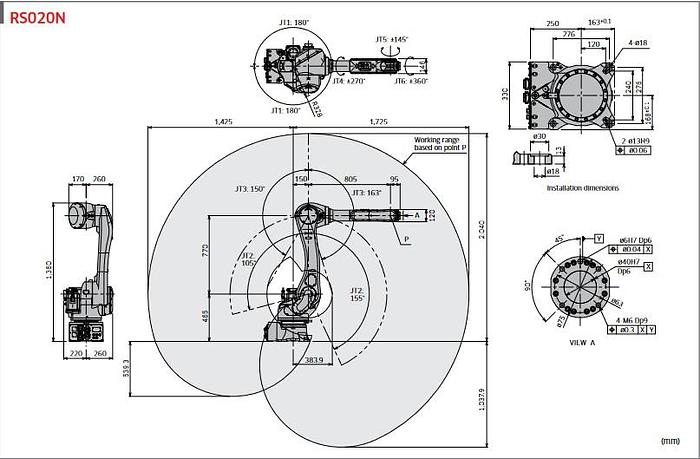

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +155 - –105

ARM UP-DOWN (JT3): +150 - –163

WRIST SWIVEL (JT4): ±270

WRIST BEND (JT5): ±145

WRIST TWIST (JT6): ±360


MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 190

ARM OUT-IN (JT2): 205

ARM UP-DOWN (JT3): 210

WRIST SWIVEL (JT4): 400

WRIST BEND (JT5): 360

WRIST TWIST (JT6): 610


ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 45

WRIST BEND (JT5): 45

WRIST TWIST (JT6): 29


ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 0.9

WRIST BEND (JT5): 0.9

WRIST TWIST (JT6): 0.3


ROBOT MAXIMUM SPEED (MM/S)

11,500


ROBOT MASS (KG)

230


DEGREE OF PROTECTION

ROBOT WRIST: IP67 (OPTIONAL), IP65 (STANDARD)

BASE AXES: IP65


EQUIPPED WITH:

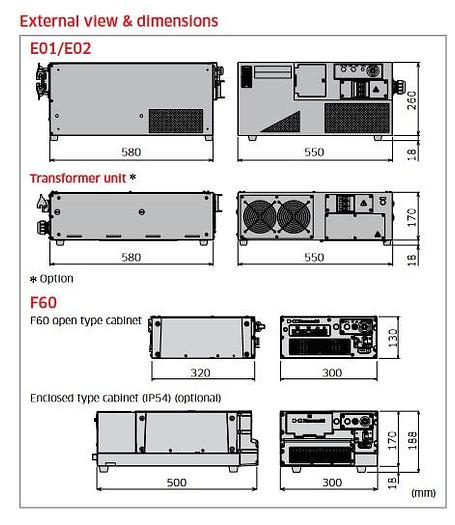

KAWASAKI ROBOTICS E01 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY


DESCRIPTION:

Kawasaki’s R series robots are setting the benchmark for all small to medium duty

industrial robots. The compact design along with industry leading speed, reach, and work

range make the R series robots ideal for a wide range of applications in a multitude of

diverse industries.


Features:

High-speed operation

The light weight of the R series arm together with high output, high revolution motors provide industry leading

acceleration and high-speed operation. The acceleration rate automatically adjusts to suit the payload and robot

posture to deliver optimum performance and the shortest cycle times.


High torque:

High output motors combined with a rigid arm construction deliver superior wrist torque and load capacity. This

high torque rating lets system designers select from a broad range of end-of-arm tooling, as well as provides more

­flexibility when working with complex workpieces.


Wide work range:

In addition to extending the robot’s maximum reach, the rotation range of each axis has also been increased. The

extended motion range translates to a larger usable work area with minimal dead space and greater fl­exibility.

Environmental protection


The R series incorporates a double seal construction on all axes and water-resistant electrical connections, offering

an IP67 classification for the wrist and IP65 for the remaining axes. If a washdown arm is required, the entire

robot can be provided as IP67. (Except for the RS003N, RS005N and RS005L)


Integrated features:

Built-in pneumatic lines and internal wiring for sensors and solenoid valves are standard. Mounting pads and taps

are provided to allow the easy installation of additional cabling, tubing or equipment

=======================================


R.A.B. INDUSTRIES, INC.

Specifications

ManufacturerKAWASAKI
ModelRS020N
ConditionUsed
Stock Number104964
PAYLOAD20KG
MAX. REACH1,725MM
MOUNTINGFLOOR, CEILING
ARM ROTATION (JT1)±180
ARM OUT-IN (JT2)+155 - –105
ARM UP-DOWN (JT3)+150 - –163
WRIST SWIVEL (JT4)±270
WRIST BEND (JT5)±145
WRIST TWIST (JT6)±360
