KUKA KR 10 R 1100 6 AXIS ROBOT WITH KRC4 CONTROLLER

KUKA KR 10 R 1100 6 AXIS ROBOT WITH KRC4 CONTROLLER

Contact us for price

Location:Imlay City, MI

Available quantity:1

Description

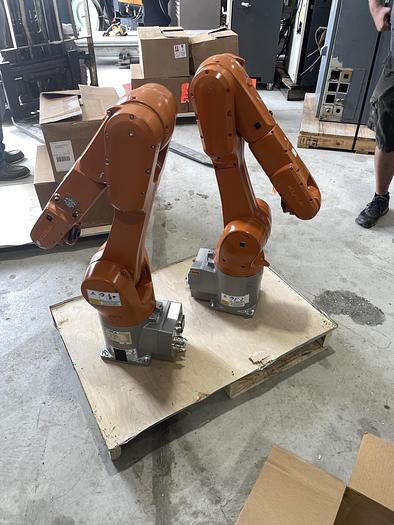

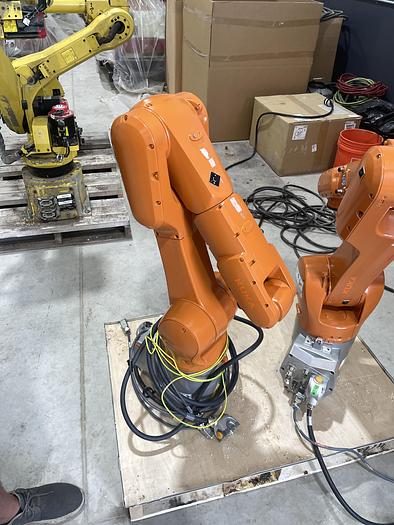

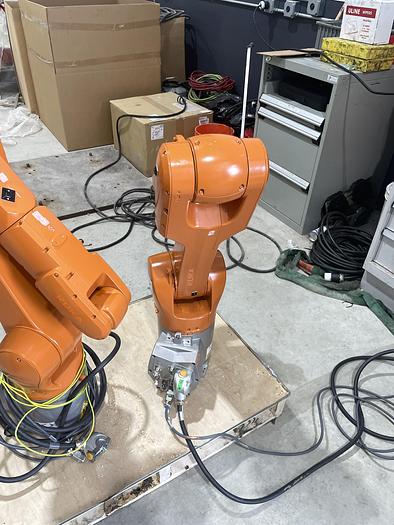

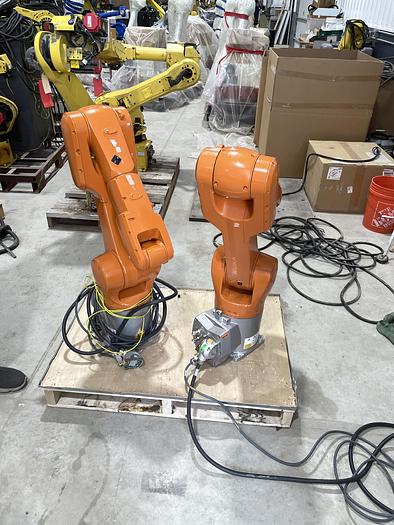

1-USED KUKA KR 10 R 1100 6 AXIS ROBOT WITH KRC4 CONTROLLER

SERIAL NUMBER 1025304

DATE OF MFG. 08/2019

STK#105006

==================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


The Kuka KR10 R1100 offers high speeds and incred­i­ble pre­ci­sion which are huge attrib­ut­es of the KR 10 R1100 Sixx. Tack­ling a vari­ety of appli­ca­tions, this robot is very ver­sa­tile with floor, ceil­ing, and wall mount­ing options. It has an IP54 pro­tec­tion rat­ing, pay­load capac­i­ty of 10 kg, and 1101 mm reach.

If your job requires a robot that can with­stand harsh con­di­tions, then con­sid­er the KR 10 R1100 Sixx WP mod­el. This robot­’s plas­tic parts are replaced by sta­ble stain­less steel cov­ers. There are addi­tion­al seals on the inte­ri­or and sur­face treat­ments that add a lev­el of resis­tances and strength. Addi­tion­al­ly, it has a high­er pro­tec­tion rat­ing; IP67.

Both robots will be paired with the KR C4 Com­pact controller.


Robot Applications:

Assembly Robots

Cutting Robots

Machine Loading Robots

Material Handling Robots

Palletizing Robots


Robot Specifications:

PAYLOAD 10 kg

REACH 1101 mm

AXES 6

REPEATABILITY 0.03 mm

MASS 54 kg

STRUCTURE Articulated

MOUNTING Floor, Inverted, Angle


Robot Motion Range:

A1 ±170 °

A2 -190 ° / 45 °

A3 -120 ° / 156 °

A4 ±185 °

A5 ±120 °

A6 ±350 °


EQUIPPED WITH:

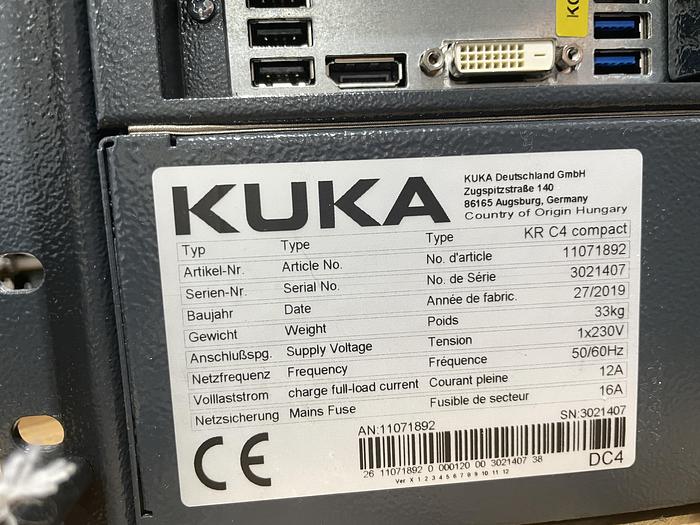

KUKA KRC4 ROBOT CONTROLLER

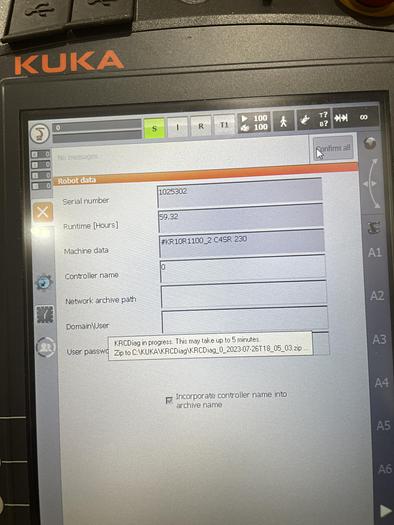

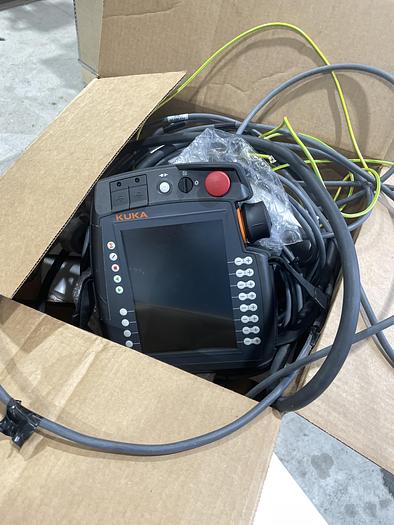

KUKA TEACH PENDANT AND CABLE

KUKA ROBOT CONNECTION CABLE


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

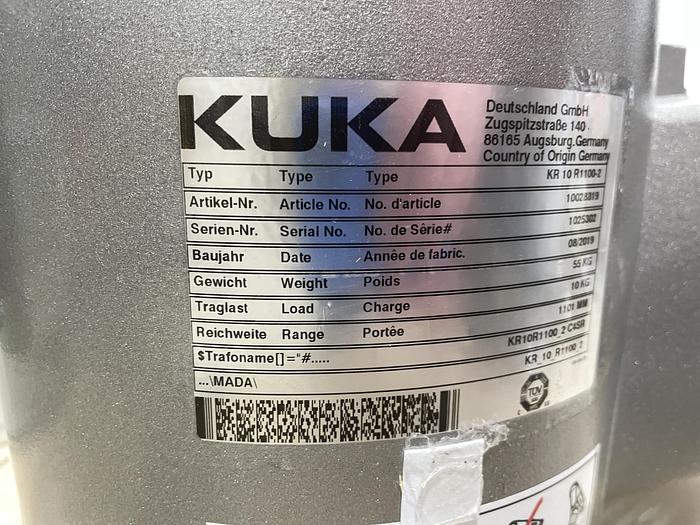

Specifications

ManufacturerKUKA
ModelKUKA KR10R1100
Year2019
ConditionUsed
Serial Number1025304
Stock Number105006
