FANUC M-410iB/700 4 AXES PALLETIZING ROBOT DATA SHEET WITH FANUC R-30iB PLUS CONTROL

FANUC M-410iB/700 4 AXES PALLETIZING ROBOT DATA SHEET WITH FANUC R-30iB PLUS CONTROL

$49,000 (USD)

Location:Imlay City, MI

Available quantity:1

orCall 586-752-0090 Extension 1 for Sales

Description

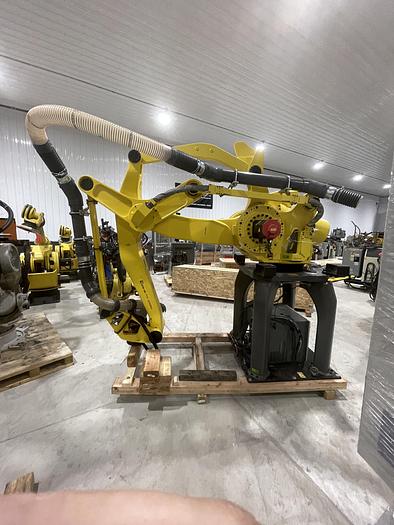

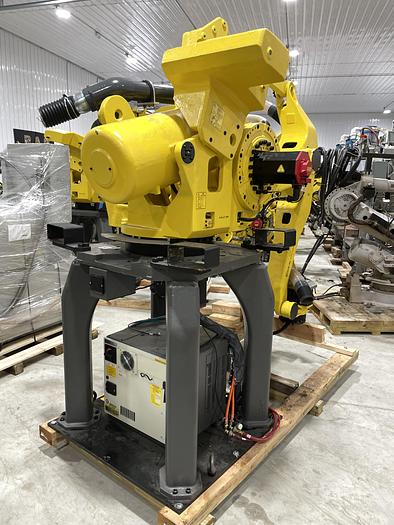

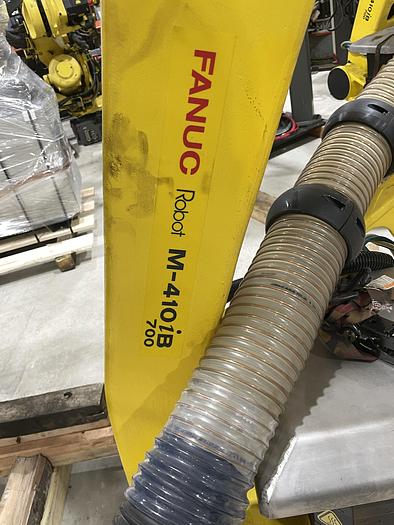

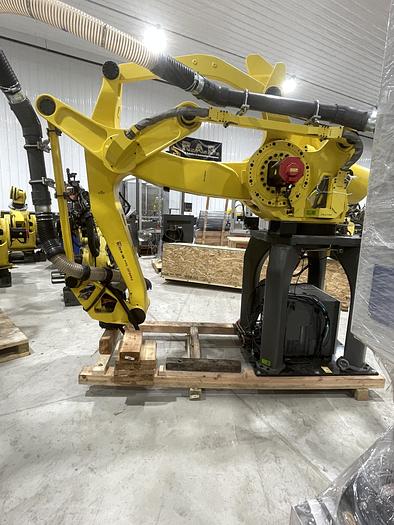

1-USED FANUC PALLETIZING ROBOT MODEL M410iB/700 WITH R30iB CONTROLLER

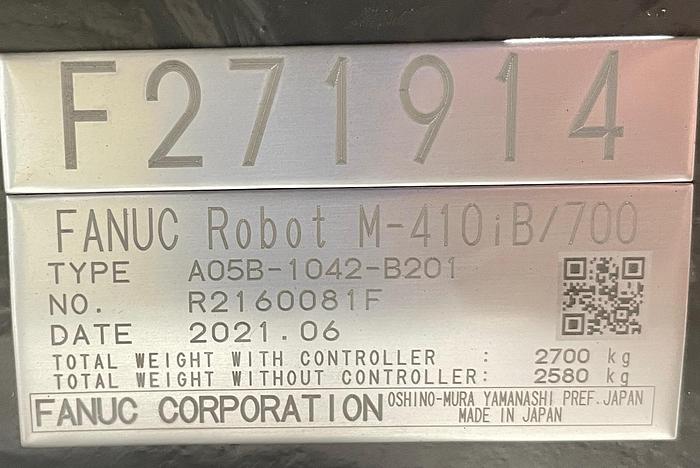

SERIAL NUMBER F271914

DATE OF MFG. 06/2021

FANUC MECHANICAL UNIT PART NUMBER A05B-1042-B201

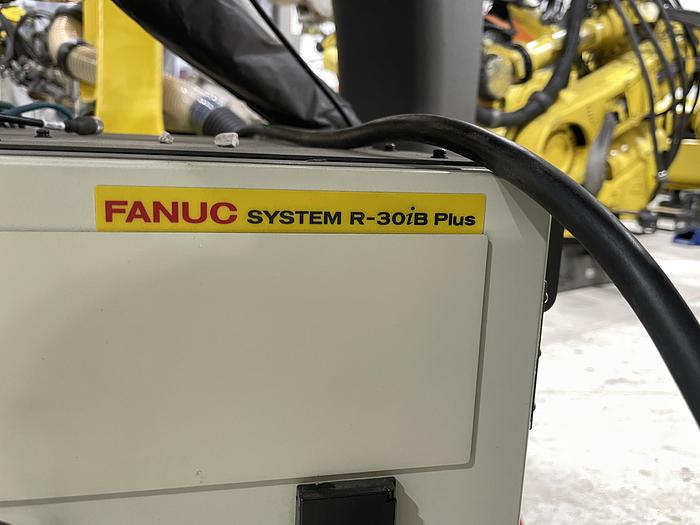

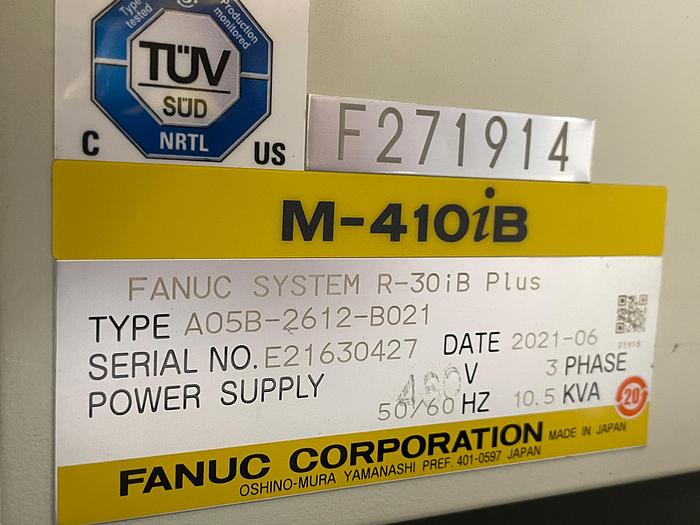

FANUC R-30iB PLUS CONTROL PART NUMBER A05B-2612-B021

STK#105012

==============================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:


The Fanuc M-410iB/700 is the heaviest palletizing robot in this series of robots with a payload of 700 kg. Depending on the year of manufacture the robot can run on the Fanuc R-30iA controller or the Fanuc R30iB or R-30iB Plus A or B style cabinet controllers. It is a beast in category. Designed specifically for the job by the company that built the world's first dedicated palletizing robot, the M-410 series increases throughput on palletizing and handling applications. Boasting the best payload capacity of the range, this robot will lift up to 700 kg and is equipped with a hollow wrist to minimize the risk of cable snagging and reduce maintenance.


Robot Specifications:

Axes: 4

Payload: 700kg

H-Reach: 3143mm

Repeatability: ±0.5mm

Robot Mass: 2700kg

Structure: Articulated

Mounting: Floor


Robot Motion Speed:

J1 60 °/s (1.05 rad/s)

J2 60 °/s (1.05 rad/s)

J3 60 °/s (1.05 rad/s)

J4 120 °/s (2.09 rad/s)


Robot Motion Range:

J1 ±360°

J2 ±144°

J3 ±136°

J4 ±540°


EQUIPPED WITH:

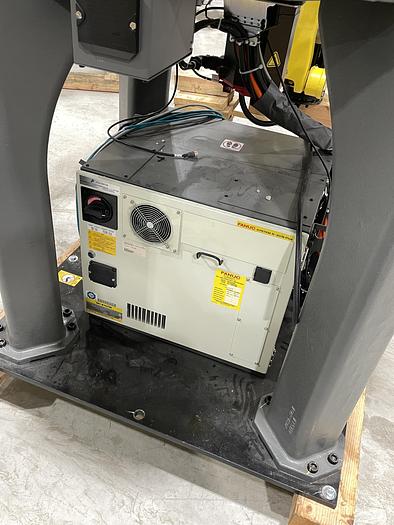

FANUC R30iB PLUS CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC COLOR I-TEACH PENDANT


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.


CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.


Fanuc M-410's in stock


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.


RAB INDUSTRIES, INC. THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC M-410iB/700
Year2021
ConditionUsed
Serial NumberF271914
Stock Number105012
Axes4
Payload700kg
H-Reach3143mm
Repeatability±0.5mm
Robot Mass2700kg
StructureArticulated
MountingFloor
