2016 FANUC M-710iC/70 6 AXIS ROBOT WITH R-30iB CONTROL

2016 FANUC M-710iC/70 6 AXIS ROBOT WITH R-30iB CONTROL

Contact us for price

Location:Imlay City, MI

Available quantity:1

Description

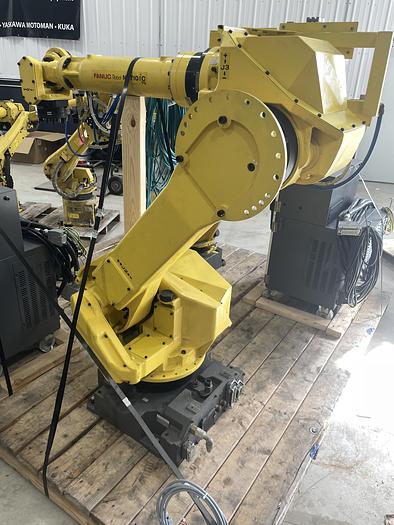

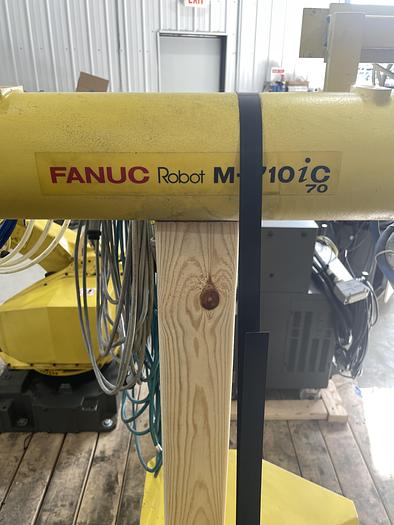

1-USED FANUC M-710iC/70 6 AXES ROBOT WITH FANUC R-30iB CONTROLLER

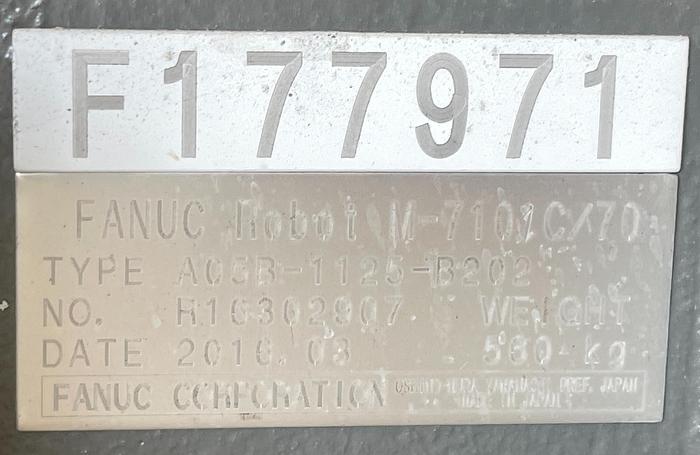

SERIAL NUMBER F177971

DATE OF MFG. 03/2016

FANUC MECHANICAL ARM TYPE A06B-1125-B202

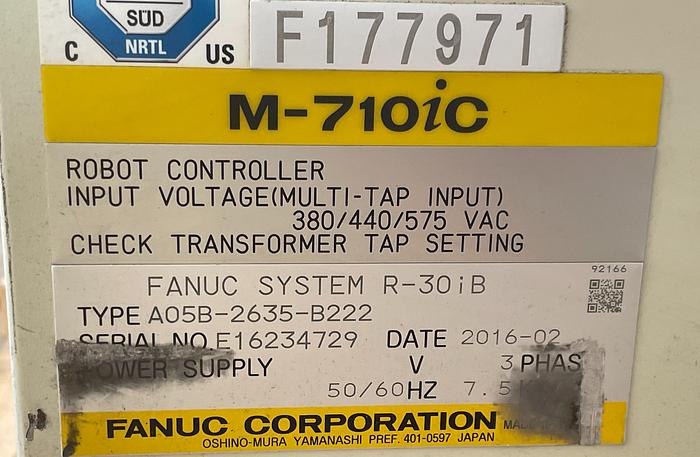

FANUC R-30iB CABINET TYPE A05B-2635-B222

HOURS SHOWN ON METER 745

STK#105119

===================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


The Fanuc M-710iC/70 is the heaviest M-710 in the series and highly sought after. It runs on the Fanuc R30iA or R30iB controller depending on the date of manufacture. This innovative series of lightweight robots features a slim wrist, rigid arm and small footprint. Offering best payload and inertia in its category, this powerful 6-axis model is suitable for various applications and combines a 70 kg payload with extremely high axis speeds. The robot can be deployed for a large array of applications.


Robot Specifications:

Axes: 6

Payload: 70kg

H-Reach: 2050mm

Repeatability: ±0.07mm

Robot Mass: 560kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 160 °/s (2.79 rad/s)

J2 120 °/s (2.09 rad/s)

J3 120 °/s (2.09 rad/s)

J4 225 °/s (3.93 rad/s)

J5 225 °/s (3.93 rad/s)

J6 225 °/s (3.93 rad/s)


Robot Motion Range:

J1 ±360°

J2 ±225°

J3 ±440°

J4 ±720°

J5 ±250°

J6 ±720°


Applications:

Material Handling Robots

Part Transfer Robots

Machine Loading Robots

Assembly Robots

Packaging Robots

Arc Welding Robots

Spot Welding Robots

Cutting Robots

Fiberglass Cutting Robots

Material Removal Robots


EQUIPPPED WITH:

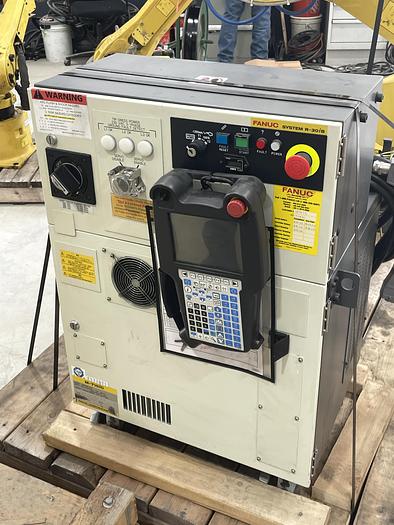

Fanuc R-30iB Controller

Fanuc Robot Connection Cables

Fanuc Color I Pendant


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.


CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.


SEE CURRENT INVENTORY

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC M-710iC/70
Year2016
ConditionUsed
Serial NumberF177971
Stock Number105119
Axes6
Payload70kg
H-Reach2050mm
Repeatability±0.07mm
Robot Mass560kg
StructureArticulated
MountingFloor, Inverted, Angle
