FANUC M-710iC/50 6 AXIS ROBOT WITH R-30iB CONTROLLER

FANUC M-710iC/50 6 AXIS ROBOT WITH R-30iB CONTROLLER

Contact us for price

Location:Imlay City, MI

Available quantity:1

Description

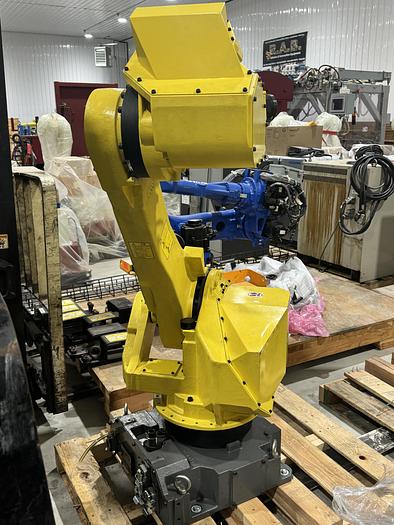

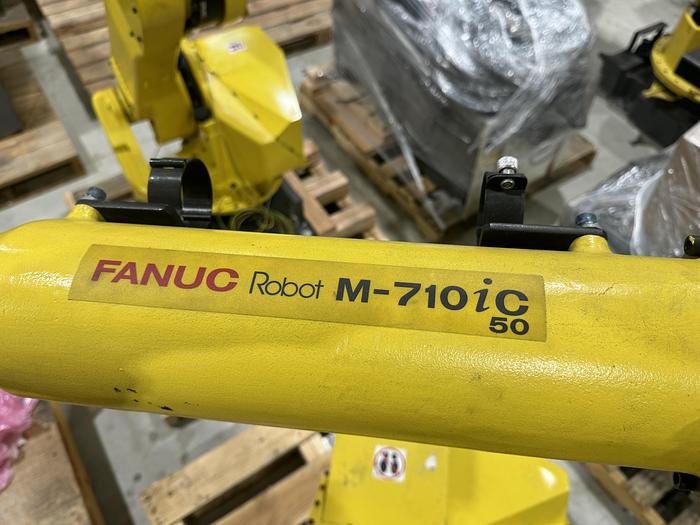

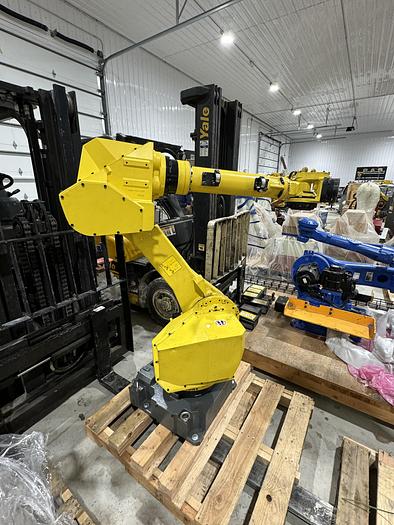

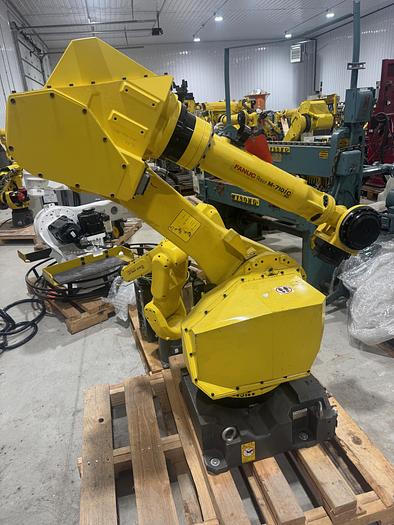

1-USED FANUC M-710iC/50 6 AXIS ROBOT WITH R-30iB CONTROLLER

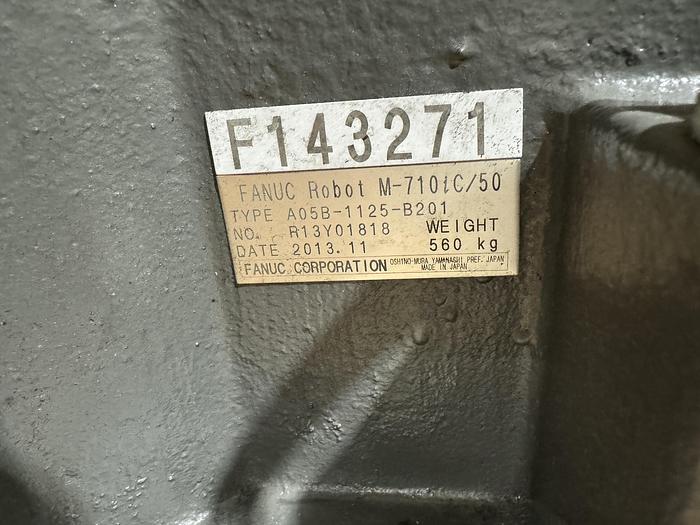

SERIAL NUMBER F143271

DATE OF MFG. 11/2013

HOURS ON METER 14,000

FANUC MECHANICAL ARM TYPE PART NUMBER A05B-1125-B201

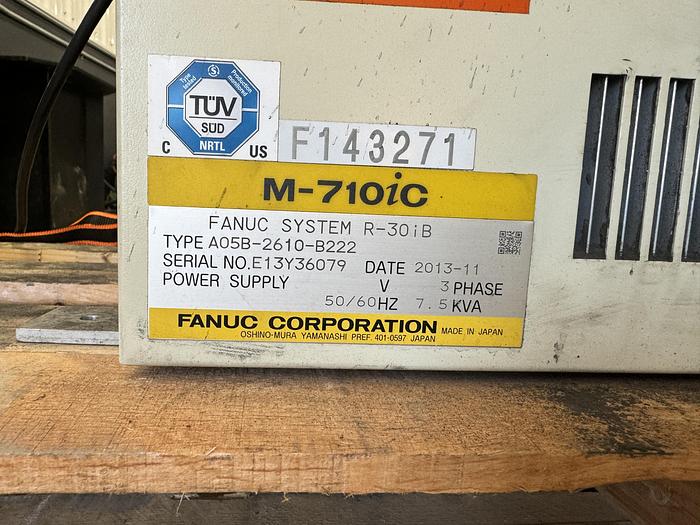

FANUC R-30iB CONTROLLER TYPE PART NUMBER A05B-2610-B222

STK#105132

=======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


We find the Fanuc M-710iC/50 robot to be one of the most sought after robots. It's a Fanuc intelligent robot. Depending on date of mfg., this model runs on the Fanuc R30iA or R30iB controls platform. They are a midsize robot with a robust array of applications they can be deployed for. Assembly, Arc Welding, dispensing, machine tending, palletizing and list goes on only limited to your imagination as to what you might deploy this robot to do in you operations.


Robot Specifications:

Axes: 6

Payload: 50kg

H-Reach: 2050mm

Repeatability: ±0.07mm

Robot Mass: 560kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 175 °/s (3.05 rad/s)

J2 175 °/s (3.05 rad/s)

J3 175 °/s (3.05 rad/s)

J4 250 °/s (4.36 rad/s)

J5 250 °/s (4.36 rad/s)

J6 355 °/s (6.2 rad/s)


Robot Motion Range:

J1 ±360°

J2 ±225°

J3 ±440°

J4 ±720°

J5 ±250°

J6 ±720°


Applications:

Dispensing Robots

Machine Loading Robots

Material Handling Robots

Cutting Robots

Fiberglass Cutting Robots

Foundry Robots

Material Removal Robots

Meat Processing Automation Robots

Arc Welding Robots

Waterjet Robots


EQUIPPED WITH:

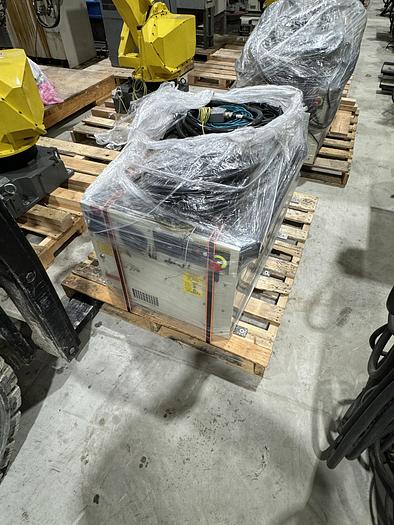

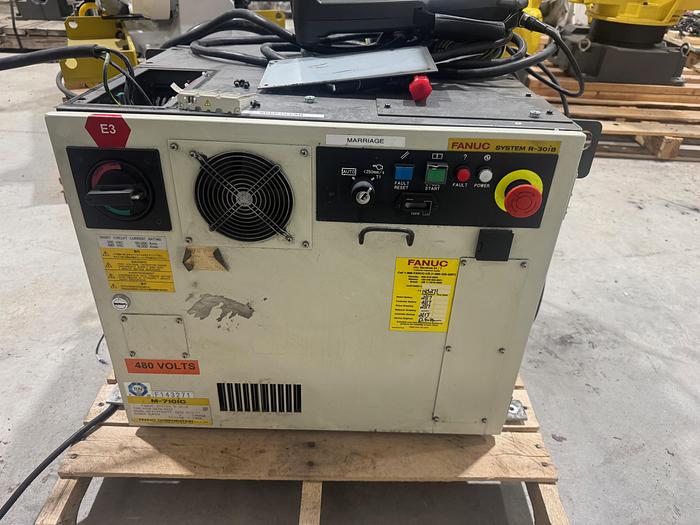

FANUC R-30iB CONTROLLER

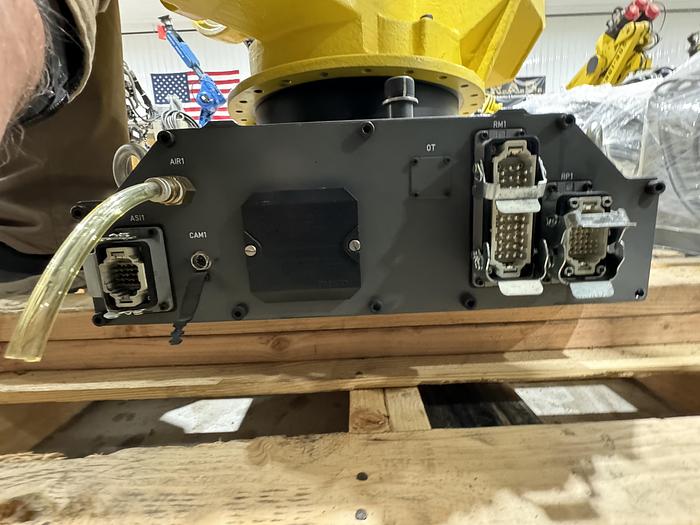

FANUC ROBOT CONNECTION CABLES

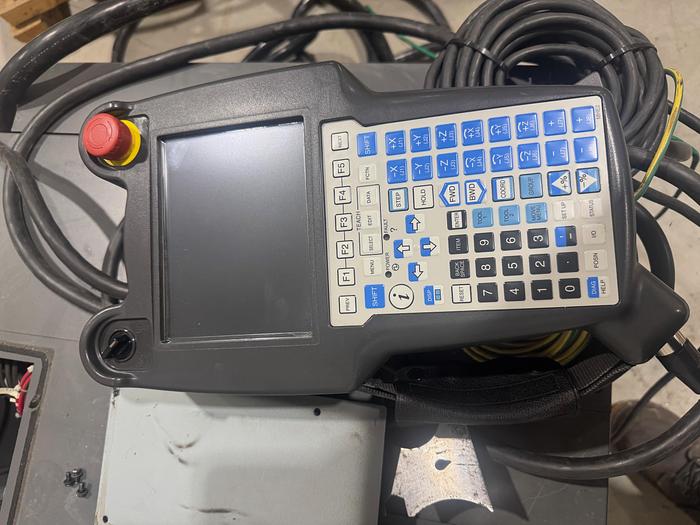

FANUC COLOR I-PENDANT

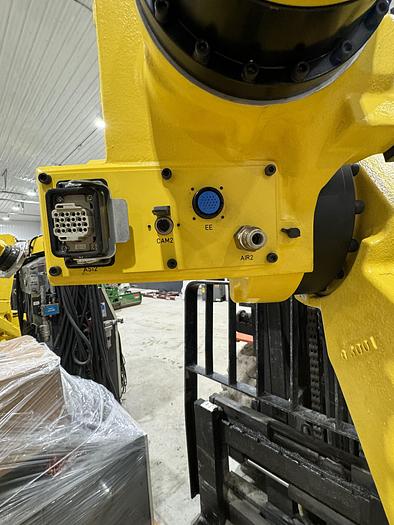

EE CONNECTIONS

VISION CONNECTIONS


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.


CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.


SEE CURRENT INVENTORY


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelM-710iC/50
Year2015
ConditionUsed
Serial NumberF143271
Stock Number105132
Axes6
Payload50kg
H-Reach2050mm
Repeatability±0.07mm
Robot Mass560kg
StructureArticulated
MountingFloor, Inverted, Angle
