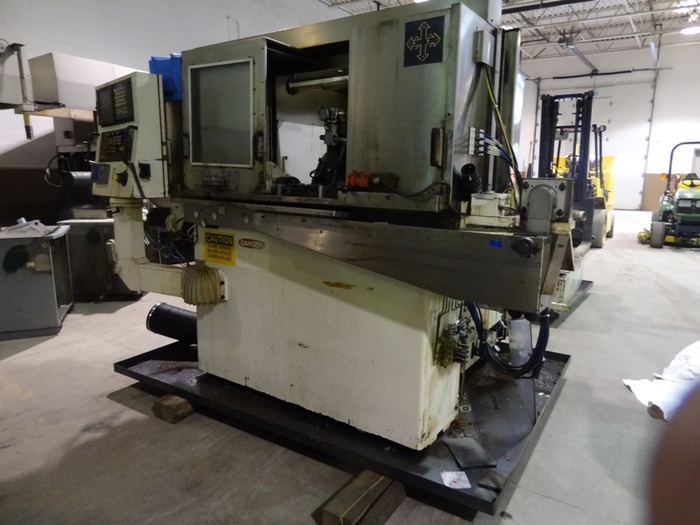

DRAKE MODEL GSTE 636 CNC THREAD GRINDER FANUC 18i-M

Contact us for price

Almont, MI

orCall 586-752-0090

Description

GS:TE 636
Grinding Systems: Thread External
Applications:
Precision External Thread Grinding for gear worms, balls crews, taps
and thread tools, thread gages, power steering components and lead
screws.

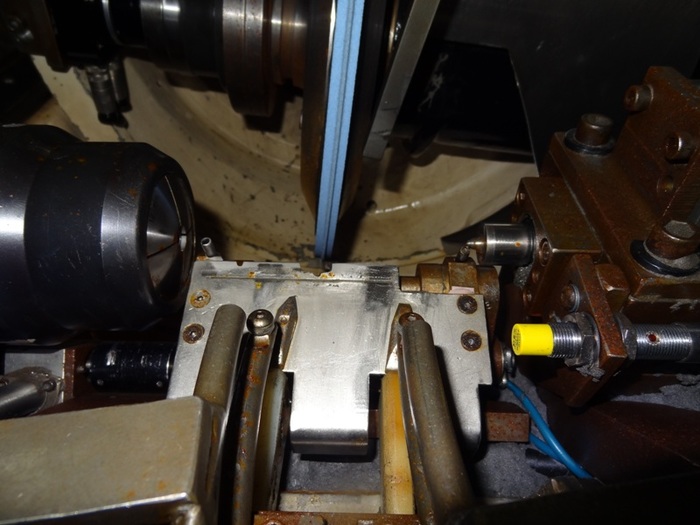

Description Machine equipped with Rear Dresser
Grinding Length (from Tailstock) 300 mm
Length between Centers 900 mm
Maximum Thread Diameter 150 mm
Maximum Workpiece Diameter 150 mm
Lead 0 to 999 mm
Lead Angle ±30° (Rear Dress only)
Maximum Module 12 mm (17 mm Optional)
Maximum Form Width 25 mm (32 mm Optional)
Wheel Spindle Power 7.5 kW (11 kW Optional)
Wheel Peripheral Speed (vc is constant) 60 m/s
Standard Grinding Wheel Range:
Outside Diameter 380 to 490 mm
Width 10 to 25 mm (32 mm Optional)
Bore 254 mm
Workhead Speed Up to 300 rpm
Rapid Return Speed Up to 10 m/min

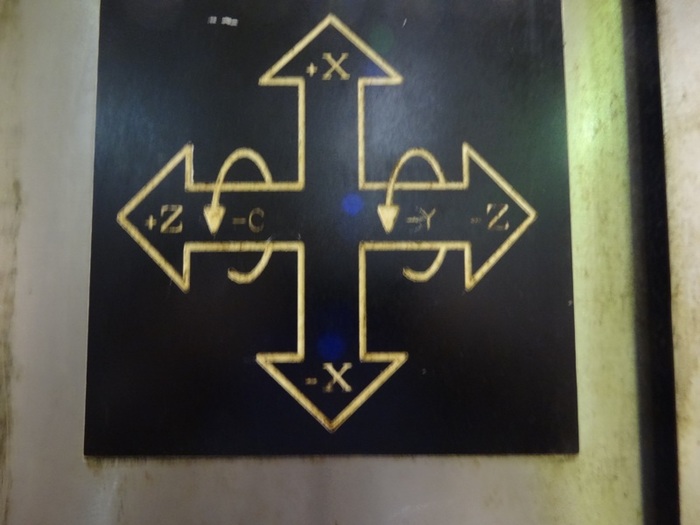

Number of CNC Axes 3 4 5
Total Electrical Requirements 10 kVA (Up to 32 kVA)
Voltage 200-600 V
Weight 5,000 kg
Machine Dimensions:
Overall 2.3 m L x 1.9 m D x 2.2 m H
Workholding Height 1.

Specifications

ManufacturerDRAKE
ModelGSTE 636 CNC THREAD GRINDER
Year2003
ConditionUsed

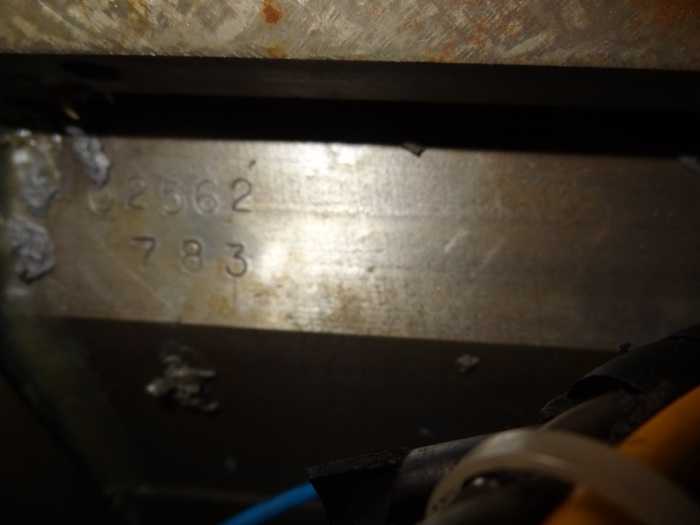

Stock Number103635
