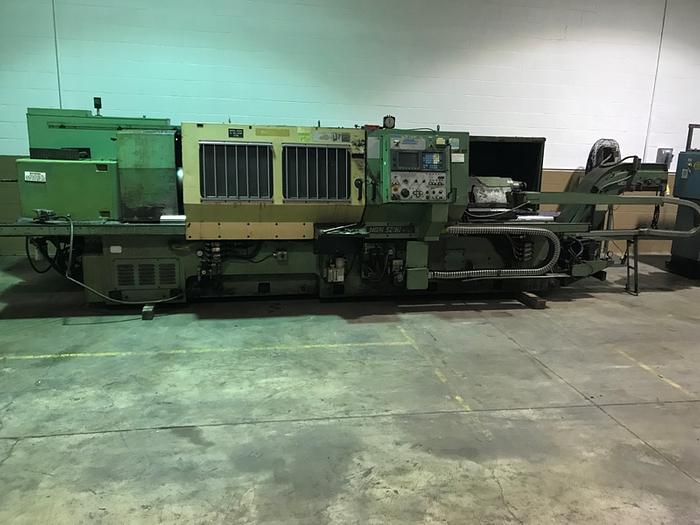

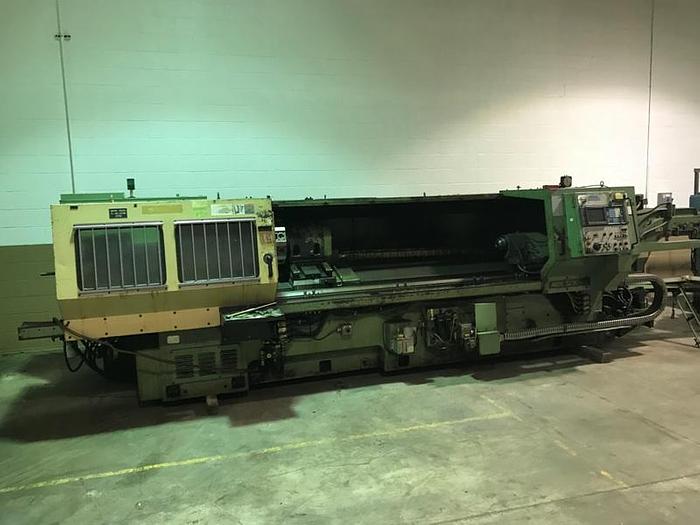

MORI SEIKI TL40B/3000 CNC LATHE

$7,990 (USD)

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

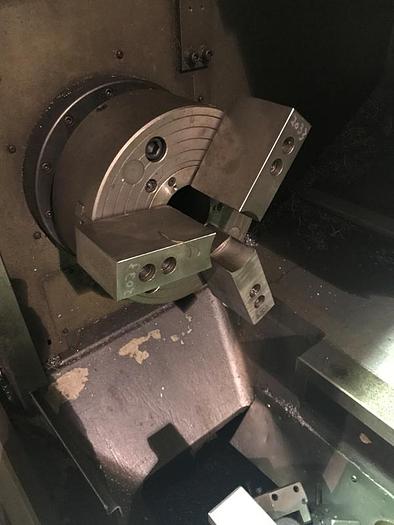

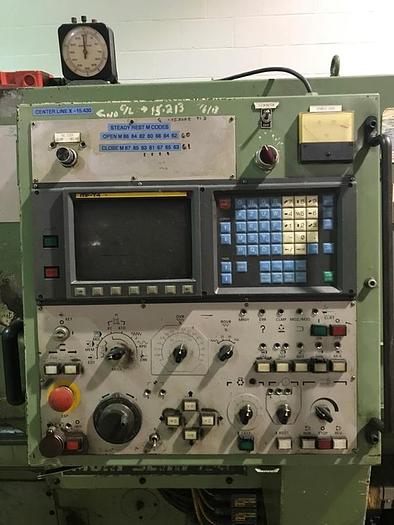

1-USED MORI SEIKI TL40B/3000 2 AXIS CNC LATHE MACHINE SERIAL NUMBER 1924 DATE OF MFG. 8/1990 STK# 103532 ================================================ SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: CAPACITY: SWING OVER BED 24.4" SWING OVER CROSS SLIDE 15.0" DISTANCE BETWEEN CENTER 122.6" STANDARD MACHINING DIAMTER 13.8" MAX. MACHINING LENGTH 114.2" MOVING RANGE: X AXIS 9.3" Z AXIS 116.1" SPINDLE: SPINDLE SPEEDS 20-2,000 RPM SPINDLE NOSE JIS-A2-8 HOLE THROUGH SPINDLE 4.1" SPINDLE BEARING ID 6.3" TURRET: NUMBER OF TOOLS 6 SHANK HEIGHT FOR SQUARE TOOLS 1" SHANK DIAMETER FOR ROUND TOOLS 2" TURRET INDEX TIME 2.7 SECONDS FEED & SPEED: RAPID FEED RATE X AXIS 189 IPM Z AXIS 378 IPM CUTTING FEED RATE 0.0000003 TO 9.4 IPR JOG FEED RATE BOTH X & Z 78.7 IPM TAILSTOCK: TAILSTOCK MOVING RANGE 115.4" TAILSTOCK QUILL DIAMTER 5.9" TAILSTOCK QUILL TAPER MT#5 TAILSTOCK QUILL MOVING RANGE 3.9" MOTORS: MAIN SPINDLE MOTOR 22/18.5 KW POWER SUPPLY 40 KVA COOLANT TANK CAPACITY 150 LITERS DIMENSIONS: FLOOR SPACE REQUIRED 227.2" X 73.2" WIEGHT 19,800 LBS EQUIPPED WITH: FANUC MFT4 CNC CONTROL 12" 3 JAW CHUCK HYDRAULIC TAILSTOCK CHIP CONVEYOR ASSORTED MANUALS F.O.B. TRUCK, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. WWW.RABIND.COM 586-752-0090

Specifications

ManufacturerMORI SEIKI
ModelTL40B/3000
Year1990
ConditionUsed

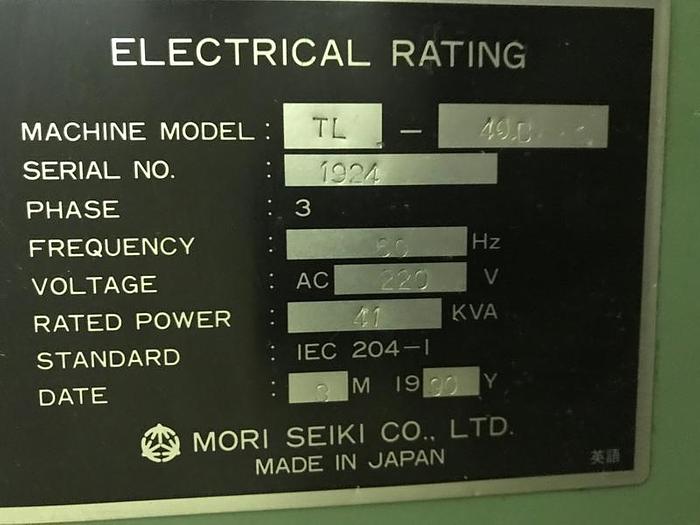

Serial Number1924
Stock Number103532
