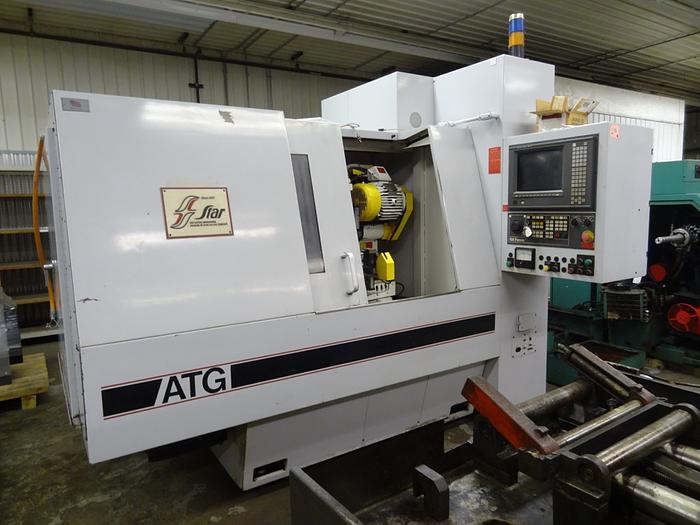

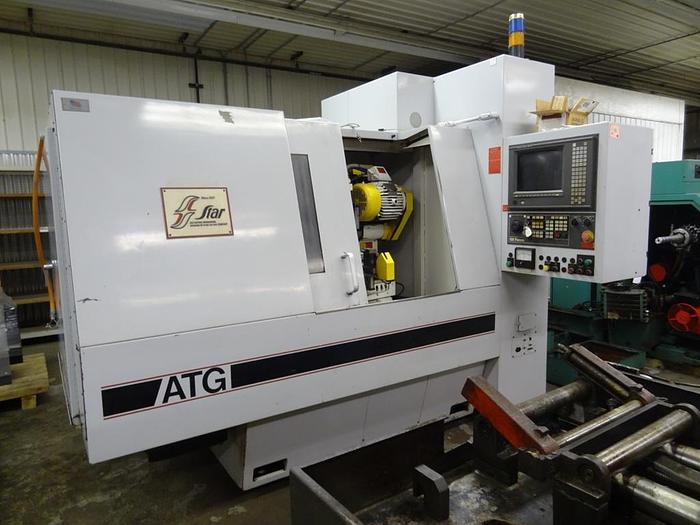

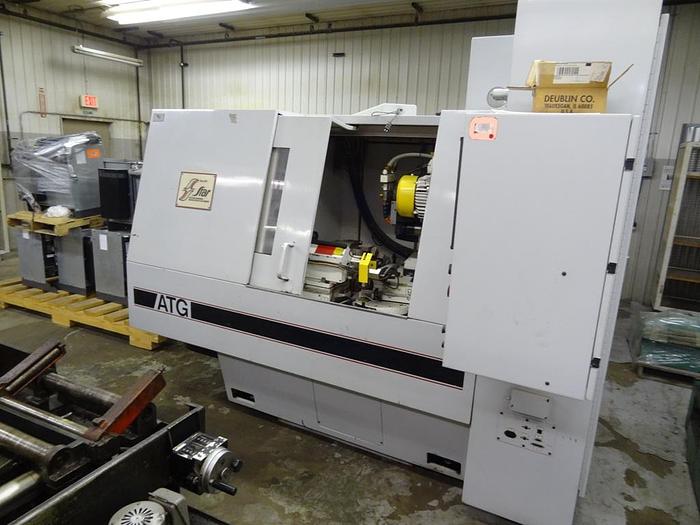

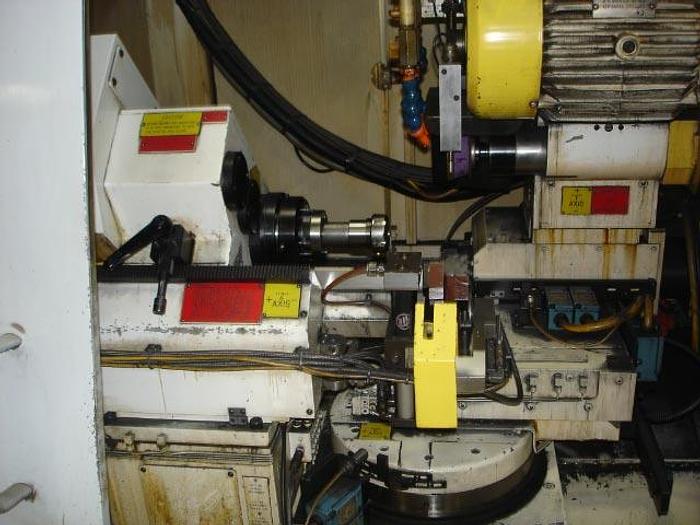

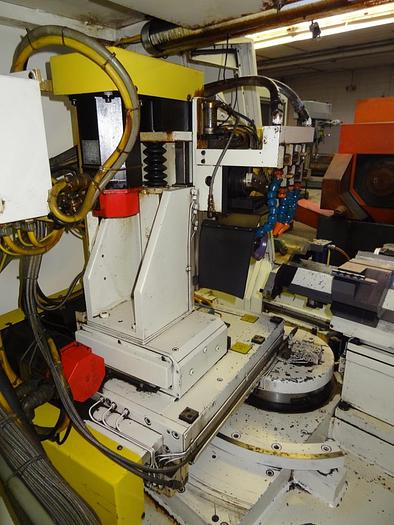

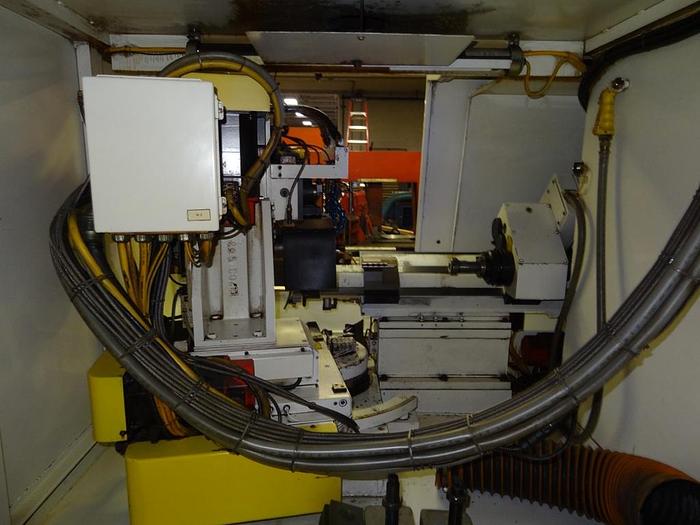

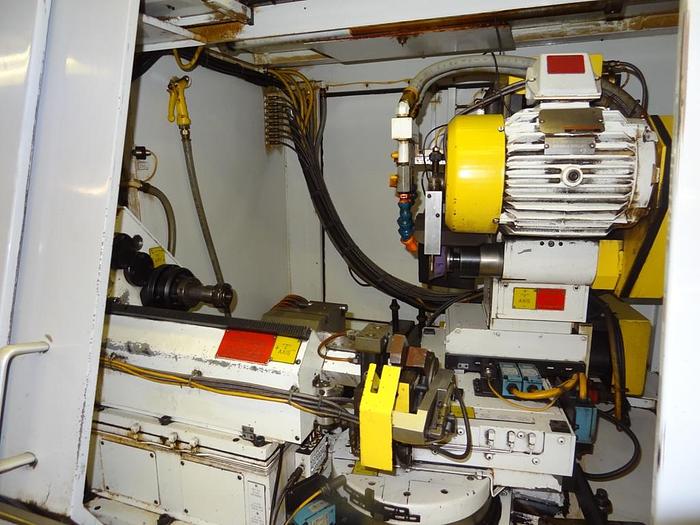

STAR ATG-6AC 6 AXIS CNC TOOL & CUTTER GRINDER

STAR ATG-6AC 6 AXIS CNC TOOL & CUTTER GRINDER

$19,500 (USD)

Almont, MI

orCall 586-752-0090

Description

1-STAR ATG-6AC 6 AXIS CNC TOOL & CUTTER GRINDER SERIAL NUMBER 37130 APPROX. DATE OF MFG. 1999 STK# 102570 ================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

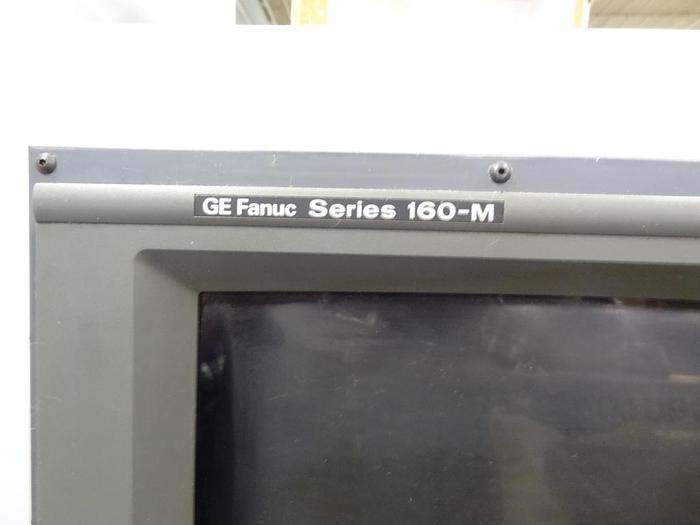

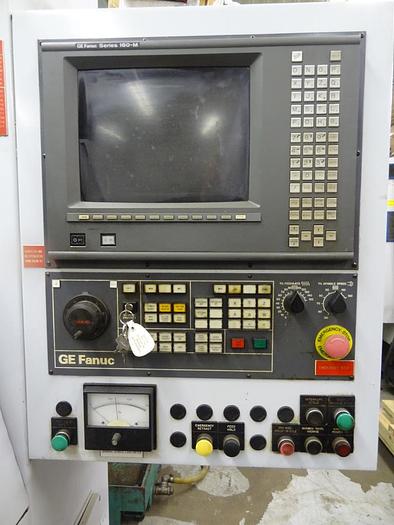

CONTROL:GE FANUC SERIES 160 CNC


MACHINE CAPACITY:

WORKPIECE DIAMETER: 0.12 to 4"

WORKPIECE LENGTH: 27" -- BETWEEN CENTERS COLLET AND BUSHING SIZE:


UNLIMITED GRINDING WHEEL:

DIAMETER: 6" MAX.

TYPE: DIAMOND OR CBN

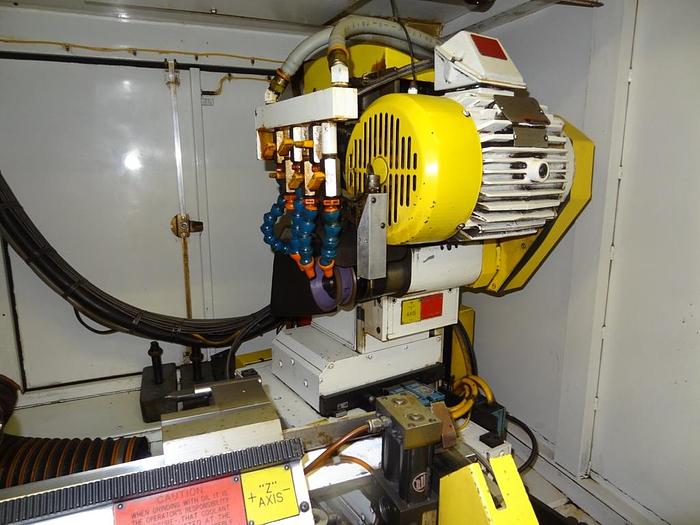

GRINDING SPINDLE:

MOTOR: 7.5 HP, 3600 RPM

SPEED: 1800 to 5275 RPM


LINEAR AXIS TRAVEL:

W-AXIS: 3"

X-AXIS: 8.4"

Y-AXIS: 4.6"

-AXIS: 11.5"

ROTARY AXIS TRAVEL: A-AXIS: 0 to 360°

B-AXIS: 0 to 90°


SMALLEST PROGRAMMABLE MOVEMENT:

LINEAR: .0001"

ROTARY: .001°


FEEDBACK RESOLUTION:

LINEAR AXIS: .000020"

ROTARY AXIS: .0005°

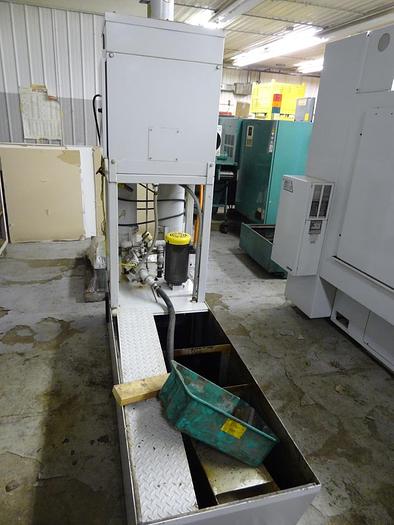

COOLANT TANK: 112 GALLONS FLOW: 20 GPM MAX., 22 PSI MAX.


EQUIPPED WITH:

GLASS SCALES ON LINEAR AXES;

PART PROBE;

RETRACTABLE END LOCATOR;

MULTIPLE WHEEL GANG CAPABILITY;

CYCLE INDICATOR LIGHT;

VARIABLE SPEED SPINDLE;

MANUAL PULSE GENERATOR;

7.5 HP SPINDLE MOTOR;

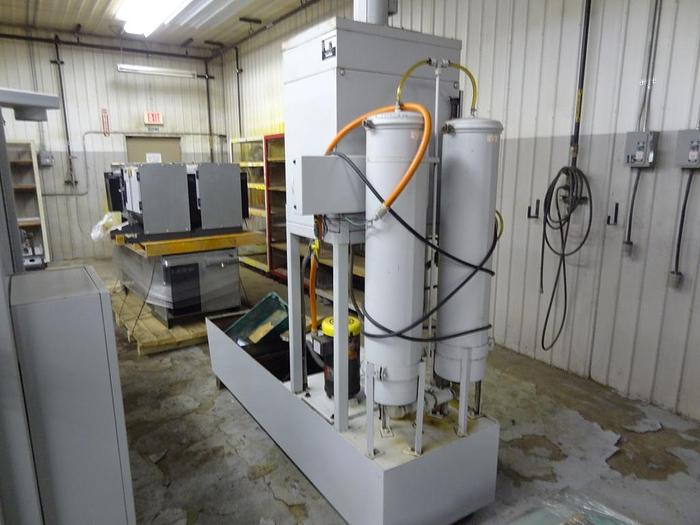

MIST COLLECTOR;

GRAPHICAL INTERFACE

DIMENSIONS: 110" L x 114" D x 103" H

WEIGHT: APPROX. 8,500 LBS.


FOB TRUCK, IMLAY CITY, MI 48444


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE

AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS.


586-752-0090

Specifications

ManufacturerSTAR
ModelATG-6
Year1999
ConditionUsed

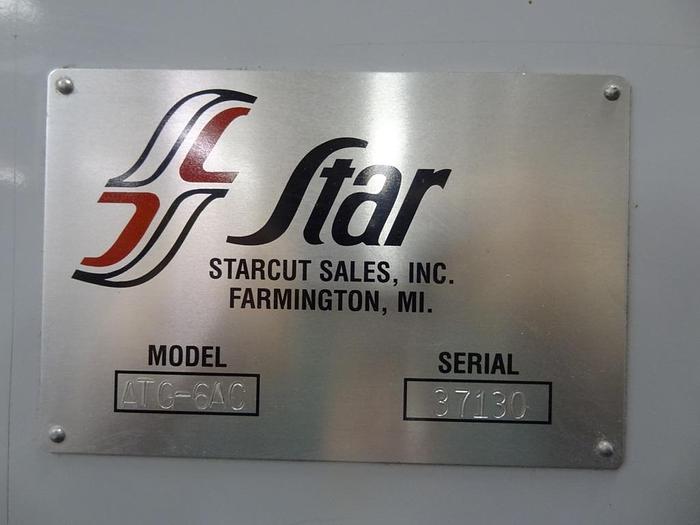

Serial Number37130
Stock Number102570
