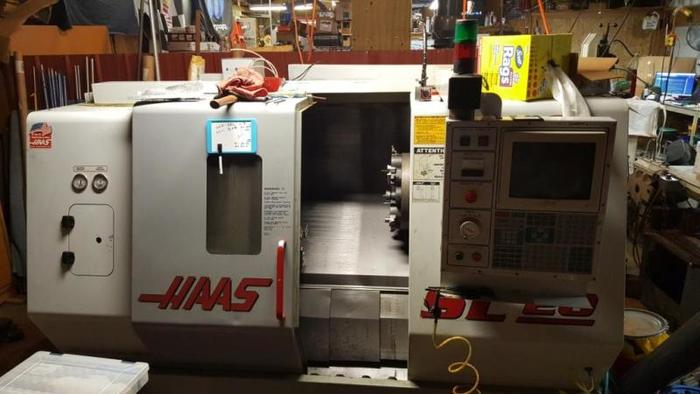

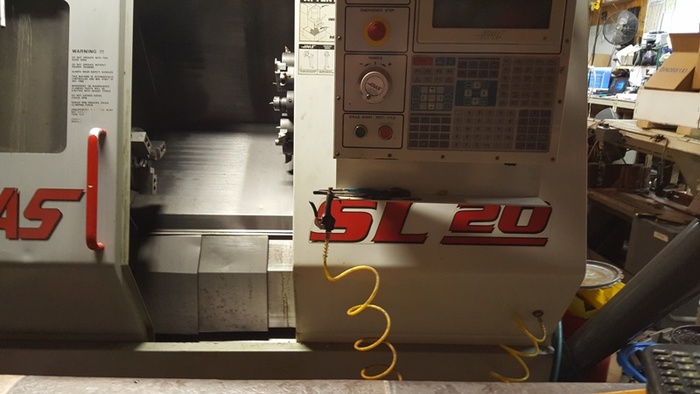

HAAS SL20T 2 AXIS CNC LATHE NEW 1999

Contact us for price

Almont, MI

orCall 586-752-0090

Description

Chuck Size 8" 3 Jaw Power Chuck W/Foot Pedal Control
Distance Between Centers 24"
Machine Dimensions (L x W x H) 129" x 88" x 72"
Machine Weight 9000 lbs.
Max Diameter Bar Capacity 2"
Max Machining Length 20"
Max Swing Over Bed / Carriage 20" / 9.5"
Max Turning Diameter 10.3"
Rapid Traverse Rates 710 IPM
Spindle Bore 3"
Spindle Motor 20 HP
Spindle Nose A2-6
Spindle Speed 3400 RPM
Spindle Torque 154 ft. lbs.
Tailstock Taper MT#4
Tools 10
X-Axis Travel 8.45"
Z-Axis Travel 20"
Equipped With:

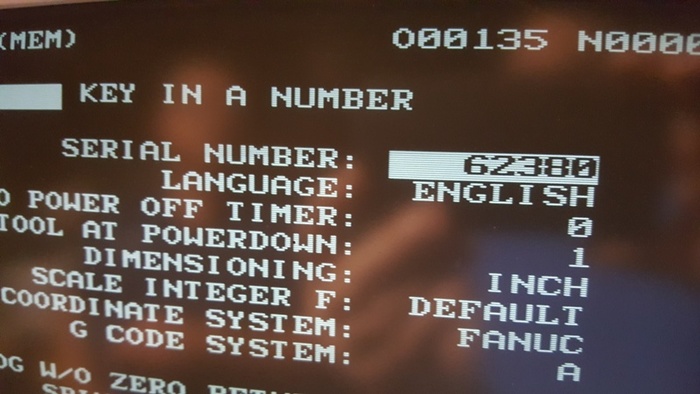

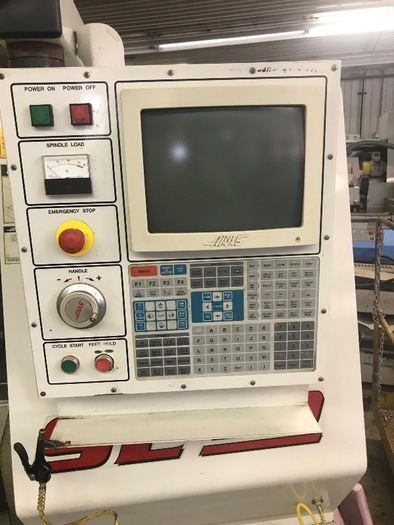

•HAAS CNC Control
•10.4" Color LCD
•Fully Programmable Hydraulic Tailstock
•Tool Presetter
•Collet Chuck
•Bolt-On Turret
•Chip Auger
•Spindle Orientation
•Assorted Tool Holders on Turret
.Rigid Tap
.Quick Code
.Extended Memory 1MB
.Tailstock
FOB TRUCK, ALMONT, MI 48003

Specifications

ManufacturerHAAS
Year1999
ConditionUsed
Stock Number103649
