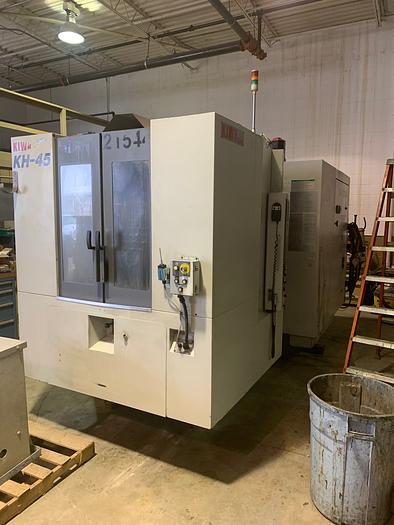

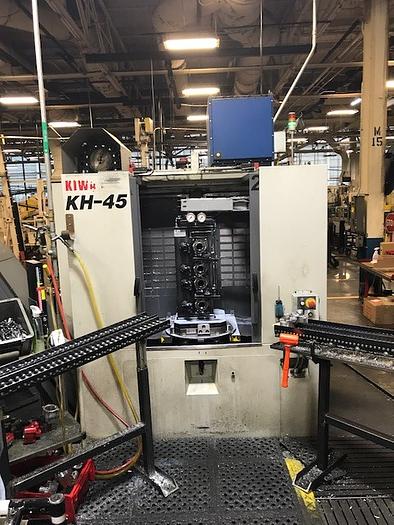

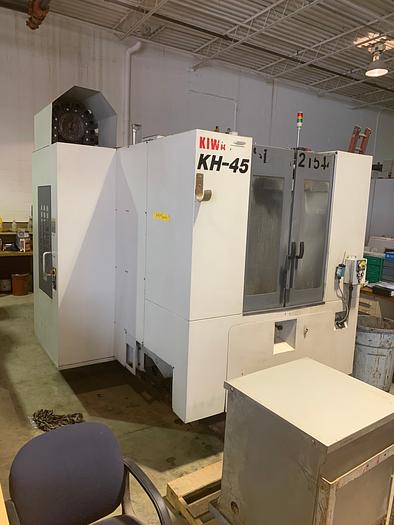

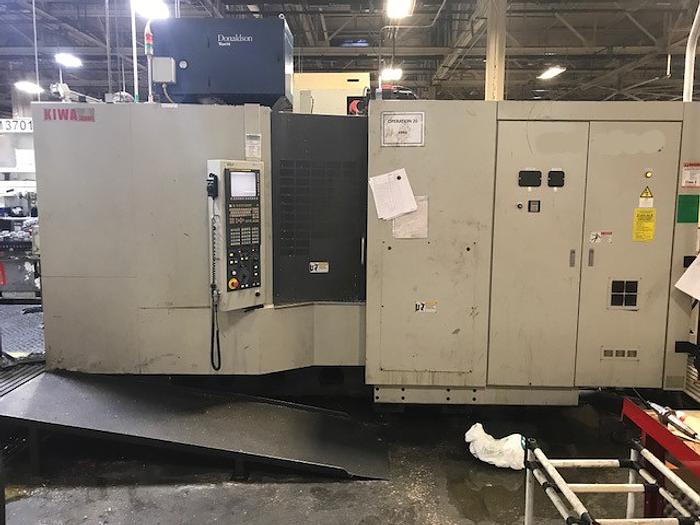

KIWA KH45 4 AXIS 400MM HORIZONTAL MACHINING CENTER

KIWA KH45 4 AXIS 400MM HORIZONTAL MACHINING CENTER

$59,000 (USD)

Almont, MI

orCall 586-752-0090

Description

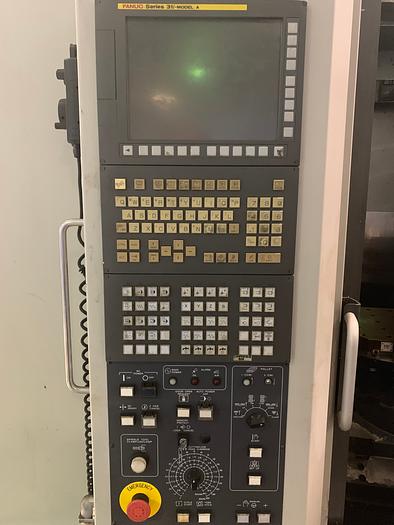

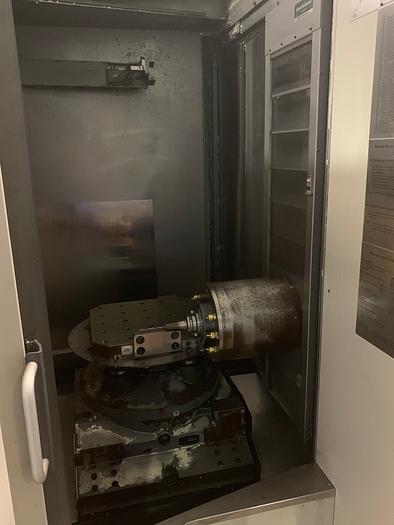

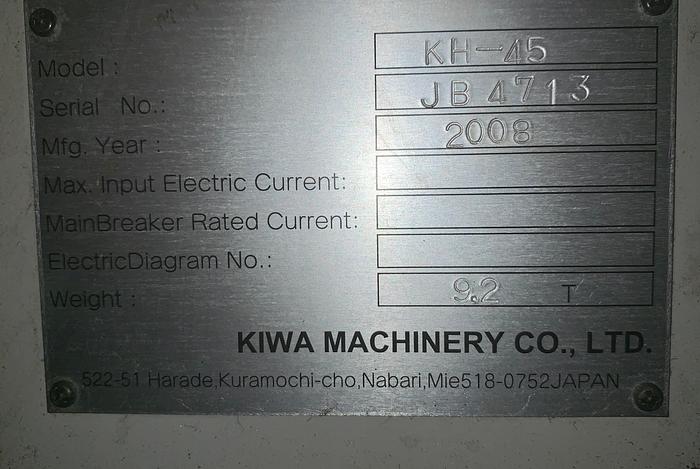

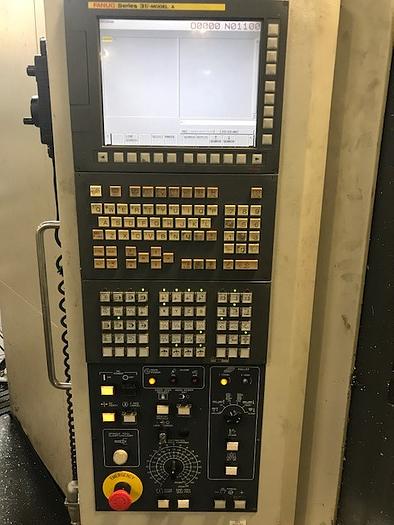

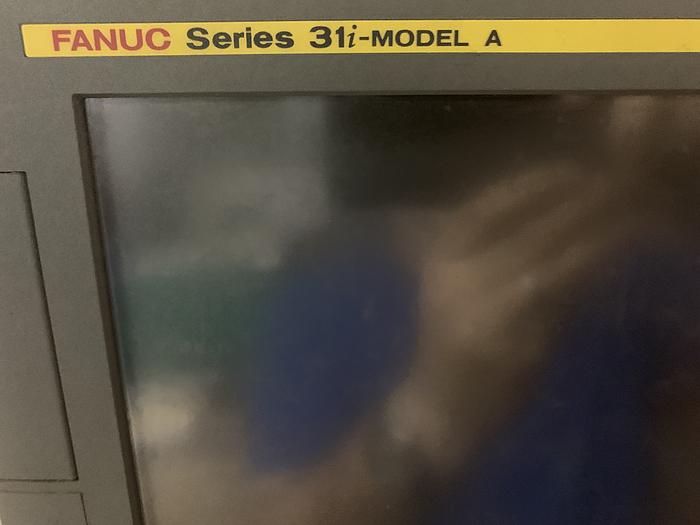

1-USED KIWA KH45 4 AXIS 400 MM HORIZONTAL MACHINING CENTER MACHINE SERIAL NUMBER JB4713 DATE OF MFG. 2008/ PUT INTO SERVICE IN 2010 STK# 103491 ============================================================= SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: CONTROLLER Fanuc 31i-MA TABLE/WORK SUPPORT Table Size L x W (in.) 15.750 x 15.750 Max. Workpiece Weight (lbs) 1,100 Pallet Changer No. of Pallet 2 Opt. 8 Rotary Table full 4th SPINDLE(S) Num. Main Spindles 1 Taper CAT-40 Top RPM 12,000 Horse Power (30 min rating) 30.00 # Speed Ranges 1 Type Fixed TOOLING Primary Tool Carrier(s) ATC Number of Tools 60 Tool Change Time C-to-C (sec) 0.90 sec tool-to-tool Max. Tool Length 15.700" Max. Tool Diameter 2.800" (with empty adacent pockets) Max. Tool Weight 17.60 LBS AXES AND TRAVELS Number of Axes: 4 U Axis: None Travel Max Feed/Rapid Rate X1 Std. 25.200" 1,181 ipm/2,362 ipm Y1 Std. 24.000" 1,181 ipm/2,362 ipm Z1 Std. 26.800" 1,181 ipm/2,362 ipm B1 Std. 360,000 deg 33 rpm 33 rpm WIGHTS AND MEASURES Machine Dimensions (L x W x H) 95" x 179" x 109" Machine Weight 20,240 LBS Spindle Nose To Table Edge 30.700" Spindle To Table Center 3.900" EQUIPPED WITH: CHIP CONVEYOR HIGH PRESSURE COOLANT THRU SPINDLE FANUC SERIES 31i -MODEL A CNC CONTROL FOB TRUCK, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. (586)752-0090 WWW.RABINDUSTRIES.COM

Specifications

ManufacturerKIWA
ModelKH45
Year2008
ConditionUsed
Serial NumberJB4713
Stock Number103491
