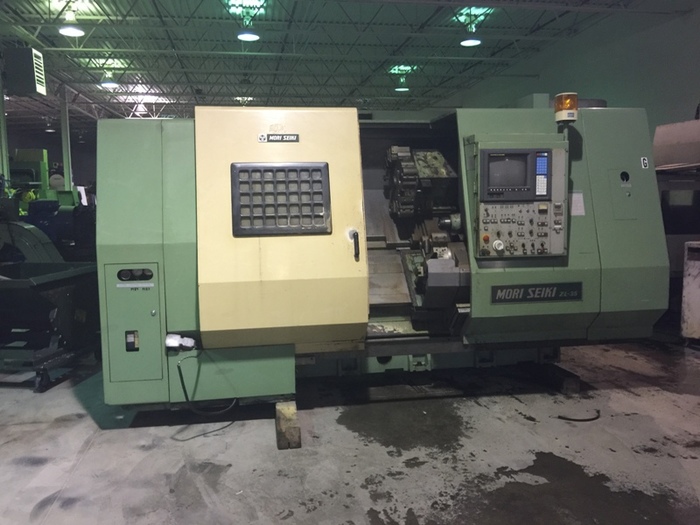

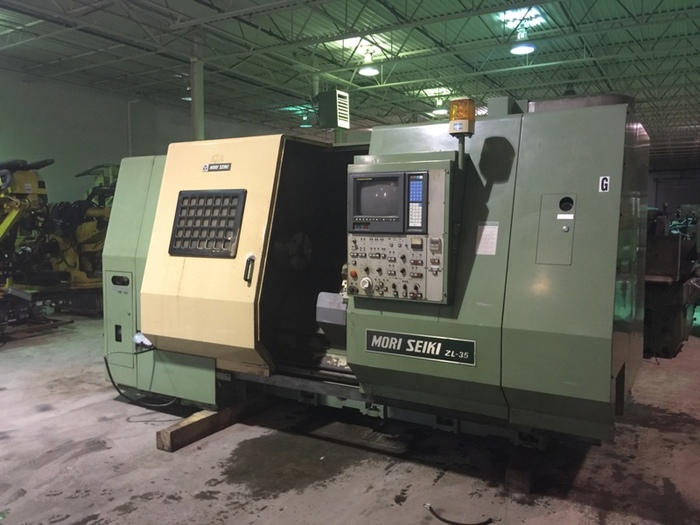

MORI SEIKI ZL35B 4 AXIS CNC LATHE

Contact us for price

Almont, MI

orCall 586-752-0090

Description

SWING OVER BED 23.6"
SWING OVER CROSS SLIDE 16.7"
DISTANCE BETWEEN CENTERS 35"
MAX. MACHINING DIAMETER 15.4"
STANDARD MACHINING DIAMETER UPPER 12.6" LOWER 10.2"
MAX. MACHINING LENGTH 30.7"
X AXIS TRAVEL UPPER 8.9"/LOWER 8.3"
Z AXIS TRAVEL 33.7" BOTH TURRETS
SPINDLE SPEED 9 TO 2,500 RPM
SPEED RANGES 2
SPINDLE NOSE JIS A2-8
HOLE THROUGH SPINDLE 4.1"
SPINDLE BEARING ID 6.3"
NUMBER OF TOOL POSITIONS UPPER 10/LOWER 10
SHANK HEIGHT FOR SQUARE TOOLS 1"
SHANK DIAMETER FOR ROUND BORING BAR 2"
TURRET INDEXING TIME 1.0 SECONDS
RAPID TRAVERSE RATES X AXIS 472.4 IPM/ Z AXIS 590.6 IPM
CUTTING FEED RATE X & Z AXIS 0.0016 TO 500 IPR
JOG TRAVERSE RATE X & Z AXIS 49.6 IPM
TAILSTOCK TRAVEL 33.7"
TAILSTOCK QUILL DIAMETER 4.3"
TAPER OF TAILSTOCK SPINDLE MT-4
TAILSTOCK QUILL STROKE 3.9"
MAIN MOTOR 30/22 KW
FEED MOTOR X AXIS 1.8 KW/ Z AXIS 2.8 KW
COOLANT TANK CAPACITY 130 LITERS
DIMENSIONS 208.7" X 78.7"
WEIGHT 24,000 LBS
EQUIPPED WITH:
CHIP CONVEYOR

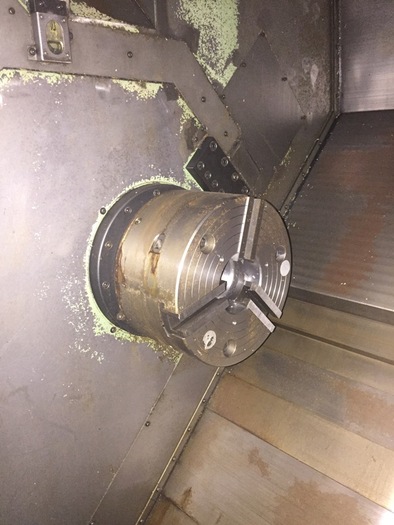

CHUCK

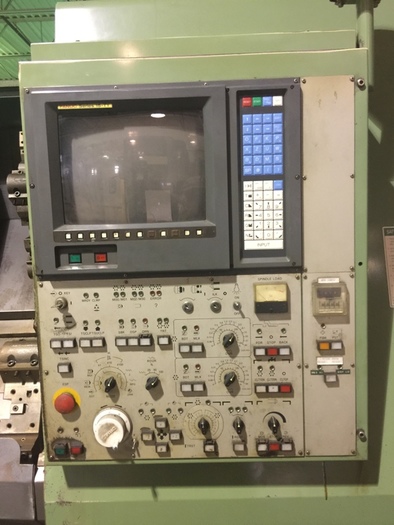

FANUC 15TT CNC CONTROL

Specifications

ManufacturerMORI SEIKI
Year1990
ConditionUsed
Stock Number103488
