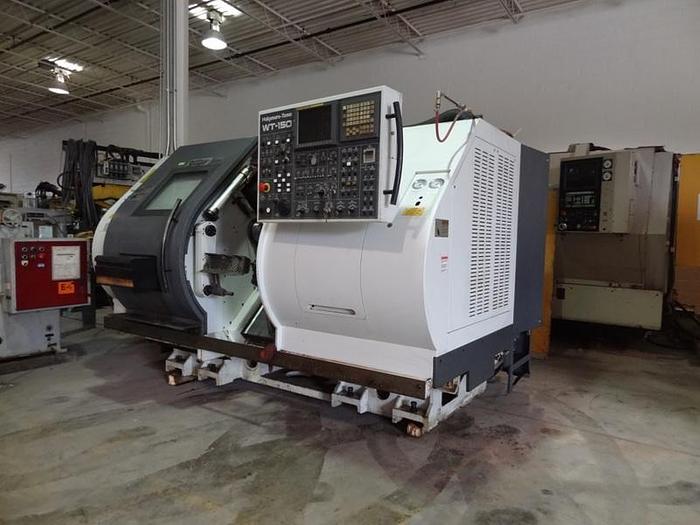

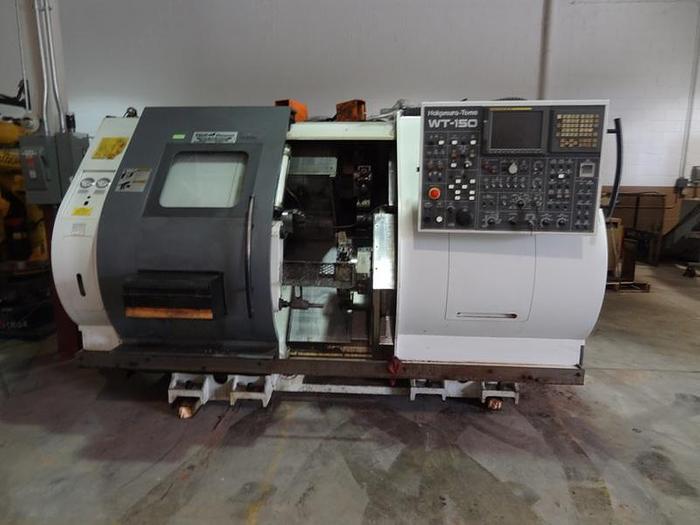

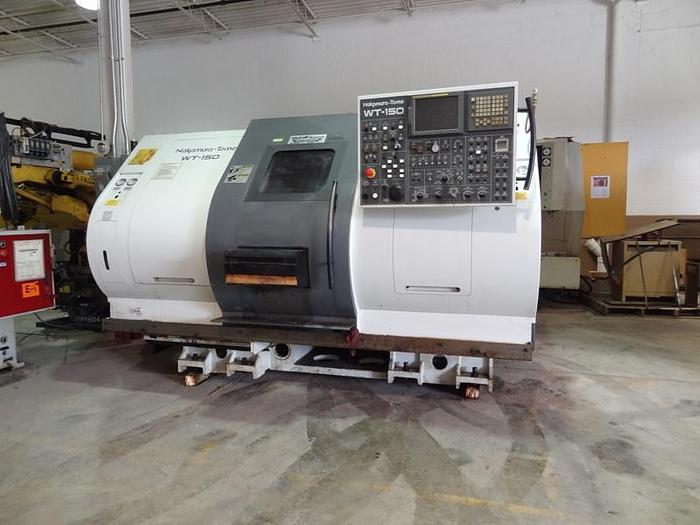

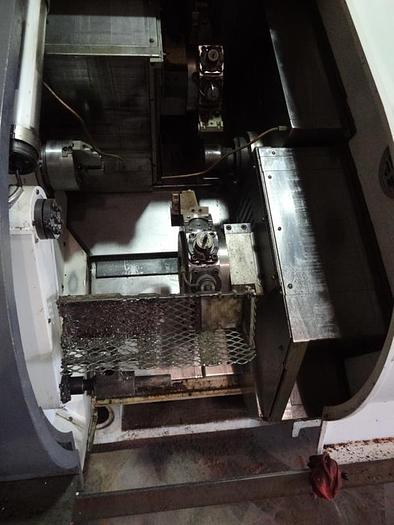

NAKAMURA TOME WT150MMY CNC 8 AXIS LATHE 2005

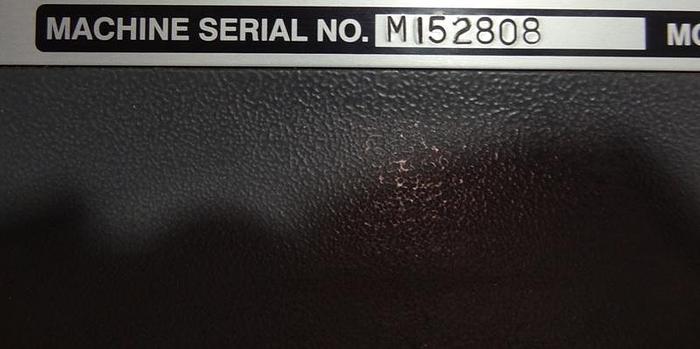

1-USED NAKAMUA TOME WT150 CNC MULTI AXIS TURNING CENTER SERIAL NUMBER M152808 APPROX. DATE OF MFG. 2005 STK# 103480 ============================================================== SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: *CAPACITY MAX TURNING DIAMETER 7.480" STANDARD TURNING DIAMETER 6.692" DISTANCE BETWEEN CENTERS MAX 29.52" MIN 7.874" MAX TURNING LENGTH 19.803" BAR CAPACITY 2.007" CHUCK SIZE 6" *CONTROLLED AXIS UPPER TURRET X,Z,Y LOWER TURRET X,Z MAIN SPINDLE C SUB SPINDLE C SUB SPINDLE Z TRAVEL TO MAIN SPINDLE *AXIS TRAVEL SLIDE TRAVEL X1/X2 6.2007"/6.594" SLIDE TRAVEL Z1/Z2 18.307" EACH SLIDE TRAVEL Y +/- 1.377" SLIDE TRAVEL B 21.653" RAPID FEED X1/X2 16M/MIN RAPID FEED Z1/Z2 40M/MIN RAPID FEED B AXIS 40M/MIN RAPID FEED Y AXIS 6M/MIN *LEFT AND RIGHT SPINDLES SPINDLE SPEEDS 5,000 RPM SPINDLE NOSE A2-5 HOLE THROUGH SPINDLE 2.480" HOLE THROUGH DRAW TUBE 2.047" *C AXIS LEAST INCREMENT INPUT 0.001 DEGREES LEAST COMMAND INCREMENT 0.001 DEGREES RAPID INDEX SPEED 600 RPM CUTTING FEED RATE 1 TO 4800 RPM C AXIS CLAMP DISK CLAMP C AXIS ENGAGE TIME 1.5 SEC *UPPER AND LOWER TURRETS TYPE OF TURRET HEAD DODECAGONAL DRUM TURRET X 2 NUMBER OF TOOL STATIONS 12 STATIONS X 2 NUMBER OF INDEXING POSITIONS 24 X 2 TOOL SIZE SQUARE SHANK 1" TOOL SIZE ROUND SHANK 1.259" *DRIVEN TOOLS ROTARY SYSTEM INDIVIDUAL ROTATION SPINDLE SPEED TO 6000 RPM SPINDLE SPEED RANGE STEPLESS NUMBER OF DRIVEN TOOL STATIONS 12 X 2 TOOL SHANK STRAIGHT HOLDER 1MM TO 16MM TOOL SHANK CROSS HOLDER 1MM TO 16MM *DRIVE MOTOR POWER AND TORQUE LEFT SPINDLE 15/11 KW 113.4/83.1 N.M RIGHT SPINDLE 11/7.5 KW 83.1/56.7 N.M DRIVEN TOOLS 5.5/3.7 KW 24/16 N.M X 2 *GENERAL MACHINE HEIGHT 73.22" FLOOR 124.322" X 78.14" MACHINE WEIGHT 19,580 LBS *POWER SOURCE POWER SUPPLY 67.2 KVA EQUIPPED WITH: FANUC 18iTB CONTROL FOB TRUCK, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. 586-752-0090 www.rabindustries.com
