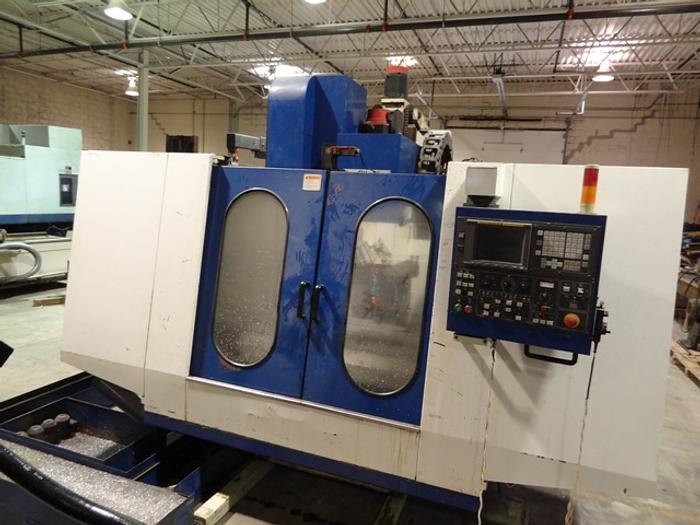

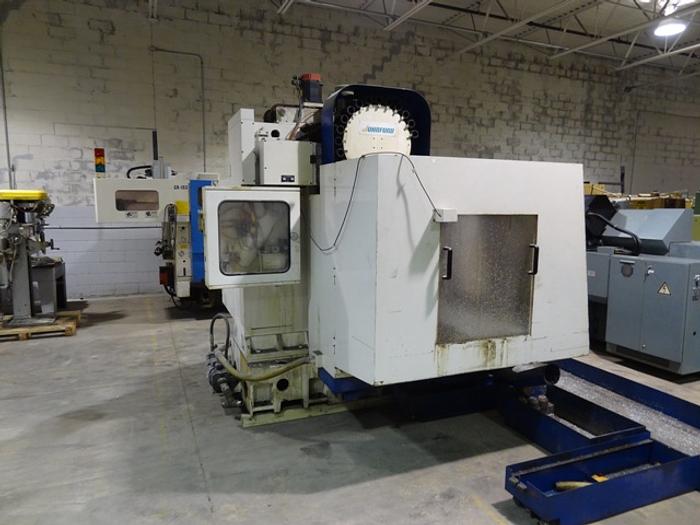

JOHNFORD SV-45 VERTICAL MACHINING CENTER

$19,500 (USD)

Imlay City, MI

orCall 586-752-0090

Description

1-USED JOHNFORD MODEL SV-45 VERTICAL MACHINING CENTER
MACHINE SERIAL NUMBER VU8045
DATE OF MFG. 1998
STK# 102916
=======================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO VERIFICATION BY BUYER:

Table Size 48"x20"
Table Load Capacity 3,300 LBS
X Travel 43.3"
Y Travel 20.9"
Z Travel 25.2"
Spindle nose to table top 5.9" to 31.1"
Spindle to Column 21.7"
Spindle Speed 60 to 8,000 RPM
Spindle taper 40
Spindle Motor 10/15 hp hi-low geared head or 15/20 with hp motor
Tools Magazine 30 tools
Tools Selection Bidirectional Random
Max. Tool Diameter 4"
Adjacent Pocket Max. tool diameter 3"
Max. Tool Length 12.5"
Max. Tool Weight 22 LBS
Table load Capacity 3,300 LBS
Rapid Travers X/Y/Z 1181/1181/787 IPM
Cutting Feed Rate X/Y/Z 315 IPM
Ball Screw Diamter 1.574" on all axis
Dimensions:
Floor Space 130" Long x 130" Wide
Weight 13,860 LBS

Equipped With:
FANUC 18M-C CNC control
Coolant Pump and Chip pan

FOB Truck, Imlay City, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

586-752-0090
www.rabind.com

Specifications

ManufacturerJOHNFORD
ModelSV-45
Year1998
ConditionUsed
Serial NumberVU8045
Stock Number102916
