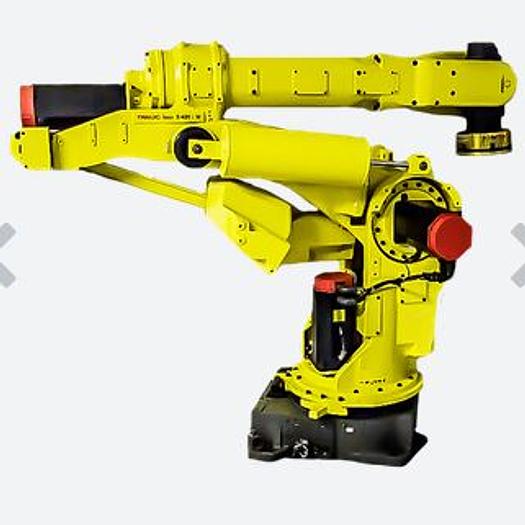

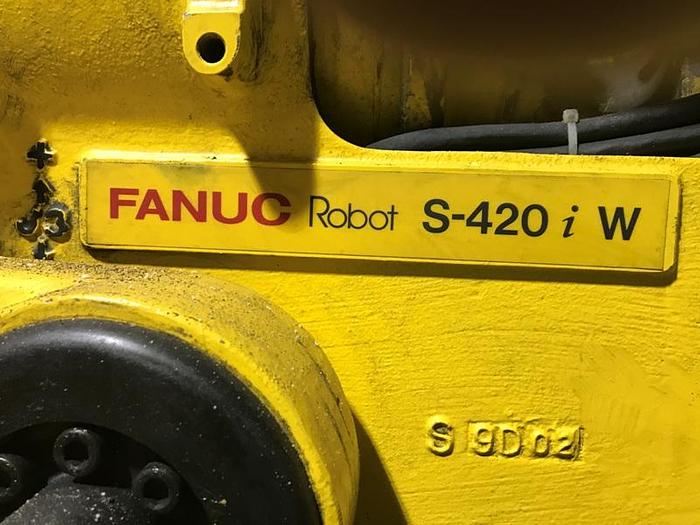

FANUC S420IW 6 AXIS CNC ROBOT

Contact us for price

Imlay City, MI

orCall 586-752-0090

Description

1-USED FANUC S420IW HEAVY DUTY 6 AXIS CNC ROBOT

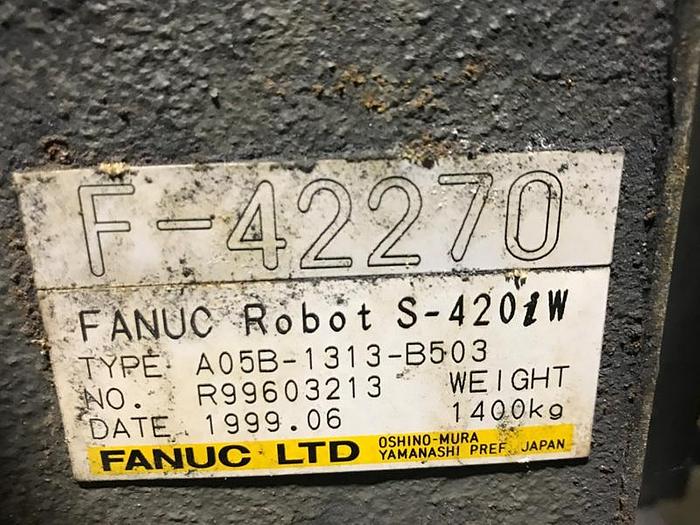

MACHINE SERIAL NUMBER F42270
DATE OF MFG. 6/1999
STK# 103106
===================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

CATALOG SPECIFICATIONS FOR THE S420IW ROBOT

MAXIMUM REACH 2.40m
LOAD CAPACITY 155kg (342 lbs)
AXIS 1 RANGE 360°
AXIS 1 SPEED 90°/sec
AXIS 2 RANGE 142°
AXIS 2 SPEED 100°/sec
AXIS 3 RANGE 135°
AXIS 3 SPEED 75°/sec
AXIS 4 RANGE 600°
AXIS 4 SPEED 140°/sec
AXIS 5 RANGE 260°
AXIS 5 SPEED 110°/sec
AXIS 6 RANGE 720°
AXIS 6 RANGE 140°/sec
REPEATABILITY ±0.4mm (±0.016")
MOUNTING POSITION Upright
MECHANICAL BRAKES All axes
WEIGHT MASS 1500 kg (3300 lbs)

EQUIPPED WITH;
RJ3 CONTROLLER BUT SERIAL NUMBER DOES NOT MATCH ARM
CONTROLLER SN 43049
TEACH PENDANT
CABLES

FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

WWW.RABIND.COM
586-752-0090

Specifications

ManufacturerFANUC
ModelS420IW
Year1999
ConditionUsed
Serial NumberF42270
Stock Number103106
