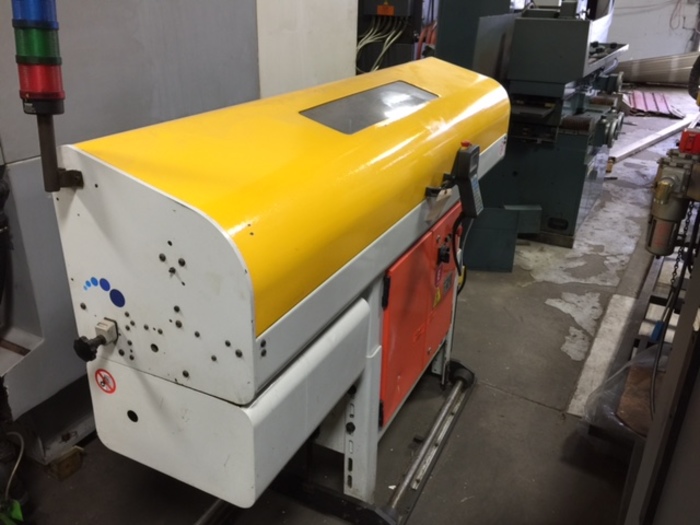

This bar feeder is designed to offer the advantages of automatic bar
feeding and loading utilizing a minimum amount of floor space.
Features:•bar diameter capacity from 5 to 80 mm
•design and construction allow for easy and quick changeover from one
diameter bar to another
•the bar is fully introduced in the lathe spindle allowing maximum
rpm's to be run
•designed to allow quick and easy lathe spindle liner replacement
•optimal adjustment of thrust and feed values relating to bar length

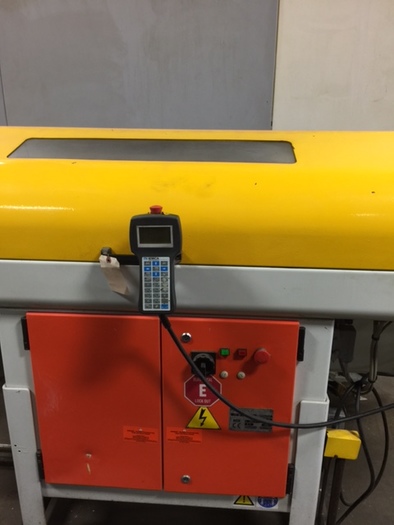

•functions controlled by a CNC card, (IEMCA design)
•Brushless motor driven bar loader.
Round bars Ø 5 - 80 mm
Hexagonal bars 5 - 65 mm
Magazine capacity 650 mm (working width) - max. 220 Kg
Bar changing time 16 sec.(mod.14)
Feed speed 200 mm/sec. (adjustable)
Return speed 400 mm/sec.
Feed voltage 230/400 volt
Installed power 1 KW
Compressed air 6 bar
Bar feeder weight Mod.14 - 450 Kg
Mod.15 - 500 Kg
Bar magazine can be located on either side
|Model||VIP80E SERVO BAR FEEDER|
