KOYO KVD300CR VERTICAL DOUBLE DISC GRINDER

Contact us for price

Imlay City, MI

orCall 586-752-0090

Description

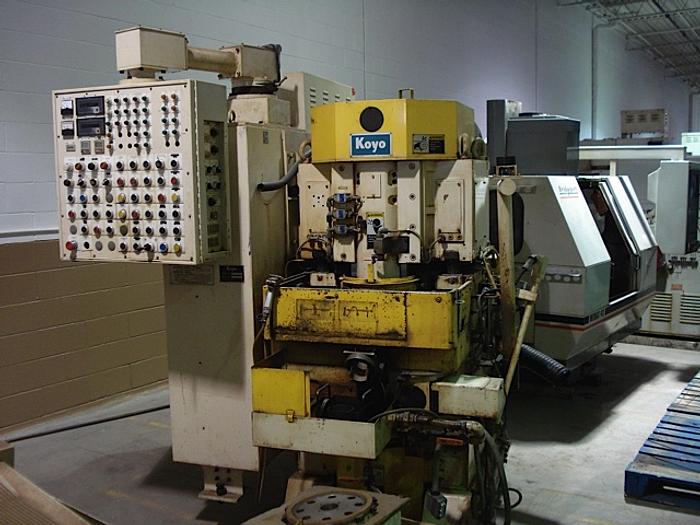

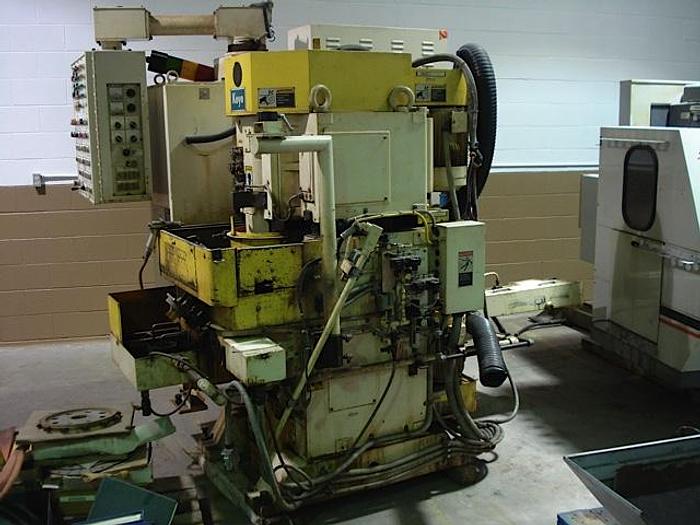

1-KOYO KVD300CR PRECISION VERTICAL DOUBLE DISC GRINDER

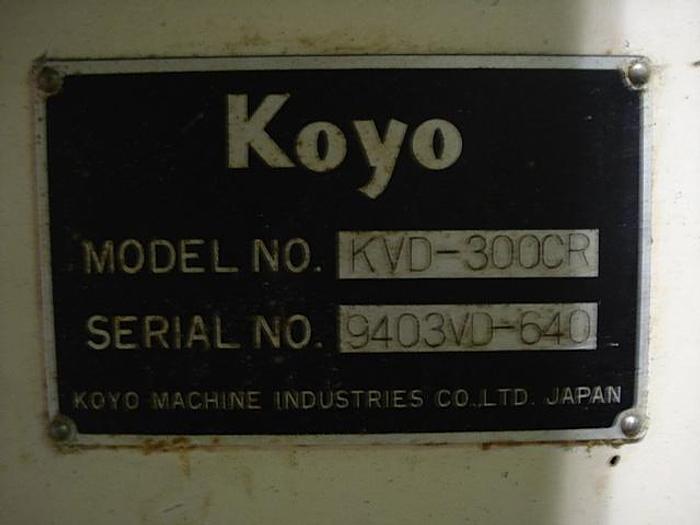

MACHINE SERIAL NUMBER 9403VD-640
APPROX. DATE OF MFG. 1995
STK# 102914
===========================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO VERIFICATION BY BUYER:

Work-piece diameter 50 mm
Max. work-piece height 10 (30) mm
Number of grinding heads 2
Arrangement:
bilateral (above, below)
vertical
Work-piece driving plate:
outside diameter 300 mm

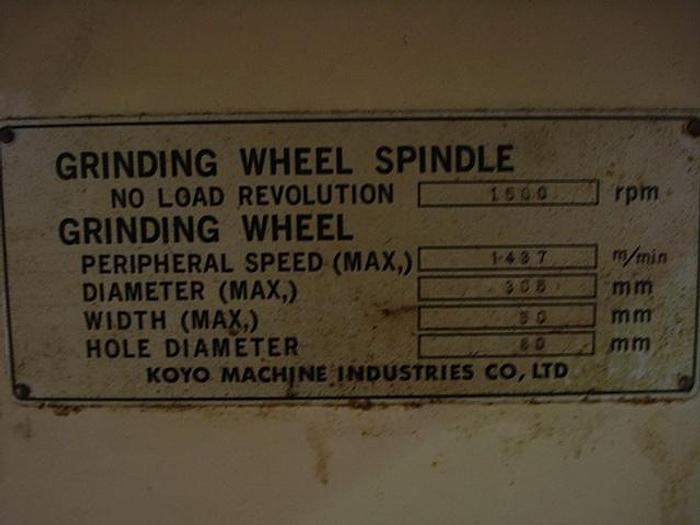

Grinding wheel:
outside diameter 300 mm
Width / height 50 mm
Grinding wheel speeds:
from 1500 rpm
Speed of the work-piece
driving plate:
stepless
from 0.4 rpm
up to 4 rpm
Grinding motor power 7.5 kW
Machine's weight about 4000 kg
Overall dimensions machine:
Length 1600 mm
Width 1400 mm
Height 2000 mm
Equipped With:
Coolant/ Filter system

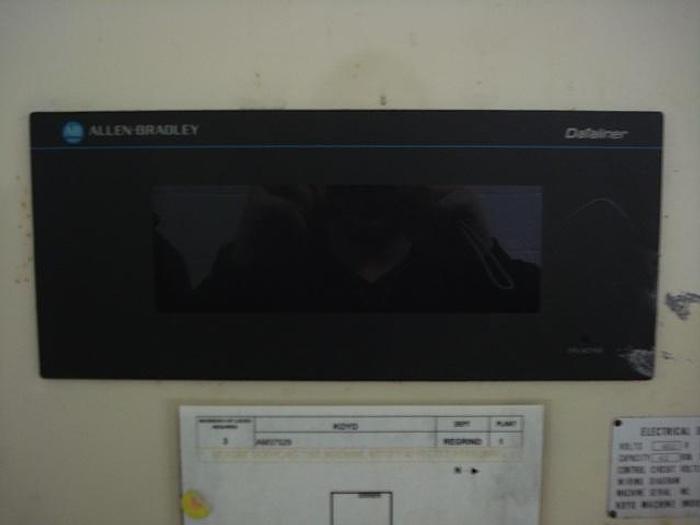

JIC Panel and Controls

FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

586-752-0090
www.rabind.com

Specifications

ManufacturerKOYO
ModelKVD300CR
Year1995
ConditionUsed
Serial Number9403VD-640
Stock Number102914
