FANUC LR MATE 200ID 6 AXIS ROBOT WITH R30iB CONTROLLER

1-FANUC LR MATE 200iD 6 AXIS CNC ROBOT WITH R30iB MATE CONTROLLER

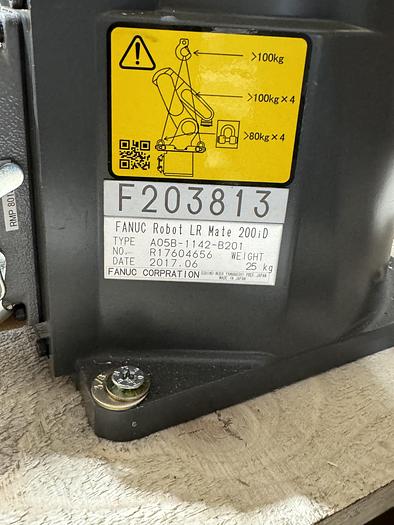

SERIAL NUMBER F203813

DATE OF MFG. 06/2017

ROBOT ARM TYPE NUMBER: A05B-1142-B201

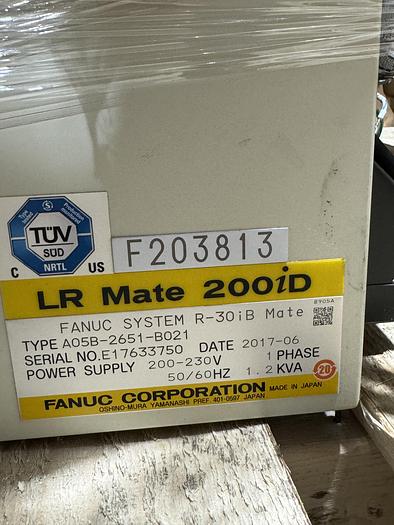

CONTROLLER TYPE NUMBER: A05B-2651-B021

STK#105162

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

This FANUC LR Mate 200iD is the latest, compact, mini robot that has the approximate reach and size of a human arm. This helps to minimize interference with peripheral devices and allows operation in narrow spaces. It is known as the lightest mechanical unit in its class and has multiple mounting options which helps with installation flexibility.

Robot Specifications:

Axes: 6

Payload: 7.00kg

H-Reach: 717.00mm

Repeatability: ±0.0200mm

Robot Mass: 25.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 450 °/s (7.85 rad/s)

J2 380 °/s (6.63 rad/s)

J3 520 °/s (9.08 rad/s)

J4 550 °/s (9.6 rad/s)

J5 545 °/s (9.51 rad/s)

J6 1000 °/s (17.45 rad/s)

Robot Motion Range:

J1 +340° - 360°

J2 ±245°

J3 ±420°

J4 ±380°

J5 ±250°

J6 ±720°

Robot Applications:

Assembly Robots

Deburring Robots

Machine Loading Robots

Order Picking Robots

Polishing Robots

Vision Robots

3D Laser Vision Robots

EQUIPPED WITH:

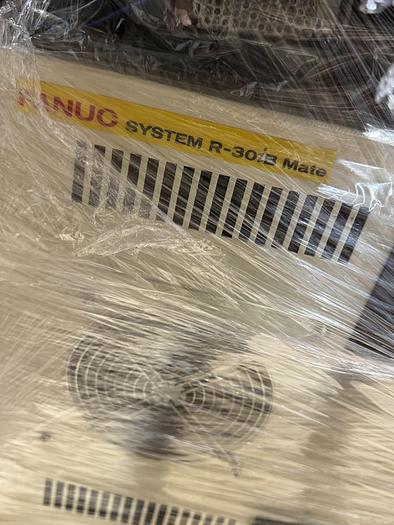

FANUC R30IB CONTROLLER

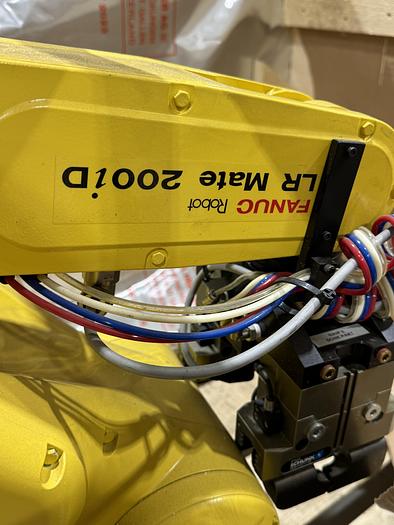

FANUC LR MATE 200ID ROBOT

FANUC ROBOT CONNECTION CABLES

FANUC COLOR TEACH PENDANT

FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI, 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
