ABB IRBP C-1000 SPOT WELDING CELL WITH TWO ABB IRB 6640 180/2.55 ROBOTS & IRC 5 CONTROLLERS & ARO SERVO SPOT WELD GUNS

Sold

ABB IRBP C-1000 SPOT WELDING CELL WITH TWO ABB IRB 6640 180/2.55 ROBOTS & IRC 5 CONTROLLERS & ARO SERVO SPOT WELD GUNS

$39,500 (USD)

Available quantity: 1

Imlay City, MI

Description

1-USED ABB IRBP C-1000 SPOT WELDING CELL WITH TWO ABB IRB 6640 180/2.55 ROBOTS & IRC 5 CONTROLLERS

& ARO SERVO SPOT WELD GUNS

SERIAL NUMBERS ON ROBOTS & IRC5 CONTROLLERS 6640-102568 & 6640-102509

SERIAL NUMBER ON INDEXER POF 100257

DATE OF MFG. 2013

STK#104104

==================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


CELL CONSISTS OF 3 STEEL FABRICATED PLATFORMS. THE TWO OUTSIDE PLATFORMS HAVE

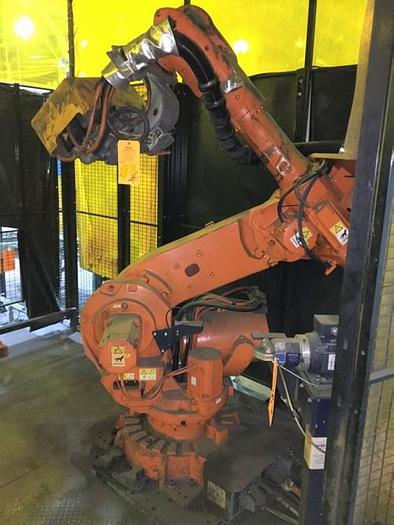

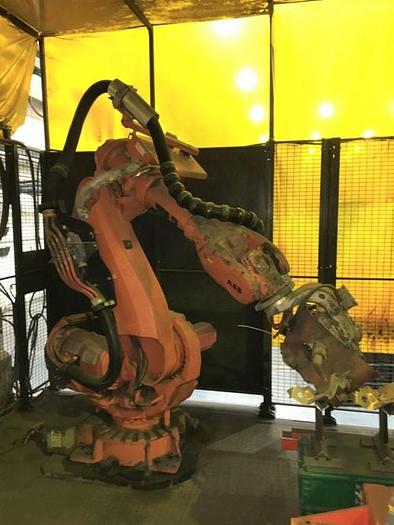

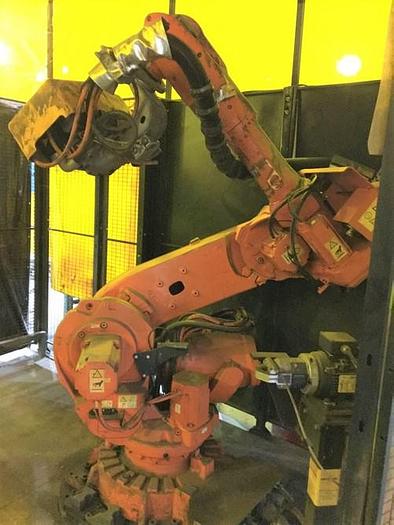

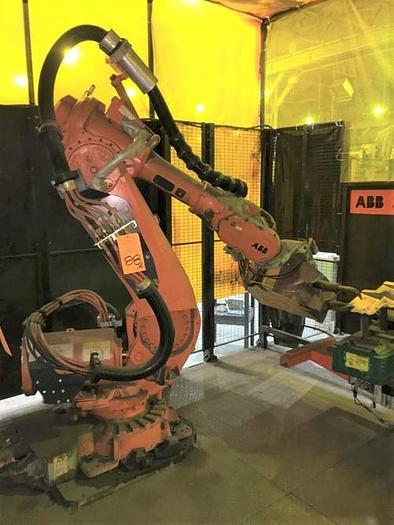

1 EACH ABB IRB 6640 180/2.55 ROBOTS WITH ARO SERVO DRIVEN SPOT WELD GUNS AND THE

CENTER PLATFORM HAS THE IRBP C-1000 INDEXER MOUNTED ON IT.


SPECIFICATIONS ON THE TWO ROBOT ARMS ARE AS FOLLOWS:

Axes:6

Payload:180.00kg

H-Reach:2550.00mm

Repeatability:±0.0700mm

Robot Mass:1310.00kg

Structure:Articulated

Mounting:Floor


Robot Motion Speed

J1 100 °/s (1.75 rad/s)

J2 90 °/s (1.57 rad/s)

J3 90 °/s (1.57 rad/s)

J4 170 °/s (2.97 rad/s)

J5 120 °/s (2.09 rad/s)

J6 190 °/s (3.32 rad/s)


Robot Motion Range

J1+170° - 170°

J2+85° - 65°

J3+70° - 180°

J4+300° - 300°

J5+120° - 120°

J6+360° - 360°

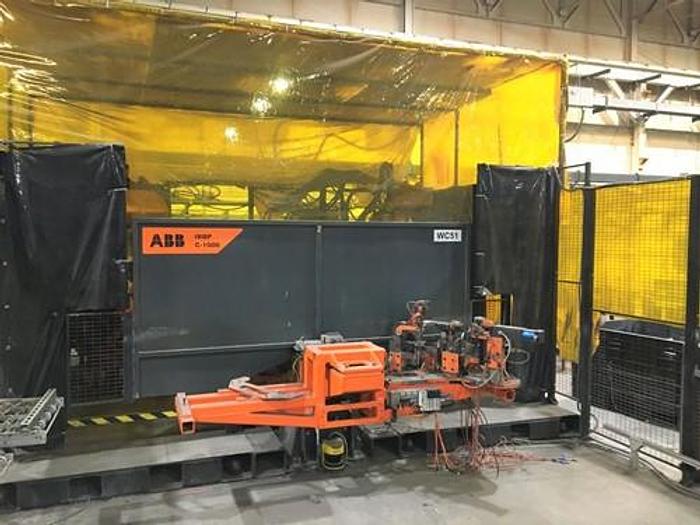

IRBP C-1000 INDEXER SPECIFICATIONS:


This positioner features a twin station solution where the robot works on one side and the operator loads and unloads on the other side. The workpiece is fixed and cannot be manipulated during the process. A screen is fitted between the two stations, which protects the operator from the arc.


The positioner IRBP C, which comes in two variants, is designed to handle workpieces including fixture of a weight up to 1000 kg.

The modular design, few and heavy-duty moving parts as well as minimal maintenance demands make the positioner service friendly.

Dynamically adaptive software plus high-speed drives result in fast changeovers and high productivity.


EQUIPPED WITH:

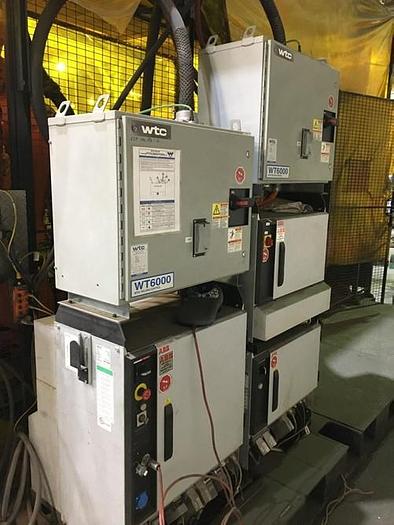

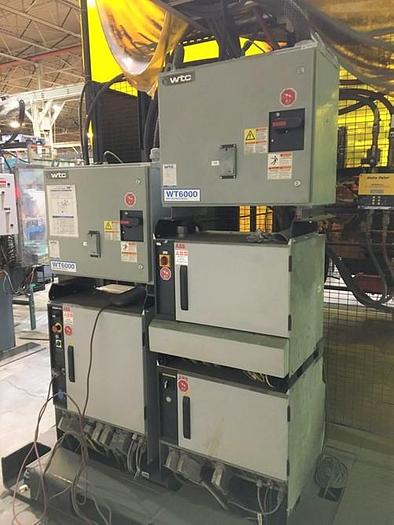

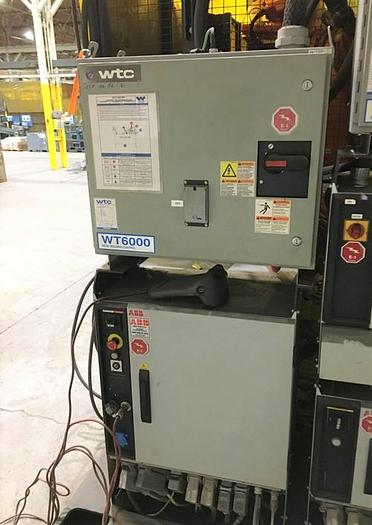

(2) ABB IRB 6640-180/2.55 ROBOTS WITH IRC5 CONTROLLERS AND ARO MODULAR SERVO SPOT WELD GUNS

(1) IRBP C-1000 INDEXER

ALL MOUNTED ON FABRICATED BASE WITH FENCING AS TAKEN FROM SERVICE.

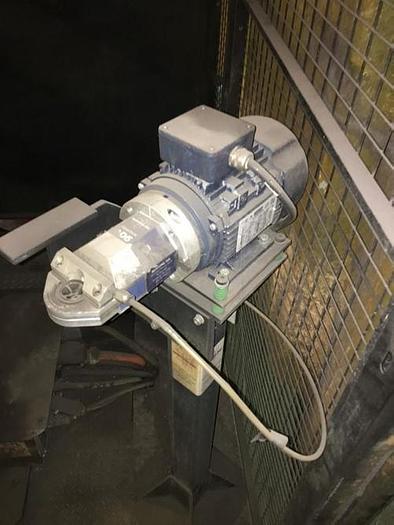

WELD TIP CLEANERS


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerABB
ModelCELL MODEL IRBP C-1000 ROBOT MODEL IRB 6640 180/2.55
Year2013
ConditionUsed
Serial NumberPOF 100257
Stock Number104104
