BARBER COLMAN 16-56 HORIZONTAL GEAR HOBBER

Contact us for price

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

1-USED BARBER COLMAN 16-56 HORIZONTAL GEAR HOBBER

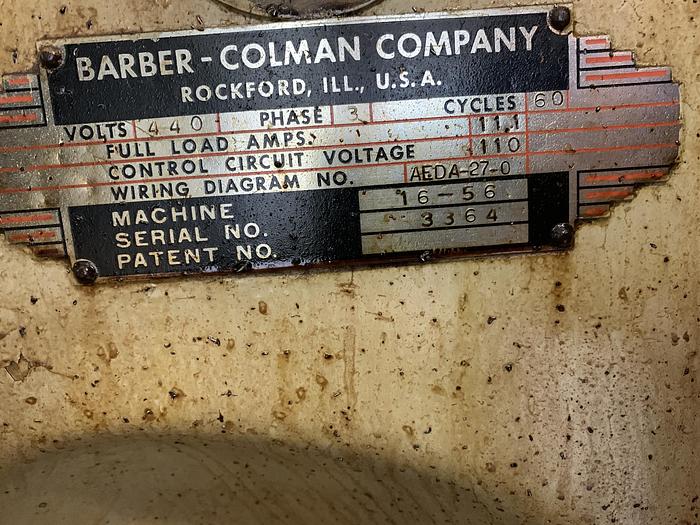

SERIAL NUMBER

DATE OF MFG. 1954

STK#104108

================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


SPECIFICATIONS

Maximum Raed Diametral Pitch (Nominal) 6 DP (4.2 Module)

Maximum Rated Diameter of Work 16" (400mm)

Maximum Hob Diameter 5" (127mm)

Maximum Hob-Slide Travel 56" (1422.4mm)

Maximum Work Slide Travel 8" (203.2mm)

Max. Work Spindle Centerline to Hob Spindle Centerline 8.75" (222mm)

Min. Work Spindle Centerline to Hob Spindle Centerline 0.75" (19.05mm)

Work Spindle Face to Standard Tailstock-Center 84" (2134mm)

Work Spindle Thru-Bore Diameter 4.13" (105mm)

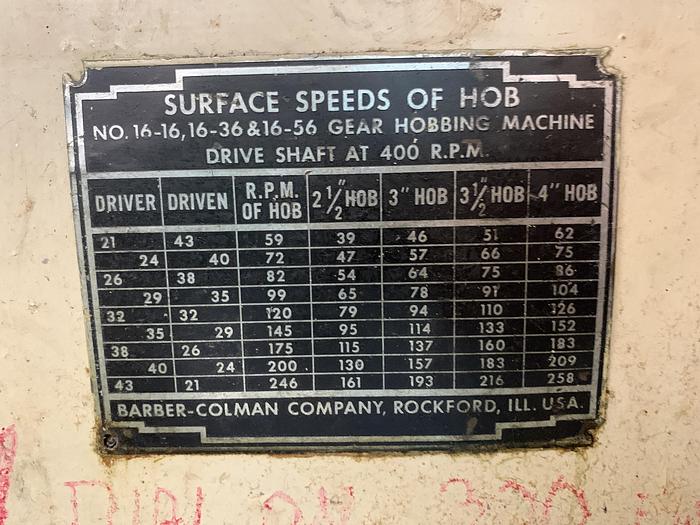

Hob Speed Range 59 - 246 RPM

Feed Ranges 0.015 - 0.150 IPR

Main Drive Motor5 HP / 1800 RPM

Rapid Traverse 2 HP

Coolant Pump 1/4 HP

Lubrication Pump 1/20 HP

Machine Size (Floor Space) 62" F-B

Overall Machine Heigh t76" (1930mm)

F.O.B. IMLAY CITY, MI 48444


THIS MACHINE IS SUITED FOR:

Cutting Of Spur/Helical Gears, Pinions, Splines, And Other Workpieces Of Similar Profile Up To 16" (400mm) Pitch Diameter, And 56" (1422mm) Face Width.


EQUIPPED WITH:

ASSORTMENT OF CHANGE GEARS

C-STYLE OVER ARM SUPPORT

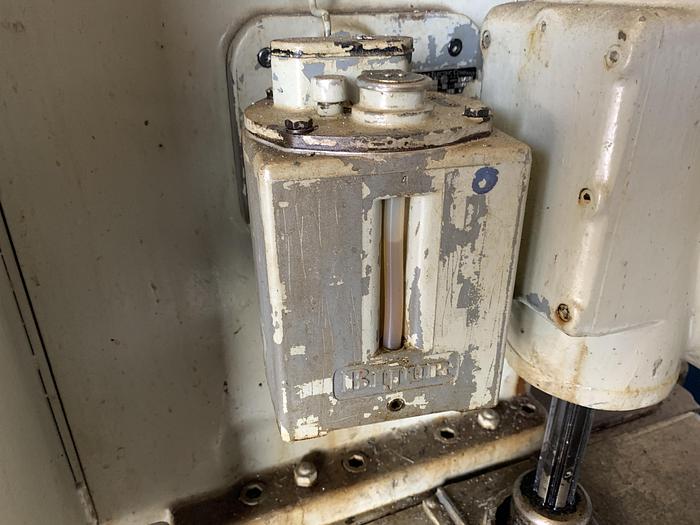

BIJUR LUBE SYSTEM

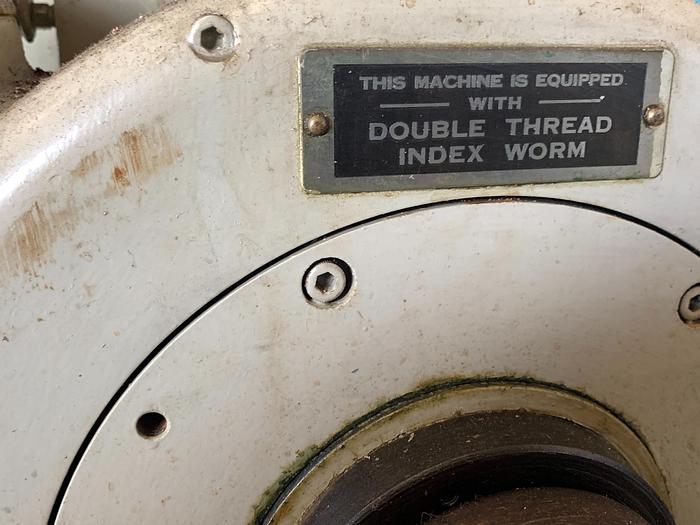

DOUBLE THREAD INDEX WORM THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerBARBER COLMAN-BOURN & KOCH
Model16-56
Year1954
ConditionUsed
Stock Number104108
