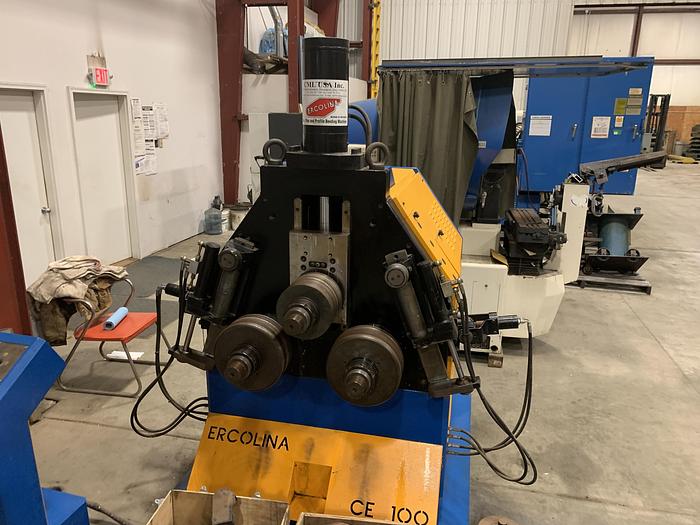

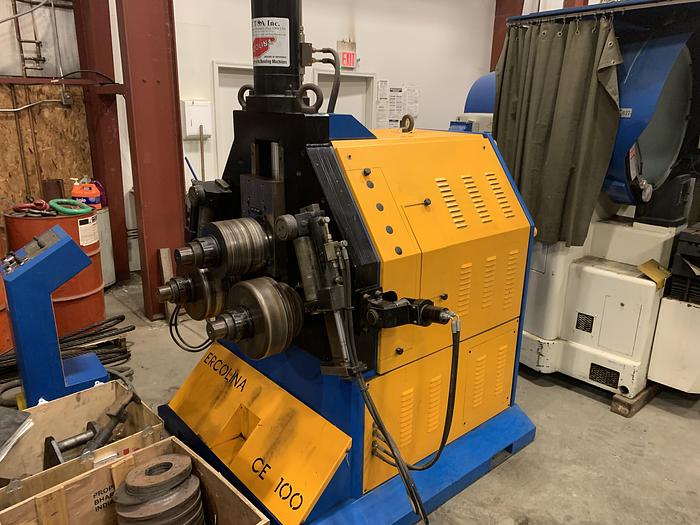

Ercolina 4″ x 1/2″ Hydraulic Programmable Angle Roll-Section Bender with 3-Axis Twist Correction

Contact us for price

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

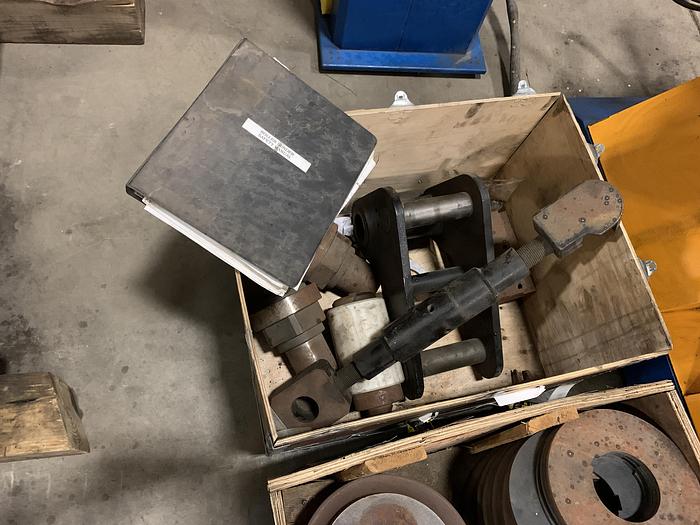

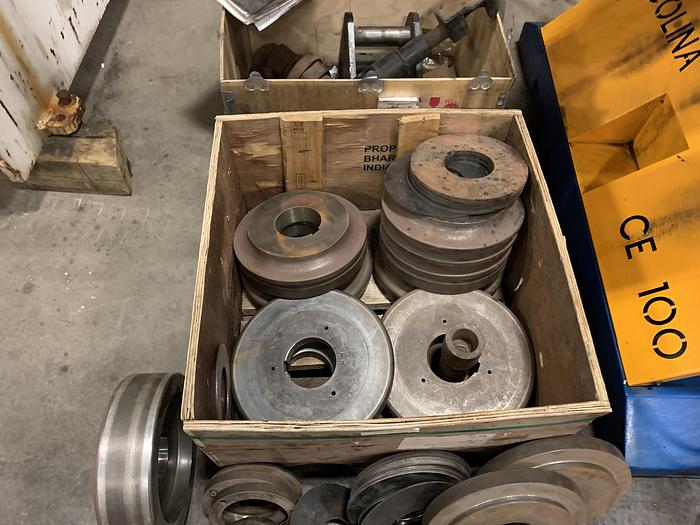

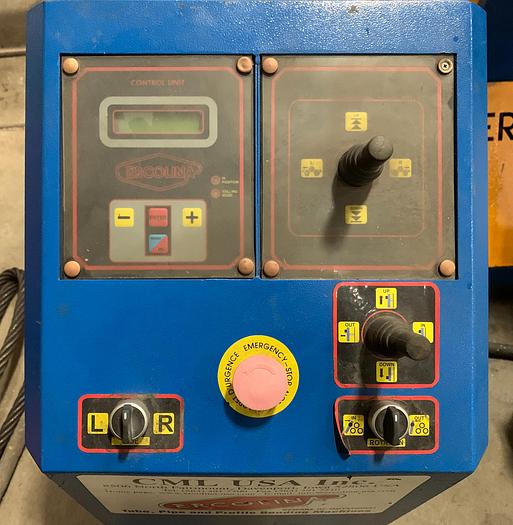

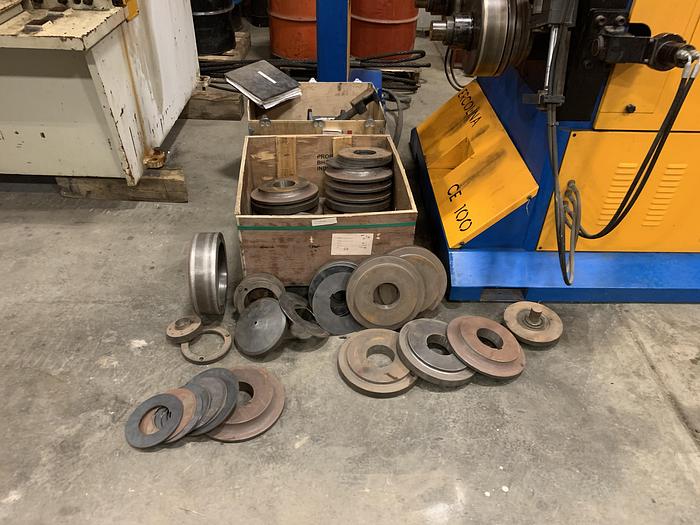

1-Used Ercolina 4″ x 1/2″ Hydraulic Programmable Angle Roll-Section Bender with 3-Axis Twist Correction SN 1106004 Date of Mfg. 2006 STK#104128 ======================================================= SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: Pipe (Max.): 4″ Sch. 40 Angle (Max.): 4″ x 4″ x 1/2″ Tube (Max.): 4 1/2″ – .237 wall Roll Shaft Diameter: 100mm Center Roll Positioning: 30 Tons Hydraulic Shaft Speed: 6 RPM Universal Tooling (Included): 12 5/8″O.D. Programming: NC – Touchpad Number of Programs: 8 Distance between Shafts: 19 1/4″ Section Modulus: 90 cm Voltage: 220v, 480v / 3ph Standard Features: Universal tooling set included with each machine Forged roll shafts precision ground and fitted for maximum performance and minimal deflection Roll shafts supported with conical steel bearings on each side of A Frame Heavy duty structure and rigid components for high section modulus ratings Reinforced engineered mainframe design proven to outperform competitive models In-line direct drive roll shaft system with motor and brake on each shaft Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage Touchpad controls with digital center roll positioning Control tower with low voltage controls and foot pedal Memory storage has eight (8) individual programs and unlimited passes Three axis hydraulic twist correction system for angle iron “Leg-in” applications Mechanical Specifications: Dimensions: 66″ x 58″ x 83″ H Weight: approx. 5,550 lbs Several extra Dies RAB INDUSTRIES, INC. THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerERCOLINA
ModelCE100
Year2006
ConditionUsed

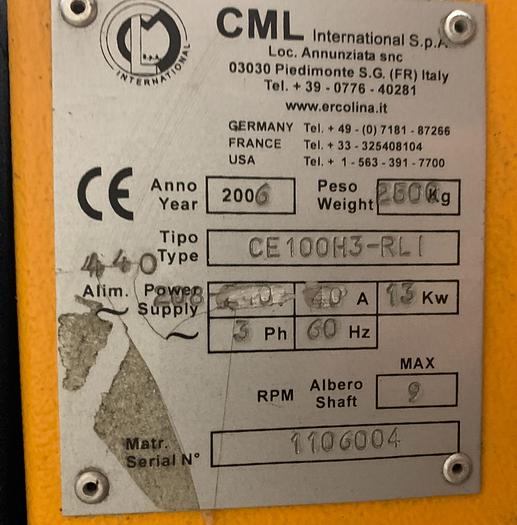

Serial Number1106004
Stock Number104128
