2012 ABB IRB 6640 235/2.55

Contact us for price

Imlay City, MI

orCall 586-752-0090

Description

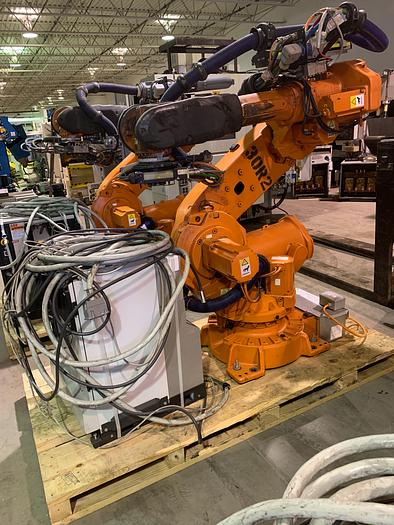

1-USED ABB IRB 6640 6 AXIS CNC ROBOT 235KG X 2.55 METER REACH

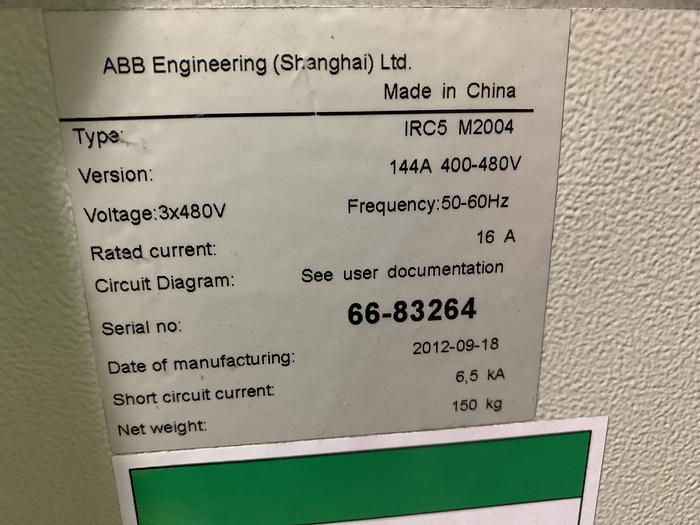

WITH IRC5 CONTROLLER, CABLES, TEACH PENDANT

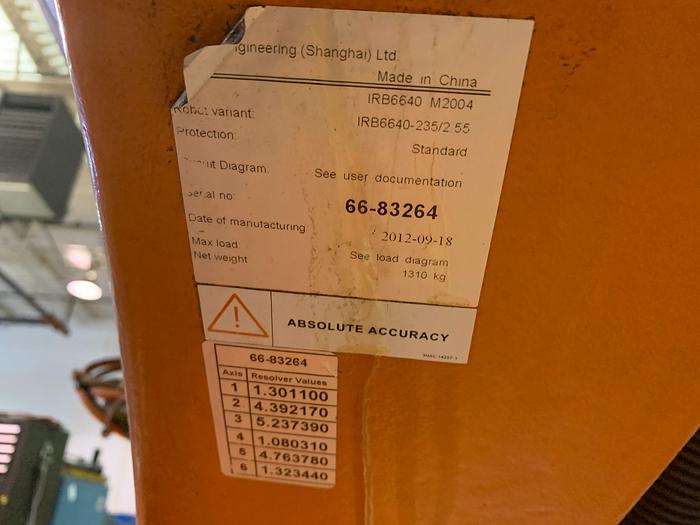

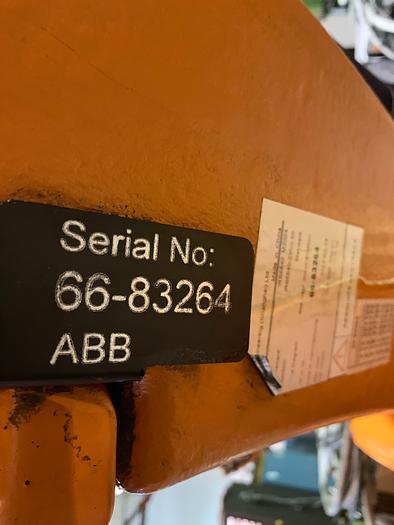

SERIAL NUMBER 66-83264
DATE OF MANUFACTURE 09/2012
STK#103703
==================================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
Robot Specifications
Axes: 6
Payload: 235.00kg
H-Reach: 2550.00mm
Repeatability: ±0.0700mm
Robot Mass: 1310.00kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed
J1 100 °/s (1.75 rad/s)
J2 90 °/s (1.57 rad/s)
J3 90 °/s (1.57 rad/s)
J4 170 °/s (2.97 rad/s)
J5 120 °/s (2.09 rad/s)
J6 190 °/s (3.32 rad/s)
Robot Motion Range
J1 ±170°
J2 +85° - 65°
J3 +70° - 180°
J4 ±300°
J5 ±120°
J6 ±360°
FROM THE OEM:
The ABB IRB 6640-235, paired with the IRC5, is the ideal robot for your material handling, machine tending, or spot welding jobs. It can tackle any heavy duty job that requires a payload of up to 235 kg, has outstanding inertia capabilities, top of the line collision resistance, easy maintenance, and simplified fork lift pockets. It has a reach of 2550 mm and can bend fully backwards, which enables it the ability to decrease its footprint and fit into tight production lines.
Customization is also easy with the upper arm extenders and different wrist modules. A variety of protection options are available such as Foundry Plus 2 or Foundry Prime 2. There are passive safety features such as load identification, movable mechanical stops, electronic positions switches (EPS), and a stiff steel structure.
The IRB 6640-235 IRC5 has TrueMove and Quick Move software to help it achieve increased path performance and monitor internal robot loads. They also help to decrease the risk of overload and increase the robot’s life cycle.
TYPICAL APPLICATIONS FOR THIS ROBOT
MACHINE TENDING
MATERIAL HANDLING
SPOT WELDING
EQUIPPED WITH:

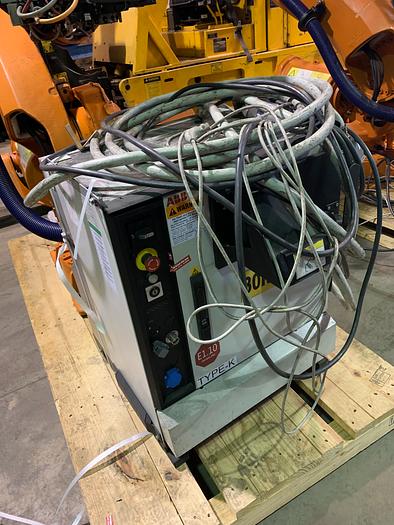

IRC5 CONTROLLER
CABLES
TEACH PENDANTS
ABSOLUTE ACCURACY
FOB TRUCK, IMLAY CITY, MI. 48444
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
(586)752-0090
WWW.RABIND.COM

Specifications

ManufacturerABB
ModelIRB 6640 235/2.55
Year2012
ConditionUsed
Serial Number66-83264
Stock Number103703
