FANUC M10iA 6 AXIS CNC ROBOT WITH VISION CONNECTIONS AND R30iB CONTROLLER

FANUC M10iA 6 AXIS CNC ROBOT WITH VISION CONNECTIONS AND R30iB CONTROLLER

Contact us for price

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

1-USED FANUC M10iA 6 AXIS CNC ROBOT WITH R30iB CONTROLLER

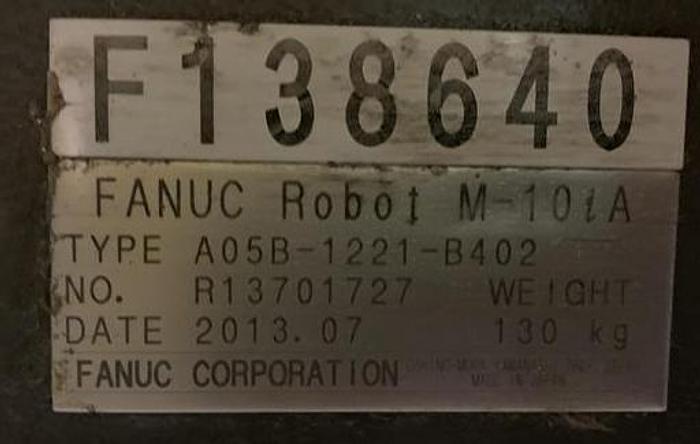

SERIAL NUMBER F138640

DATE OF MFG. 07/2013

STK#104185

=========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


This slender FANUC M-10iA simplifies applications and floor plans as it is more compact than other robots in its class while maintaining the highest axis speeds and best repeatability in its class. Furthermore, the M-10iA can handle up to 10kg payload and reach a full 1,420mm horizontally. It is truly a small but mighty robot, weighing in at a mere 130 kg while also providing some of the highest write moments and inertia in its class.


Robot Specifications:

Axes: 6

Payload: 10.00kg

H-Reach: 1420.00mm

Repeatability: ±0.0800mm

Robot Mass: 130.00kg

Structure:ArticulatedMounting:Floor, Inverted, Angle


Robot Motion Speed

J1 210 °/s (3.67 rad/s)

J2 190 °/s (3.32 rad/s)

J3 210 °/s (3.67 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)


Robot Motion Range

J1 +340° - 360°

J2 ±250°

J3 ±290°

J4 ±380°

J5 ±380°

J6 ±720°


Robot Applications:

  • Material Handling Robots
  • Assembly Robots
  • Machine Loading Robots
  • Machine Tending Robots
  • Milling Robots
  • Part Transfer Robots
  • Pick and Place Robots
  • Routing Robots
  • Spindle Robots
  • Waterjet Robots


EQUIPPED WITH:

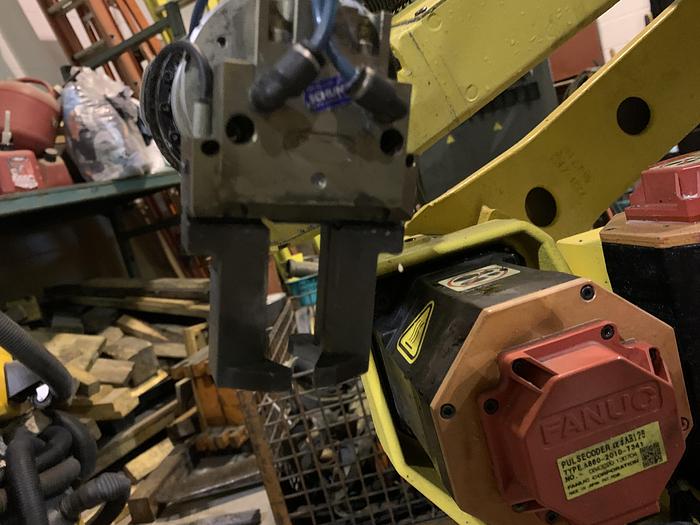

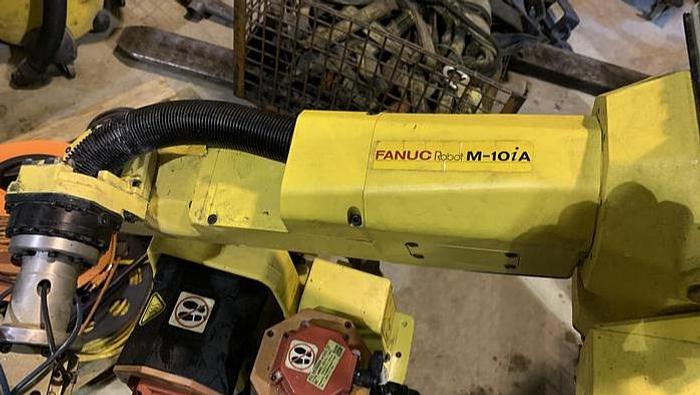

FANUC M10iA ROBOT MECHANICAL ARM

FANUC VISION CONNECTIONS ON ARM

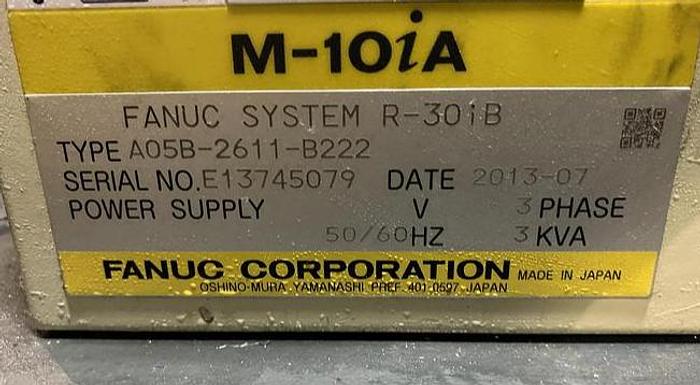

FANUC R30iB CONTROLLER

FANUC ROBOT CABLES

FANUC I-TEACH COLOR TEACH PENDANT

FANUC ROBOT RISER/STAND


FOB TRUCK, IMLAY CITY, MI 48444


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC M10iA
Year2013
ConditionUsed
Serial Number138640
Stock Number104185
