BLISS C-110 GEAR DRIVEN OBI PRESS

BLISS C-110 GEAR DRIVEN OBI PRESS

$19,500 OBO

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

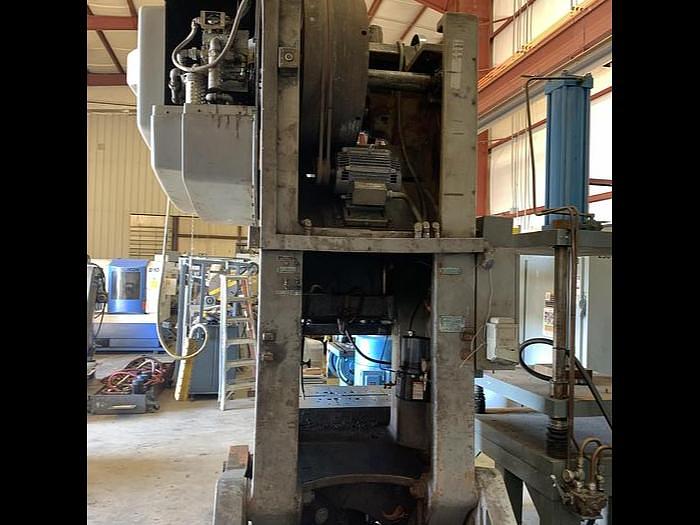

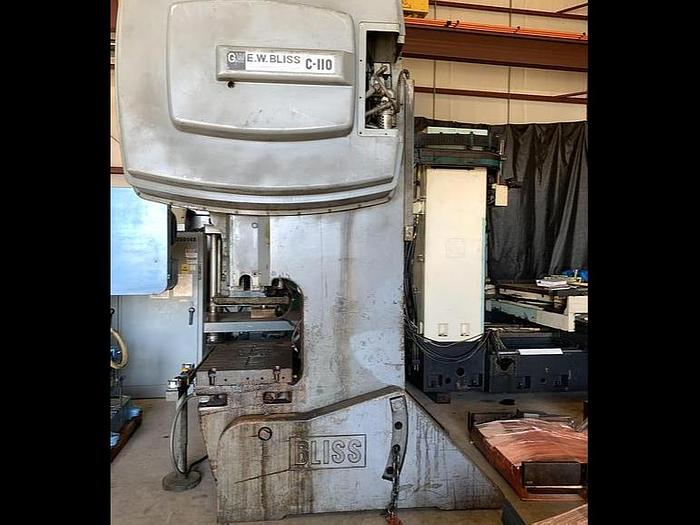

1-USED BLISS C-110 GEAR DRIVEN OBI PRESS

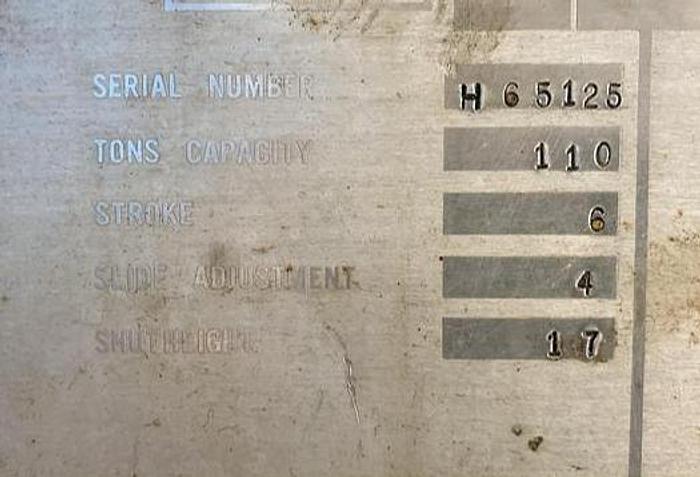

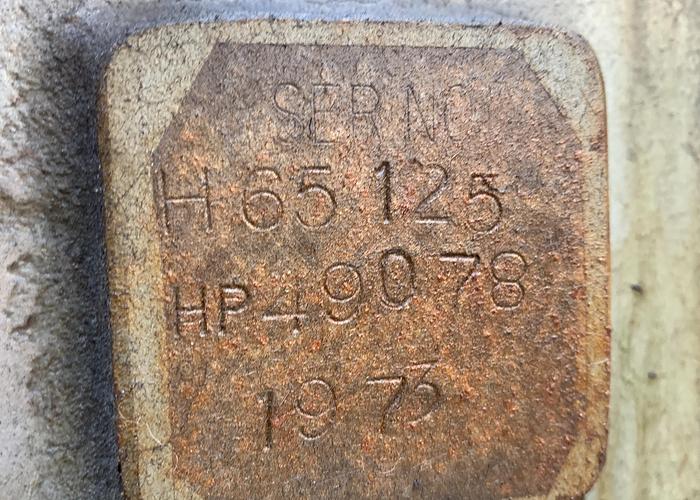

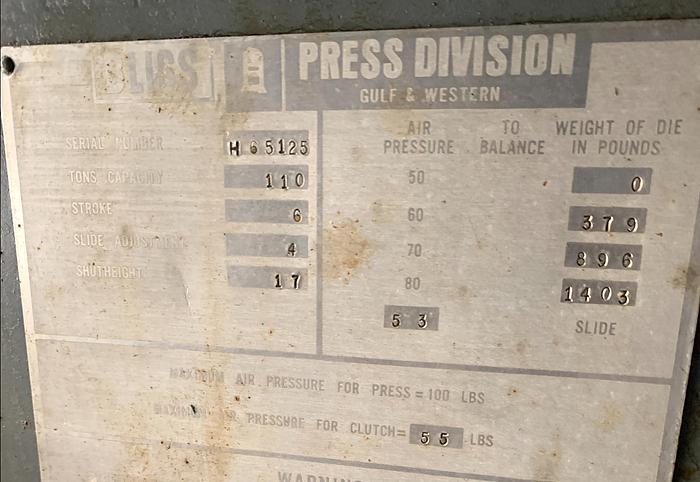

SERIAL NUMBER H65125

DATE OF MFG. 1973

STK#104189

==================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


CAPACITY 110 TONS @ 1/4" FROM BOTTOM OF STROKE

STROKE OF SLIDE 6"

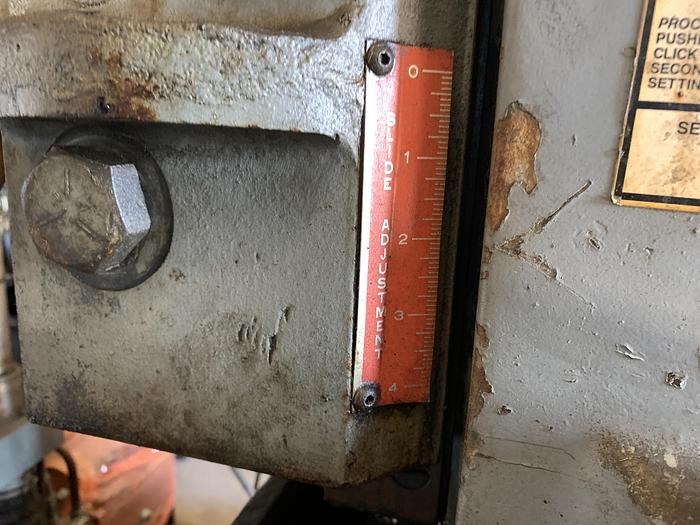

ADJUSTMENT OF SLIDE 4"

SHUT HEIGHT SDAU 17"

SPM 40

CRANKSHAFT DIAMETER AT MAIN BEARINGS 5 1/2"

CRANKSHAFT DIAMETER AT CRANKPIN 8 1/4"

BED TO GIBS 27 3/4"

BOLSTER AREA 42" X 27" X 4" THICK

SLIDE AREA 28" X 21"

STEM HOLE IN SLIDE DIAMETER X DEPTH 3 1/8" X 3"

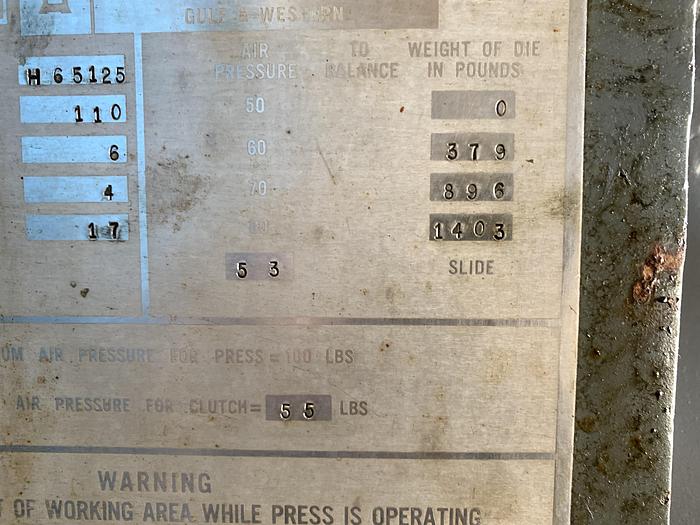

CUSHION CAPACITY @ 100PSI 12 1/2 TONS

MAIN MOTOR REQUIRED 10 HP

MOTOR SPEED REQUIRED FOR GEARED PRESS 1,800 RPM

PRESS WEIGHT FOR GEARED PRESS 30,000 LBS


EQUIPPED WITH:

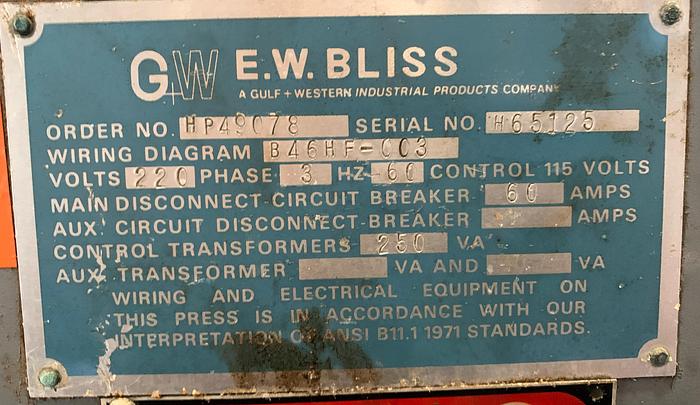

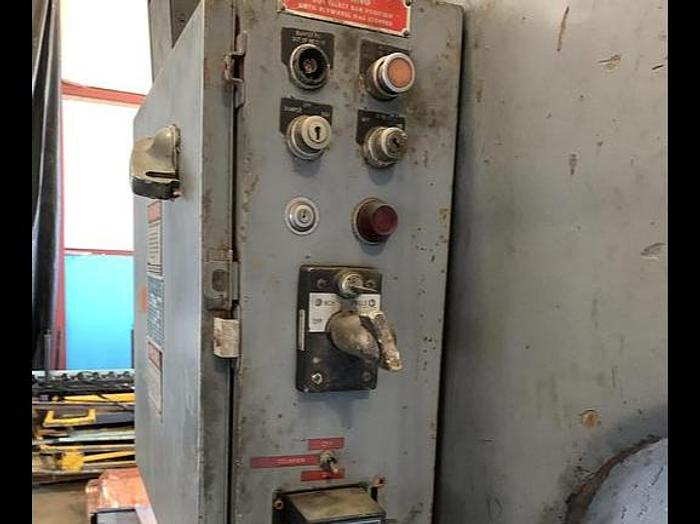

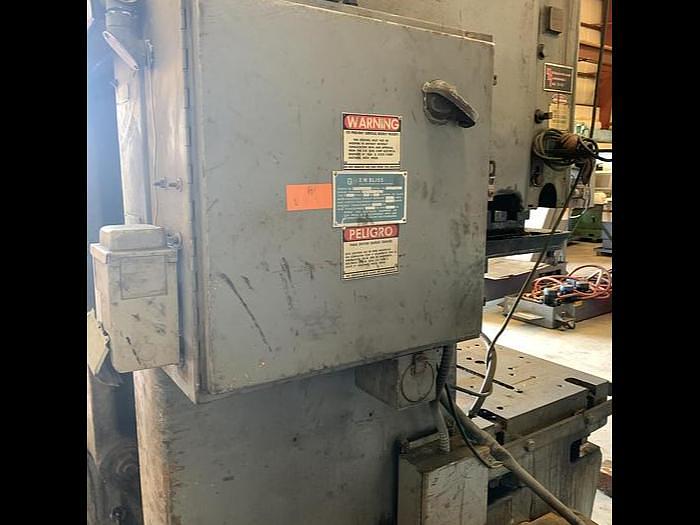

JIC CONTROLS

AIR CLUTCH

AIR BRAKE

CUSHION IN BED

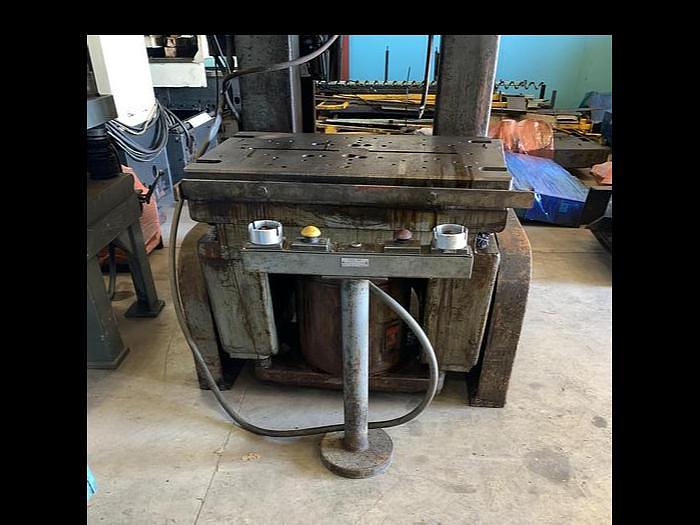

PALM BUTTON CONTROL STATION

FOB TRUCK, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerBLISS
ModelC-110
Year1973
ConditionUsed
Serial NumberH65125
Stock Number104189
