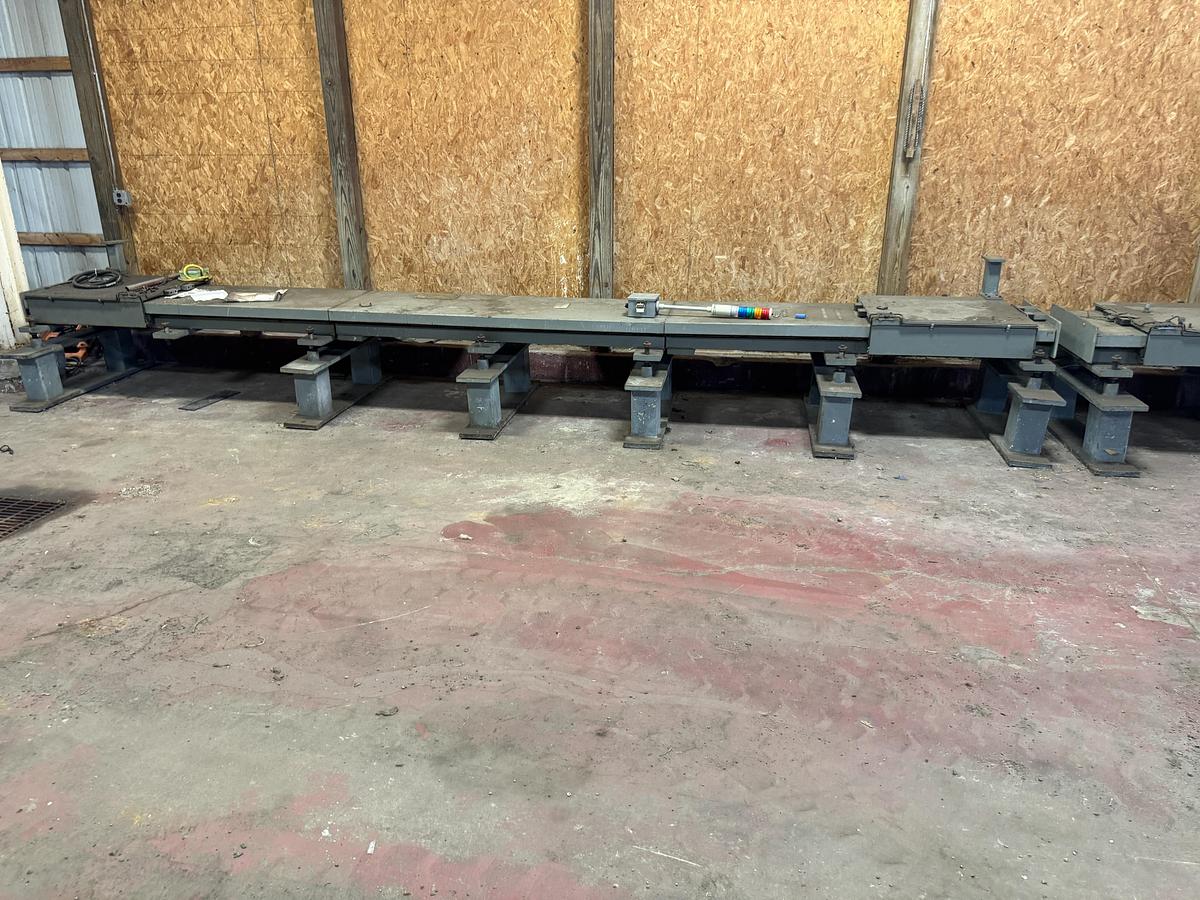

FANUC 5 METER RTU FOR MEDIUM SIZE ROBOTS DUAL CARRIERS

1-USED ROBOT 5 METER RTU FITS UP TO FANUC M-710 SERIES ROBOT WITH DUAL SLIDES

DATE OF MFG. APPROX. 2011

SERIAL NUMBER NOT AVAILABLE

STK#105355

==========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

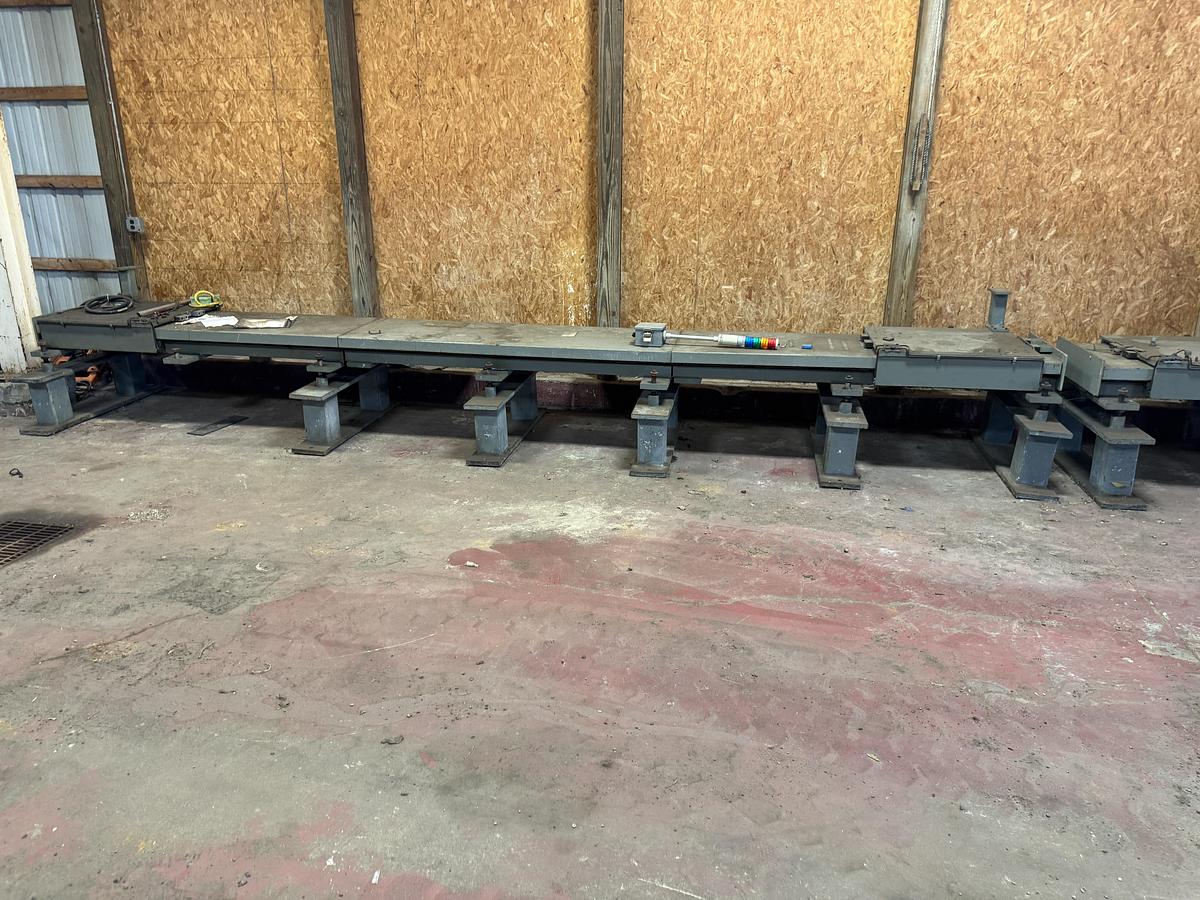

THIS RTU UNIT HAS 2 ROBOT CARRIERS ON THE LINEAR RAILS.

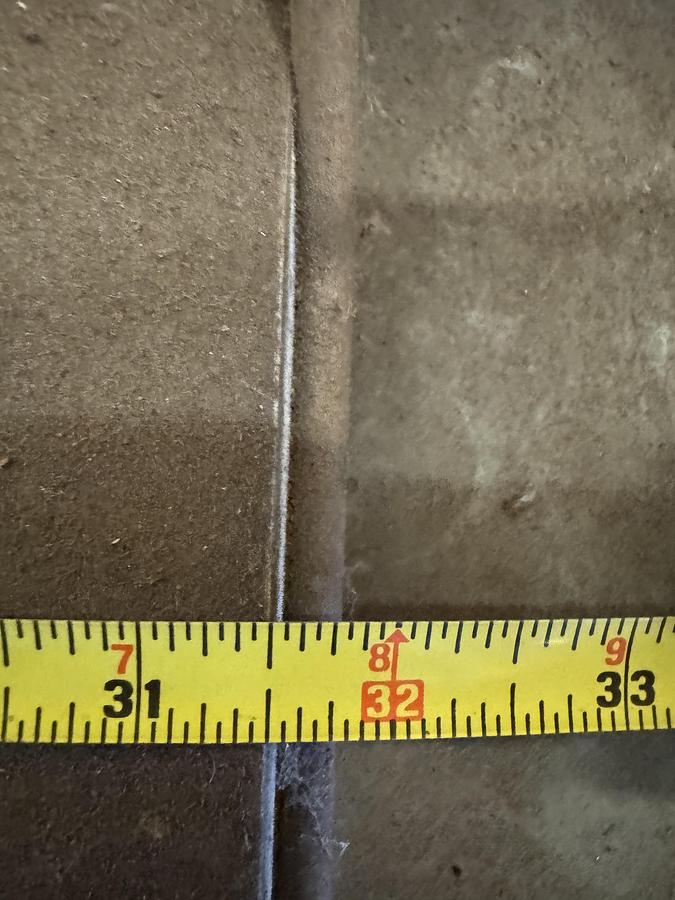

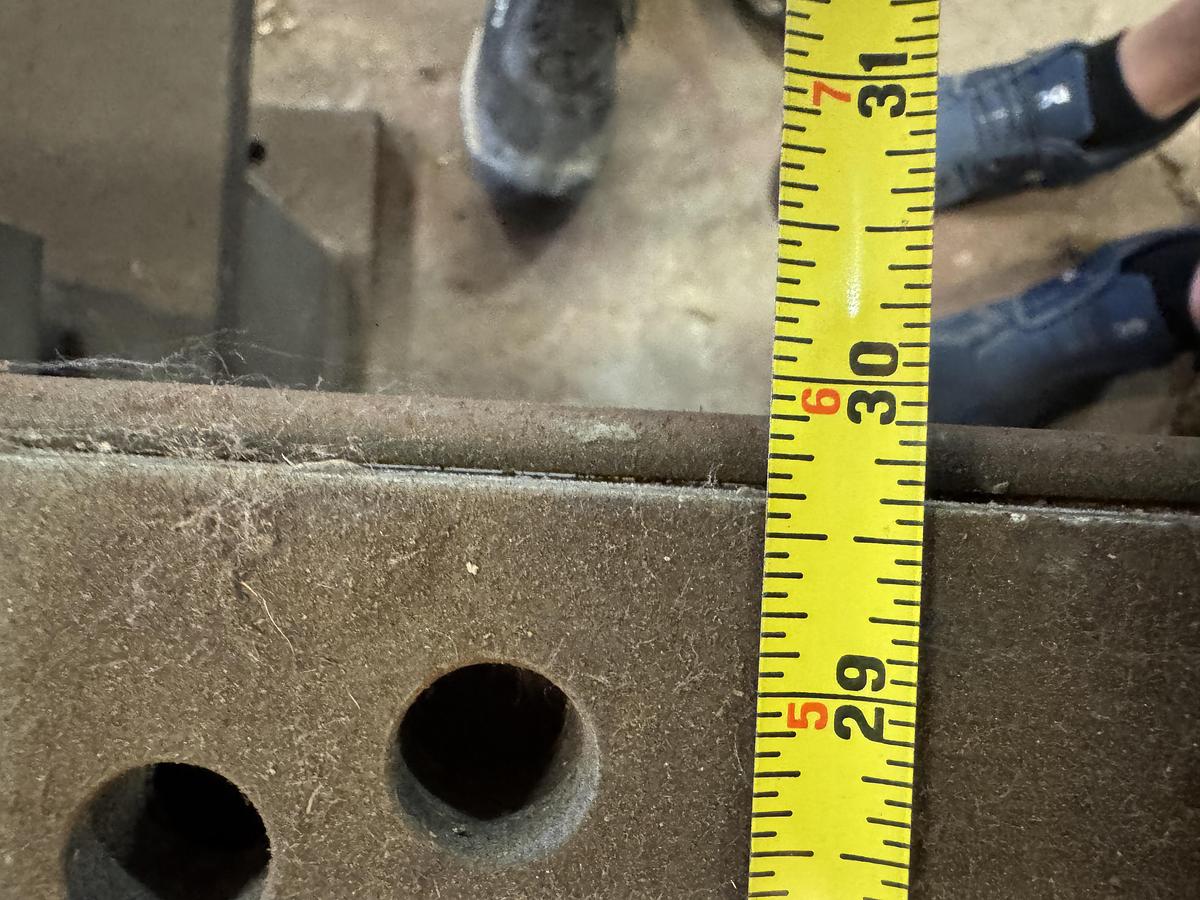

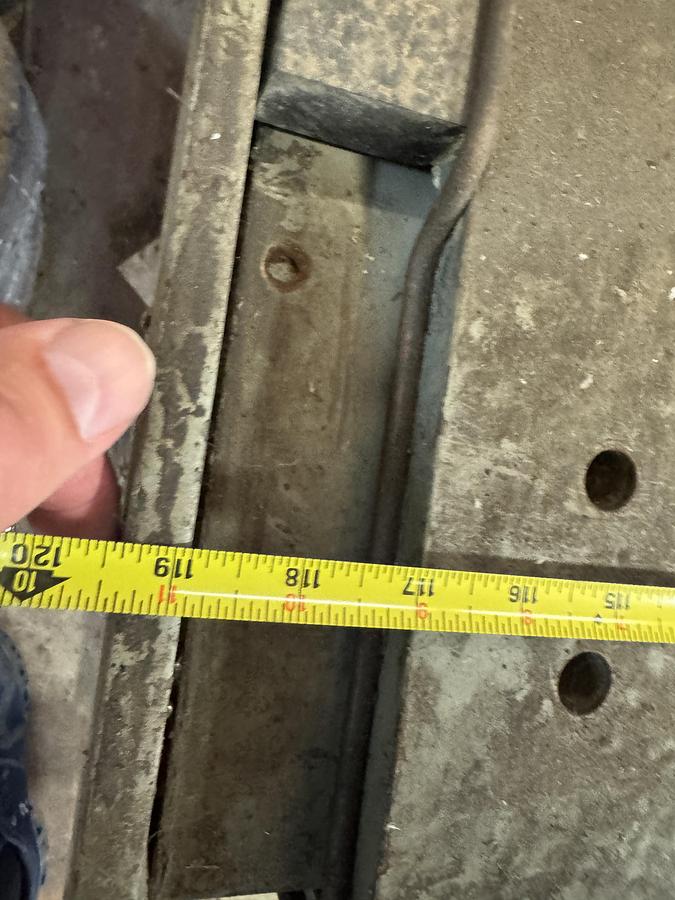

YOU CAN REMOVE ONE OF THE CARRRIERS IF YOU JUST NEED ONE. CARRIER DIMENSIONS 31 1/2" L-R X 29 5/8" F-B

OVERALL LENGTH OF TRACK 20'

APPROX CARRIER TRAVEL 16.5'

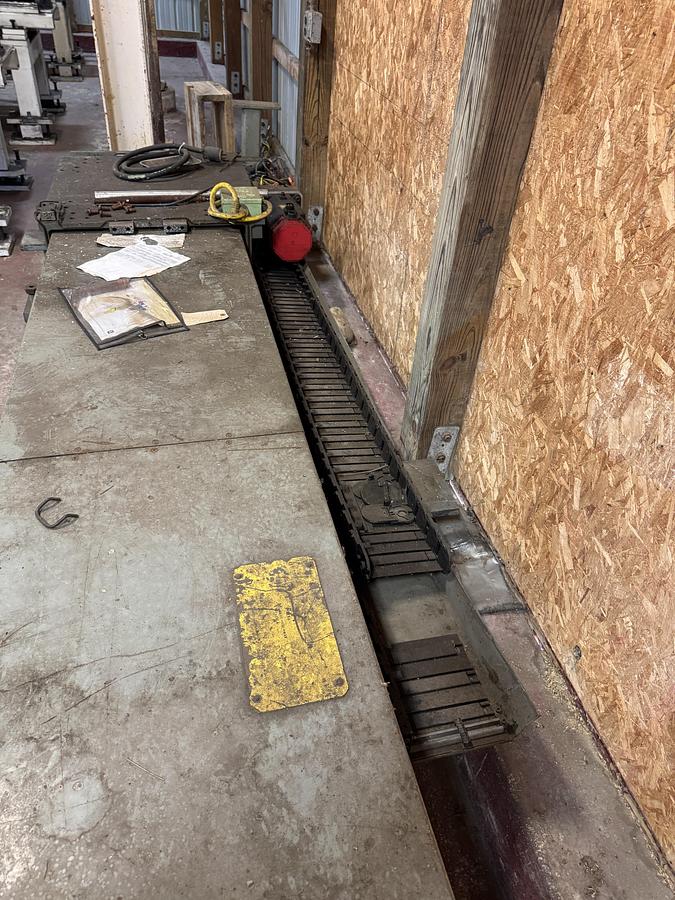

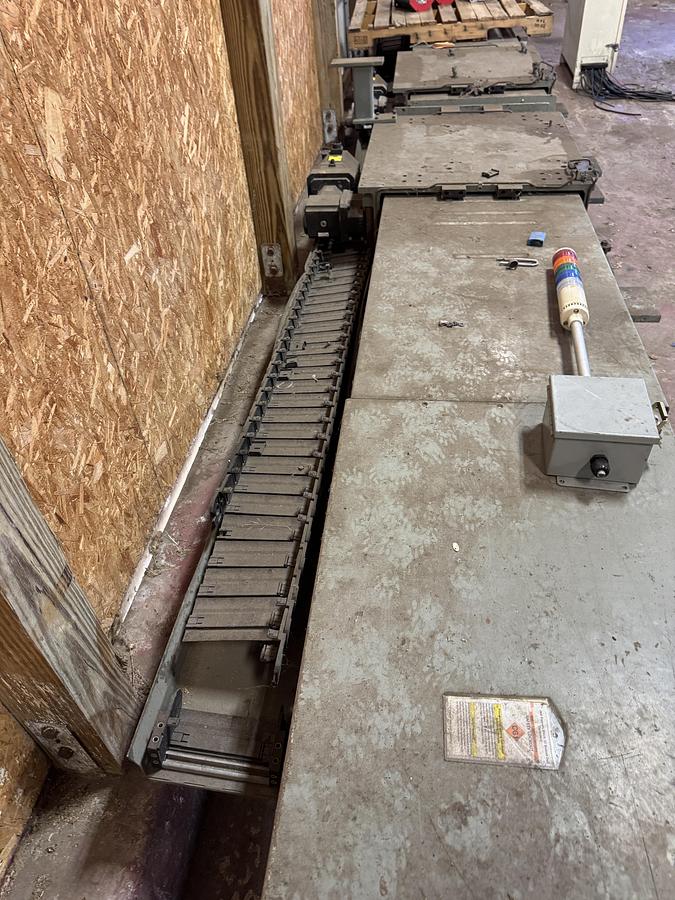

RTU IS ELEVATED WITH SIDE MOUNTED CABLE CARRIER

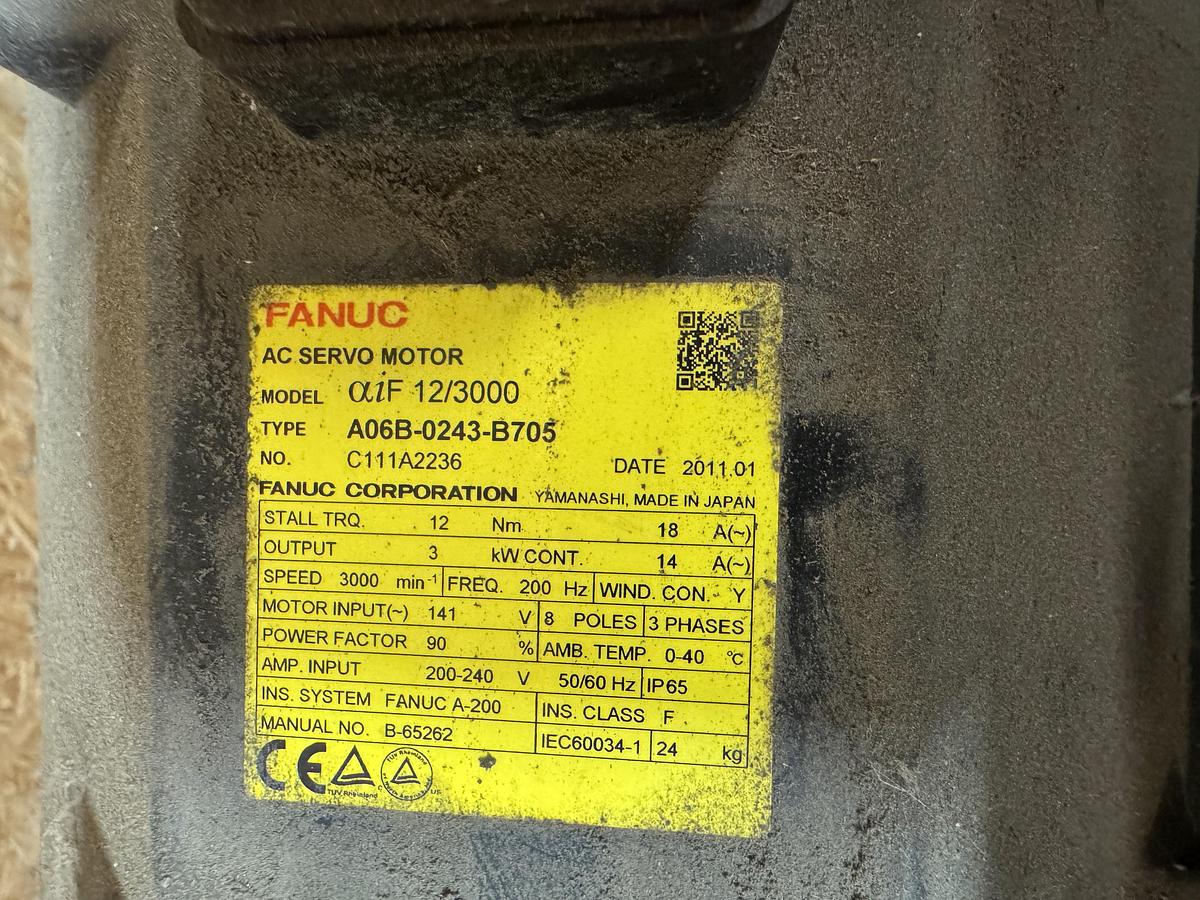

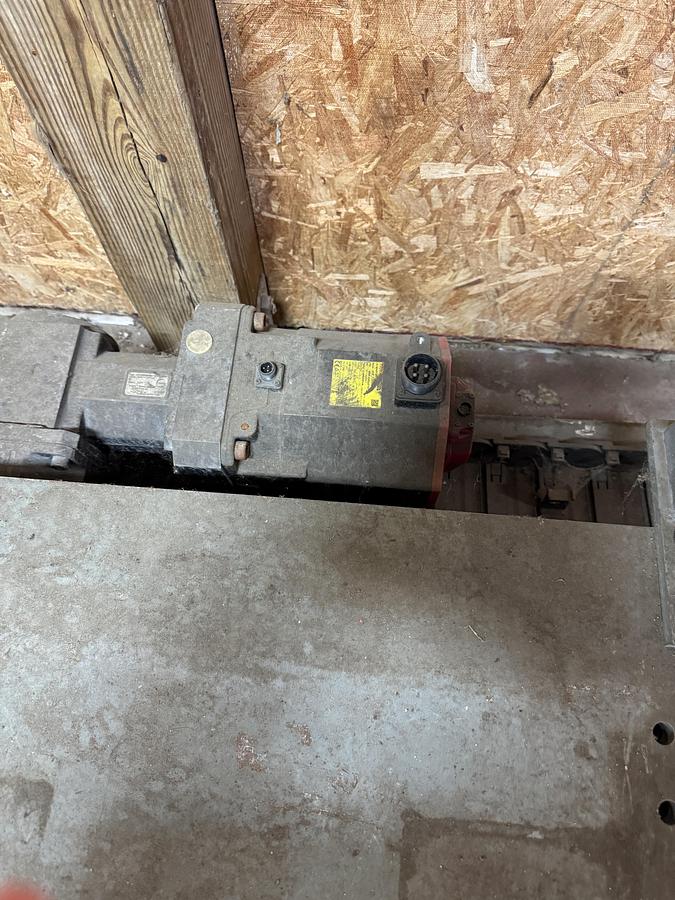

EACH CARRIER IS DRIVEN BY A FANUC AC SERVO MOTOR MODEL aiF 12/3000

MOTOR PART NUMBER A06B-0243-B705

MOTOR MOUNTED TO GEAR REDUCER BOX RACK AND PINNION DRIVE

THE RTU HAS FULL TOP GARDING OVER THE LINEAR RAIL SYSTEM

LUBE LINES RUN AROUND THE CARRIER TO LUBE THE LINEAR RAIL

THIS IS MEDIUM DUTY UNIT FOR MEDIUM SIZE INDUSTRIAL ROBOTS.

IT ORIGINALL HAD EIGTHER A FANUC S-500iB OR FANUC M-710 SERIES ROBOT

MOUNTED TO THE CARRIERS.

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
