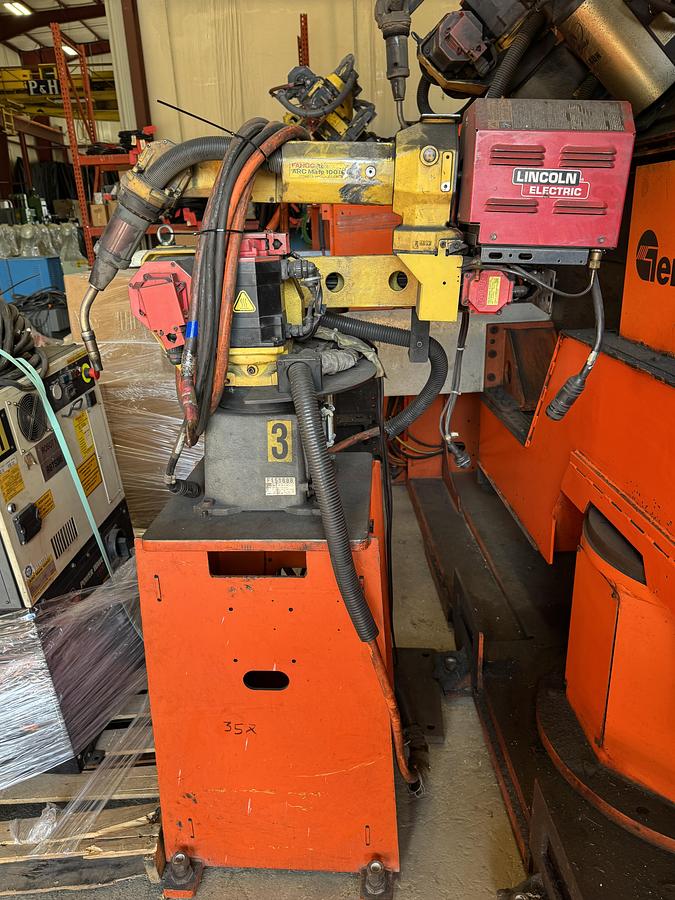

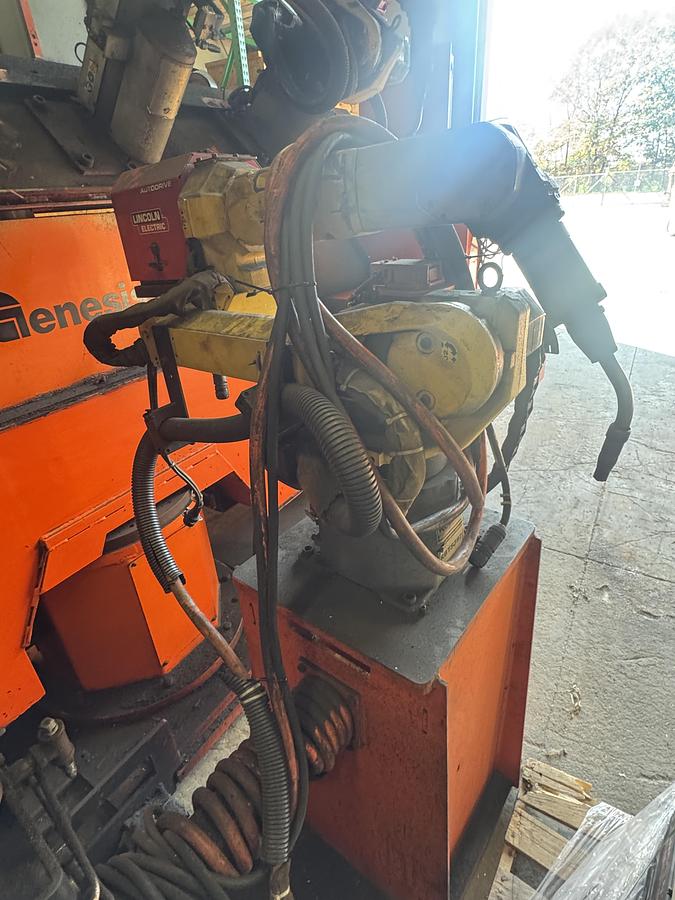

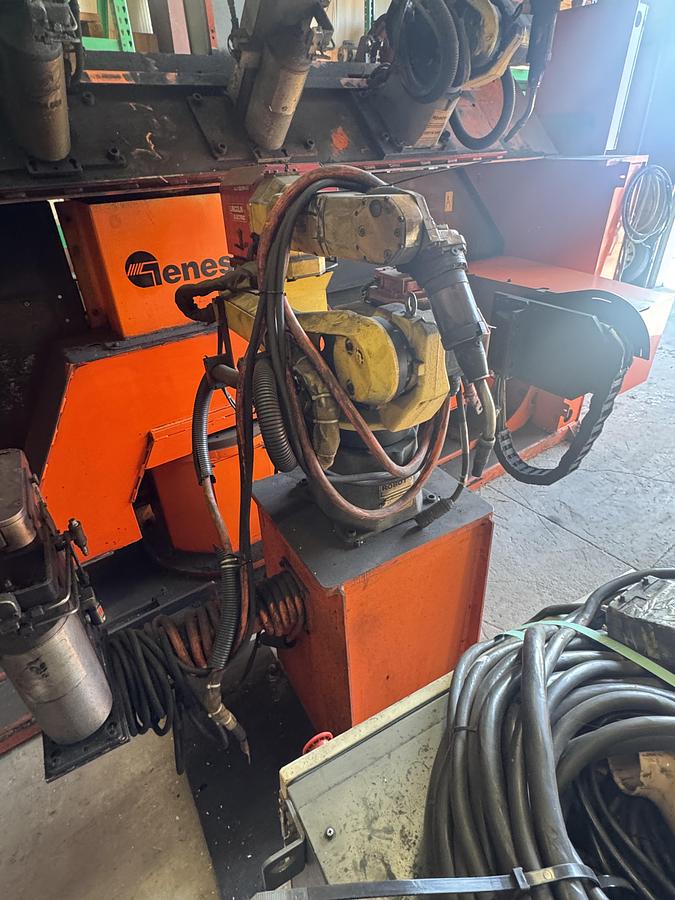

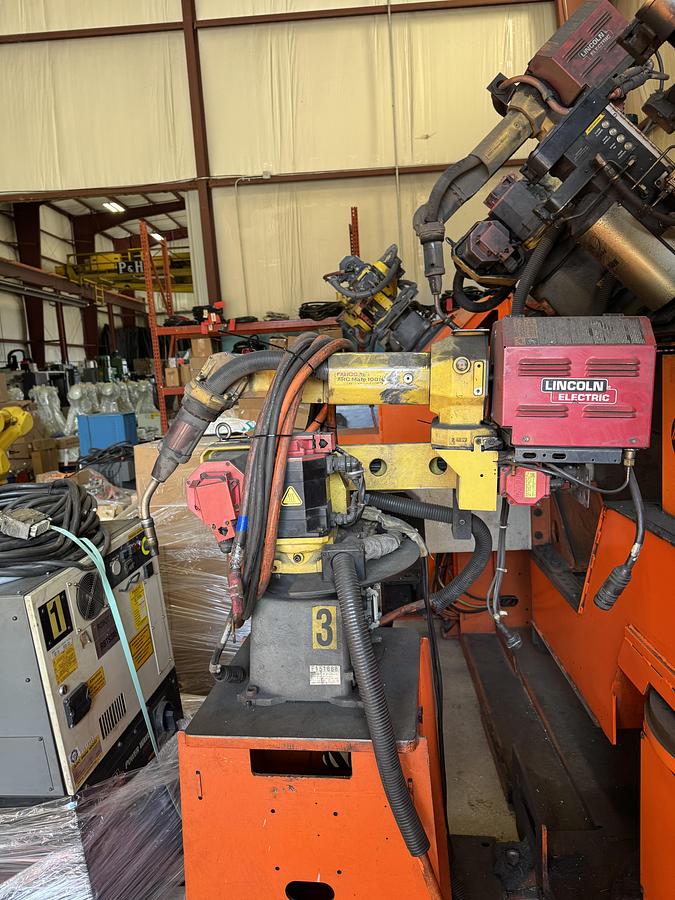

FANUC ARC MATE 100iC 6 AXIS MIG WELDING ROBOT WITH R-30iB CONTROL

1-USED FANUC ARCMATE 100iC 6-AXIS ROBOT WITH R-30iB CONTROL & LINCOLN I-400 POWER SUPPLY

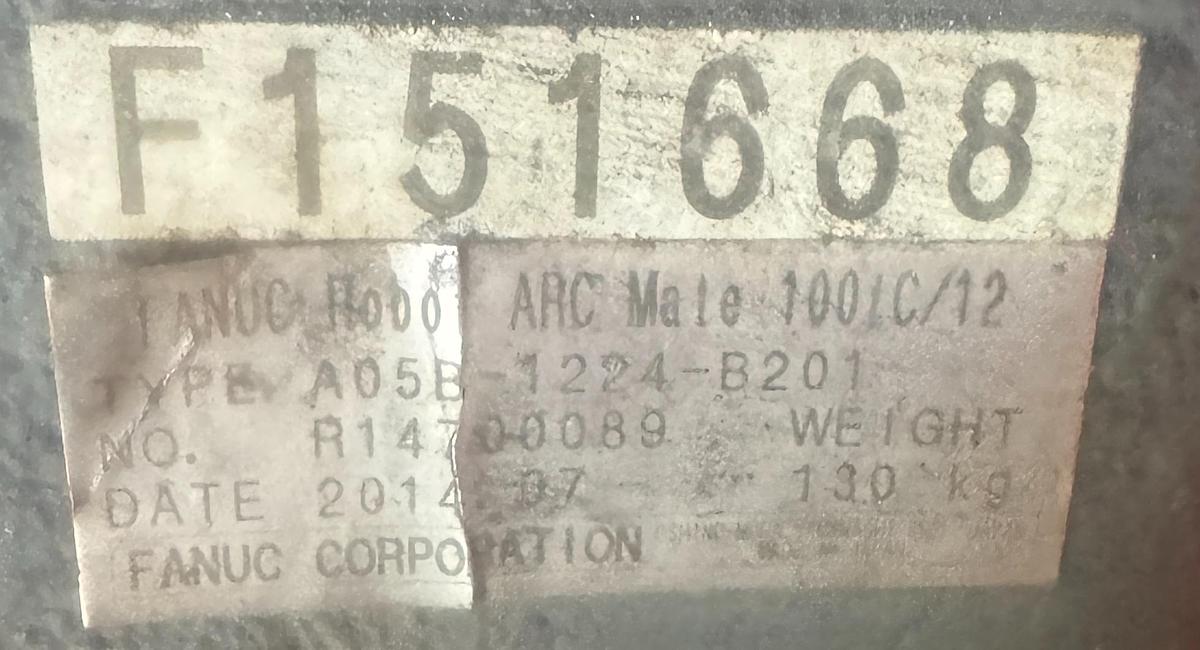

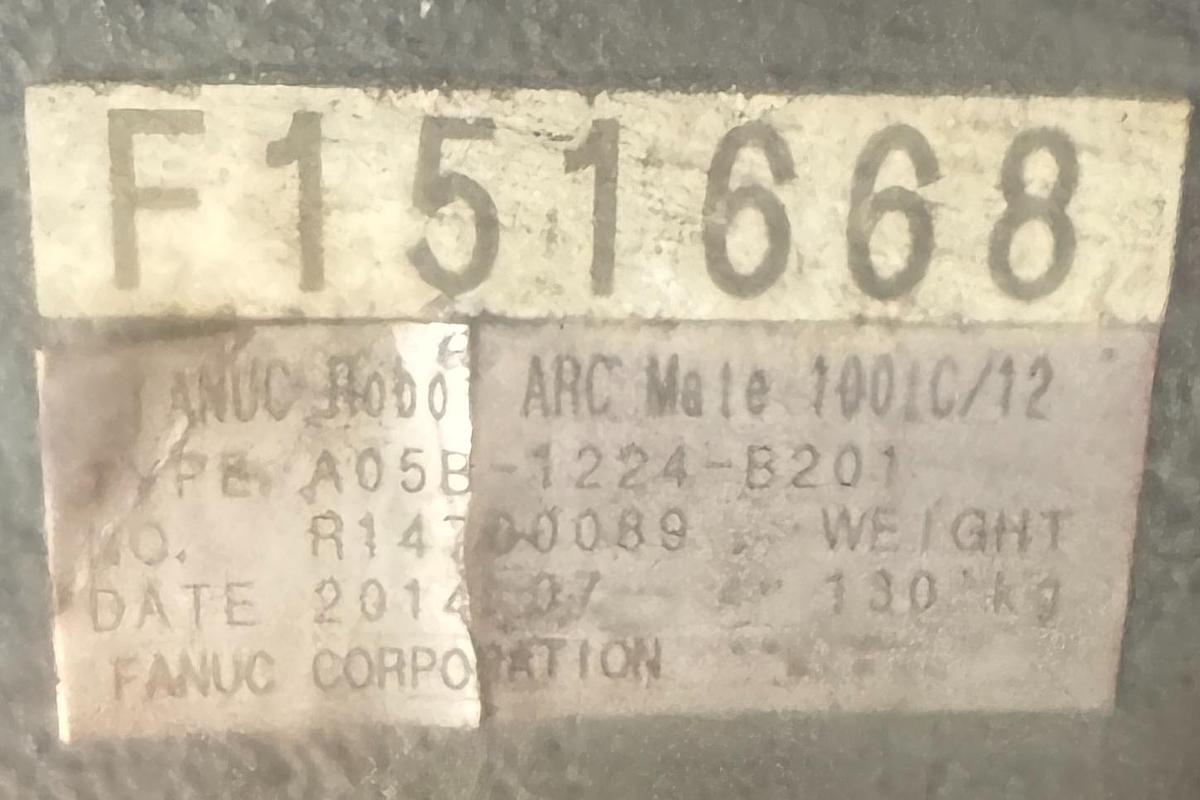

SERIAL NUMBER F151668

DATE OF MFG. 07/2014

STK#105387

=========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support they will know who you are and the robot your calling about.

The Fanuc Arc Mate100iC robot creates a large work area and maintains high speeds throughout, conquering up to 10 kg of payload, all the while using a slim wrist enabling entry into small openings in the work space. In addition, this robot arm moves 15% faster than the other robots in its class and can process large parts and use complex tooling without compromising productivity. The FANUC ARC Mate 100iC is compatible with all major brands of welding equipment and can be interfaced with most types of servo-driven or indexing positioners. The Robot is Compatible with Fanuc RJ3iC or R30iA Controller.

Robot Specifications:

Axes: 6

Payload: 10kg

H-Reach: 1420mm

Repeatability: ±0.08mm

Robot Mass: 130kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 210 °/s (3.67 rad/s)

J2 190 °/s (3.32 rad/s)

J3 210 °/s (3.67 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±250°

J3 ±447°

J4 ±380°

J5 +380° - 280°

J6 +720° - 540°

EQUIPPED WITH:

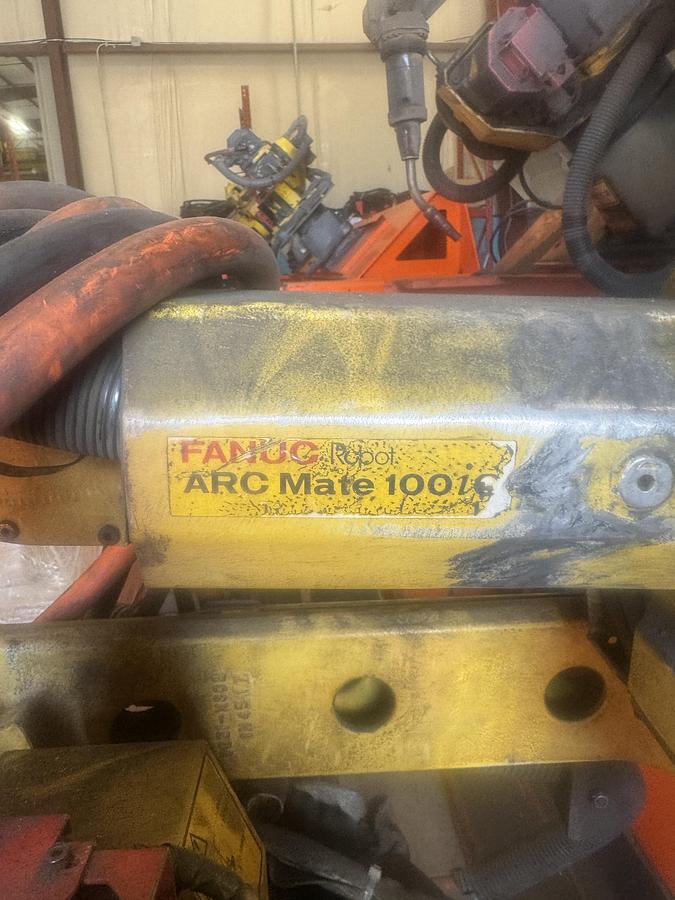

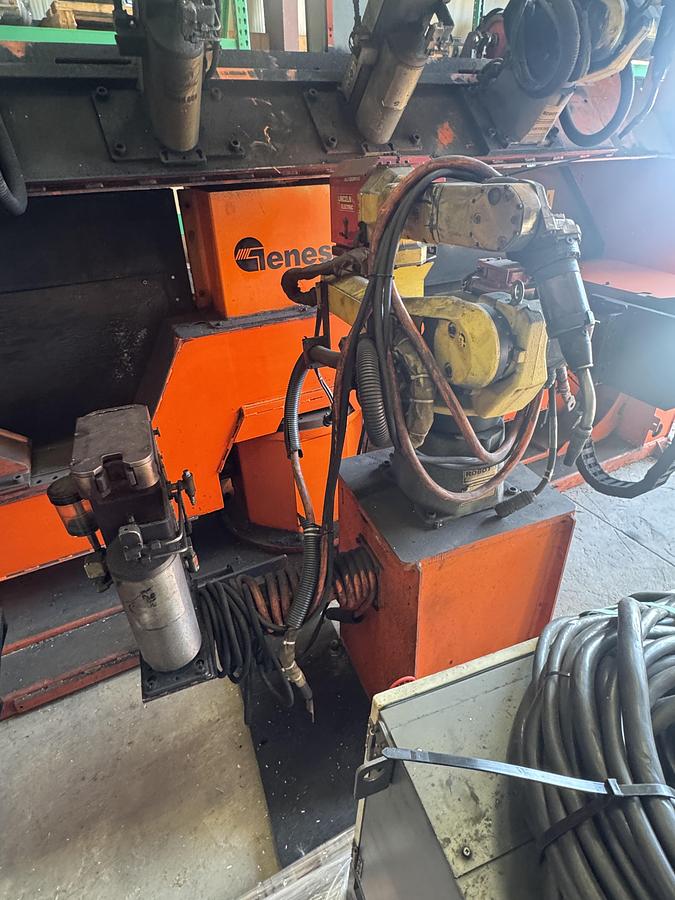

FANUC ARC MATE 100iC 6 AXIS MECHANICAL UNIT

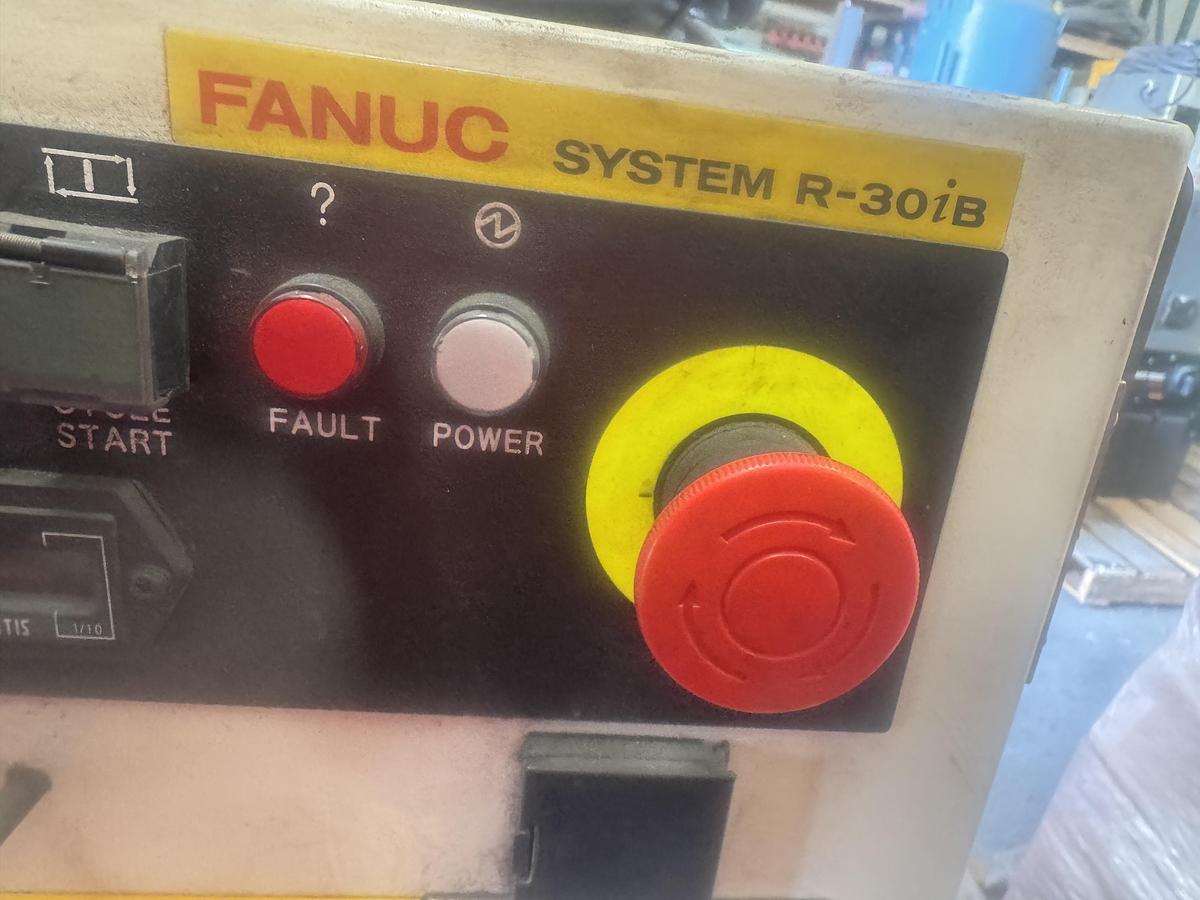

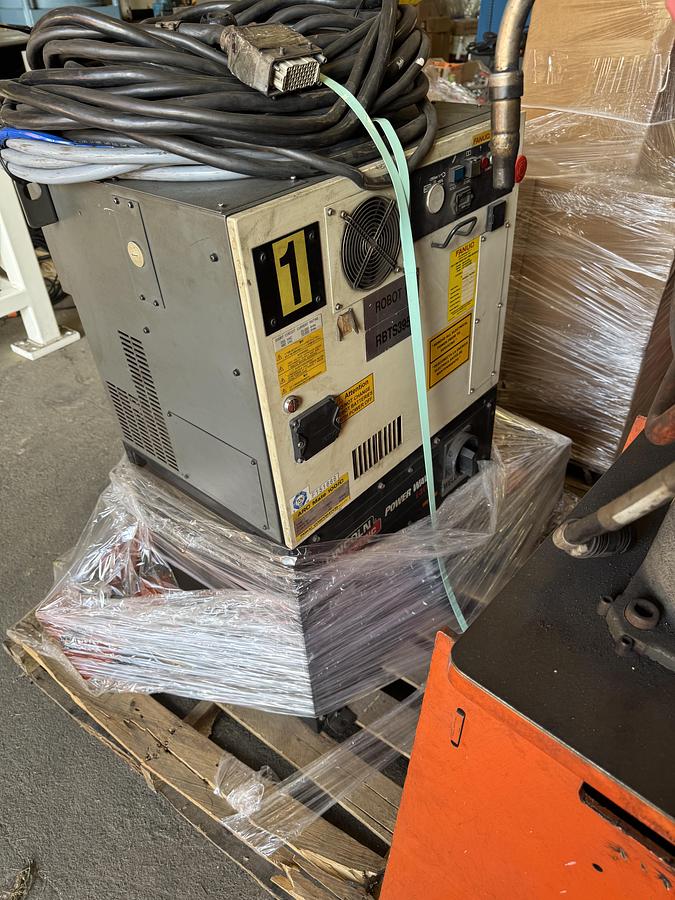

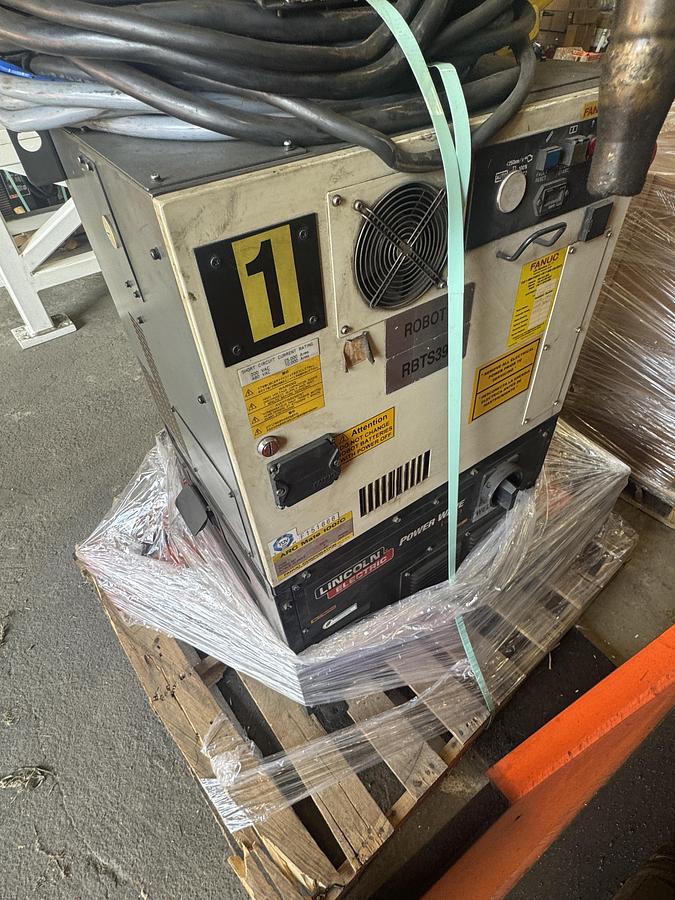

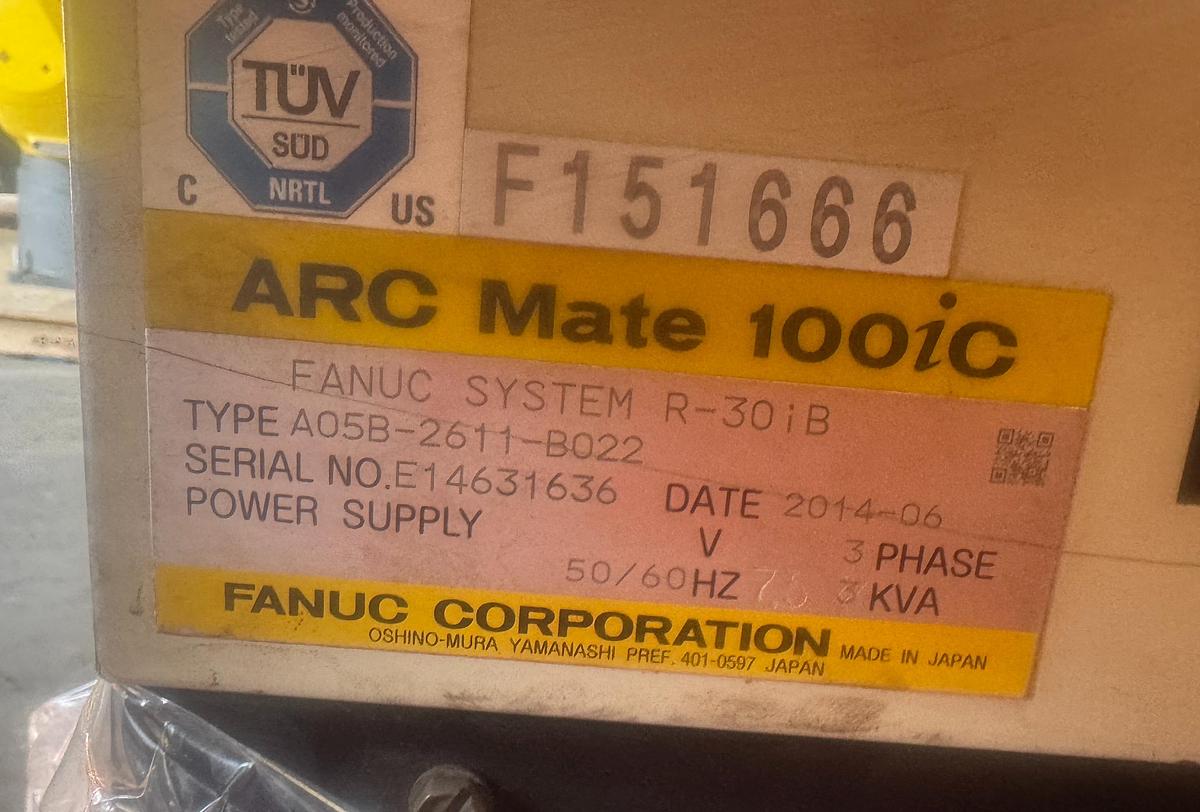

FANUC R-30iB ROBOT CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT CABLE

FANUC COLOR TEACH PENDANT

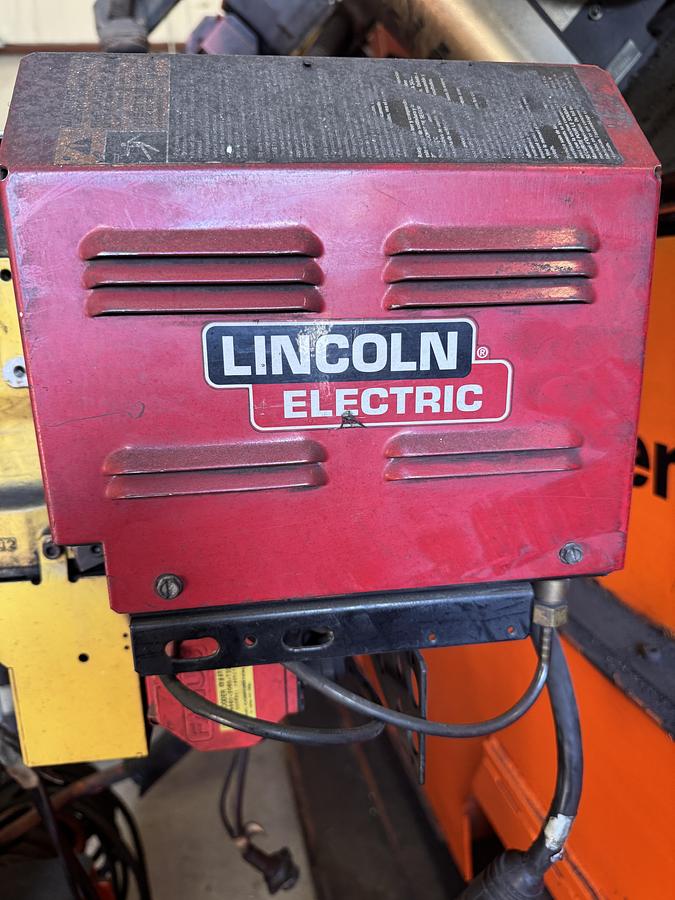

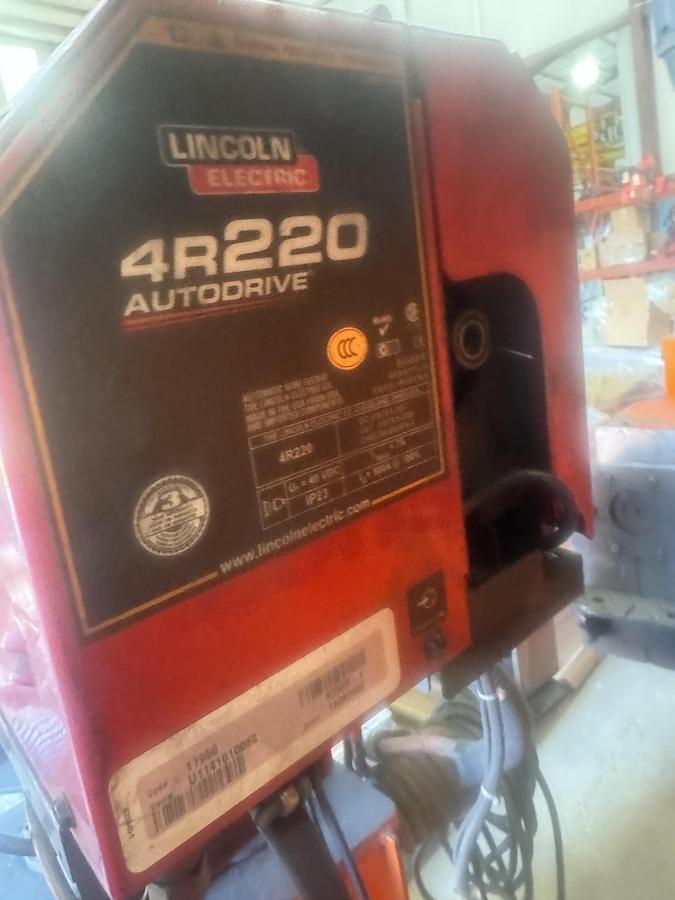

LINCOLN 4R-220 WIRE FEEDER MOUNTED TO ROBOT

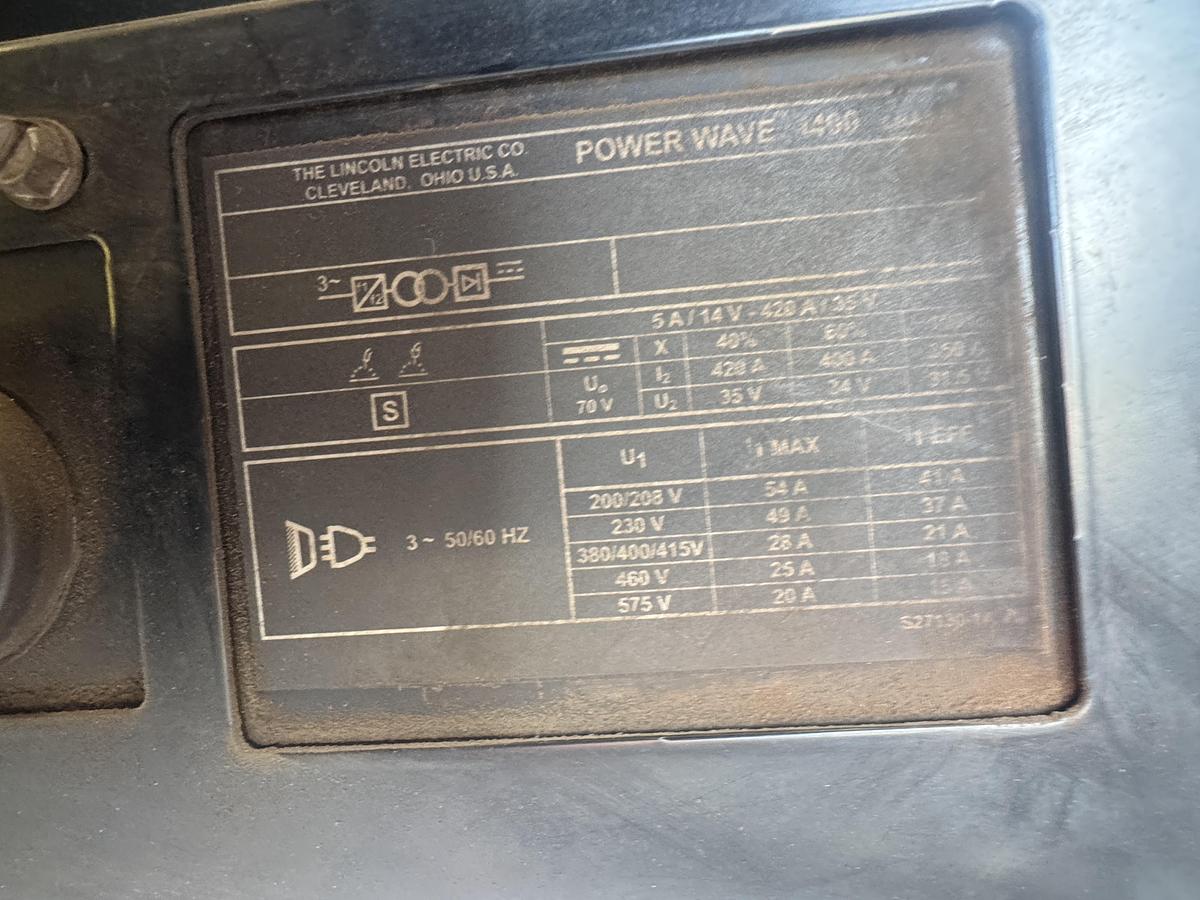

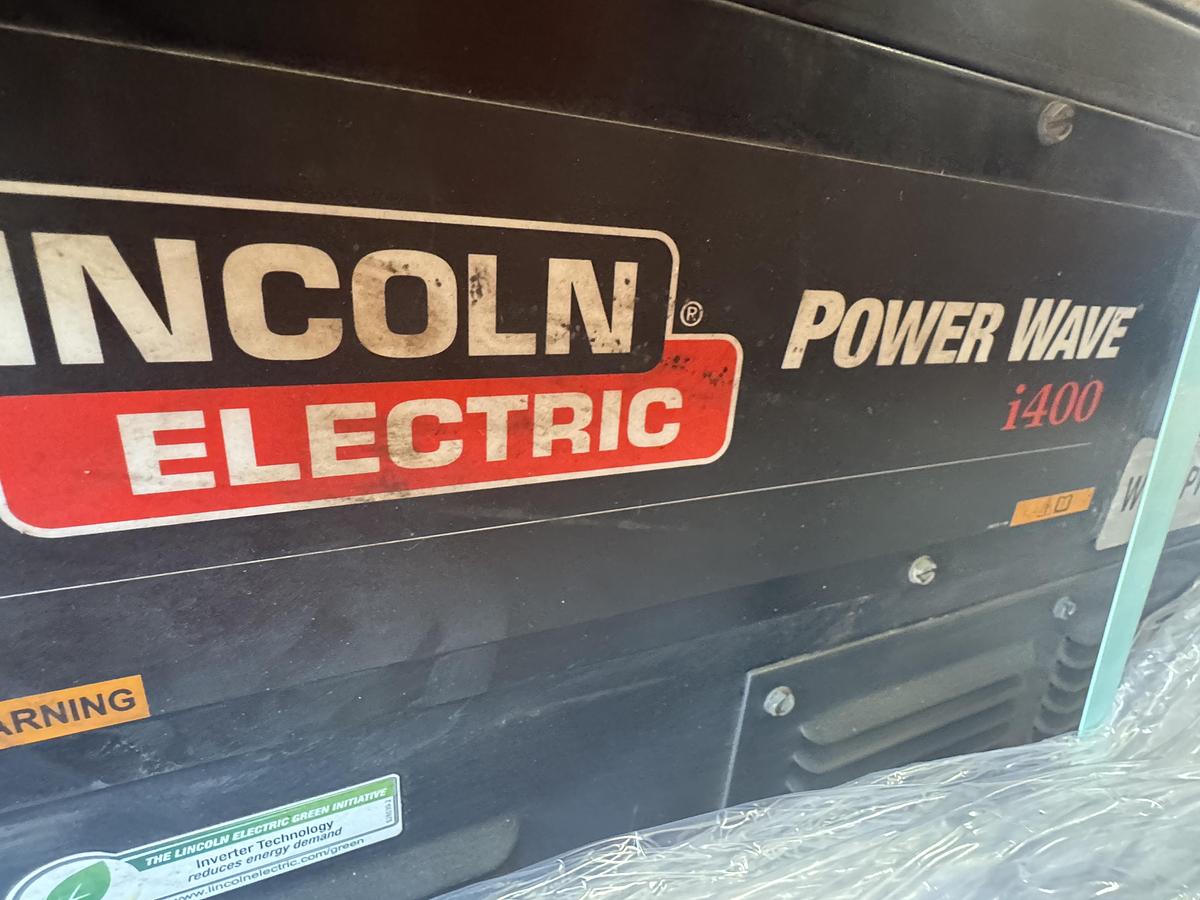

LINCOLN I-400 WELDING POWER SUPPLY

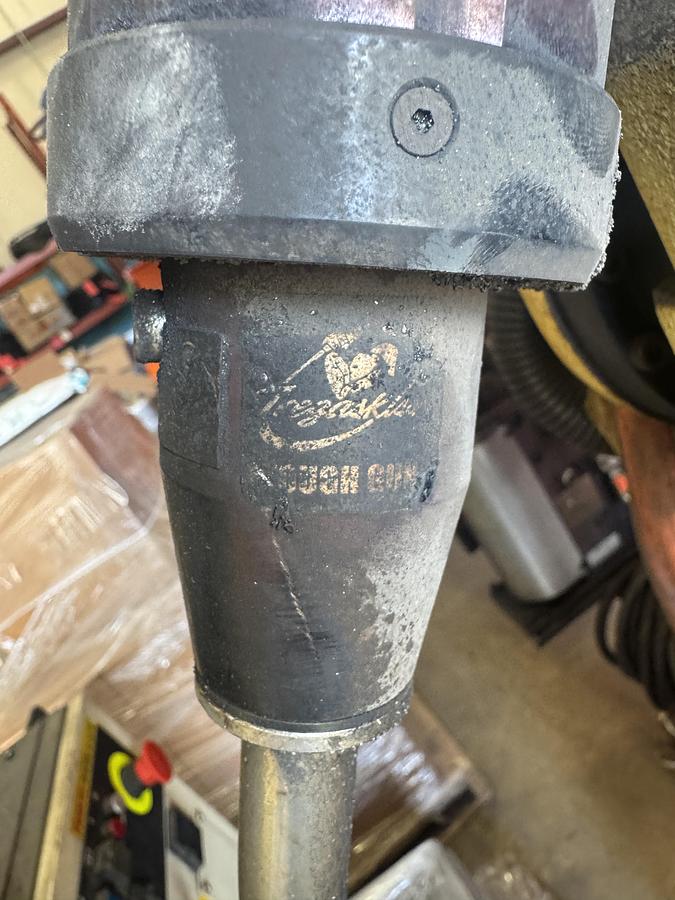

TREGASKIS WELDING TORCH

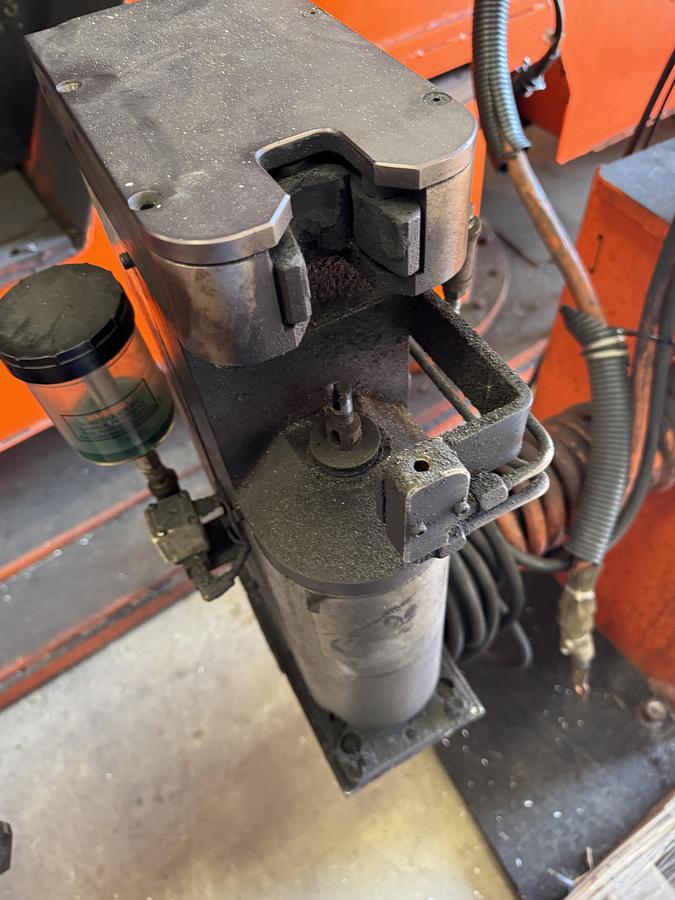

TORCH TIP CLEANER

ROBOT STAND THE ROBOT IS MOUNTED TO

Applications:

Arc Welding Robots

Laser Welding Robots

MAG Welding Robots

MIG Welding Robots

Orbital Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.

See Our Arc Mate Stock as well as other Robots that lend themselves to Mig Welding Applications.

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
