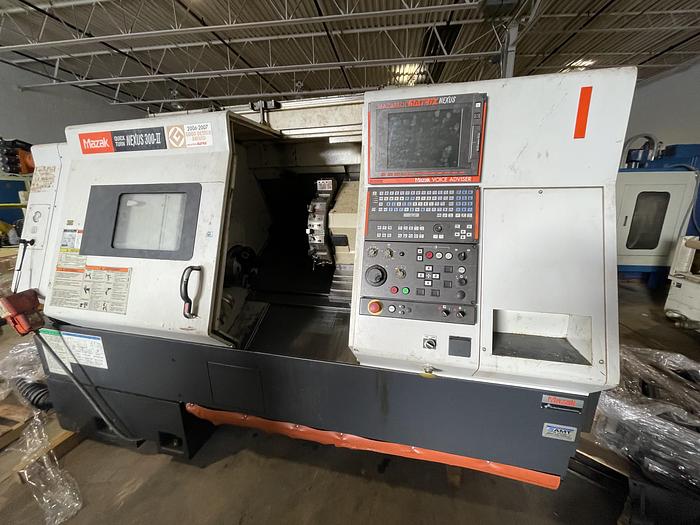

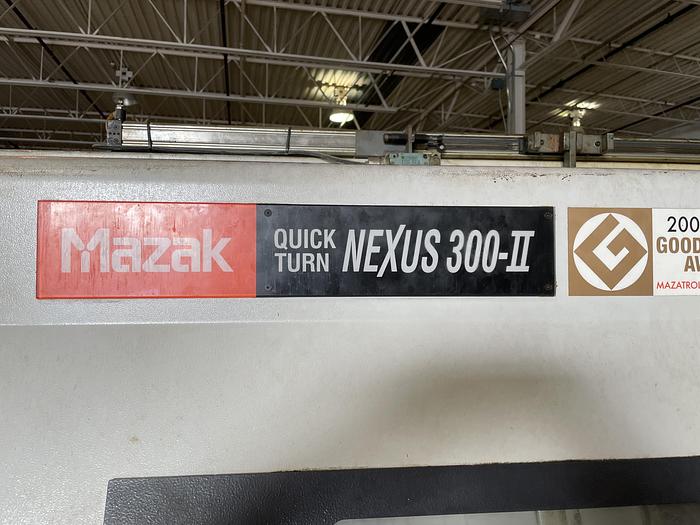

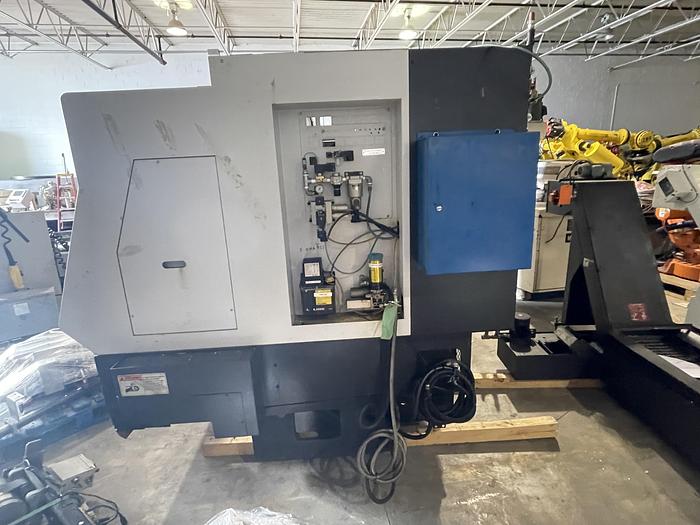

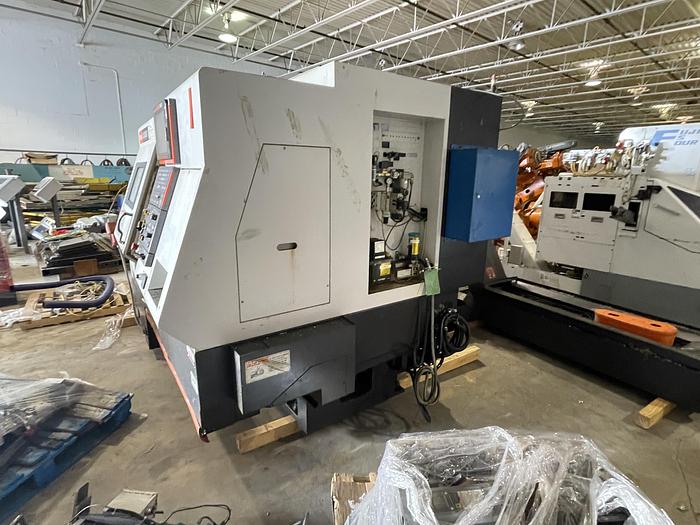

MAZAK QUICK TURN NEXUS 300 II CNC LATHE WITH MAZATROL MATRIX VOICE ADVISER CONTROLLS

MAZAK QUICK TURN NEXUS 300 II CNC LATHE WITH MAZATROL MATRIX VOICE ADVISER CONTROLLS

Contact us for price

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

1-USED MAZAK QUICK TURN NEXUS 300II 2 AXIS CNC LATHE VERY LITTLE USE

SERIAL NUMBER 183791

DATE OF MFG. 06-2007

STK#104238

============================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


CAPACITY:

MAX SWING 650 MM

MAX SWING OVER CARRIAGE 420 MM

MAX TURNING DIAMETER 420 MM

MAX TURNING LENGTH 654 MM

BAR WORK CAPACITY 77 MM


TRAVELS:

X AXIS 225 MM

Z AXIS 680 MM


MAIN SPINDLE:

CHUCK SIZE 10"

SPINDLE SPEED 4,000 RPM

SPINDLE NOSE A2-8

SPINDLE BORE 88 MM

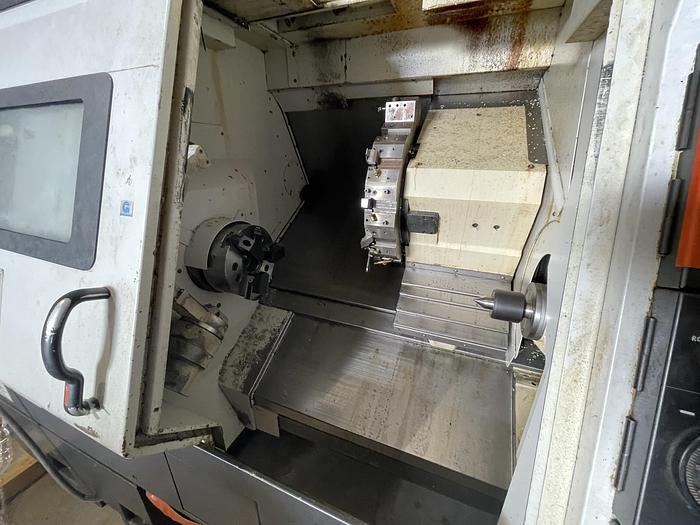

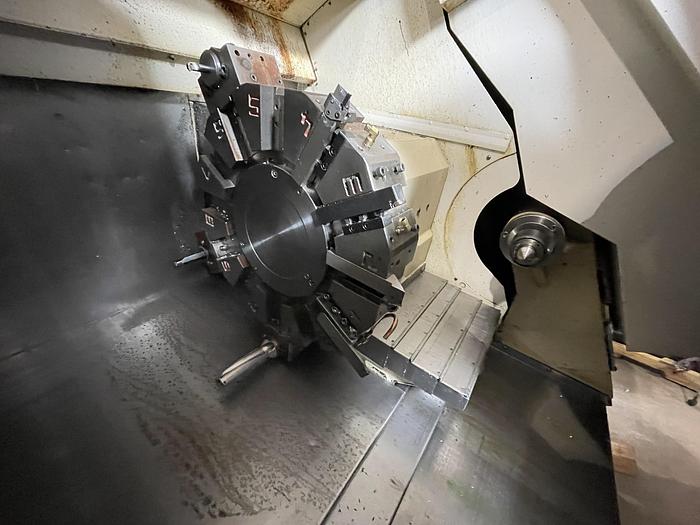

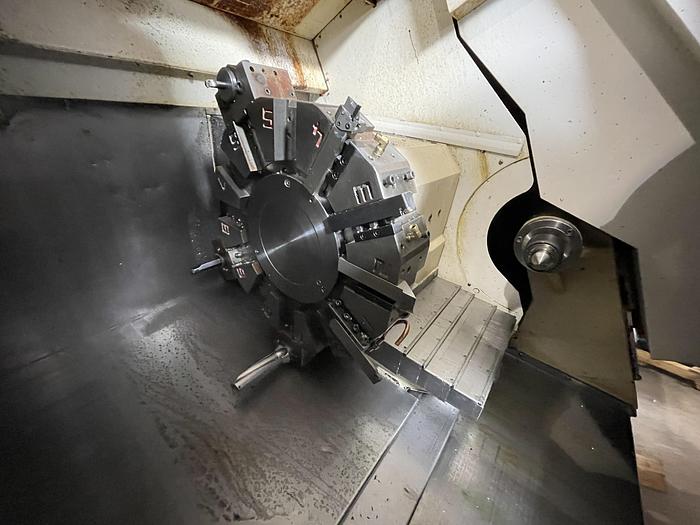

TURRET:

TYPE 12 POSITION DRUM TURRET BOLT ON

NUMBER OF TOOLS 12

TURNING TOOL SHANK 25 MM

BORING BAR SHANK 40 MM

TURRET INDEX TIME 0.2 SECONDS 1 STEP


FEED RATE:

RAPID TRAVERSE RATE X AXIS 30,000 MM/MIN

RAPID TRAVERSE RATE Z AXIS 30,000 MM/MIN


TAILSTOCK:

TAILSTOCK STROKE 645 MM

TAILSTOCK TABER MT#5


MOTORS:

MAIN SPINDLE MOTOR 35 HP/30 MIN

MAIN SPINDLE MOTOR 30 HP/CONTINUOS

COOLANT PUMP MOTOR 0.52 KW

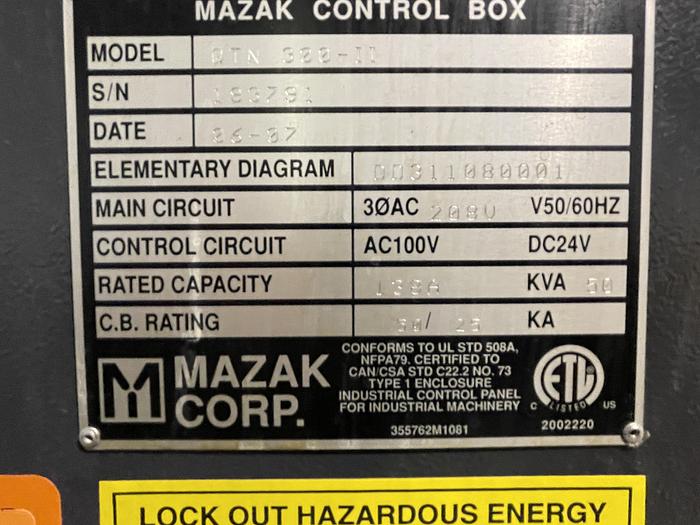

POWER REQUIREMENTS:

REQUIRED POWER CAPACITY CONTINUOS RATING 43.3 KVA

AIR SOURCE PRESSURE 0.5 MPa [ 5 kgf/cm2 ] 100 L/min(ANR)


COOLANT TANK:

CAPACITY 210 LITERS

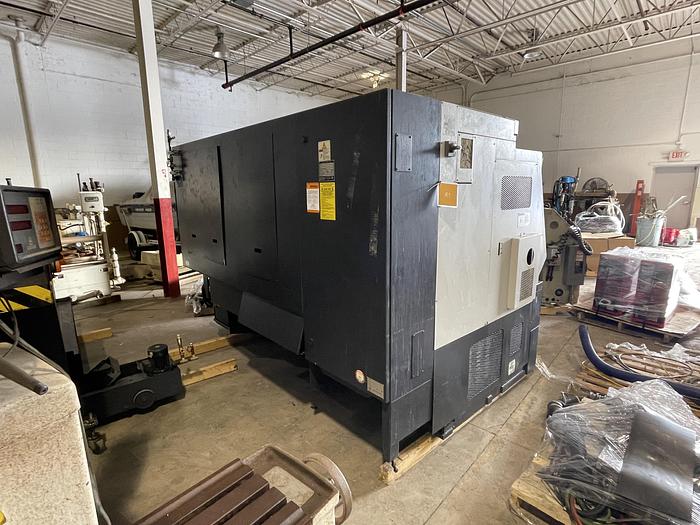

MACHINE SIZE:

MACHINE HEIGHT 2,000 MM

FLOOR SPACE L 3005 MM X DEPTH 2050 MM

MACHINE MASS 6,600 KG


EQUIPPED WITH:

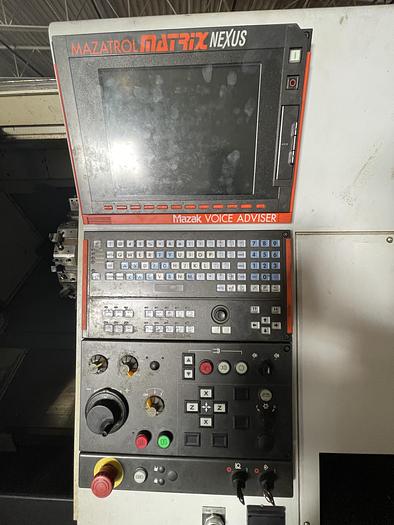

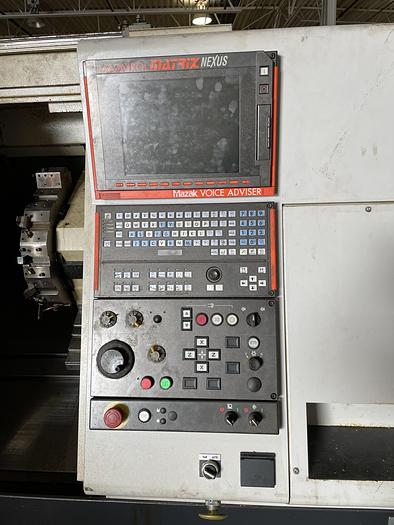

MAZAK MAZATROL MATRIX NEXUS WITH MAZAK VOICE ADVISER

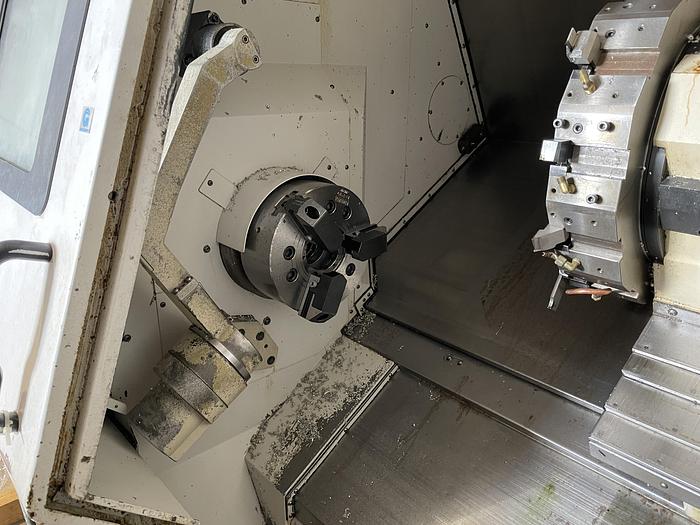

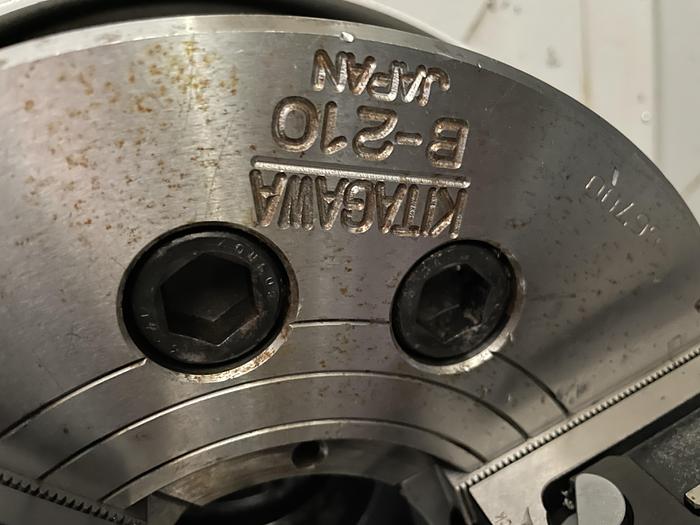

KITIGAWA B-210 3 JAW POWER CHUCK

TOOL PRESETTER

SOME TOOLING IN TURRET

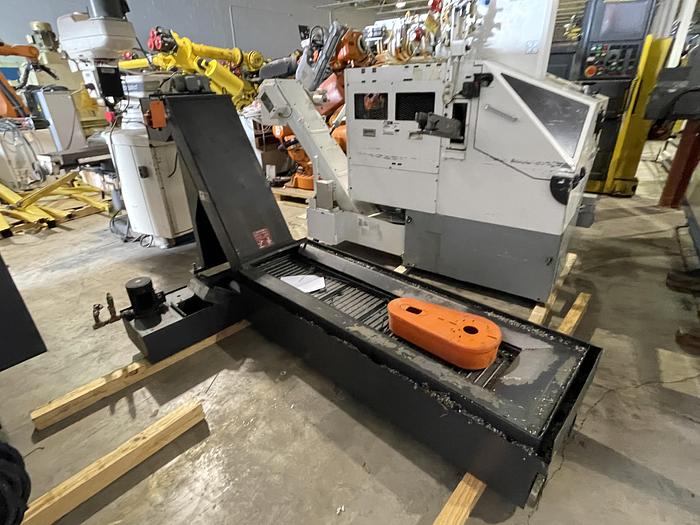

CHIP CONVEYOR/COOLANT SYSTEM (ONE CHAIN SPROCKET REMOVED)

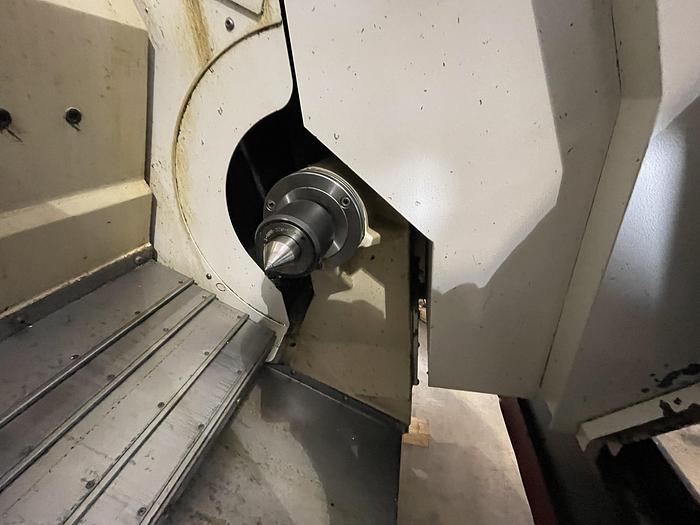

LIVE CENTER IN TAILSTOCK.

INTERIOR WORK LIGHT


FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerMAZAK
ModelMAZAK QUICK TURN NEXUS 300 II
Year2008
ConditionUsed
Serial Number183791
Stock Number104238
