FANUC M20iA CNC 6 AXIS ROBOT WITH R30iA CONTROLLER

Sold

FANUC M20iA CNC 6 AXIS ROBOT WITH R30iA CONTROLLER

Available quantity: 1

Imlay City, MI

Description

1-USED FANUC M20iA ROBOT WITH R30iA CONTROLLER

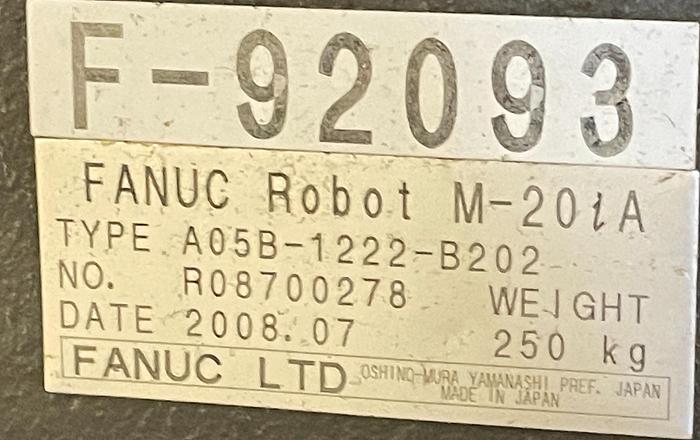

SERIAL NUMBER F92093

DATE OF MFG. 07/2008

STK#104284

=======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


The FANUC M-20iA robot is designed to help manufacturers avoid costly downtime and engineering headaches. The M-20iA has a hollow upper arm and wrist and a unique design that enables utilities to be neatly contained within the arm, helping to avoid snagging, tearing, or rubbing. The M-20iA has built-in vision with an integrated vision cable from the J1 base to J3 interface panel, making the addition of vision to the robot application much easier.


This robot is well-suited for assembly, dispensing, material handling, and machine tending applications and features a 20kg payload capacity and six degrees of freedom. The M 20iA's compact size and multiple mounting options make integration simple, especially for operation in tight work spaces. The design doesn't sacrifice any of the robot's performance specifications and because of the dress out and control box design, it is also perfect for offline simulations.


Robot Specifications:

Axes: 6

Payload: 20.00kg

H-Reach: 1811.00mm

Repeatability: ±0.0800mm

Robot Mass: 250.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 195 °/s (3.4 rad/s)

J2 175 °/s (3.05 rad/s)

J3 180 °/s (3.14 rad/s)

J4 360 °/s (6.28 rad/s)

J5 360 °/s (6.28 rad/s)

J6 550 °/s (9.6 rad/s)


Robot Motion Range:

J1 ±370°

J2 ±260°

J3 ±458°

J4 ±400°

J5 ±380°

J6 ±900°


Robot Applications:

Material Handling Robots

Pick and Place Robots

Material Removal Robots

Machine Loading Robots

Machine Tending Robots

Injection Molding Robots

Dispensing Robots


EQUIPPED WITH:

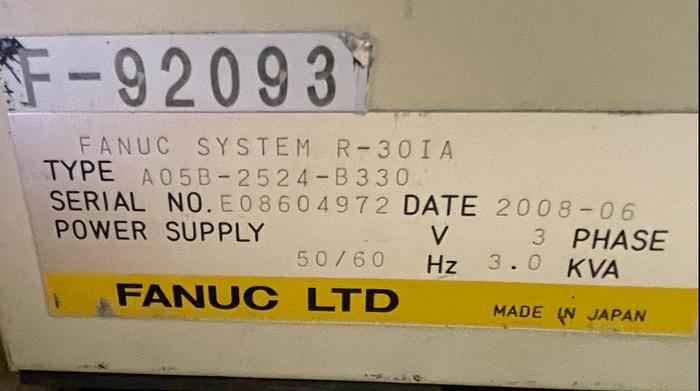

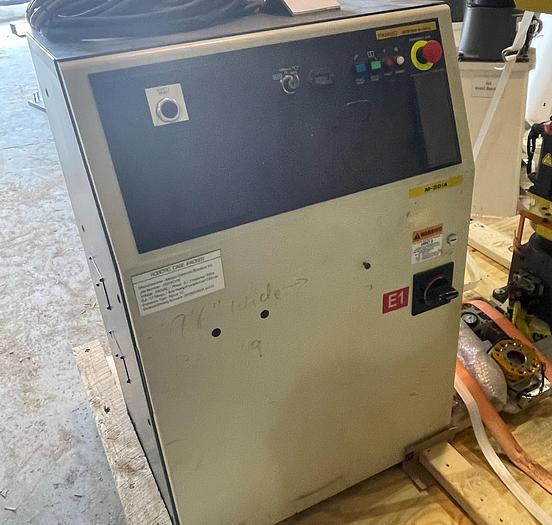

FANUC R30iA CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT


FOB TRUCK, IMLAY CITY, MI 48444 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC M20iA
Year2008
ConditionUsed
Serial NumberF92093
Stock Number104284
