FANUC M10iA/10S 10KG X 1098MM H-REACH 6 AXIS ROBOTIC CELL WITH R30iA CONTROLLER

FANUC M10iA/10S 10KG X 1098MM H-REACH 6 AXIS ROBOTIC CELL WITH R30iA CONTROLLER

$25,000 OBO

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

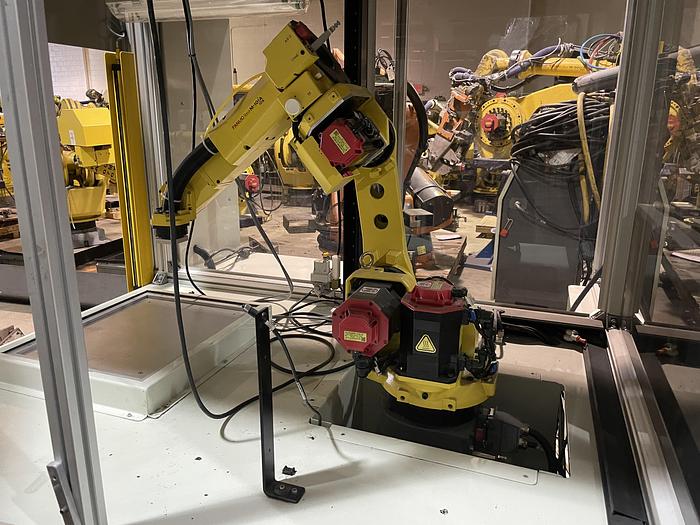

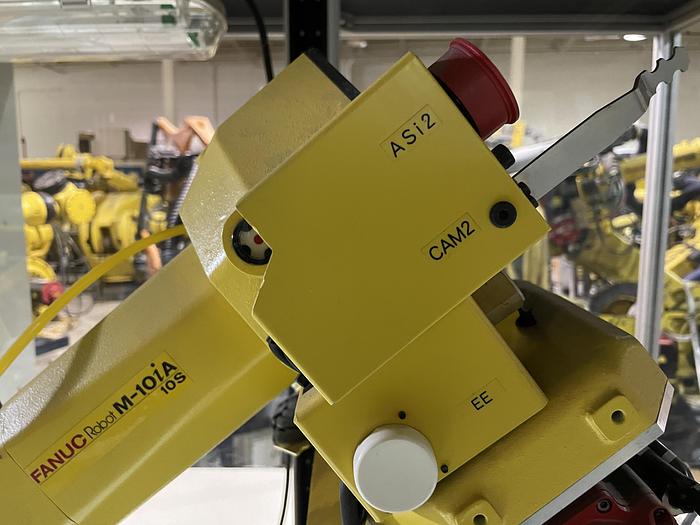

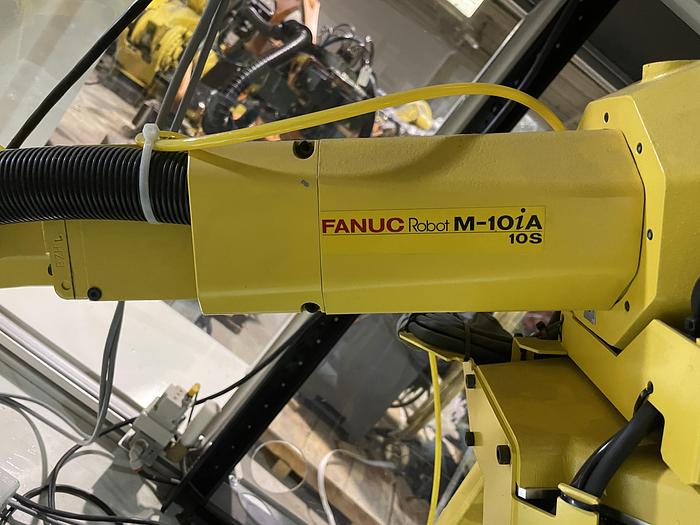

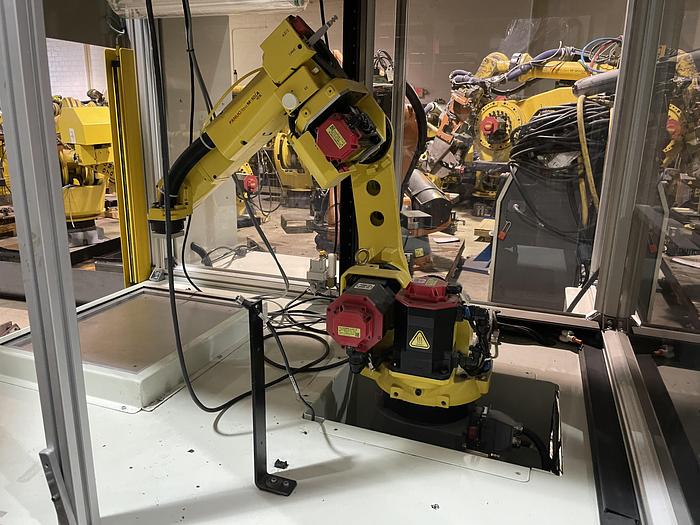

1-USED FANUC M10iA/10S ROBOT CELL 10KG X 1098MM H-REACH R30iA CONTROLLER

SERIAL NUMBER F118972

DATE OF MFG. 02/2102

STK#104359

=========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


This powerful little robot is great for a variety of applications, the FANUC M-10iA/10S has a shorter robot arm for operating in tighter spaces. It has a 10kg payload and +/- 0.05 repeatability, with the highest wrist moments and inertia in its class, making a it a high performance industrial robot. The M-10iA/10S has cable routing integrated and is easy to maintain. By integrating the cable, it has less wear and tear on its cabling, which cuts down on maintenance costs over the life of the robot. It also offers great flexibility with a variety of mounting options, optimizing the robot's angle during operation. The small footprint allows it to fit in tight work spaces.With advanced servo technology, the FANUC M-10iA/10S will provide precision and reliability to your automation needs.


Robot Specifications:

Axes: 6

Payload:10.00kg

H-Reach:1098.00mm

Repeatability:±0.0500mm

Robot Mass:130.00kg

Structure:Articulated

Mounting:Floor, Inverted, Angle


Robot Motion Speed:

J1 220 °/s (3.84 rad/s)

J2 230 °/s (4.01 rad/s)

J3 270 °/s (4.71 rad/s)

J4 410 °/s (7.16 rad/s)

J5 410 °/s (7.16 rad/s)

J6 610 °/s (10.65 rad/s)


Robot Motion Range:

J1+340° - 360°

J2±250°

J3±340°

J4±380°

J5±380°

J6±720°


Common Uses For This Robot:

  • Material Handling Robots
  • Assembly Robots
  • Packaging Robots
  • Pick and Place Robots
  • Part Transfer Robots
  • Material Removal Robots


Equipped with:

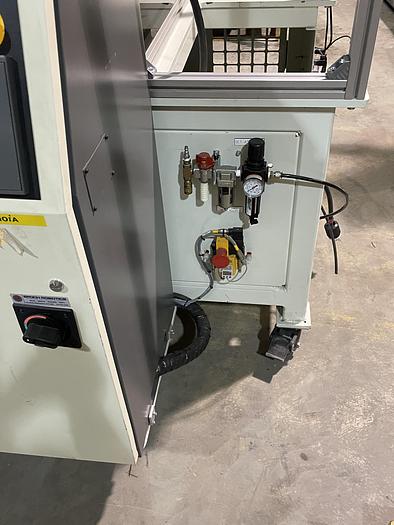

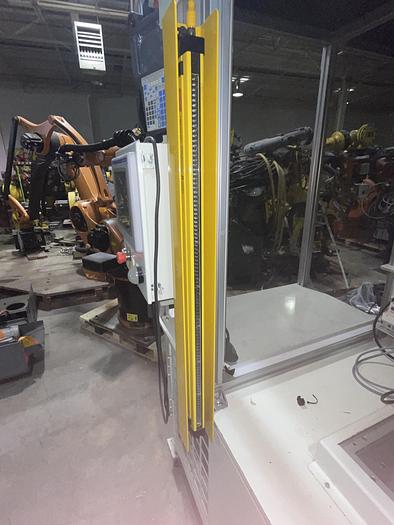

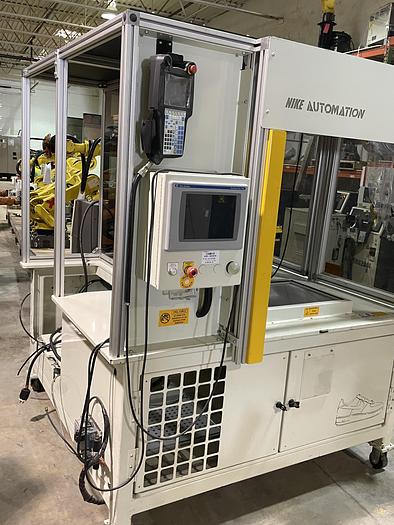

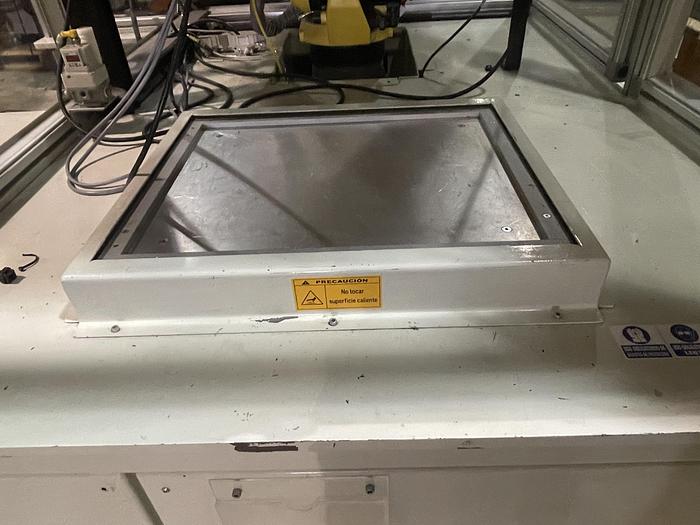

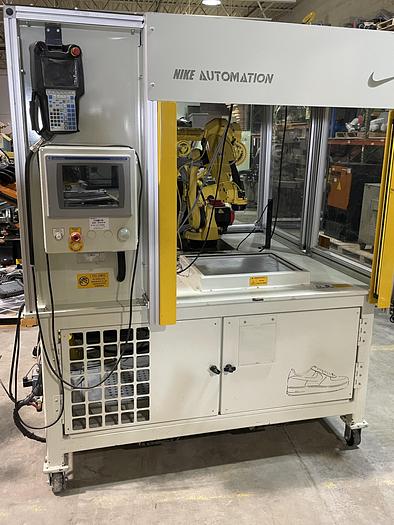

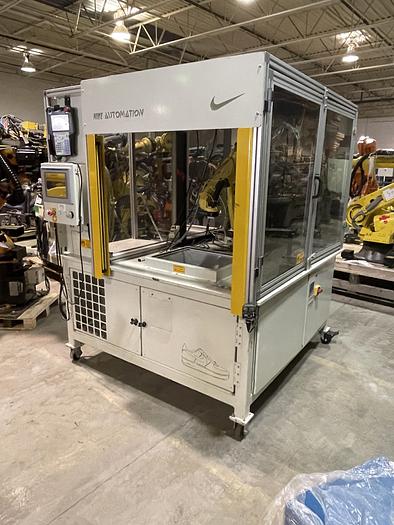

Complete Robot Cell Enclosure

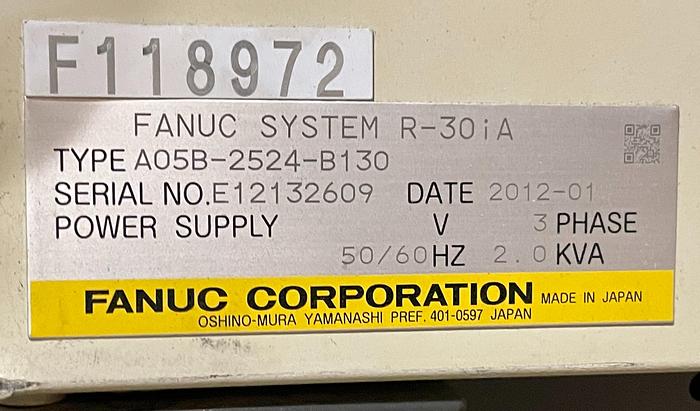

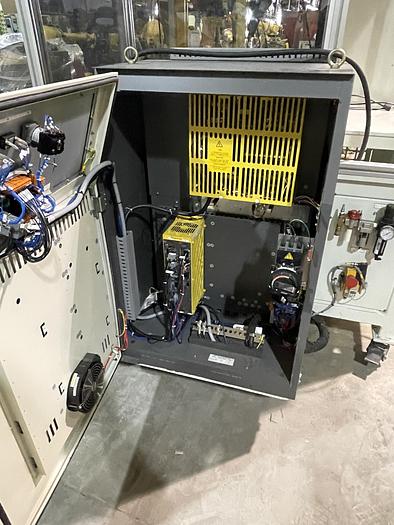

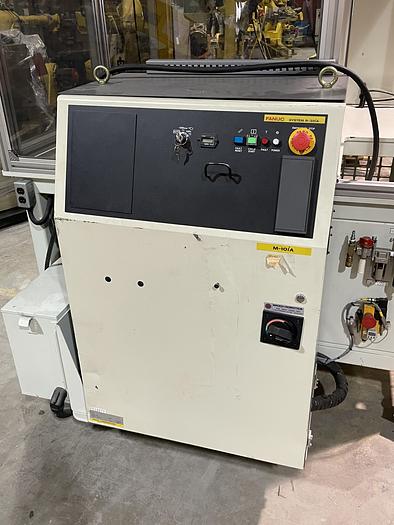

Fanuc R30iA robot controller

Fanuc robot connection cables

Fanuc teach pendant

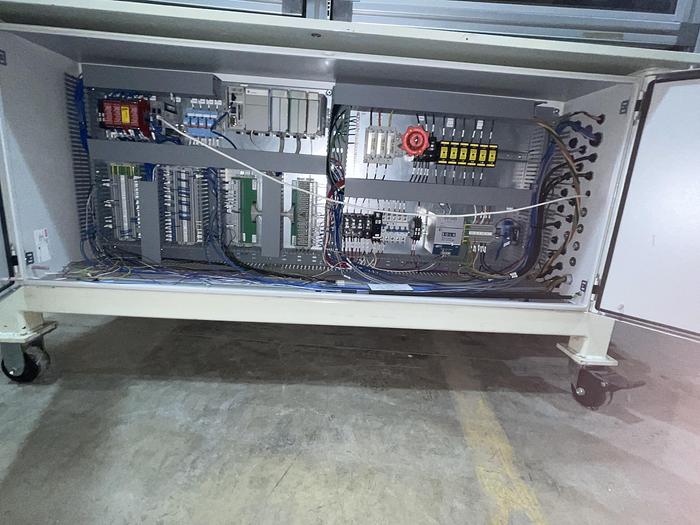

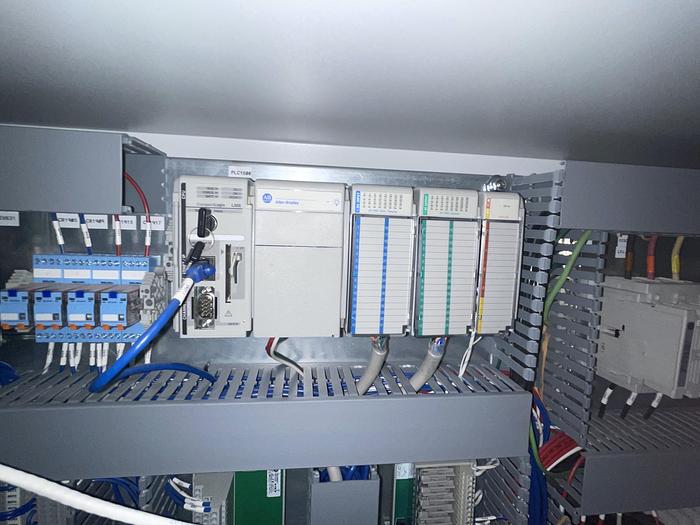

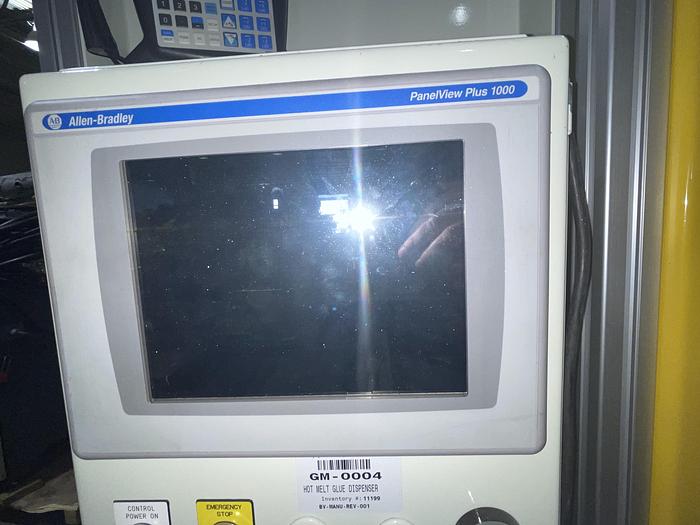

PLC machine interface HMI Touch Screen


FOB Truck, Imlay City, MI 48444


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC M10iA/10S
Year2012
ConditionUsed
Serial NumberF118972
Stock Number104359
Axes6
Payload10.00kg
H-Reach1098.00mm
Repeatability±0.0500mm
Robot Mass130.00kg
StructureArticulated
MountingFloor, Inverted, Angle
