FANUC LR MATE 200iC 6 AXIS ROBOT WITH R30iA CONTROLLER

FANUC LR MATE 200iC 6 AXIS ROBOT WITH R30iA CONTROLLER

Contact us for price

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

1 - USED FANUC LR MATE 200iC WITH R30iA CONTROLLER

SERIAL NUMBER F120746

DATE OF MANUFACTURE 12-2011

STK # 104422

===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


The entire 200iC series is a super impressive, table-top size robot that is light weight, maintains a slim profile, has high dexterity, and produces faster sustained speeds with superior positioning accuracy. The 200iC mini series is driven by electric servos and is rated best-in-class wrist momentum and inertias for real world EOATs due to its light, efficient, accurate, and nimble package. Depending on the model, it can include 5 or 6 degrees of freedom, up to 5 kg payload at the wrist, and +/-0.02 or +/-0.03 repeatability.


Robot Specifications:

Axes: 6

Payload: 5.00kg

H-Reach: 704.00mm

Repeatability: ±0.0200mm

Robot Mass: 27.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 350 °/s (6.11 rad/s)

J2 350 °/s (6.11 rad/s)

J3 400 °/s (6.98 rad/s)

J4 450 °/s (7.85 rad/s)

J5 450 °/s (7.85 rad/s)

J6 720 °/s (12.57 rad/s)


Robot Motion Range:

J1 ±340°

J2 ±200°

J3 388°

J4 ±380°

J5 ±240°

J6 ±720°


Robot Applications:

Arc Welding Robots

Assembly Robots

Foundry Robots

Milling Robots

Pick and Place Robots

Routing Robots

Waterjet Robots


Equipped With

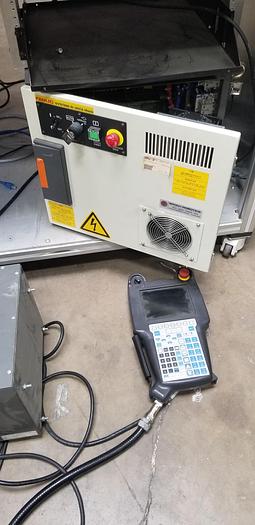

FANUC R30iA MATE CONTROLLER

FANUC ROBOT CONNECTION CABLES

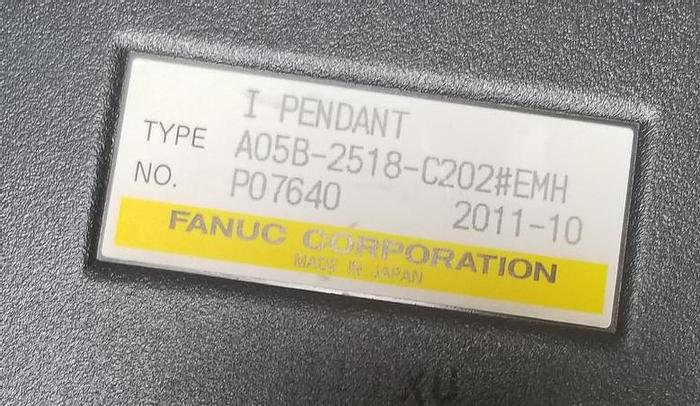

FANUC COLOR TEACH PENDANT


FOB TRUCK, IMLAY CITY MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC LR MATE 200iC
Year2011
ConditionUsed
Serial NumberF120746
Stock Number104422
Axes6
H-Reach704.00mm
Robot Mass27.00kg
Payload5.00kg
Repeatability±0.0200mm
StructureArticulated
MountingFloor, Inverted, Angle
