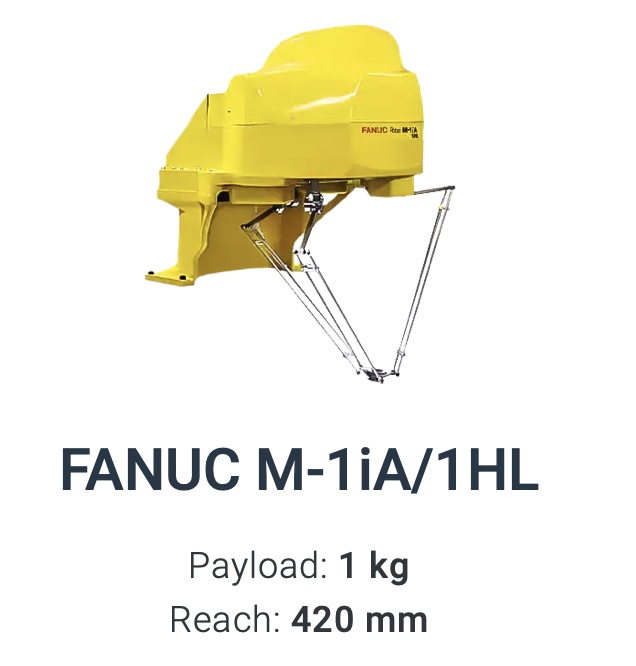

Manufacturers that want a long reach, delta-style robot need to look no further The M1iA/1HL is part of the M1iA family from FANUC. This version has a longer reach, which gives it a little more flexibility, but it is also engineered with a parallel link configuration which makes it ideally suited for small parts assembly, handling, and picking projects. The parallel link structure of the robot enables it to reach much higher speeds and consistency than other previous robot models. This level of consistency is only bolstered by optional features such as iRVision, Force Sensing, and Robot Link -- accessories that improve the motion and communication of the robot during operation. Robot Link is extremely helpful in a M-1iA/1HL work cell configuration, because it can coordinate up to 10 robots and allow them to exchange positional data to work together on tasks. Like many other M-1iA robots, the M-1iA/1HL uses the iPendant touch or Open Air versions of the R-30iB controller - the Mate version can be requested.
Robot Specifications:
Axes: 3
Payload: 1kg
H-Reach: 420mm
Repeatability: ±0.03mm
Robot Mass: 21kg
Structure: Delta, Parallel Link
Mounting: Shelf
Robot Motion Speed:
J1 3000°/s
J2 3000°/s
J3 3000°/s
Robot Motion Range:
J1 ±420°
J2 ±420°
J3 ±420°
Applications:
Material Handling Robots
Packaging Robots
Pick and Place Robots
Order Picking Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
