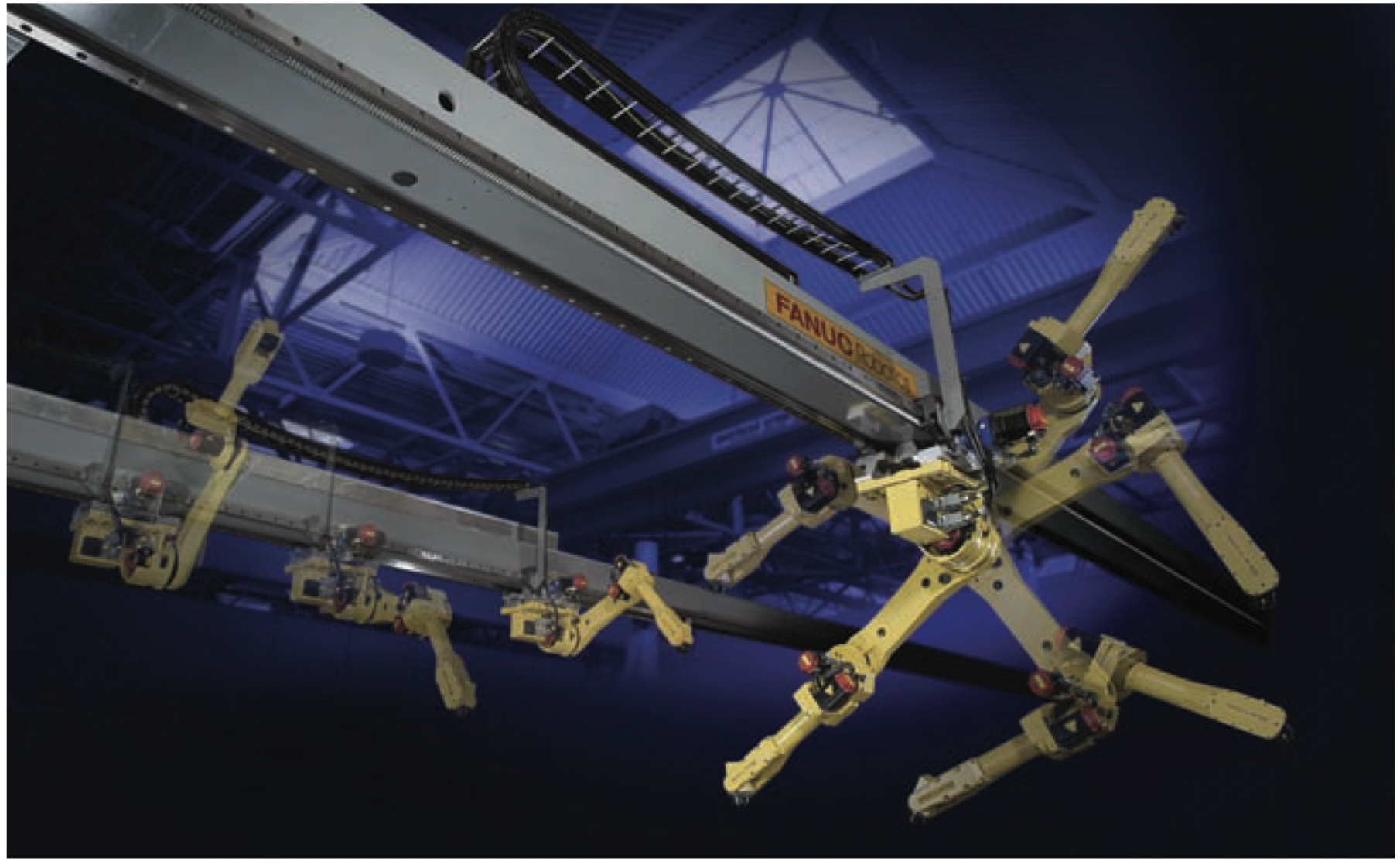

The FANUC M-16iB/10LT is an overhead, gantry, rail mounted robot one of the Fanuc Legacy Series of robots that offers accuracy for a wide variety of tasks such as material handling and machine tending. This robot is paired with the intelligent RJ3iB controller.


Robot Specifications

Axes: 6

Payload: 10kg

H-Reach: 1735mm

Repeatability: ±0.1mm

Robot Mass: 149kg

Structure: Articulated

Mounting: Inverted


Robot Motion Speed:

J1 2.75 m/s

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)


Robot Motion Range:

J1 +2.4m° - 32m°

J2 ±300°

J3 ±455°

J4 ±400°

J5 ±280°

J6 ±900°


Applications:

Dispensing Robots

Injection Molding Robots

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Plasma Cutting Robots

Palletizing Robots
