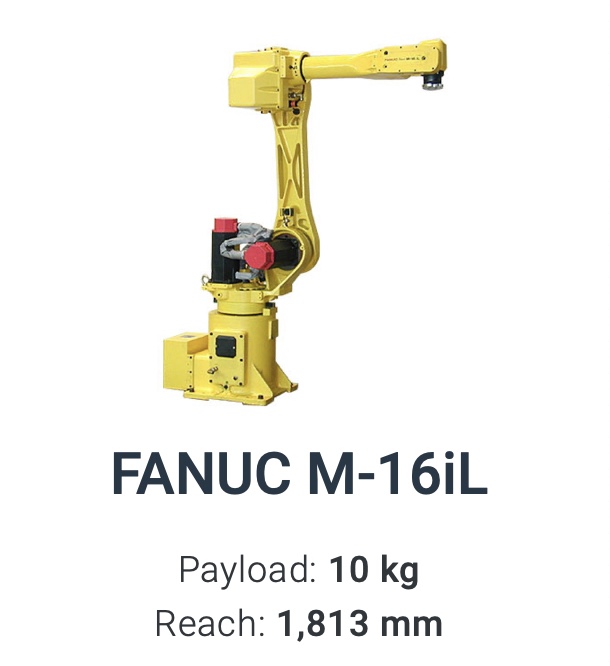

The Fanuc M-16iL is the long reach variant of the M-16i it is a Fanuc legacy robot and runs on the RJ3 Controller. Applications include

Dispensing Robots, Machine Loading Robots, Machine Tending Robots, Material Handling Robots, Pick and Place Robots.


Robot Specifications:

Axes: 6

Payload: 10kg

H-Reach: 1813mm

Repeatability: ±0.1mm

Robot Mass: 270kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 140 °/s (2.44 rad/s)

J2 140 °/s (2.44 rad/s)

J3 140 °/s (2.44 rad/s)

J4 330 °/s (5.76 rad/s)

J5 330 °/s (5.76 rad/s)

J6 450 °/s (7.85 rad/s)


Robot Motion Range:

J1 ±165°

J2 +162° - 78°

J3 +275° - 135°

J4 ±200°

J5 ±140°

J6 ±450°


Applications:

Dispensing Robots

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Pick and Place Robots


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
