The long reach variant of the M-20iA robot. The Fanuc M-20iA/10L has multiple mounting options, an extended reach of 2,009 mm, up to 10kg payload, and 6 axes of motion, all of which allow the M20iA/10L with the R30iA controller to blend easily into any operation.

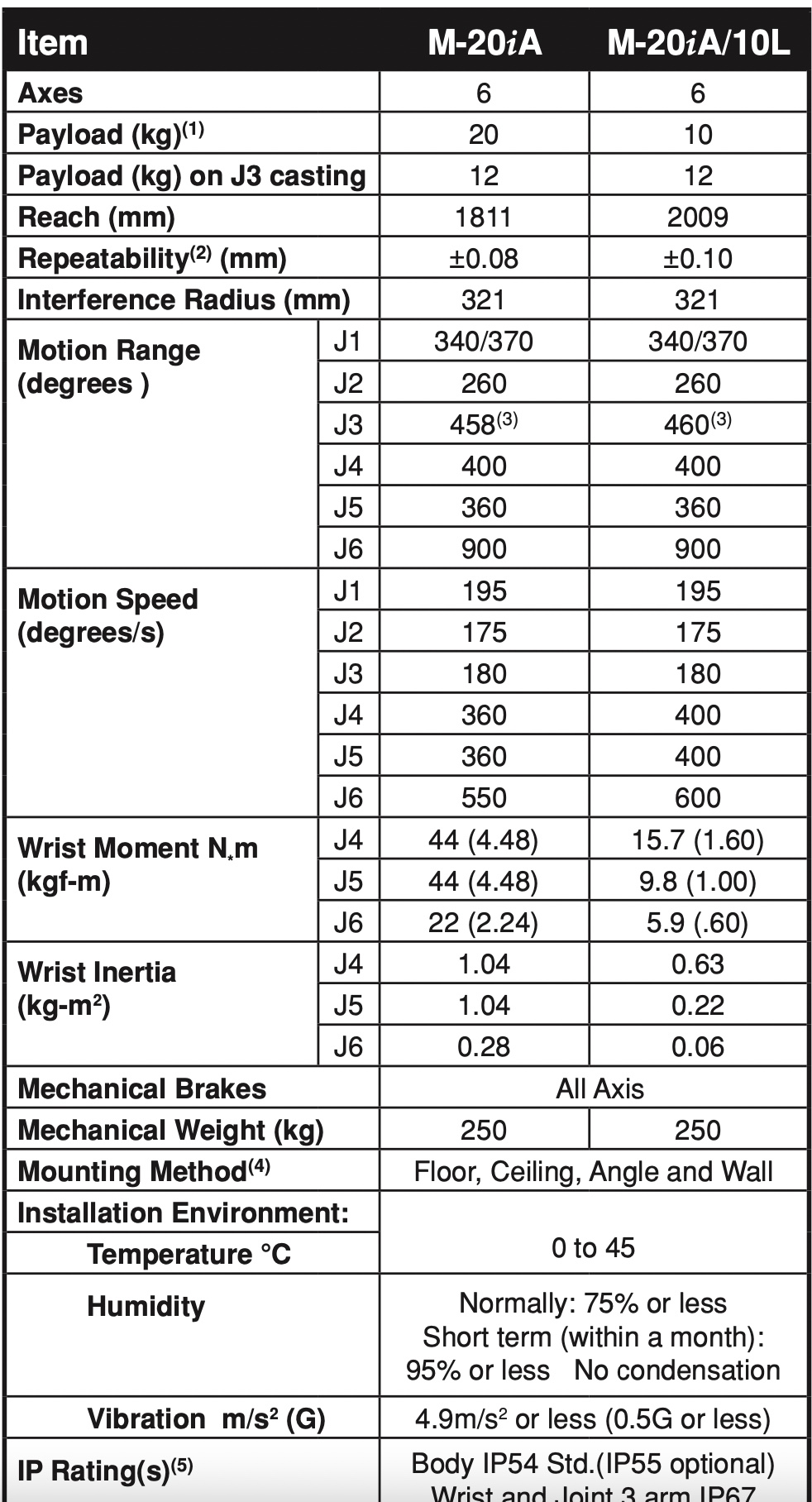

Robot Specifications:

Axes: 6

Payload: 10kg

H-Reach: 2009mm

Repeatability: ±0.1mm

Robot Mass: 250kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 195 °/s (3.4 rad/s)

J2 175 °/s (3.05 rad/s)

J3 180 °/s (3.14 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)


Robot Motion Range:

J1 +340° - 370°

J2 ±260°

J3 ±460°

J4 ±400°

J5 ±380°

J6 ±900°


Applications:

Material Handling Robots

Machine Tending Robots

Machine Loading Robots

Pick and Place Robots



Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
