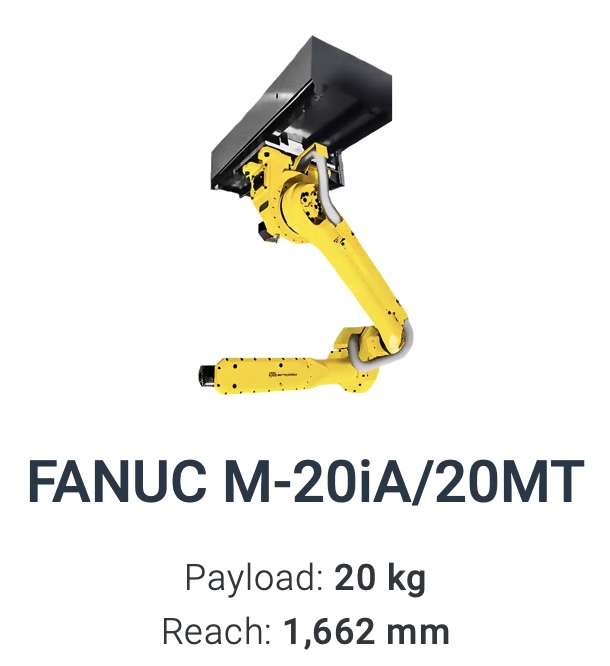

The FANUC M-20iA/20MT is the latest rail mounted robot with a 20 kg payload. Fanuc refers to this unit as a high inertia top mount robot. This M20iA/20MT has enhanced wrist moment up to 1.3 times and wrist inertia up to 3.5 times the M-20iA/20T. It runs on the R30iB robot controller platform. Suited for many applications

such as machine loading, material handling and order picking. With a little ingenuity we bet you could find numerous other applications for this robot.


Robot Specifications:

Axes: 6

Payload: 20kg

H-Reach: 1662mm

Repeatability: ±0.08mm

Robot Mass: 185kg

Structure: Articulated

Mounting: Inverted


Robot Motion Speed:

J1 195 °/s (3.4 rad/s)

J2 175 °/s (3.05 rad/s)

J3 180 °/s (3.14 rad/s)

J4 405 °/s (7.07 rad/s)

J5 405 °/s (7.07 rad/s)

J6 615 °/s (10.73 rad/s)

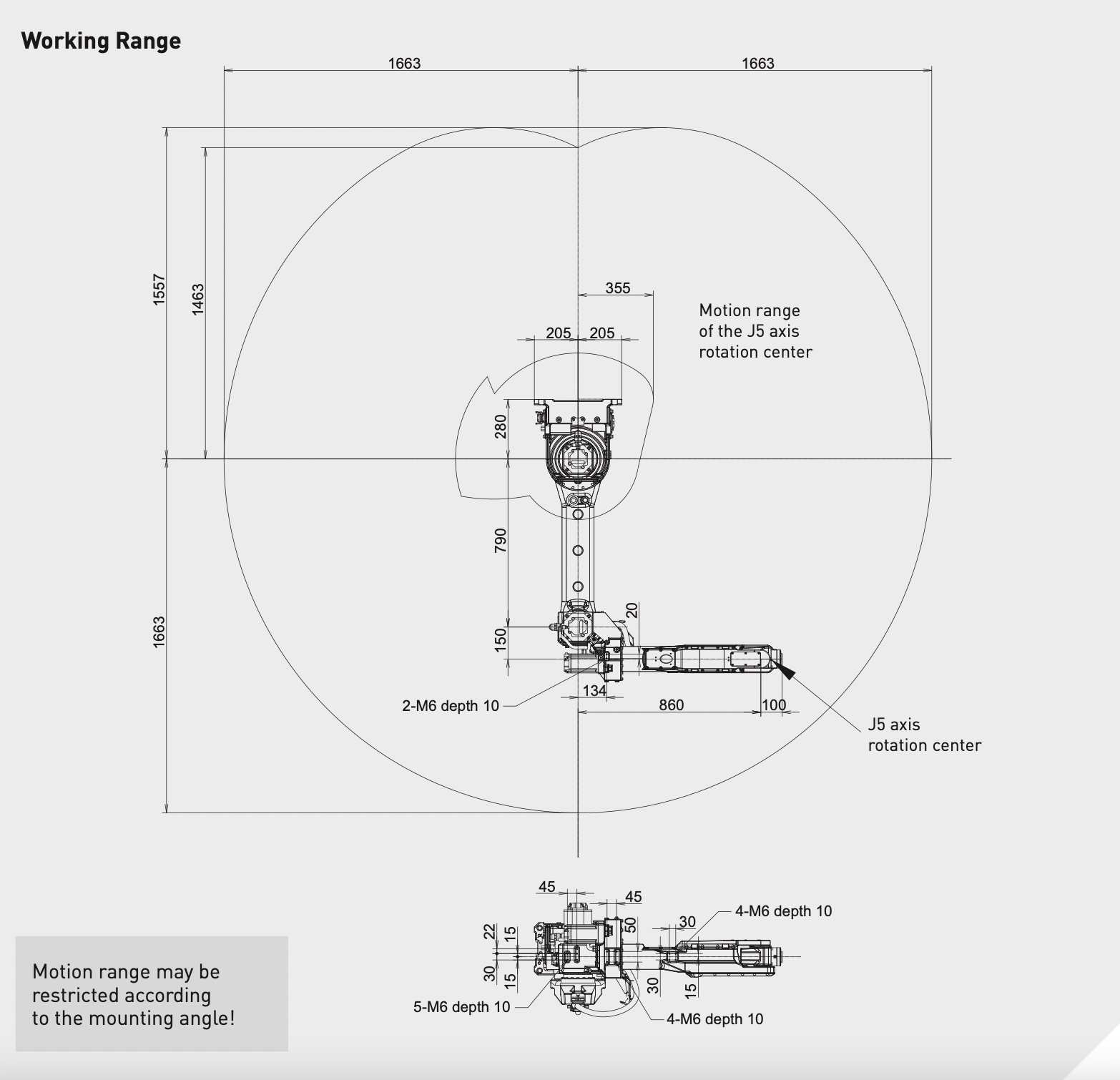

Robot Motion Range:

J1 +340° - 370°

J2 ±300°

J3 ±586°

J4 ±400°

J5 ±280°

J6 ±900°


Applications:

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Packaging Robots

Order Picking Robots



Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
