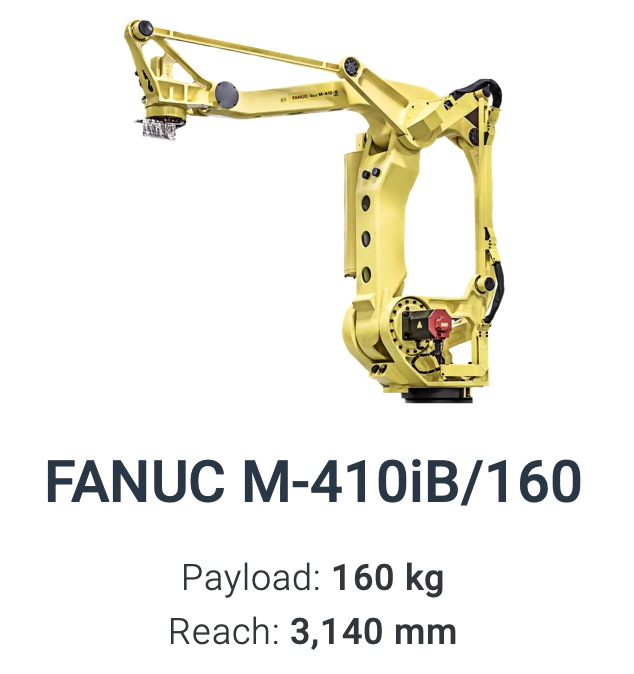

The Fanuc M-410iB/160 is a 4 axis Palletizing robot. The robot depending on date of manufacture can run on the R30iA or R30iB Controller.


Robot Specifications:

Axes: 4

Payload: 160kg

H-Reach: 3140mm

Repeatability: ±0.5mm

Robot Mass: 1940kg

Structure: Articulated

Mounting: Floor


Robot Motion Speed:

J1 130 °/s (2.27 rad/s)

J2 130 °/s (2.27 rad/s)

J3 135 °/s (2.36 rad/s)

J4 300 °/s (5.24 rad/s)

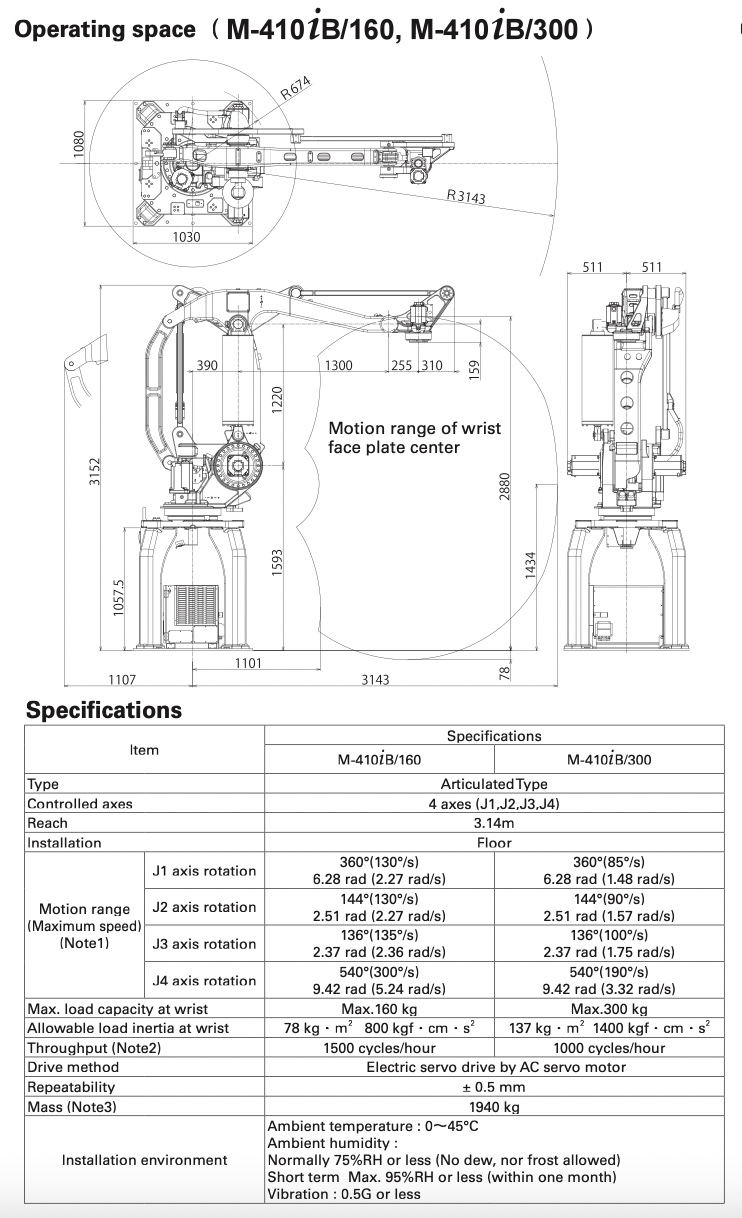

Robot Motion Range:

J1 ±360°

J2 ±144°

J3 ±136°

J4 ±540°


Applications:

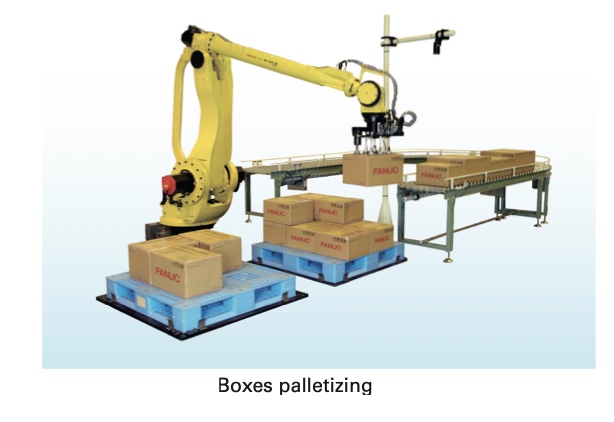

Palletizing Robots
