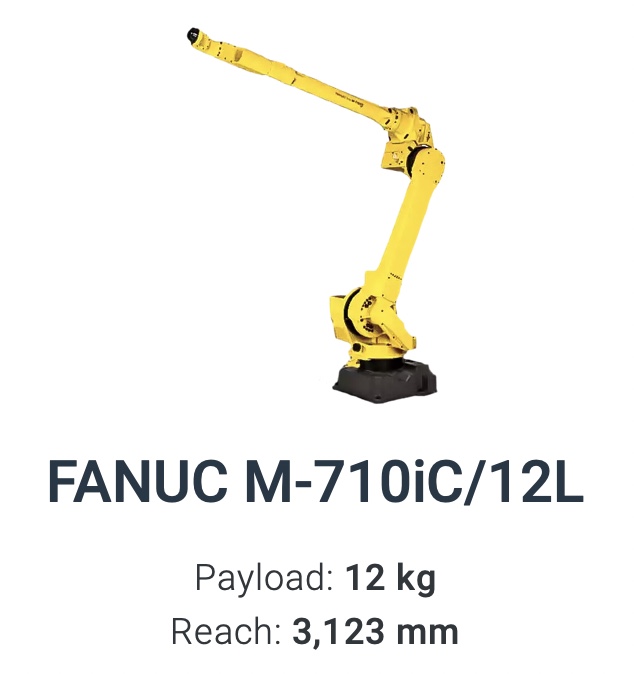

The Fanuc M-710iC/12L is a long reach version in the series with a reach of 3123mm it has a large working envelope and has a capacity of 12kg. The robot runs on the Fanuc R30iB Controller Platform. It can be used in wide variety of applications from material handling to welding applications and machine tending applications. The M-710iC series of robot is a very popular robot for Fanuc and hard to find used.


Robot Specifications:

Axes: 6

Payload: 12kg

H-Reach: 3123mm

Repeatability: ±0.15mm

Robot Mass: 540kg

Structure: Articulated

Mounting: Floor


Robot Motion Speed:

J1 180 °/s (3.14 rad/s)

J2 180 °/s (3.14 rad/s)

J3 180 °/s (3.14 rad/s)

J4 400 °/s (6.98 rad/s)

J5 430 °/s (7.5 rad/s)

J6 630 °/s (11 rad/s)

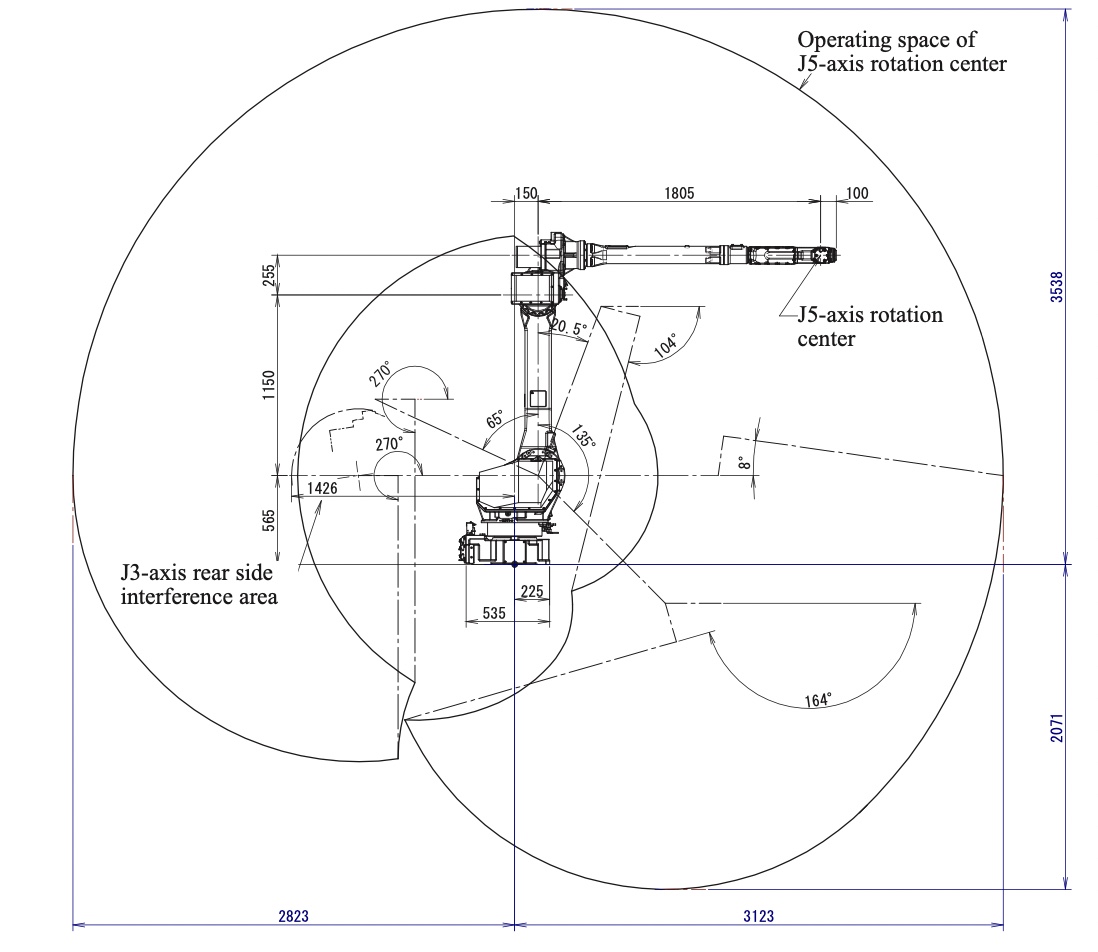

Robot Motion Range:

J1 ±360°

J2 ±225°

J3 ±434°

J4 ±400°

J5 ±380°

J6 ±720°


Applications:

Assembly Robots

Dispensing Robots

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Packaging Robots

Part Transfer Robots

Pick and Place Robots

Order Picking Robots




Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
