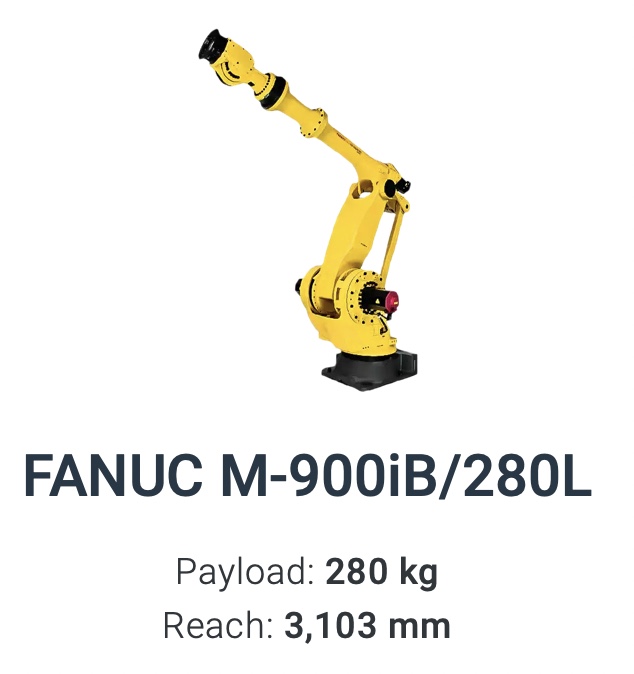

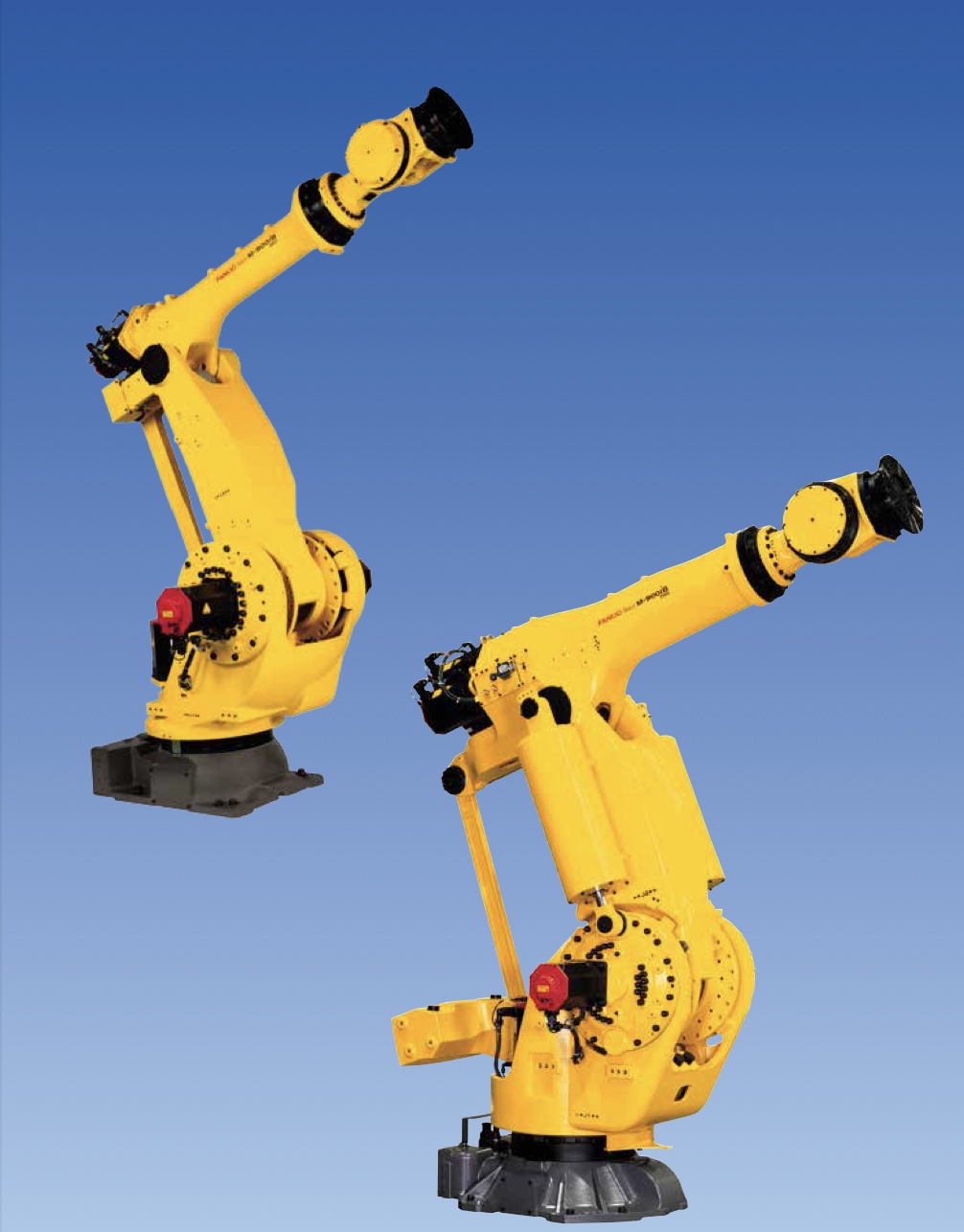

The Fanuc M-900iB/280L robot is the newest in the series of the M-900 line and the long arm variant of the Fanuc M-900iB/280. The robot runs on the Fanuc R30iB A cabinet or the Fanuc R30iB B cabinet. Applications include Spot Welding Robots, Dispensing Robots, Machine Loading Robots, Machine Tending Robots, Part Transfer Robots, Assembly Robots, Coating Robots and Material Removal Robots.


Robot Specifications:

Axes: 6

Payload: 280kg

H-Reach: 3103mm

Repeatability: ±0.3mm

Robot Mass: 1600kg

Structure: Articulated

Mounting: Floor, Inverted


Robot Motion Speed:

J1 110 °/s (1.92 rad/s)

J2 105 °/s (1.83 rad/s)

J3 100 °/s (1.75 rad/s)

J4 125 °/s (2.18 rad/s)

J5 125 °/s (2.18 rad/s)

J6 205 °/s (3.58 rad/s)


Robot Motion Range:

J1 ±370°

J2 ±151°

J3 ±224°

J4 ±720°

J5 ±250°

J6 ±720°


Applications:

Spot Welding Robots

Dispensing Robots

Machine Loading Robots

Machine Tending Robots

Part Transfer Robots

Assembly Robots

Coating Robots

Material Removal Robots





Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
