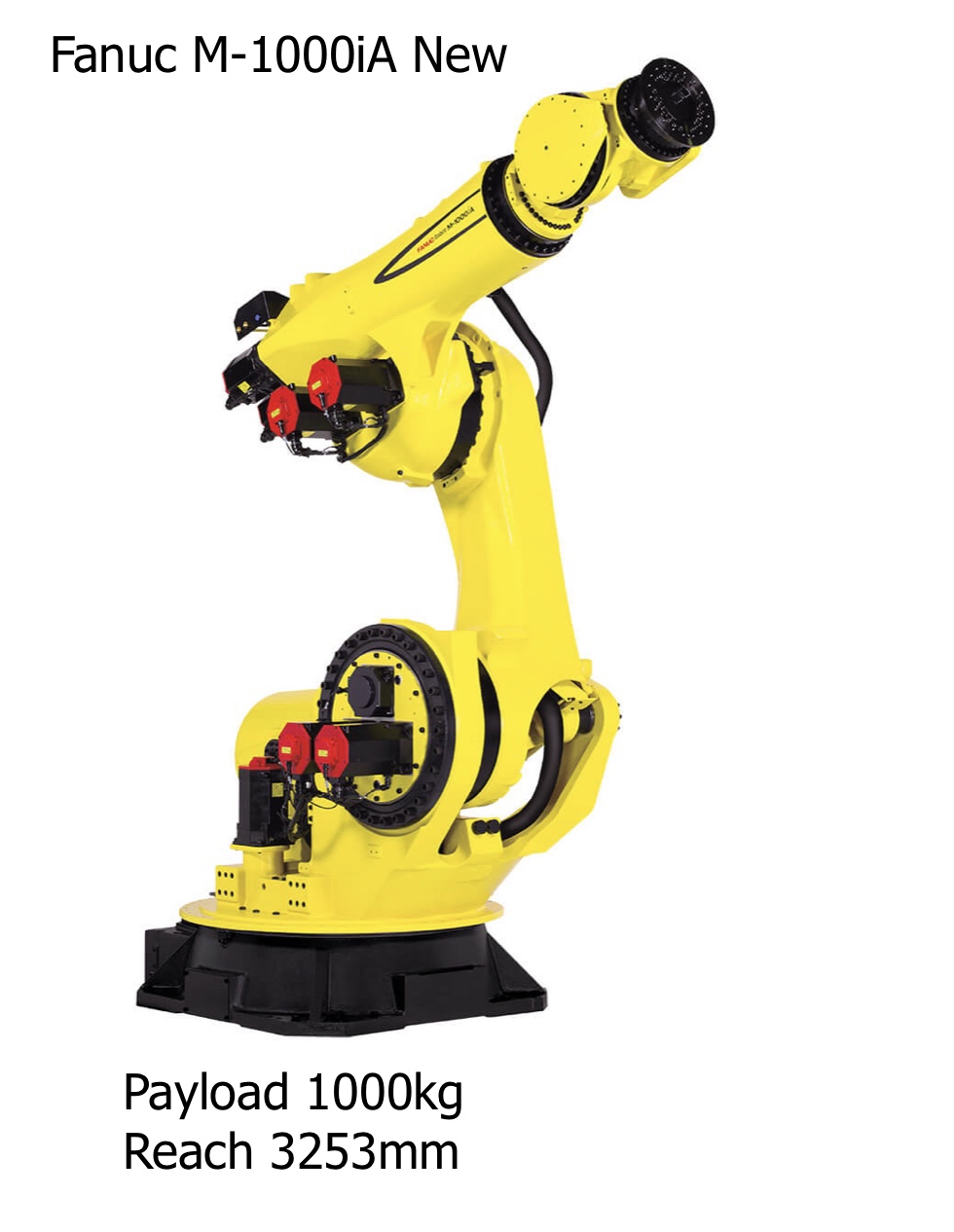

FANUC’s new large material handling robot, the M-1000iA, can lift and manipulate heavy loads with more versatility - The M-1000iA is FANUC’s largest robot to feature a serial link mechanism, rather than the parallel link mechanism typical of heavy payload robots. As a result, the M-1000iA has a wider range of motion in both vertical and longitudinal directions, allowing the arm to stand upright and rotate backwards, which is impossible with parallel link robots. This capability provides users with extended versatility across a wide range of handling applications. The M-1000iA runs on Fanuc's Newest Controller R30iB.


Robot Specifications:

Axes: 6

Payload: 1000kg

H-Reach: 3253mm

Repeatability: ±0.1mm

Robot Mass: 0kg

Structure: Articulated

Mounting: Floor


Robot Motion Speed:

J1 60 °/s

J2 50 °/s

J3 50 °/s

J4 70 °/s

J5 70 °/s

J6 85 °/s

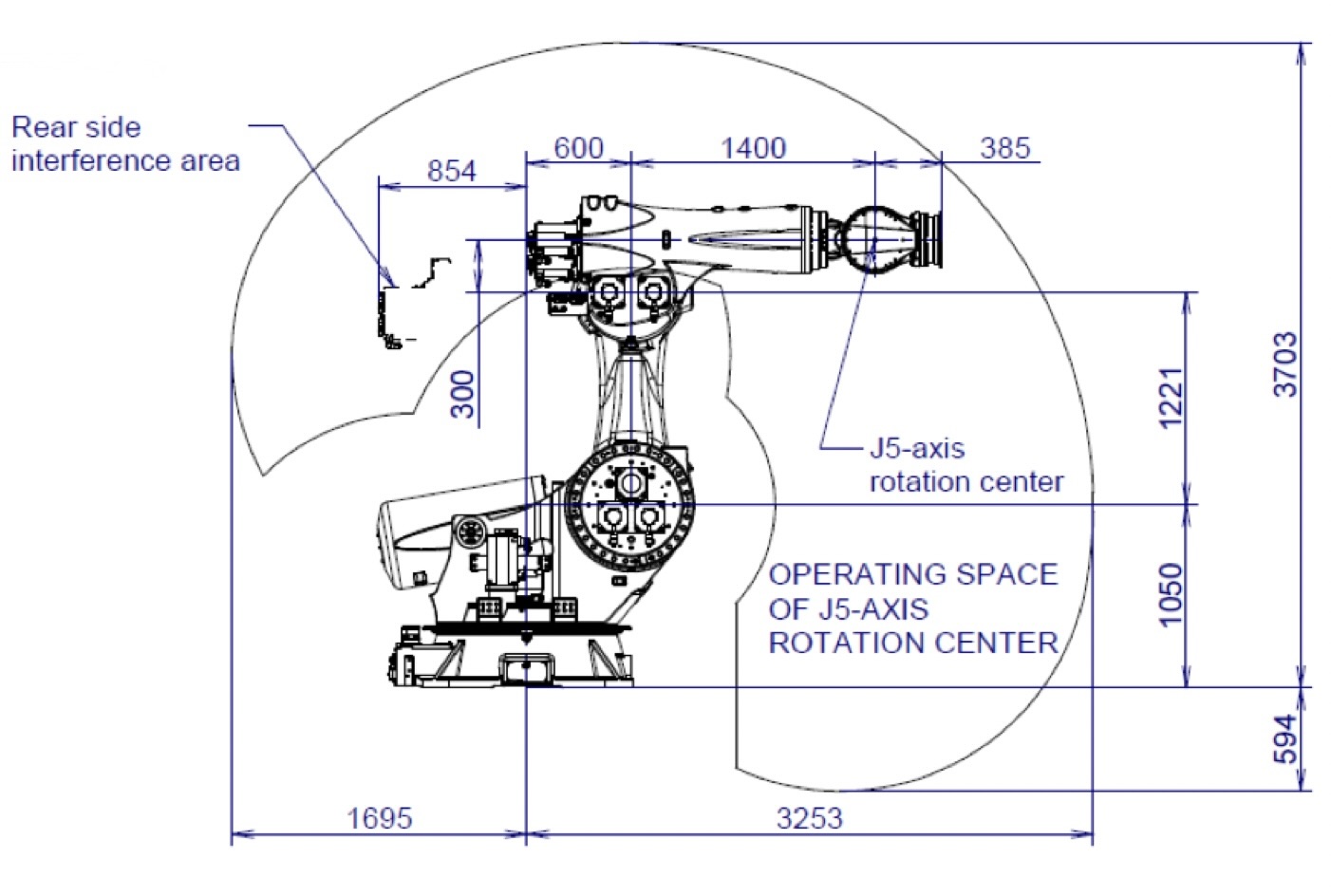

Robot Motion Range:

J1 ±330°

J2 ±145°

J3 ±260°

J4 ±720°

J5 ±240°

J6 ±720°


Applications:

Assembly

Robots



,






Dispensing

Robots, Machine Tending Robots,

Material Handling

Robots, Material Removal




Robots,






Spot Welding

Robots
