FANUC M6iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER

Contact us for price

Almont, MI

orCall 586-752-0090

Description

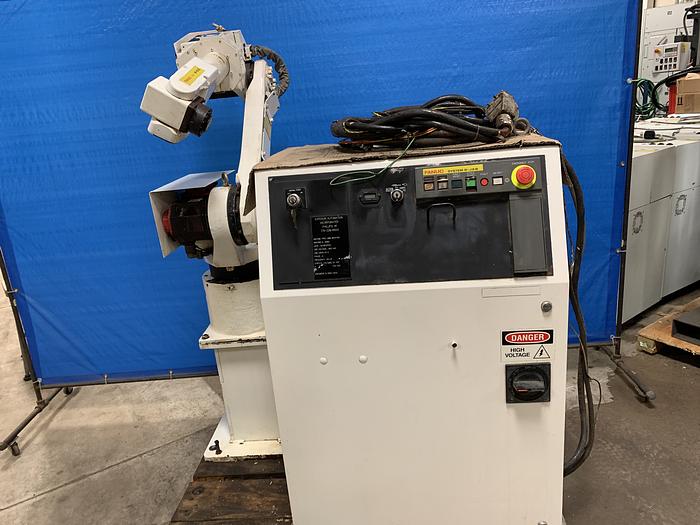

1-USED FANUC M6iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER
SERIAL NUMBER F53588
DATE OF MFG. 02/2002
STK#103758
===============================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

HOURS SHOWN ON METER 12,214

Robot Specifications
Axes: 6
Payload: 6.00kg
H-Reach: 1373.00mm
Repeatability: ±0.0800mm
Robot Mass: 138.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed
J1 150 °/s (2.62 rad/s)
J2 160 °/s (2.79 rad/s)
J3 170 °/s (2.97 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range
J1 ±170°
J2 +160° - 90°
J3 +145° - 170°
J4 ±190°
J5 ±140°
J6 ±360°

EQUIPPED WITH:

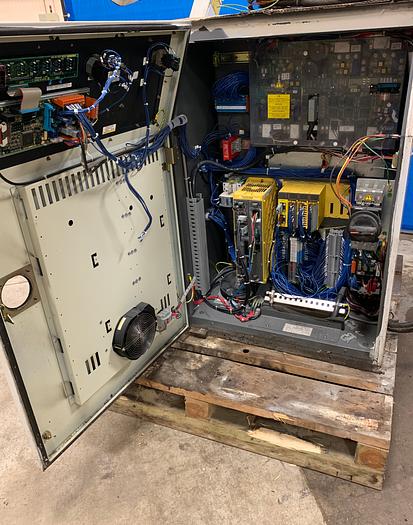

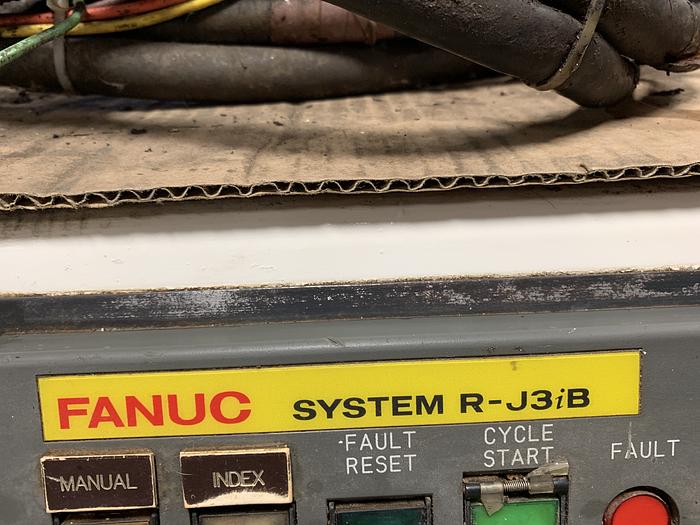

RJ3iB CONTROLS
CABLES
TEACH PENDANT

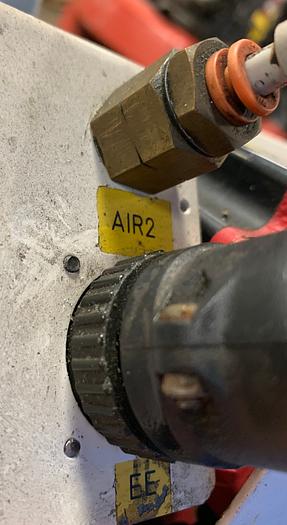

EE CUSTOMER CONNECTIONS BUILT INTO ROBOT
18" ROBOT STAND

Robot Applications
Electron Beam Welding Robots
Flux Cored Welding Robots
Machine Tending Robots
Material Handling Robots
Pick and Place Robots
Arc Welding Robots

The FANUC M-6iB consistently provides high performance through features designed to increase production. The robot arm features 6 axes, a modular construction, and feature-rich standard capabilities that provide dexterity, reliability, and bring high speeds to the production line. The M-6iB is the perfect solution for countless applications and working environments. It also comes in the short arm version, the M-6iB/6S.

FOB TRUCK ALMONT, MI 48003

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

WWW.RABIND.COM
586-752-0090

Specifications

ManufacturerFANUC
ModelM6iB
Year2002
ConditionUsed
Serial NumberF53588
Stock Number103758
