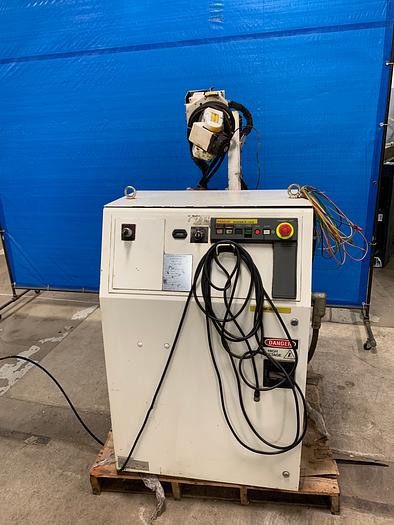

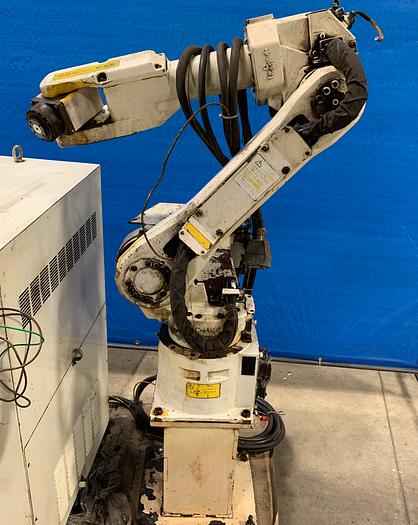

FANUC M6iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER

Almont, MI

Description

1-USED FANUC M6iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER SERIAL NUMBER F53589 DATE OF MFG. 02/2002 STK#103759 =============================================== SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: HOURS SHOWN ON METER 15,128 Robot Specifications Axes: 6 Payload: 6.00kg H-Reach: 1373.00mm Repeatability: ±0.0800mm Robot Mass: 138.00kg Structure: Articulated Mounting: Floor, Inverted, Angle Robot Motion Speed J1 150 °/s (2.62 rad/s) J2 160 °/s (2.79 rad/s) J3 170 °/s (2.97 rad/s) J4 400 °/s (6.98 rad/s) J5 400 °/s (6.98 rad/s) J6 520 °/s (9.08 rad/s) Robot Motion Range J1 ±170° J2 +160° - 90° J3 +145° - 170° J4 ±190° J5 ±140° J6 ±360° EQUIPPED WITH: RJ3iB CONTROLS CABLES TEACH PENDANT EE CUSTOMER CONNECTIONS BUILT INTO ROBOT 18" TALL ROBOT MOUNTING STAND Robot Applications Electron Beam Welding Robots Flux Cored Welding Robots Machine Tending Robots Material Handling Robots Pick and Place Robots Arc Welding Robots The FANUC M-6iB consistently provides high performance through features designed to increase production. The robot arm features 6 axes, a modular construction, and feature-rich standard capabilities that provide dexterity, reliability, and bring high speeds to the production line. The M-6iB is the perfect solution for countless applications and working environments. It also comes in the short arm version, the M-6iB/6S. FOB TRUCK ALMONT, MI 48003 THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. WWW.RABIND.COM 586-752-0090

Specifications

ManufacturerFANUC
ModelM6iB
Year2002
ConditionUsed
Serial NumberF53589
Stock Number103759
