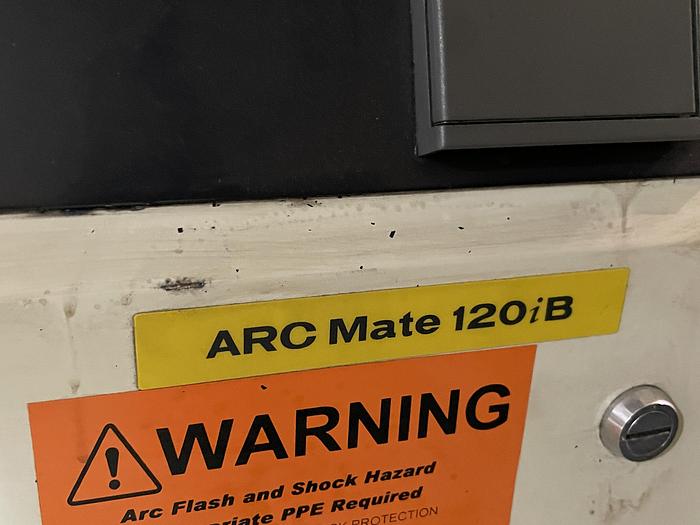

FANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER

FANUC ARCMATE 120iB 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER

Contact us for price

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

1-USED FANUC ARCMATE 120iB 6 AXIS ROBOT WITH RJ3iB CONTROLLER

SERIAL NUMBER F62255

DATE OF MANUFACTURE 04/2004

STK#104490

===================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


This Robot is Suitable for high-speed welding and cutting processes, the FANUC ARC Mate 120iB is a six-axis robotic arm that is servo-driven. The FANUC 120iB RJ3iB welding robot provides accurate and consistent path performance based on its simple and reliable construction.


Robot Specifications:

Axes: 6

Payload: 20.00kg

H-Reach: 1667.00mm

Repeatability: ±0.0800mm

Robot Mass: 220.00kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s) Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°


Robot Applications:

MIG Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

MAG Welding Robots

Welding Automation Robots

Arc Welding Robots


EQUIPPED WITH:

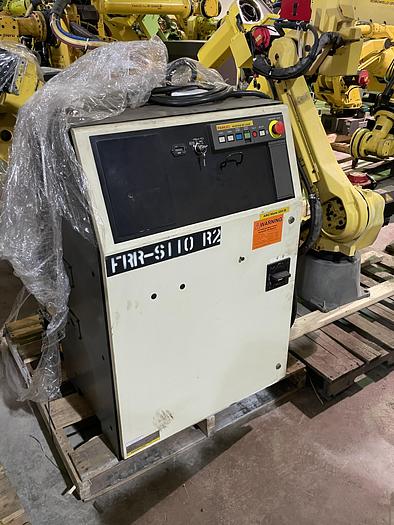

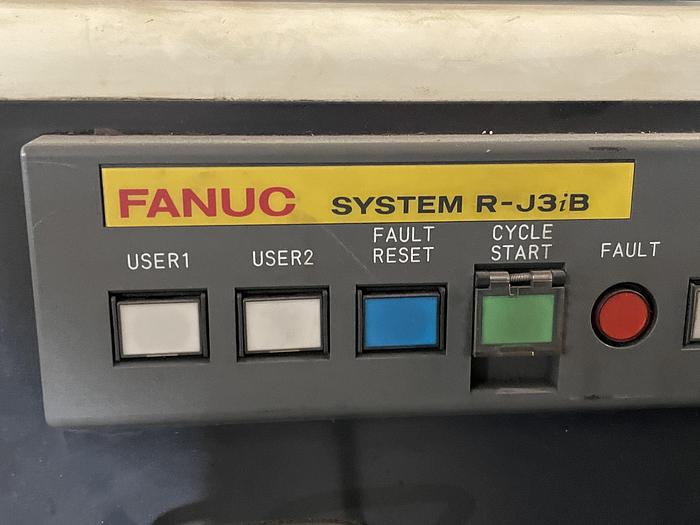

FANUC RJ3iB ROBOT CONTROLLER

FANUC ROBOT CONNECTION CABLES

TEACH PENDANT


FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC ARCMATE 120iB
Year2004
ConditionUsed
Serial NumberF62255
Stock Number104490
Axes6
Payload20.00kg
H-Reach1667.00mm
Repeatability±0.0800mm
Robot Mass220.00kg
StructureArticulated
MountingFloor, Inverted, Angle
