FANUC ROBODRILL T21iF VERTICAL MACHIING CENTER WITH 4TH AXIS TSUDACOMA ROTARY 4TH AXIS ROTARY TABLE

1-USED FANUC ROBODRILL MODEL T-21iF CNC VERTICAL MACHINING CENTER

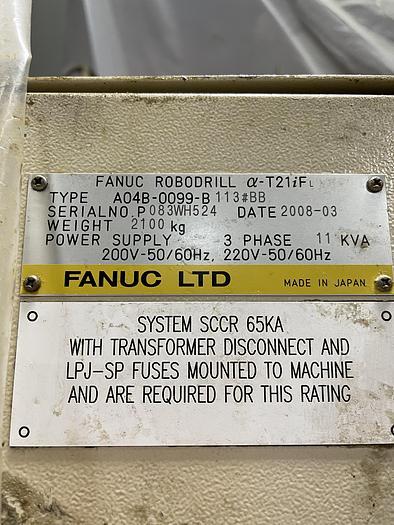

SERIAL NUMBER: P083WH524

DATE OF MFG. MARCH 2008

STK#104659

=================================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE

SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER.

CATALOG SPECIFICATIONS:

MACHINE CONTROL: FANUC 31I-A5 CNC CONTROL

TABLE SIZE: 25.6" X 15.7"

MACHINE TRAVELS (X/Y/Z): 19.7"/ 15.7" / 13"

SPINDLE TO TABLE DISTANCE: 5.9" TO 18.9" PLUS 4.25" FOR RISER

SPINDLE CENTER TO COLUMN DISTANCE: 15.748"

TABLE CAPACITY: 440 LBS

SPINDLE TAPER: BT-30 BIG PLUS TAPER SPINDLE

SPINDLE SPEEDS: 100 TO 10,000 RPM

RAPID TRAVERSE RATE (X/Y/Z): 2125 IPM

MAXIMUM CUTTING FEED RATE: 0.039 TO 1181 IPM

TOOL CHANGER STYLE: BI-DIRECTIONAL HIGH-SPEED TOOL TURRET

TOOL CHANGER CAPACITY: 21 STATIONS

TOOL CHANGE TIME: .9 / 1.1 SECONDS TOOL TO TOOL

MAX TOOL LENGTH: 9.8"

MAX TOOL WEIGHT: 6.6 LBS.

SPINDLE DRIVE: 7.3 / 5 HP (10 MIN RATING / CONTINUOUS RATING)

APPROX WEIGHT OF MACHINE W/4TH AXIS 2250 KG (4,878 LBS)

FOB TRUCK, 300 EAST SECOND STREET, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS.

RAB INDUSTRIES, INC.
