FANUC ARCMATE 120iB 6 AXIS ROBOT WITH RJ3iB CONTROLLER

FANUC ARCMATE 120iB 6 AXIS ROBOT WITH RJ3iB CONTROLLER

$12,500 (USD)

Available quantity: 1

Imlay City, MI

orCall 586-752-0090 Extension 1 for Sales

Description

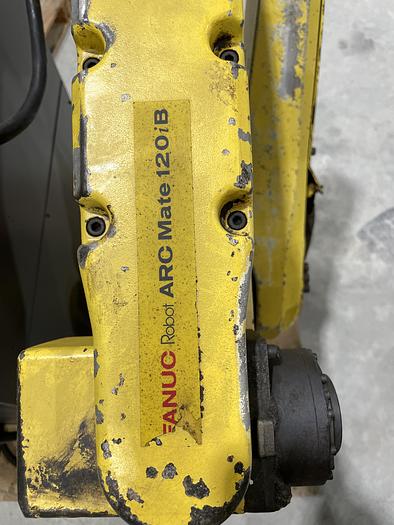

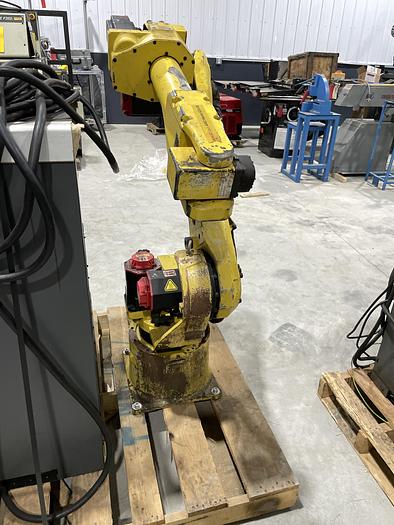

1-USED FANUC ARCMATE 120iB 6 AXIS ROBOT WITH RJ3iB CONTROLLER

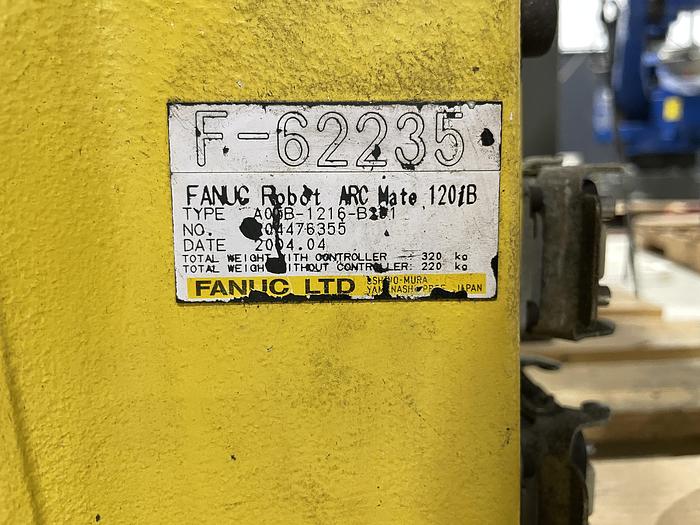

SN F62235

DATE OF MFG 04/2004

STK#104775

==============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


For high-speed welding and cutting processes, the FANUC ARC Mate 120iB is a six-axis robotic arm that is servo-driven. The FANUC 120iB RJ3iB welding robot provides accurate and consistent path performance based on its simple and reliable construction. In addition to high-speed cutting and welding, the ARC Mate 120iB is capable of performing a variety of welding applications, including MIG welding, TIG welding, Plasma welding and Plasma cutting.


Robot Specifications:

Axes: 6

Payload: 20kg

H-Reach: 1667mm

Repeatability: ±0.08mm

Robot Mass: 220kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)


Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°


Applications:

MIG Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

MAG Welding Robots

Welding Automation Robots

Arc Welding Robots


EQUIPPED WITH:

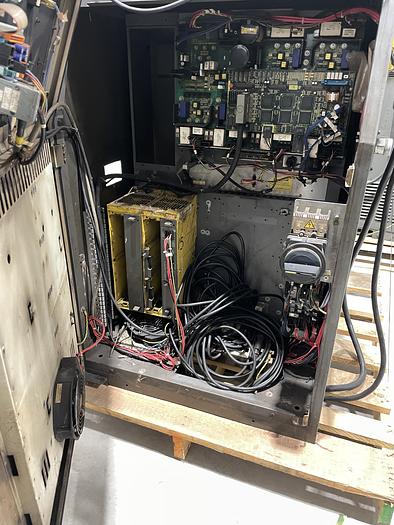

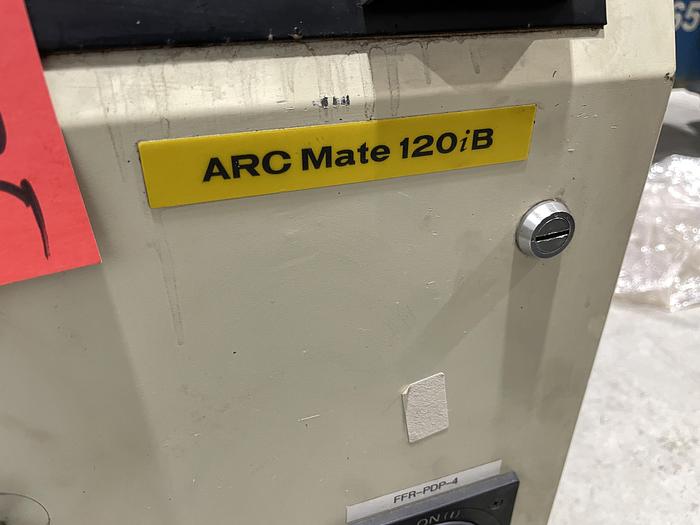

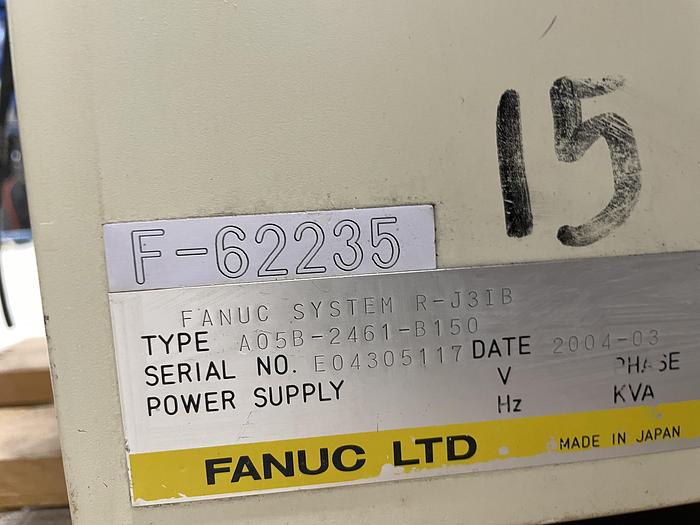

FANUC RJ3iB CONTROLLER

FANUC RCC CABLES

FANUC TEACH PENDANT


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelARCMATE 120iB
Year2004
ConditionUsed
Serial NumberF62235
Stock Number104775
Axes6
Payload20kg
H-Reach1667mm
Repeatability±0.08mm
Robot Mass220kg
StructureArticulated
MountingFloor, Inverted, Angle
ManufacturerFANUC
ModelFANUC ARCMATE 120iB
