2007 FANUC LR MATE 200iC

Contact us for price

Almont, MI

orCall 586-752-0090

Description

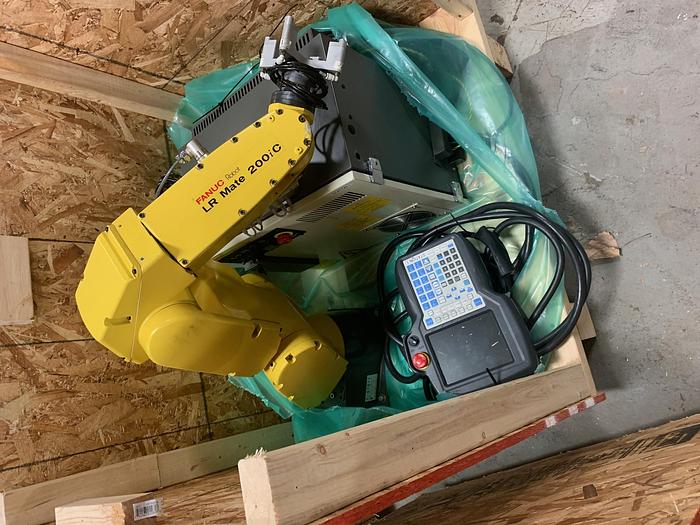

1-FANUC LR MATE 200iC 6 AXIS CNC ROBOT WITH R30iA MATE CONTROLLER

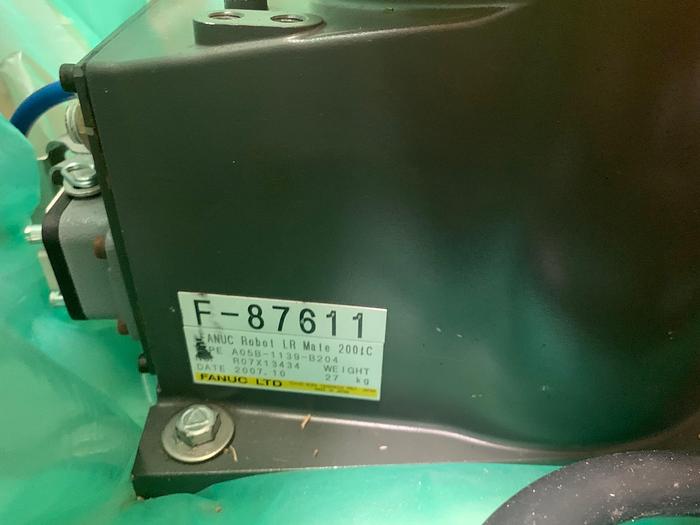

SERIAL NUMBER F87611
DATE OF MFG. 2007
STK#103864
==========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications
Axes: 6
Payload: 5.00kg
H-Reach: 704.00mm
Repeatability: ±0.0200mm
Robot Mass: 27.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed
J1 350 °/s (6.11 rad/s)
J2 350 °/s (6.11 rad/s)
J3 400 °/s (6.98 rad/s)
J4 450 °/s (7.85 rad/s)
J5 450 °/s (7.85 rad/s)
J6 720 °/s (12.57 rad/s)

Robot Motion Range
J1 ±340°
J2 ±200°
J3 388°
J4 ±380°
J5 ±240°
J6 ±720°

Faster and more compact than its predecessors, the FANUC LR Mate 200iC robot arm's high-positioning accuracy and tabletop size make it ideal for a variety of automation applications, including material handling, machine tending and assembly. The size of a human arm, the mini LR Mate 200iC moves with 152 percent more speed and 50 percent more accuracy than the earlier models.

The entire 200iC series is a super impressive, table-top size robot that is light weight, maintains a slim profile, has high dexterity, and produces faster sustained speeds with superior positioning accuracy. The 200iC mini series is driven by electric servos and is rated best-in-class wrist momentum and inertias for real world EOATs due to its light, efficient, accurate, and nimble package. Depending on the model, it can include 5 or 6 degrees of freedom, up to 5 kg payload at the wrist, and +/-0.02 or +/-0.03 repeatability.

The standard 200/iC R30iA can handle a 5kg payload. The robot's tooling and integration is simplified by strategically located pneumatic and electrical connections and two dual-action solenoid valves.

The 200iC is designed for Light, Efficient, Accurate and Nimble (LEAN) performance. It offers exceptional versatility, can be mounted almost anywhere (floor, tabletop, angle, inverted or inside of machines), and it fits easily in tight, narrow areas. Furthermore, with the same footprint and wrist-bolt pattern as the previous model, the FANUC 200iC is easily upgraded. It has an enclosed mechanical design that eliminates cables and hose snagging.

EQUIPPED WITH:

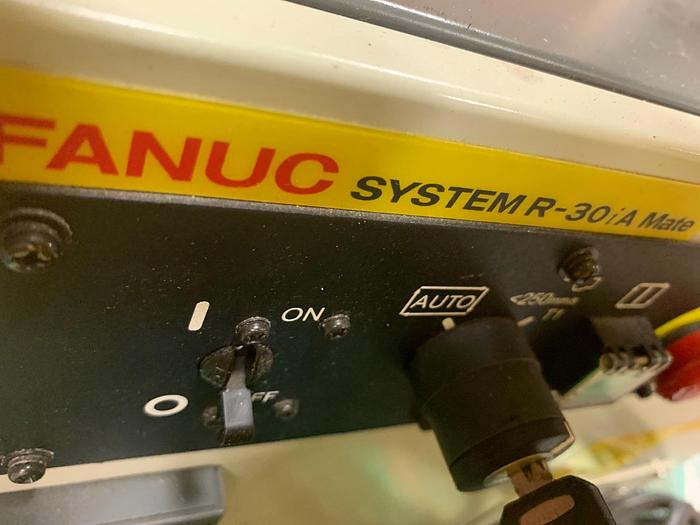

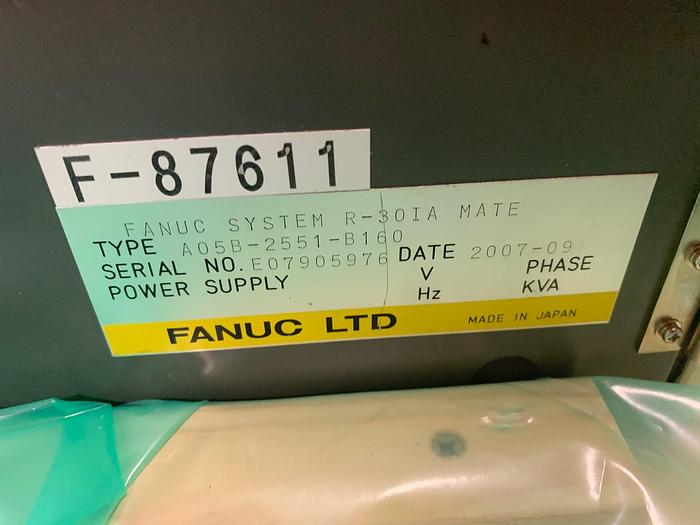

R30iA MATE CONTROLLER

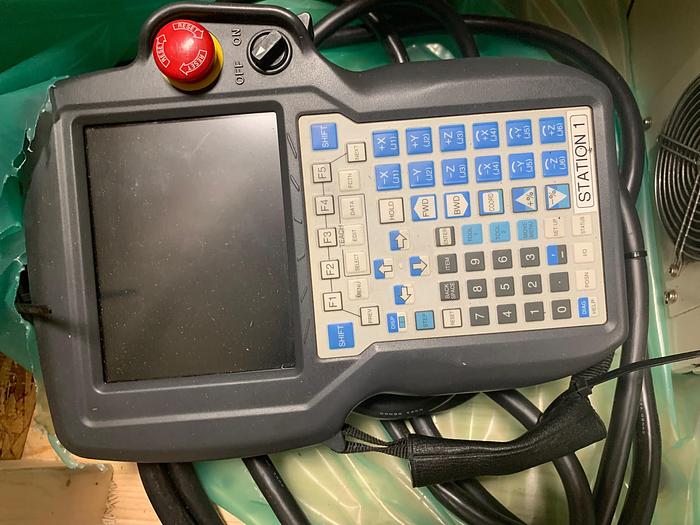

TEACH PENDANT
CABLES
GRIPPER

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelLR MATE 200iC
Year2007
ConditionUsed
Serial NumberF87611
Stock Number103864
