FANUC S500iB 15KG X 2757MM REACH 6 AXIS CNC ROBOT

FANUC S500iB 15KG X 2757MM REACH 6 AXIS CNC ROBOT

$14,500 OBO

Available quantity: 1

Almont, MI

orCall 586-752-0090

Description

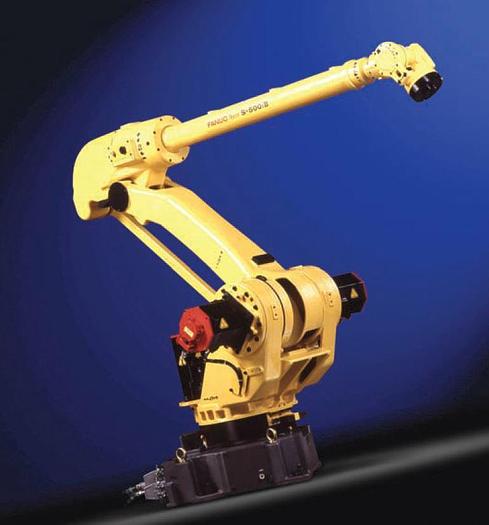

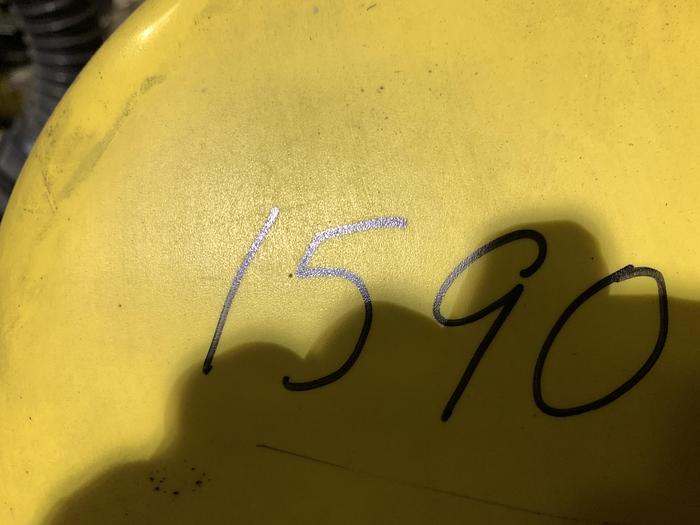

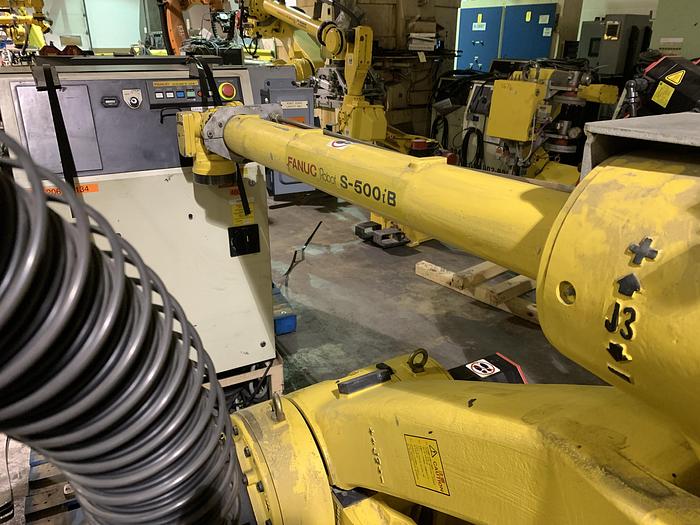

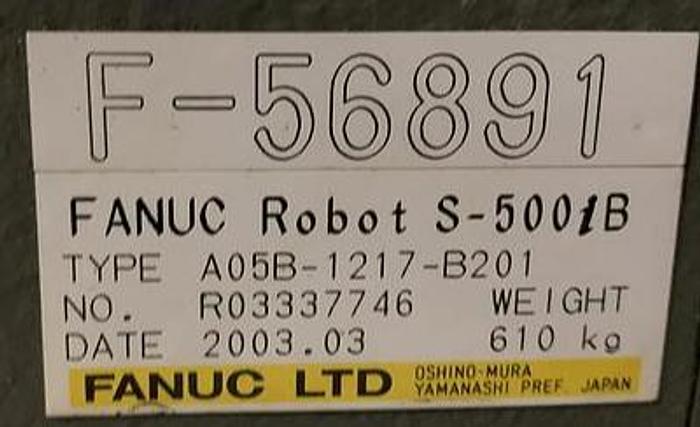

1-USED FANUC S500iB 15KG X 2757MM REACH 6 AXIS CNC ROBOT WITH 7TH & 8TH AXIS AUXILIARY DRIVES SERIAL NUMBER F56891 TAG 1590 DATE OF MFG. 02/2003 STK#103921 ============================ SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: HOURS SHOWN ON METER 12,864.4 Robot Specifications: Axes: 6 Payload: 15.00kg H-Reach: 2757.00mm Repeatability: ±0.1500mm Robot Mass: 610.00kg Structure: Articulated Mounting: Floor, Inverted, Angle Robot Motion Speed: J1 170 °/s (2.97 rad/s) J2 170 °/s (2.97 rad/s) J3 200 °/s (3.49 rad/s) J4 335 °/s (5.85 rad/s) J5 360 °/s (6.28 rad/s) J6 600 °/s (10.47 rad/s) Robot Motion Range: J1 ±160° J2 +100° - 60° J3 +149° - 119° J4 ±240° J5 ±120° J6 ±450° EQUIPPED WITH: RJ3iB CONTROLLER CABLES TEACHPENDANT 7TH & 8TH AXIS AUXILIARY DRIVES Robot Applications: Dispensing Robots Machine Loading Robots Material Handling Robots Material Removal Robots Part Transfer Robots You will like the 6-axis FANUC S-500iB is designed for high-speed smooth movements. The refined movement of the S-500iB R-J3iB, a result of RV speed reducers, is powered by brushless AC servo motors. Cables are routed through hollow joints on the S-500ib arm to reduce interference. The FANUC S-500iB R-J3iB has a slender arm design that increases access to parts and eases installation. It can operate in many environments ranging from harsh to the traditional factory floor. The slender arm design improves robot repeatability and no robot modifications are required for upright, inverted, or wall-mountings. THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelS500iB
Year2003
ConditionUsed
Serial NumberF56891
Stock Number103921
