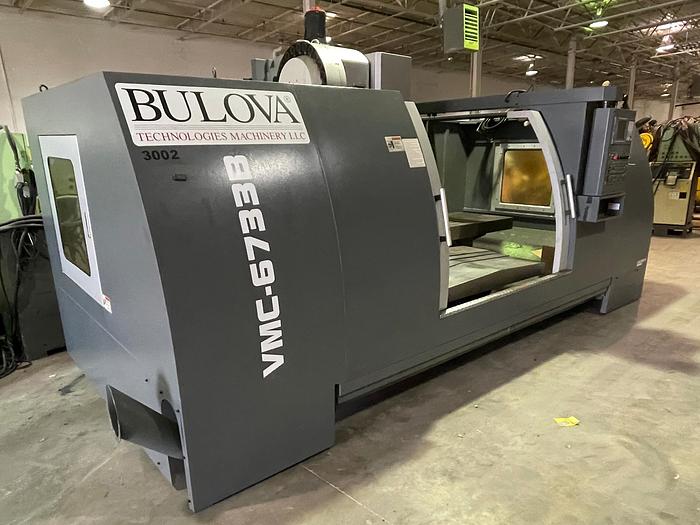

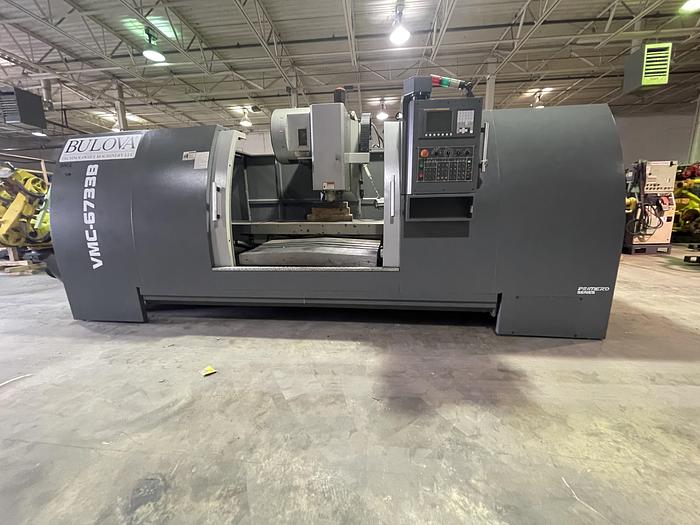

BULOVA VMC-6733B VERTICAL MACHINING CENTER, 67" X 33" X 28", FANUC Oi-MD CONTROL, NEW 2018 #104841

BULOVA VMC-6733B VERTICAL MACHINING CENTER, 67" X 33" X 28", FANUC Oi-MD CONTROL, NEW 2018 #104841

Contact us for price

Available quantity: 1

Imlay City, MI

Description

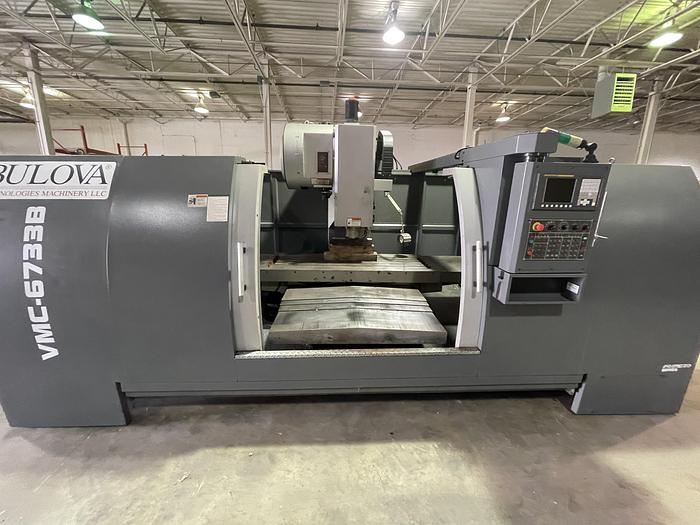

1-USED BULOVA VMC-6733B VERTICAL MACHINING CENTER

SN 4214700501

DATE OF MFG. 2018

STK#104841

=========================================

CUTTING HOURS ON MACHINE 1,250


SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


STANDARD FEATURES:


* Fanuc Oi-MD Control (Package B)

* AI APC Contour Control

* 10,000 RPM Spindle (Belt Drive)

* Powerful 20 hp (30 min) high torque spindle motor

* Cartridge Spindle Design

* CAT40 Big Plus Spindle

* 1000 PSI CTS Prep Only

* Spindle Air Blow

* Rigid tapping

* Custom Macro B (User Definable)

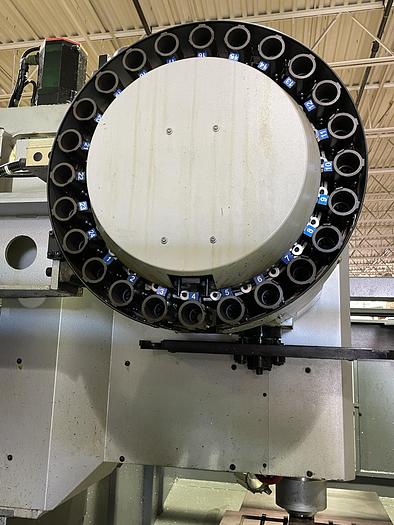

* Twin Arm 24 Tool ATC

* Tool Change Time (Tool To Tool) 2.5 sec.

* Tool Change Time (Chip to Chip) 7.0 sec.

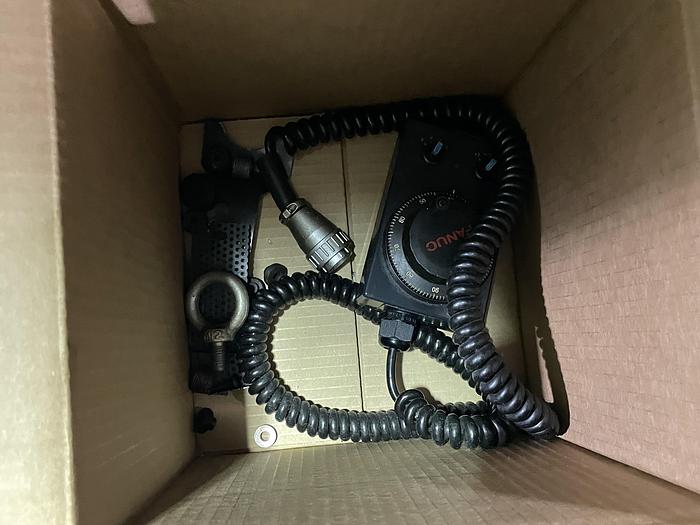

* Portable Manual pulse generator

* Program and data protection key switch

* Massive One-piece Meehanite cast iron bed

* Chip Auger

* 4th Axis Prep (no amplifier)

* Low friction Turcite mating way surfaces

* Double Anchored, Pretensioned Ballscrews

* 787 IPM Rapid Traverse rate

* Full enclosure splash guard

* Flood coolant with large coolant tank

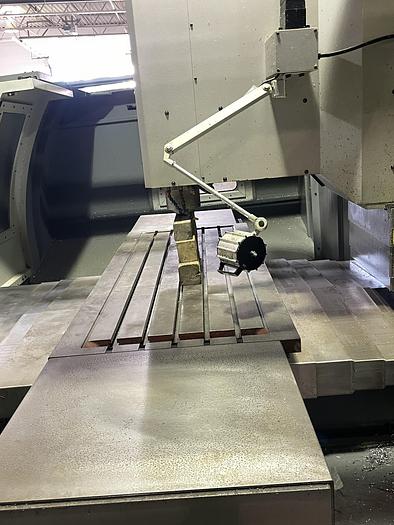

* Work light

* Operator call lamp (red, yellow, green)

* Spindle load meter

* Assembly and operation tools

* Auto Power Off

* Instruction manual, parts list, and electrical diagram

* Fanuc operator and maintenance manuals

* One-year Parts warranty: Parts and Labor

* Two-year NC Control Warranty: Parts and Labor


SPECIFICATIONS:


TRAVEL: X Axis Travel 67”

Y Axis Travel 33.5” in.

Z Axis Travel 28” in.

Distance from Spindle Nose to Table 3.9” – 31.9”

Distance from Spindle Center to Column 34”


TABLE:

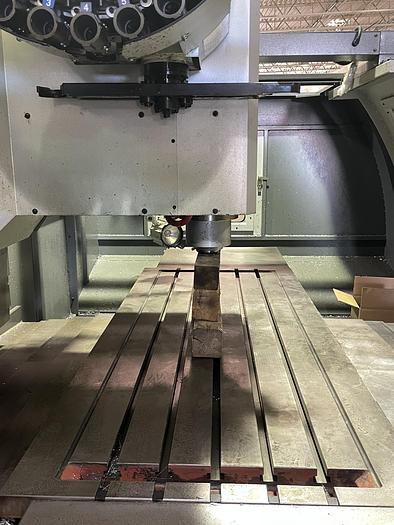

Table Dimension 72” x 30”

Max Table Load 3,300 lbs.

T- Slots, width x spacing x # slots .708” x 3.937” x 5

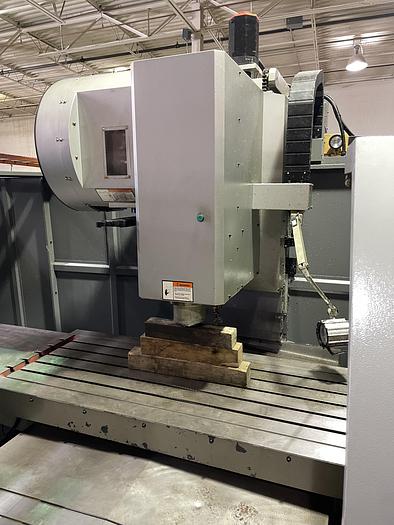

SPINDLE:

Spindle Speed 10,000 RPM

Spindle Motor, Max/Cont. 20 / 15

Spindle Taper Type CAT 40 Big Plus

Spindle Torque (30 min)132 ft.-lbs.

Spindle Driving Method Belt Drive


AUTO TOOL CHANGER:

ATC Type Twin Arm Type

Tool Shank CAT 40

Pull Stud P – 40T (45 Deg.)

Tool Storage Capacity24

Max. Tool Dia. 3.15”

Max Tool Diameter (no adjacent tool)5.9”

Max Tool Length11.8”

Max Tool Weight15.4 lbs.

Tool Change Time TOOL – TOOL 2.5 sec.

Tool Change Time CHIP – CHIP 7 sec.

Tool SelectionRandom Bi-Directional Type


FEEDRATE:

Rapid Traverse Feedrate 787 IPM All Axes

Cutting Feedrate 393 IPM

Least Command Increment .001 mm

Positioning Accuracy .00020”

Repeatability .00008”

Slide Type Box Ways


POWER:

Air Source Requirement 85 – 115 PSI (3/8 ID Supply Hose)

Standard Power Source220V, 60HZ, 3 Phase +/- 10%

Power Capacity 100 Amps


MACHINE:

Floor Plan (W X D) 209” X 111”

Height 111”

Machine Weight 18,500 lbs.


* Geometric accuracies are guaranteed only if machine is installed on foundation

meeting the minimum requirements of the machine and local building codes. Contact

Bulova Technologies Machinery LLC for the current machine requirements.


FOB TRUCK, 300 EAST SECOND STREET, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerBULOVA
ModelVMC-6733B
Year2018
ConditionUsed
Serial Number4214700501
Stock Number104841
