BRAND NEW KAWASAKI RS010N WITH F60 CONTROLLER, CABLES, TEACH PENDANT, AND 14 MONTH WARRANTY

1- BRAND NEW KAWASAKI MODEL RS010N

WITH F60 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104932

 ======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.

ROBOT SPECIFICATIONS:

PAYLOAD: 10KG

MAX. REACH: 1450MM

ROBOT CATEGORY: GENERAL PURPOSE ROBOTS (3-80KG PAYLOAD)

MOUNTING: FLOOR, CEILING

ROBOT SERIES: R SERIES

POSITIONAL REPEATABILITY: 0.03MM

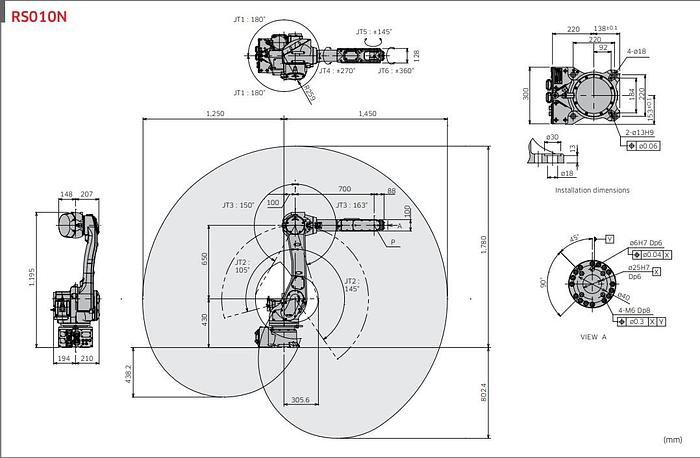

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +145 - –105

ARM UP-DOWN (JT3): +150 - –163

WRIST SWIVEL (JT4): ±270

WRIST BEND (JT5): ±145

WRIST TWIST (JT6): ±360

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 250

ARM OUT-IN (JT2): 250

ARM UP-DOWN (JT3): 215

WRIST SWIVEL (JT4): 365

WRIST BEND (JT5): 380

WRIST TWIST (JT6): 700

ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 22

WRIST BEND (JT5): 22

WRIST TWIST (JT6): 10

ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 0.7

WRIST BEND (JT5): 0.7

WRIST TWIST (JT6): 0.2

ROBOT MAXIMUM SPEED (MM/S)

11,800

ROBOT MASS (KG)

150

DEGREE OF PROTECTION

ROBOT WRIST: IP67

BASE AXES: IP65

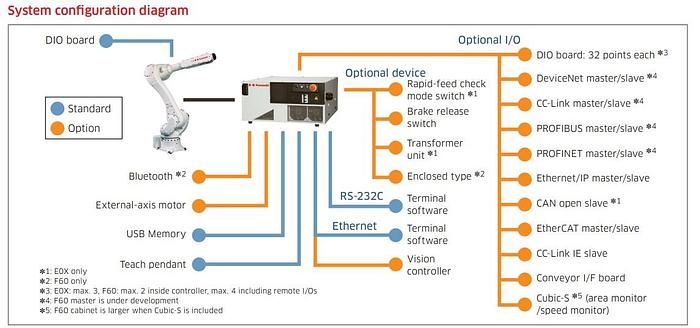

EQUIPPED WITH:

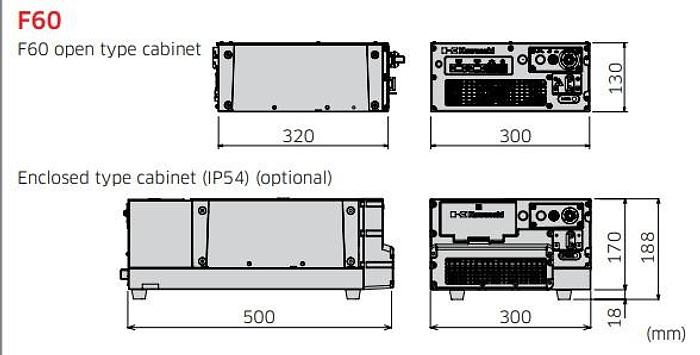

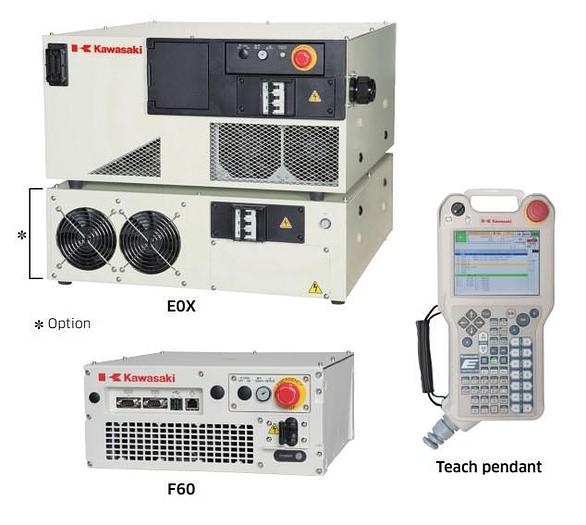

KAWASAKI ROBOTICS F60 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY

Kawasaki makes a wide array of Industrial Robots suited for a variety of applications. They

design and manufacture

fantastic products, and they have a great track record across their decades of work in

Robotics - and in many other areas. They use their own Industrial Robots to manufacture their

own Kawasaki Products, and some of the more well known products can be seen on your

favorite off road trails, or even on the freeway! Kawasaki is heavily involved in Wafer Handling

Robots, which is related to the Semi Conductor Industry. They also have Food and Medical

Grade Robots, Explosion Proof (Thank Goodness!) Painting Robots, Collaborative Robots,

Highly Flexible 7 Axis Robots, and Education Robots, too. Kawasaki has a strong presence in

the Automotive Industry, which one may expect from an Industrial Robot Manufacturer, but

they have their hands in a little bit of everything - sort of like we do at R.A.B. Industries.

Industrial Robots, Wafer Handling Robots, Internal Combustion Engines, everyone's favorite

Dirt Bikes, and even enormous Tunnel Boring Machines - They have the knowledge,

experience, and know-how that you would expect from such a successful, diverse, and well

known company. You will not be disappointed with your Kawasaki robot. They can be

programmed simply from the pendant - called block style programming, or from their offline

programming software, called K-Roset. They also interface with 3rd party offline

programming applications. Their internal programming language - called AS Language, is

similar to C+, and is very powerful!

DESCRIPTION:

Kawasaki’s R series robots are setting the benchmark for all small to medium duty

industrial robots. The compact design along with industry leading speed, reach, and work

range make the R series robots ideal for a wide range of applications in a multitude of

diverse industries.

Features:

High-speed operation

The light weight of the R series arm together with high output, high revolution motors provide industry leading

acceleration and high-speed operation. The acceleration rate automatically adjusts to suit the payload and robot

posture to deliver optimum performance and the shortest cycle times.

High torque:

High output motors combined with a rigid arm construction deliver superior wrist torque and load capacity. This

high torque rating lets system designers select from a broad range of end-of-arm tooling, as well as provides more

­flexibility when working with complex workpieces.

Wide work range:

In addition to extending the robot’s maximum reach, the rotation range of each axis has also been increased. The

extended motion range translates to a larger usable work area with minimal dead space and greater fl­exibility.

Environmental protection

The R series incorporates a double seal construction on all axes and water-resistant electrical connections, offering

an IP67 classification for the wrist and IP65 for the remaining axes. If a washdown arm is required, the entire

robot can be provided as IP67. (Except for the RS003N, RS005N and RS005L)

Integrated features:

Built-in pneumatic lines and internal wiring for sensors and solenoid valves are standard. Mounting pads and taps

are provided to allow the easy installation of additional cabling, tubing or equipment

=======================================
